HAFCO

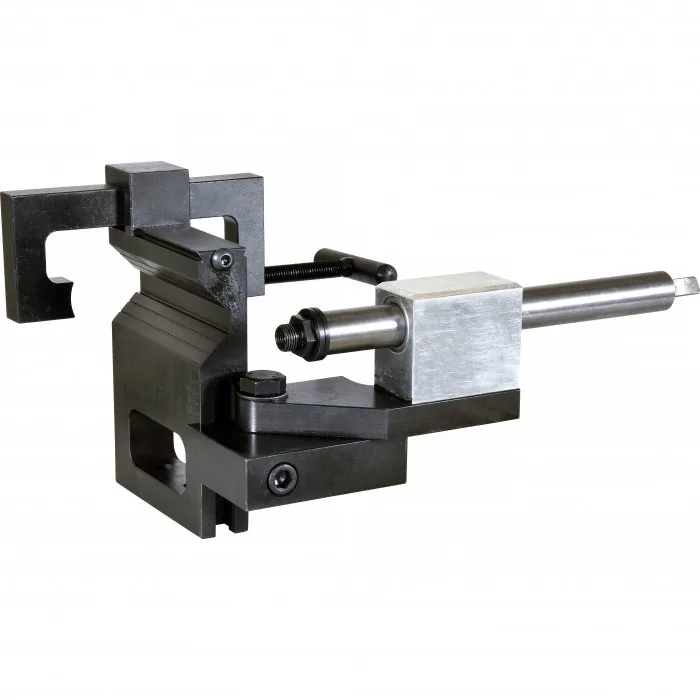

Offset Pipe & Tube Notcher — PNP-3/4-3″, Adjustable Cutting Angle Up To 50º
Part No: P092 | Barcode: 9344195269264 | Model: PNP-3/4-3″
HAFCO PNP-3/4-3″ Offset Pipe & Tube Notcher (Adjustable Cutting Angle Up To 50º). Accurately notches tubes and pipe from 0- 50º with the additional ability to offset the notch +/- 25mm from the centre line. Solid steel construction with needle roller bearing to ensure smooth operation Clamp in a vice or bolt to a…
Model PNP-3/4-3″
Adjustable Cutting Angle Up To 50º
Key Features & Benefits

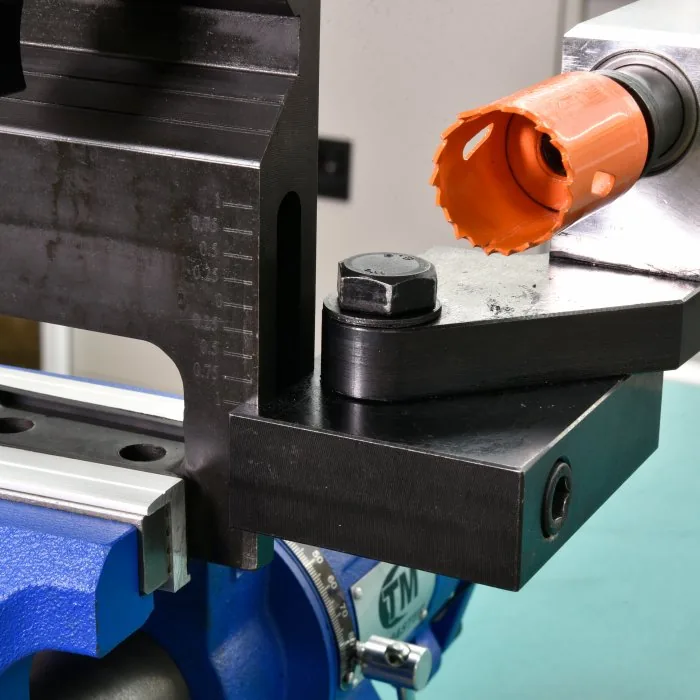

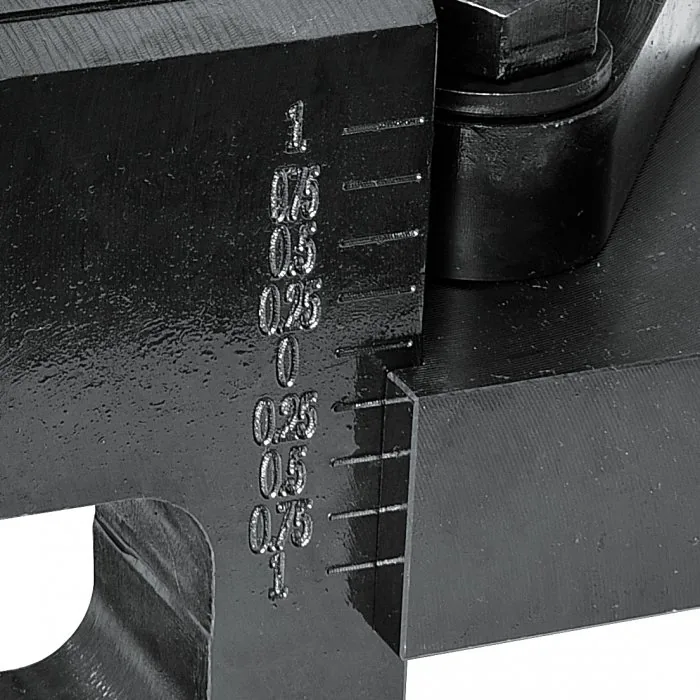

- The cutter centreline is height adjustable to accommodate a wide variety of workpieces

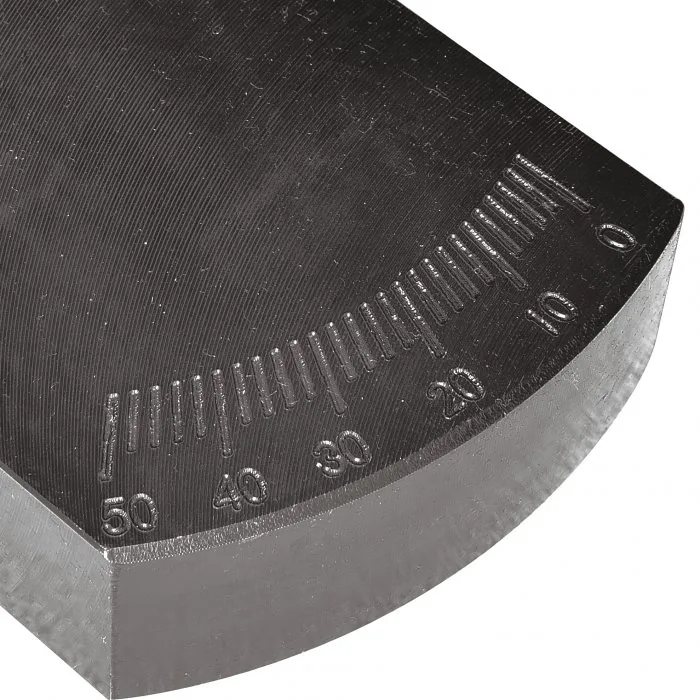

- Adjust cutting angle up to 50º
- Works with a 12mm chuck Power Drill

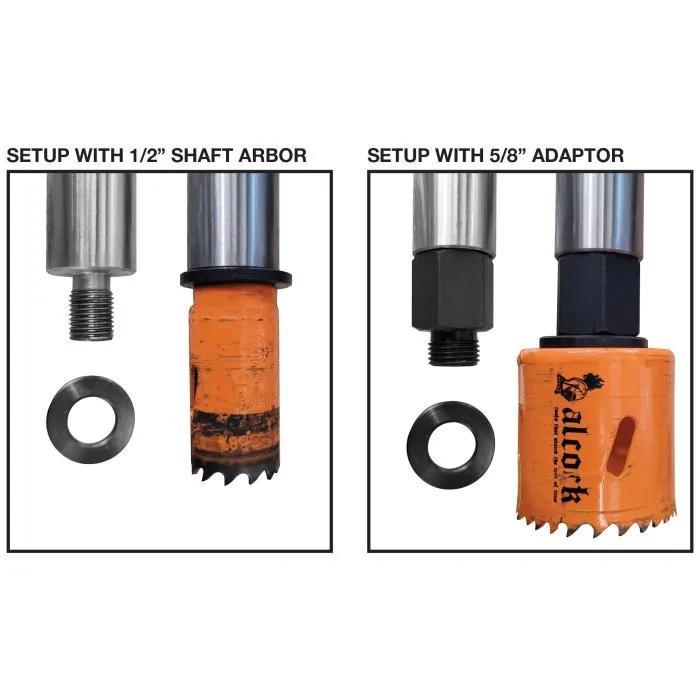

- Accepts hole saw thread sizes: 1/2” x 20tpi, 5/8” x 18tpi
- 25mm steel shaft
About This Product

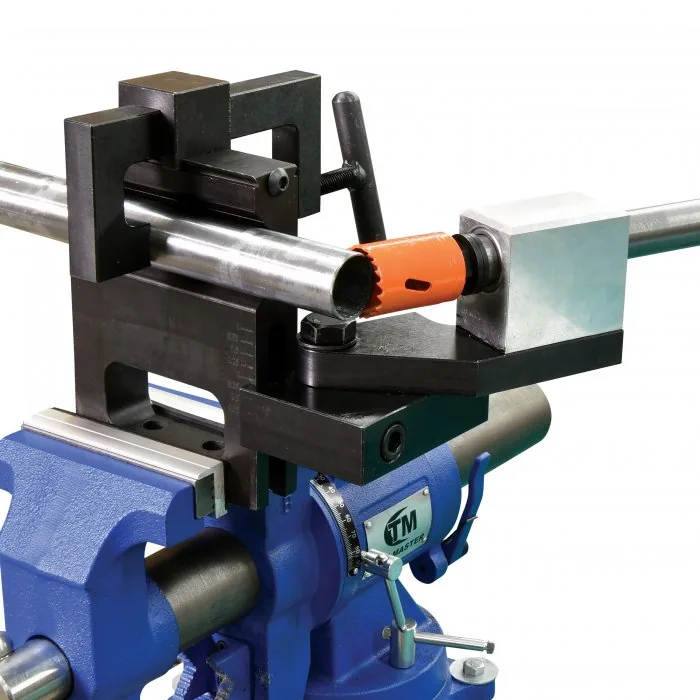

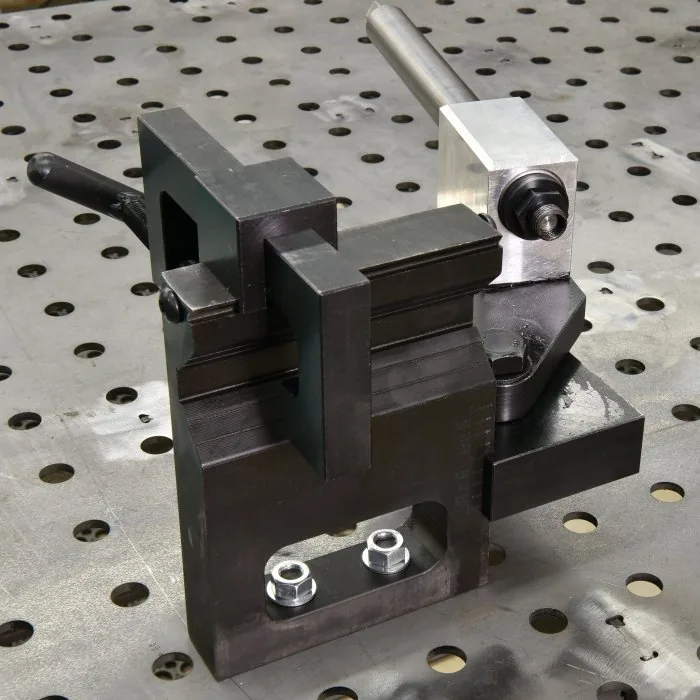

Accurately notches tubes and pipe from 0- 50º with the additional ability to offset the notch +/- 25mm from the centre line. Solid steel construction with needle roller bearing to ensure smooth operation Clamp in a vice or bolt to a table and use with any hand held drill Notch pipes and tubes with a OD from 19mm to 76.2mm (3/4-3″) This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code P092) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Machine (Type) | Pipe & Tube Notcher Attachment |
| Notching Cutter (Type) | Hole Saw (Optional) Thread 1/2″ x 20tpi, 5/8″ |
| Tube Capacity (OD) – Mild Steel (mm) | Ø25 – Ø75 |
| Angle Adjustment (Degree) | 0 – 50° |
| Dimensions ((mm)) | 280 x 180 x 100 |
| Nett Weight (kg) | 10 |
