METALMASTER

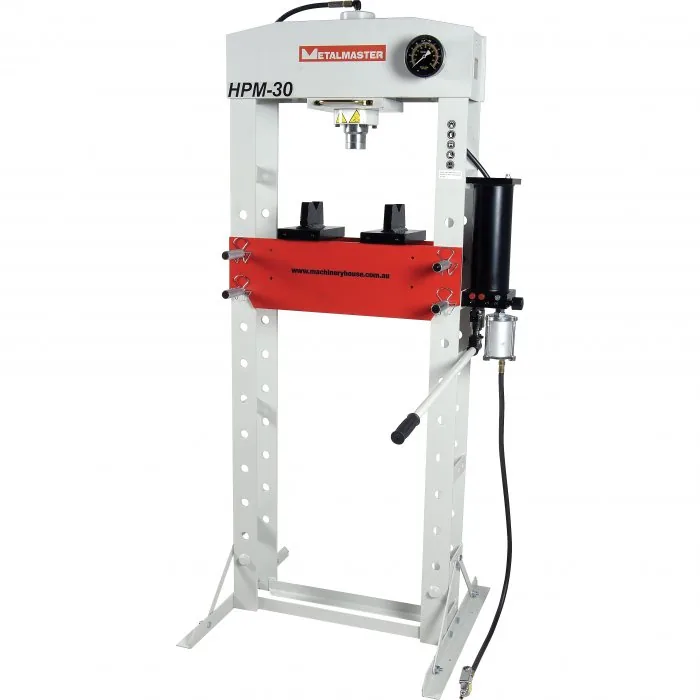

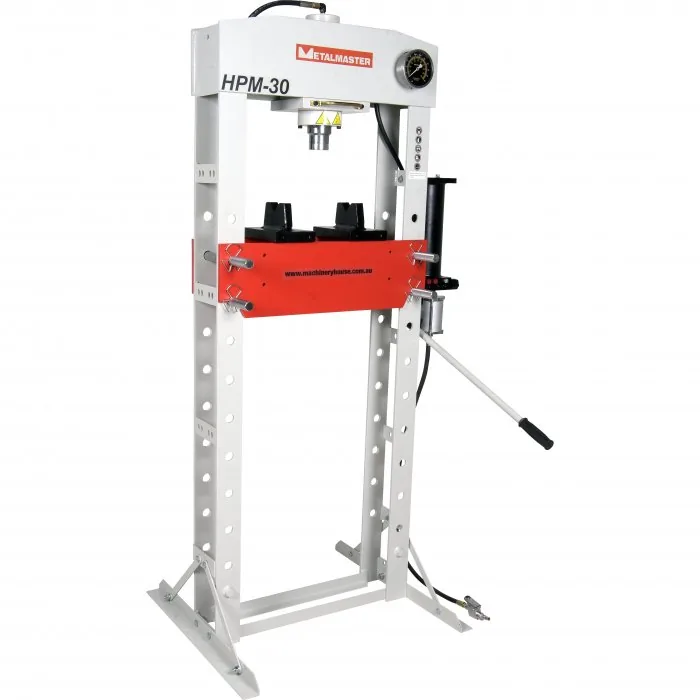

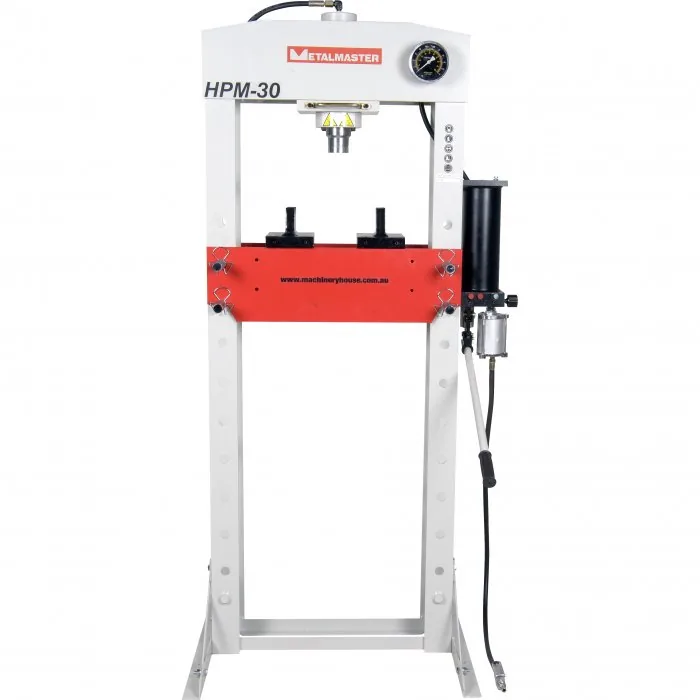

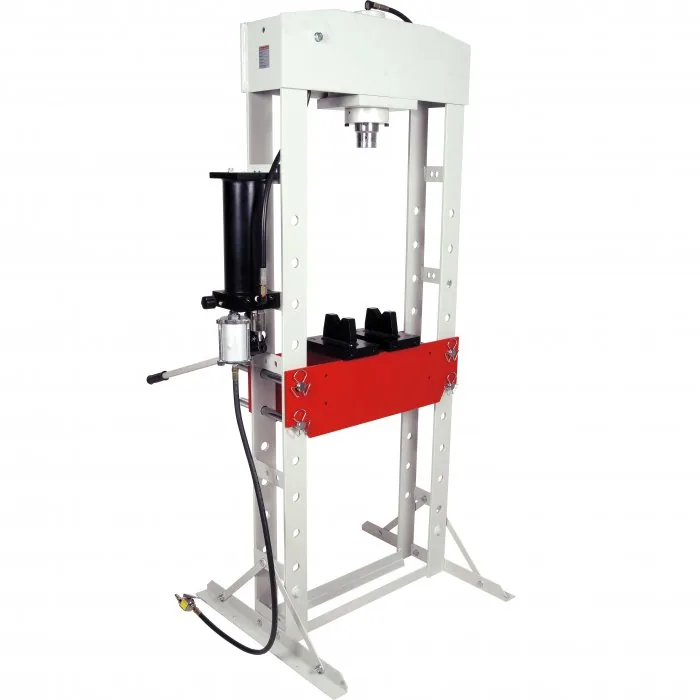

Trade Hydraulic & Pneumatic Press – 30 Tonne — HPM-30, Robotic Welded Steel Frame Construction Includes Adjustable Sliding Cylinder Ram, Pressure Gauge & Bending Vee Blocks
Part No: P130M | Barcode: 9344195027079 | Model: HPM-30
METALMASTER HPM-30 Trade Hydraulic & Pneumatic Press – 30 Tonne (Robotic Welded Steel Frame Construction Includes Adjustable Sliding Cylinder Ram, Pressure Gauge & Bending Vee Blocks). The Metalmaster HPM-30 30 tonne trade press has a variety of uses, ideal for removing and installing bushes, ball joints, bearings,…
Model HPM-30

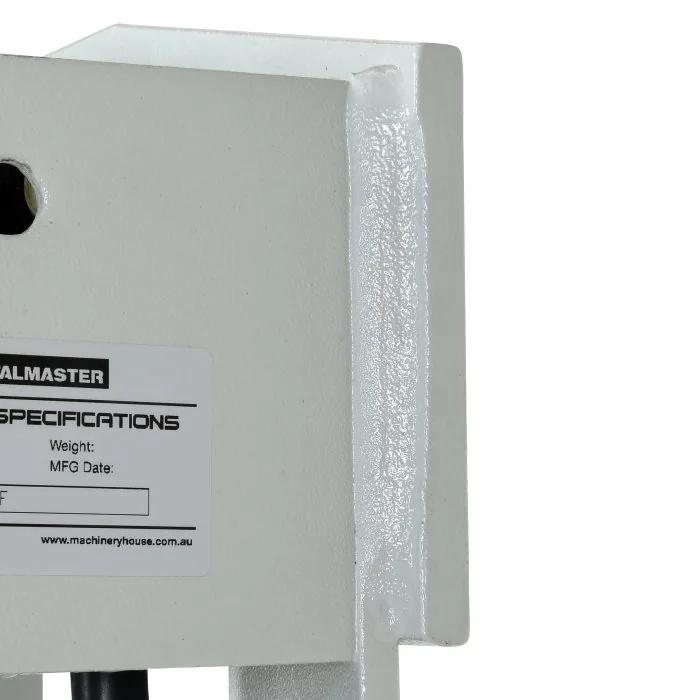

Robotic Welded Steel Frame Construction
Pressing Capacity: 30 Tonne
Ram To Table (Max.): 1035 mm
Cylinder Stroke: 155 mm
Key Features & Benefits
- Ideal for removing and installing – Bushing, Ball-joints, Bearings, Gears, Pulleys, etc

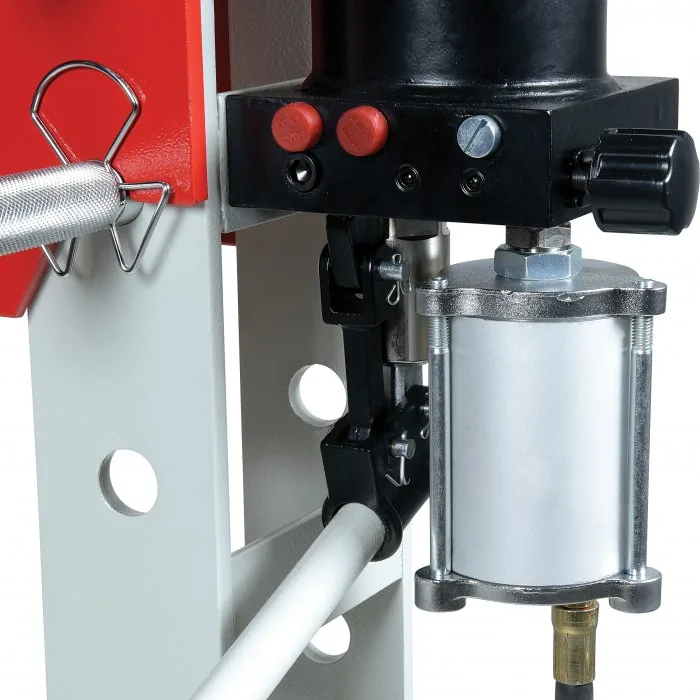

- Pneumatic or hand operation
- Heavy duty steel construction with robotic fully welded frame
- Hydraulics assembled in a temperature controlled clean room for maximum quality
- Hydraulics individually factory tested prior to shipping.

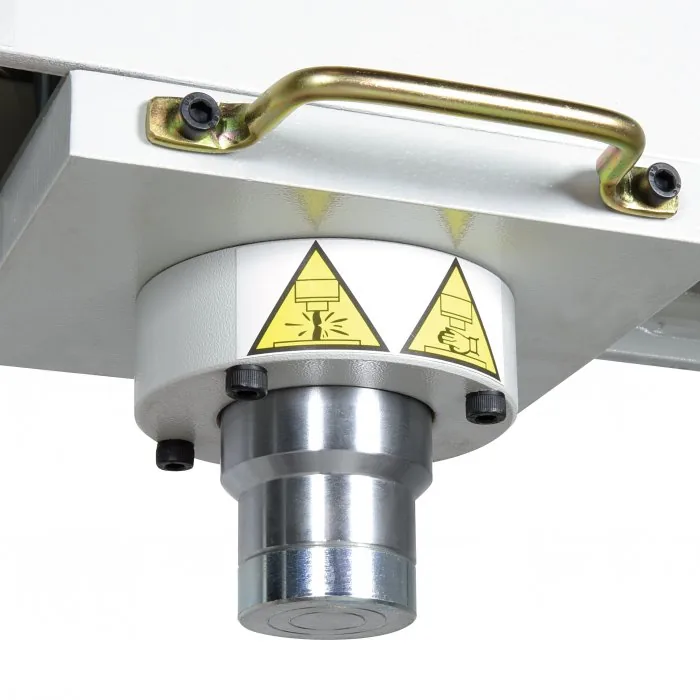

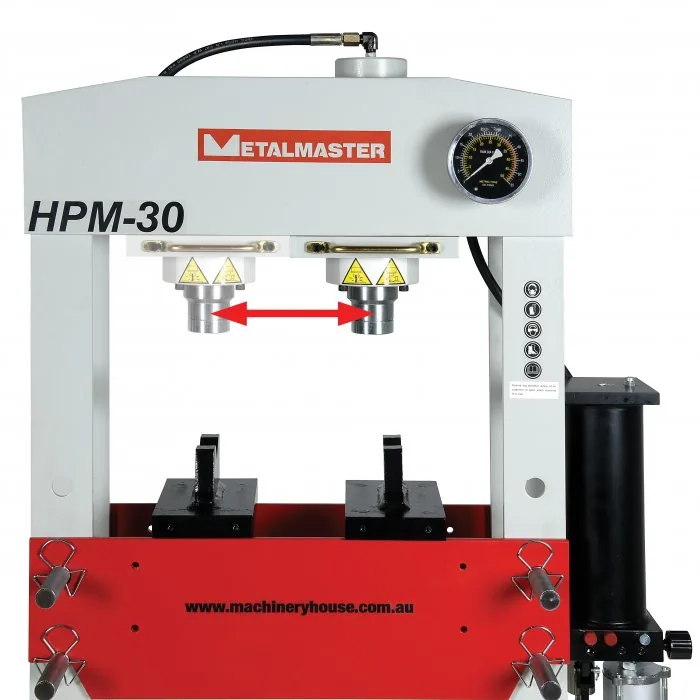

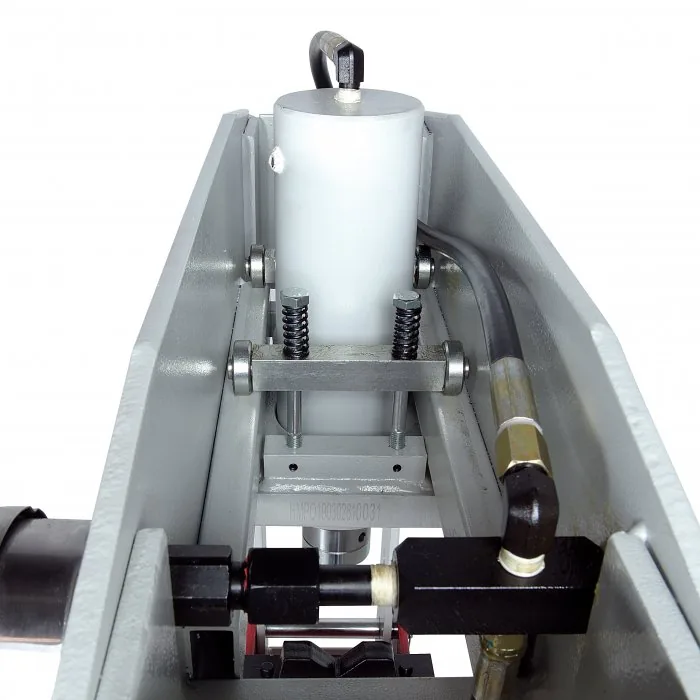

- Adjustable sliding head up to 200mm travel between the vertical post

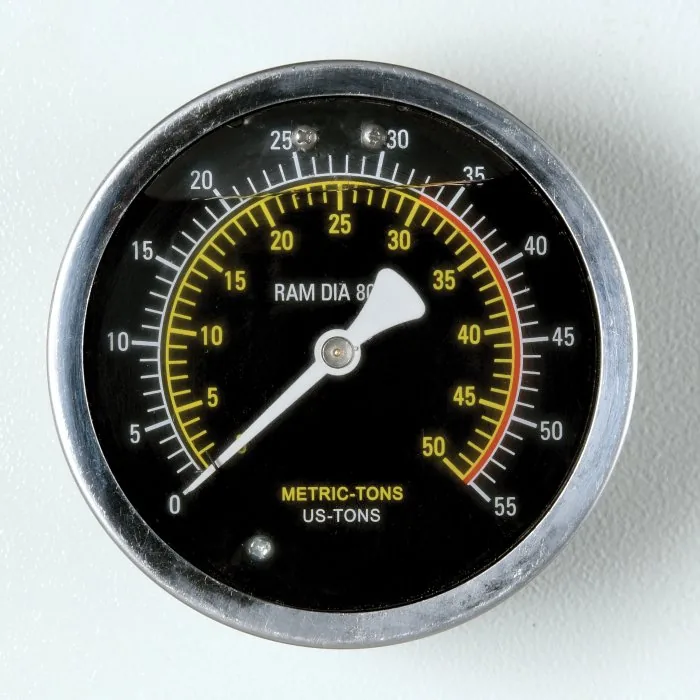

- Metric / imperial pressure gauge included

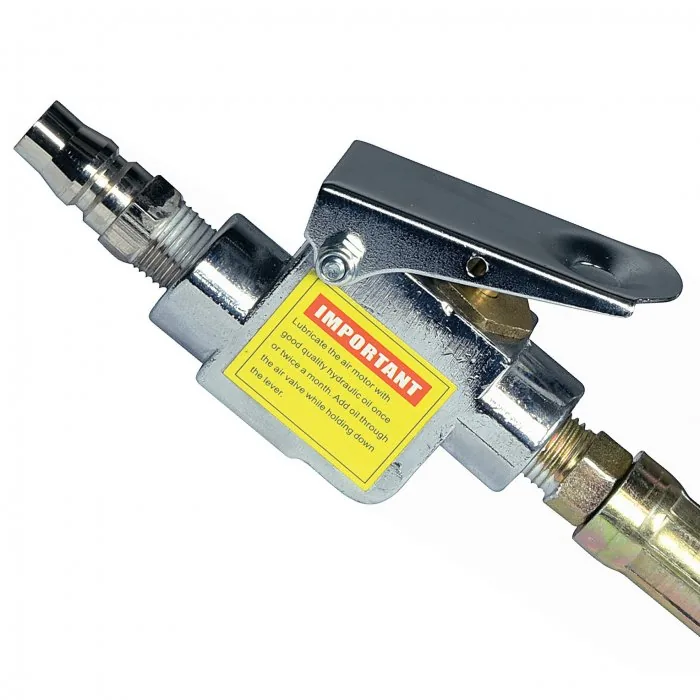

- NOTE: Minimum Air Flow Rate required is 200 liters/minute
About This Product
The Metalmaster HPM-30 30 tonne trade press has a variety of uses, ideal for removing and installing bushes, ball joints, bearings, gears, pulleys etc. The HPM-30 is pneumatically or hand operated for easy use and also has the added feature of a sliding head which can be moved to the side allowing for those offset pressing jobs. This 30 tonne press has a fully robotic welded frame for the highest quality, accuracy and extra rigidity. The press is supplied with a pressure gauge, two heavy duty pressing plates, and can be fitted with an optional pneumatic foot pedal, making it ideal for mechanics, farmers or the serious home workshop. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code P130M) for collection in store.
In the Box

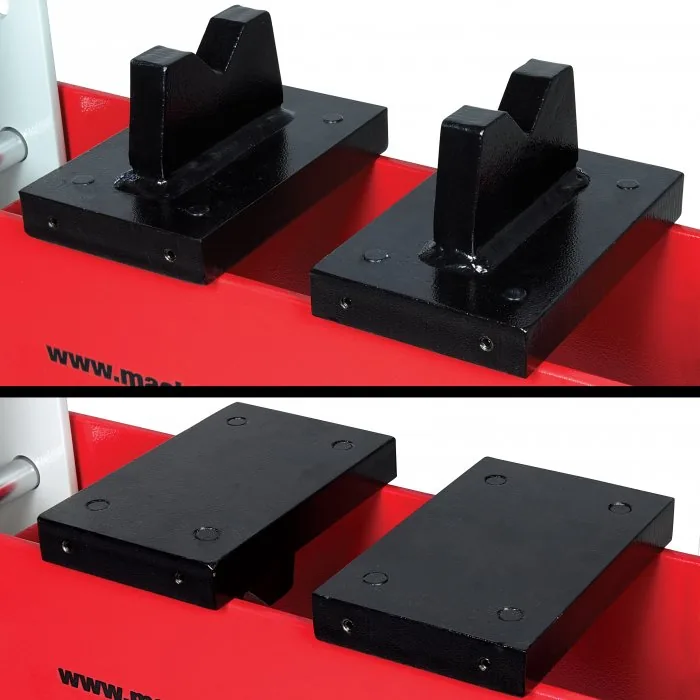

- Complete with vee blocks
Product Specifications
| Specification | Detail |
|---|---|
| Pressing Capacity (Tonne) | 30 |
| Hydraulic Ram Operation (Type) | Manual Hand Lever / Pneumatic System |
| Sliding Ram (left-right) (Yes / No) | Yes |
| Width Between Front Posts (mm) | 535 |
| Width Between Side Posts (mm) | 138 |
| Table Top Opening – (Front to Back) (mm) | 160 |
| Ram To Table (Max.) (mm) | 1035 |
| Cylinder Stroke (mm) | 155 |
| Ram Diameter (mm) | Ø70 |
| Piston Diameter (mm) | Ø80 |
| Minimum Air Flow Rate required (L/Min) | 200 |
| Floor Space (W x D x H) (mm) | 950 x 700 x 1800 |
| Nett Weight (kg) | 200 |
