METALMASTER

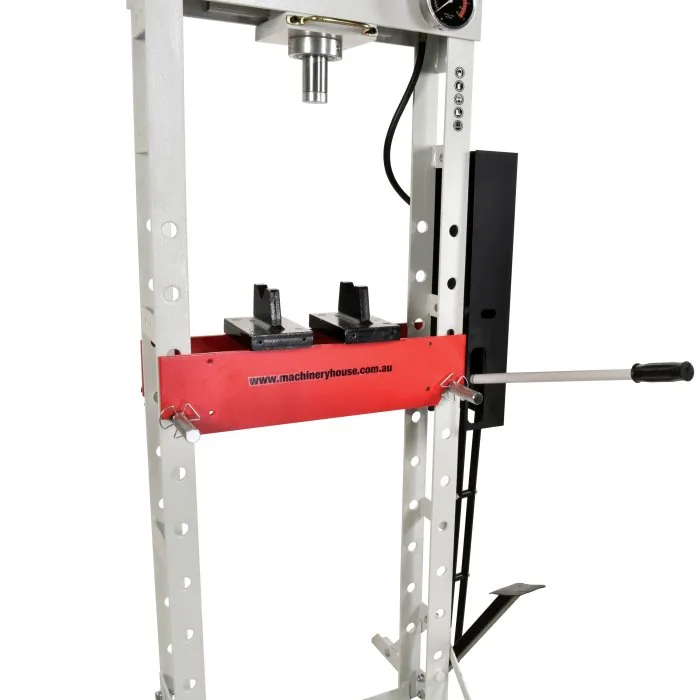

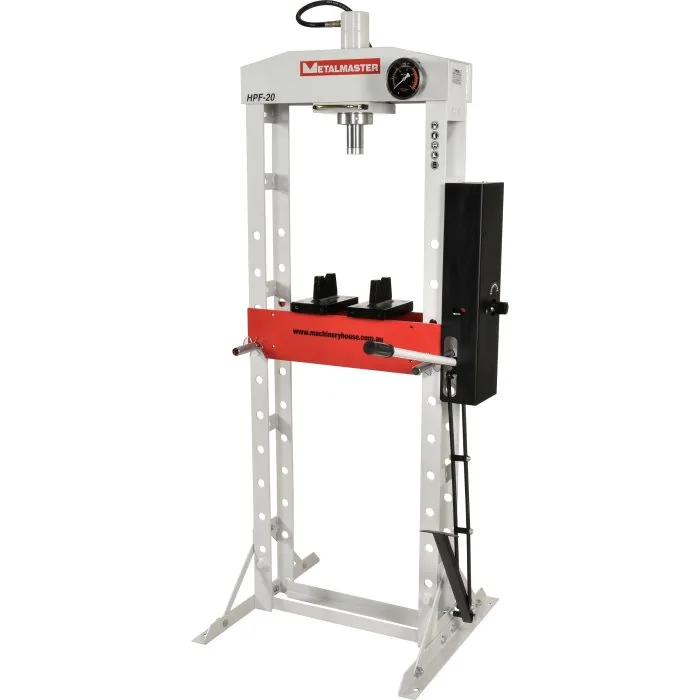

Trade Hydraulic Press – 20 Tonne — HPF-20, Robotic Welded Steel Frame Construction Includes Adjustable Sliding Cylinder Ram, Foot & Hand Operated Pump, Pressure Gauge & Bending Vee Blocks
Part No: P150 | Barcode: 9344195237768 | Model: HPF-20
METALMASTER HPF-20 Trade Hydraulic Press – 20 Tonne (Robotic Welded Steel Frame Construction Includes Adjustable Sliding Cylinder Ram, Foot & Hand Operated Pump, Pressure Gauge & Bending Vee Blocks). The Metalmaster HPF-20 20 trade press has a variety of uses, ideal for removing and installing bushes, ball joints,…
Model HPF-20
Robotic Welded Steel Frame Construction
Pressing Capacity: 20 Tonne
Ram To Table (Max.): 1118 mm
Cylinder Stroke: 150 mm
Key Features & Benefits
- Ideal for removing and installing – Bushing, Ball-joints, Bearings, Gears, Pulleys, etc

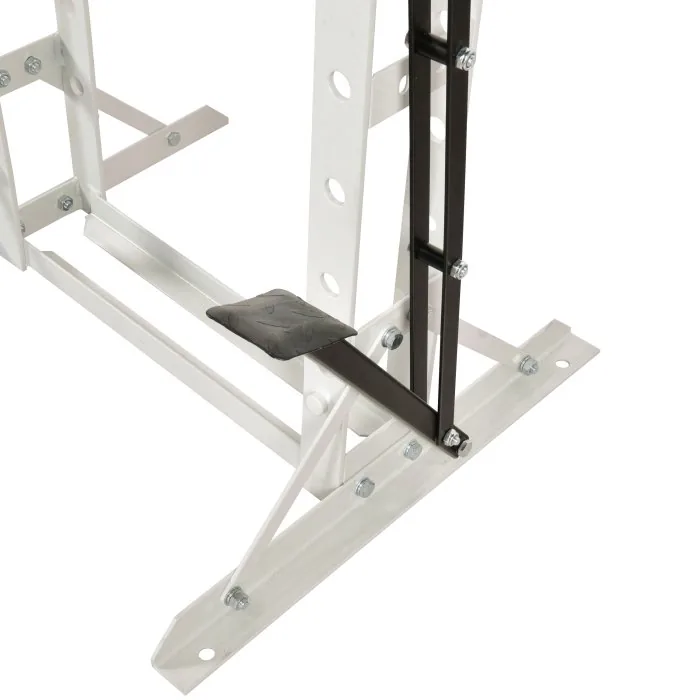

- Foot or hand operated pump
- Heavy duty steel construction with robotic welded frame
- Hydraulics assembled in a temperature controlled clean room for maximum quality
- Hydraulics individually factory tested prior to shipping.

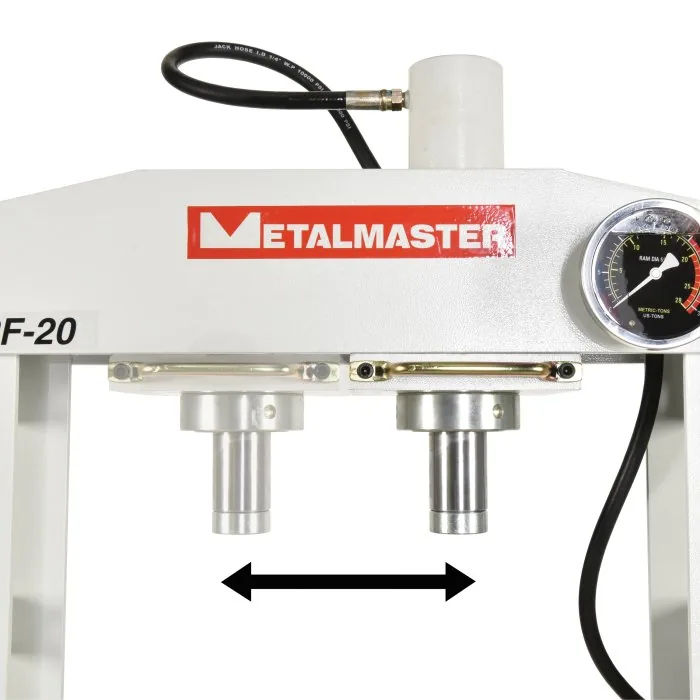

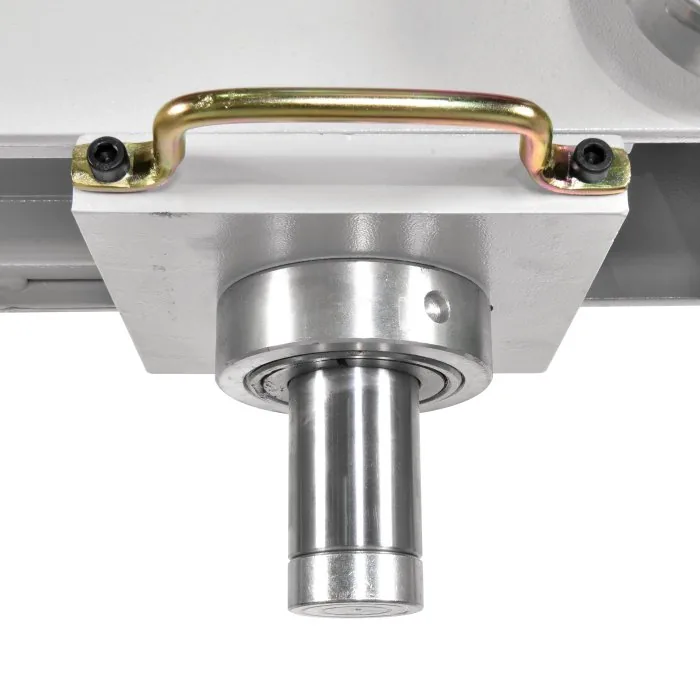

- Adjustable sliding head up to 175mm travel between the vertical post

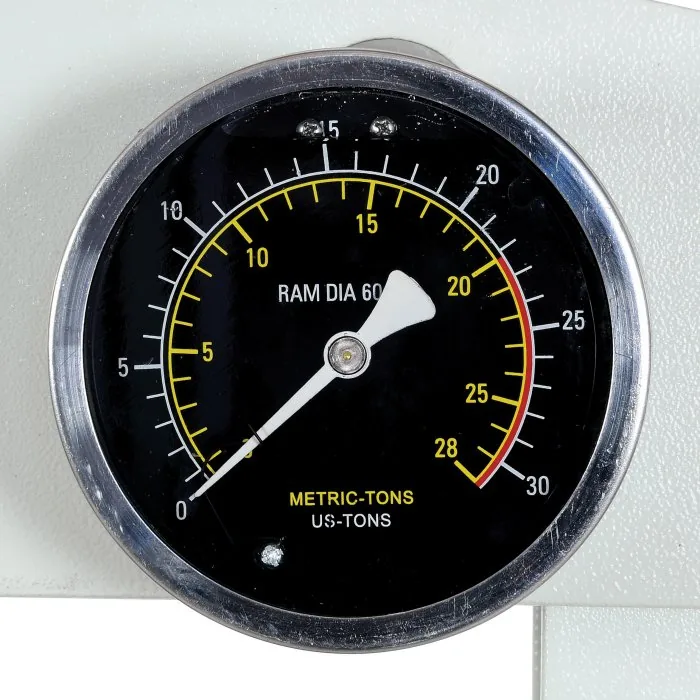

- Metric / imperial pressure gauge included
About This Product
The Metalmaster HPF-20 20 trade press has a variety of uses, ideal for removing and installing bushes, ball joints, bearings, gears, pulleys etc. The HPF-20 includes a convenient hand or foot operated pump that allows you to have both hands on your job when operating the foot pump. This 20 tonne press has a fully robotic welded frame for the highest quality, accuracy and provides extra rigidity; and is a step above the other standard versions that’s found in today’s market. The HPF-20 press is supplied with a pressure gauge & two heavy duty pressing plates, making it ideal for mechanics or the serious home workshop. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code P150) for collection in store.
In the Box

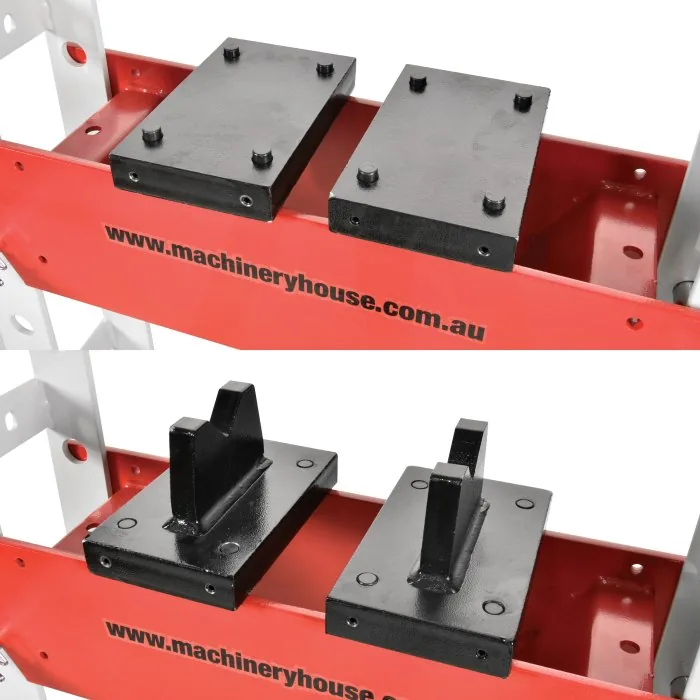

- Complete with vee blocks
Product Specifications
| Specification | Detail |
|---|---|
| Pressing Capacity (Tonne) | 20 |
| Hydraulic Ram Operation (Type) | Manual Hand Lever / Foot Pedal System |
| Sliding Ram (left-right) (Yes / No) | Yes |
| Width Between Front Posts (mm) | 510 |
| Width Between Side Posts (mm) | 132 |
| Table Top Opening – (Front to Back) (mm) | 152 |
| Ram To Table (Max.) (mm) | 1118 |
| Cylinder Stroke (mm) | 150 |
| Ram Diameter (mm) | Ø48 |
| Piston Diameter (mm) | Ø60 |
| Floor Space (W x D x H) (mm) | 1000 x 800 x 1830 |
| Nett Weight (kg) | 147 |
