METALMASTER

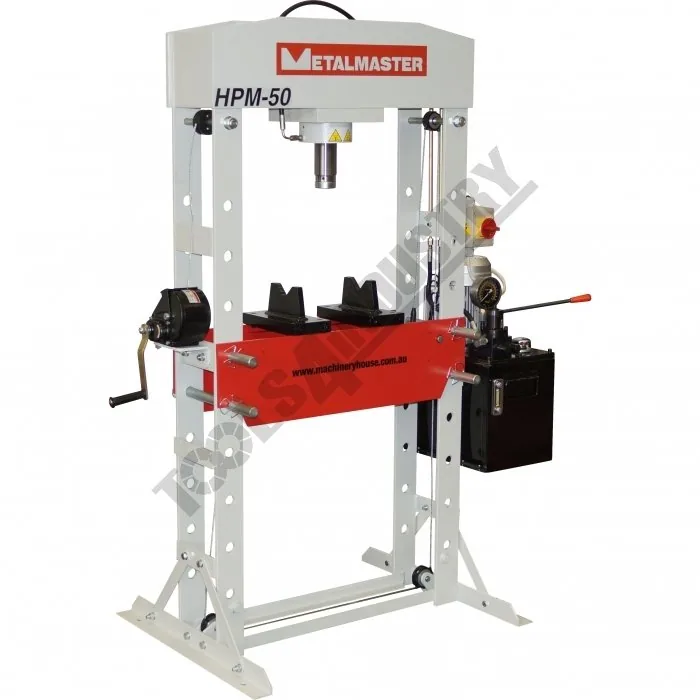

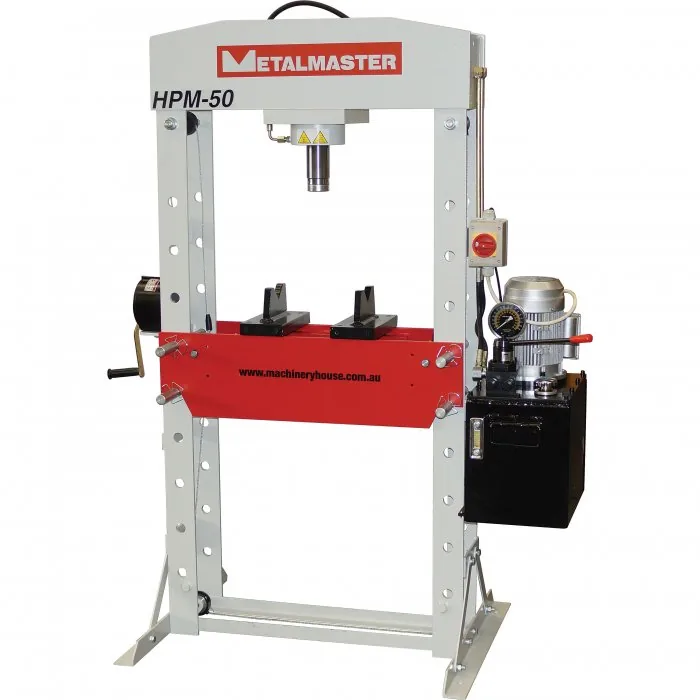

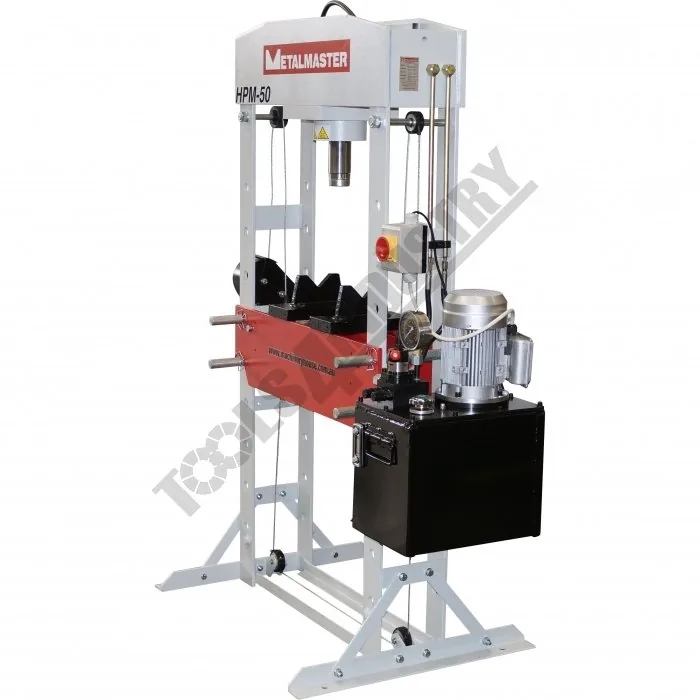

Industrial Motorised Hydraulic Press – 50 Tonne — HPM-50, Robotic Welded Steel Frame Construction Includes Adjustable Sliding Cylinder Ram, Table Winch System, Pressure Gauge & Bending Vee Blocks
Part No: P131M | Barcode: 9344195027086 | Model: HPM-50
METALMASTER HPM-50 Industrial Motorised Hydraulic Press – 50 Tonne (Robotic Welded Steel Frame Construction Includes Adjustable Sliding Cylinder Ram, Table Winch System, Pressure Gauge & Bending Vee Blocks). The Metalmaster HPM-50 50 tonne trade press has a variety of uses, ideal for removing and installing bushes,…
Model HPM-50
Robotic Welded Steel Frame Construction
Pressing Capacity: 50 Tonne
Ram To Table (Max.): 1050 mm
Cylinder Stroke: 200 mm
Motor Power: 1.5 / 2
Voltage: 240 V
Key Features & Benefits

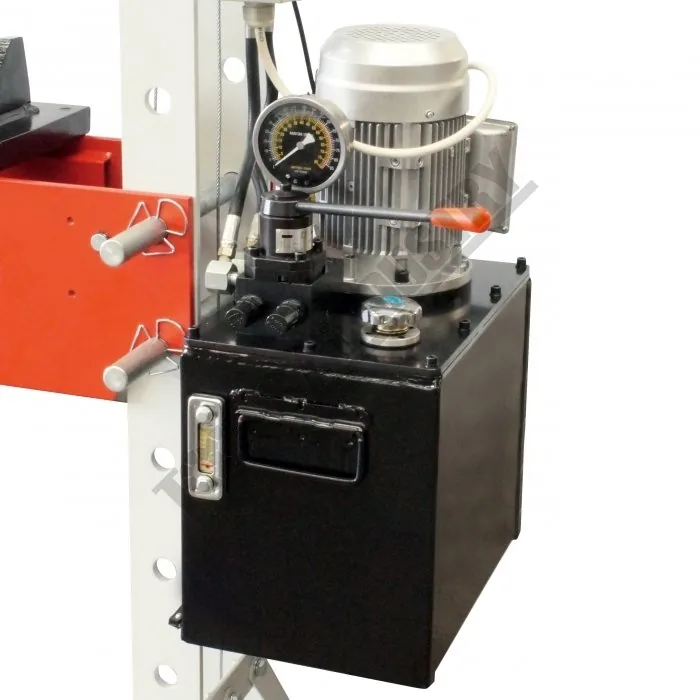

- Electric hydraulic system with powerful 2 hp TEFC motor
- Strong hydraulic cylinder ensures precise pressing during operation
- Hydraulics assembled in a temperature controlled clean room for maximum quality
- Hydraulics individually factory tested prior to shipping

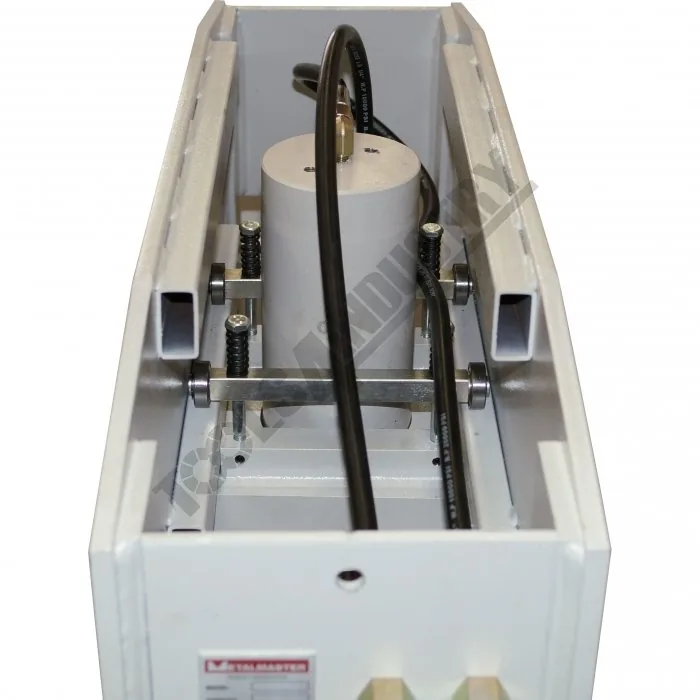

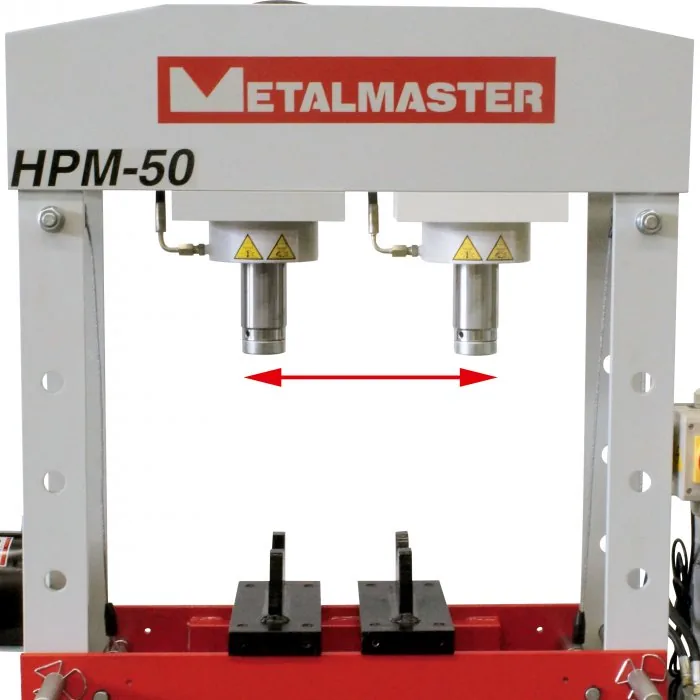

- 235mm Adjustable horizontal ram position

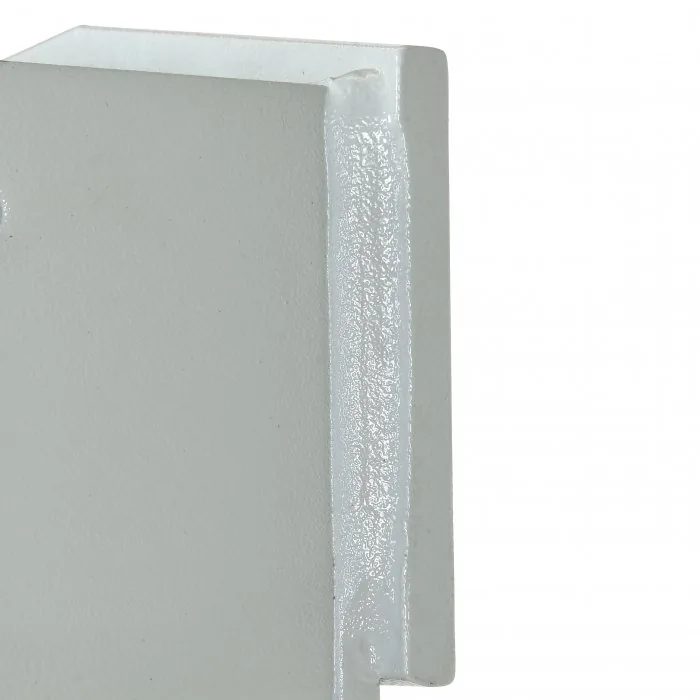

- Heavy duty robotic welded steel fabricated frame

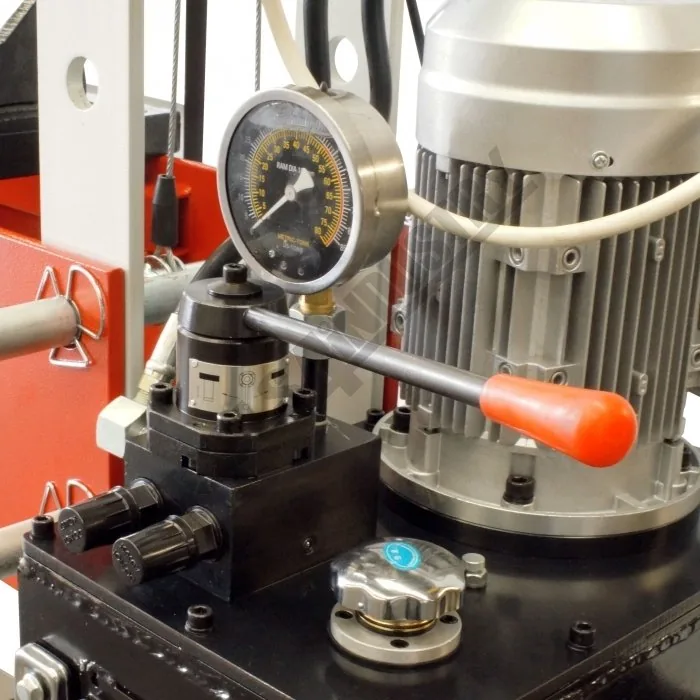

- Hydraulic joystick control lever

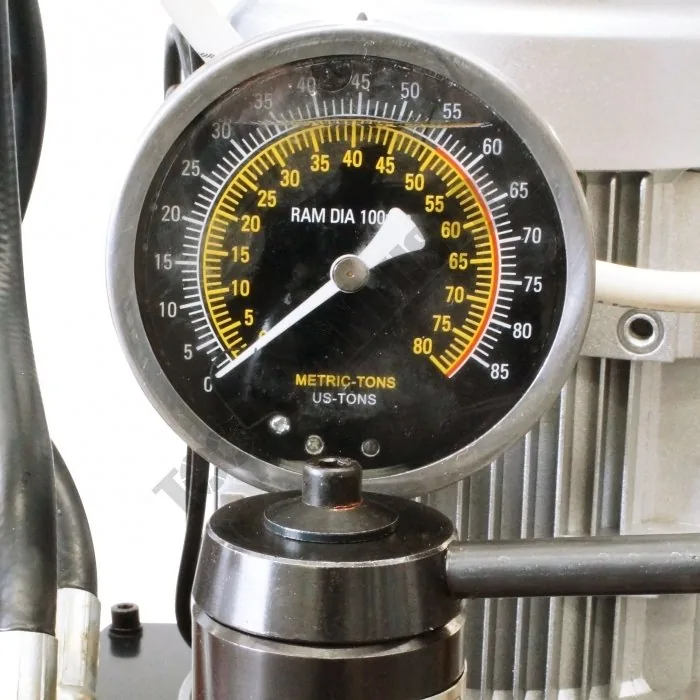

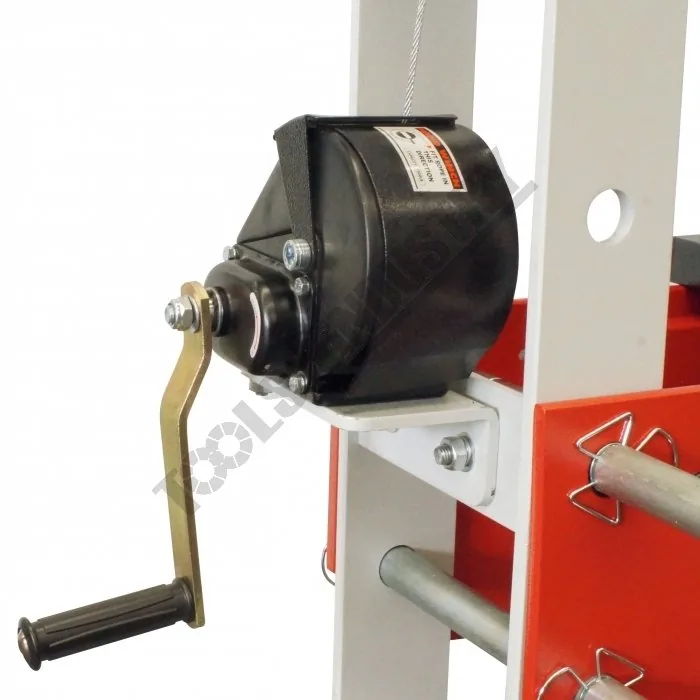

- Fitted with table height winch & metric / imperial pressure gauge
About This Product
The Metalmaster HPM-50 50 tonne trade press has a variety of uses, ideal for removing and installing bushes, ball joints, bearings, gears, pulleys etc. The HPM-50 is 240 volt electric hydraulic operated for easy of use and also has the added feature of a sliding head which can be moved to the side allowing for those offset pressing jobs. This 50 tonne press has a fully robotic welded frame for the highest quality, accuracy and extra rigidity. The press is supplied with a pressure gauge, two heavy duty pressing plates, making it ideal for professional mechanics or industrial workshops. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code P131M) for collection in store.
In the Box

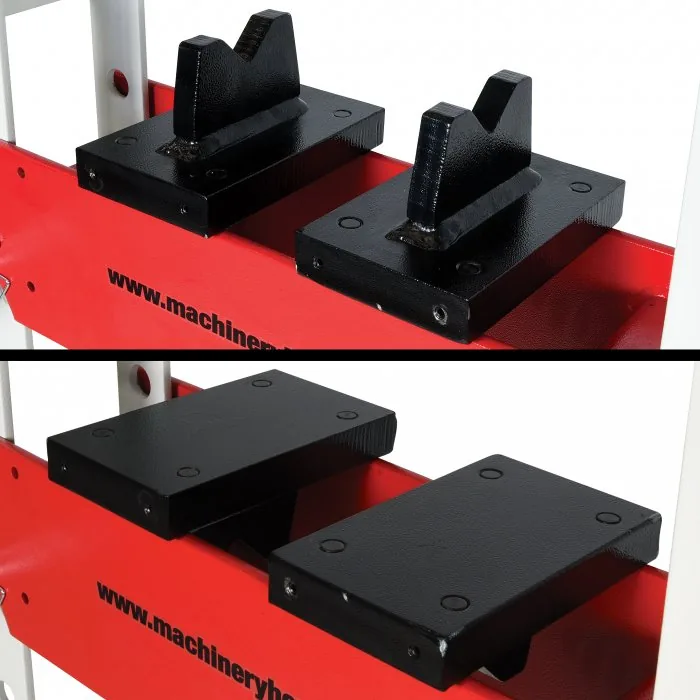

- Complete with vee blocks
- Hydraulic oil
Product Specifications
| Specification | Detail |
|---|---|
| Pressing Capacity (Tonne) | 50 |
| Hydraulic Ram Operation (Type) | Motorised System |
| Sliding Ram (left-right) (Yes / No) | Yes |
| Width Between Front Posts (mm) | 730 |
| Width Between Side Posts (mm) | 205 |
| Table Top Opening – (Front to Back) (mm) | 185 |
| Ram To Table (Max.) (mm) | 1050 |
| Cylinder Stroke (mm) | 200 |
| Ram Diameter (mm) | Ø75 |
| Motor Power (kW / hp) | 1.5 / 2 |
| Voltage (V) | 240 |
| Floor Space (W x D x H) (mm) | 1530 x 800 x 1840 |
| Nett Weight (kg) | 409 |
