METALMASTER
75T Hydraulic & Pneumatic Press — HPM-75P, Robotic Welded Steel Frame Construction Includes Adjustable Sliding Cylinder Ram, Pressure Gauge & Bending Vee Blocks
Part No: P154 | Barcode: 9344195312601 | Model: HPM-75P

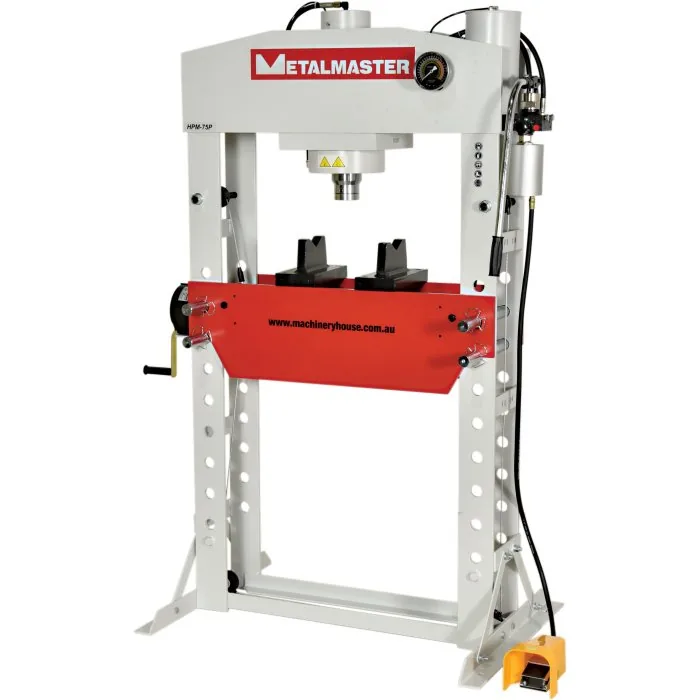

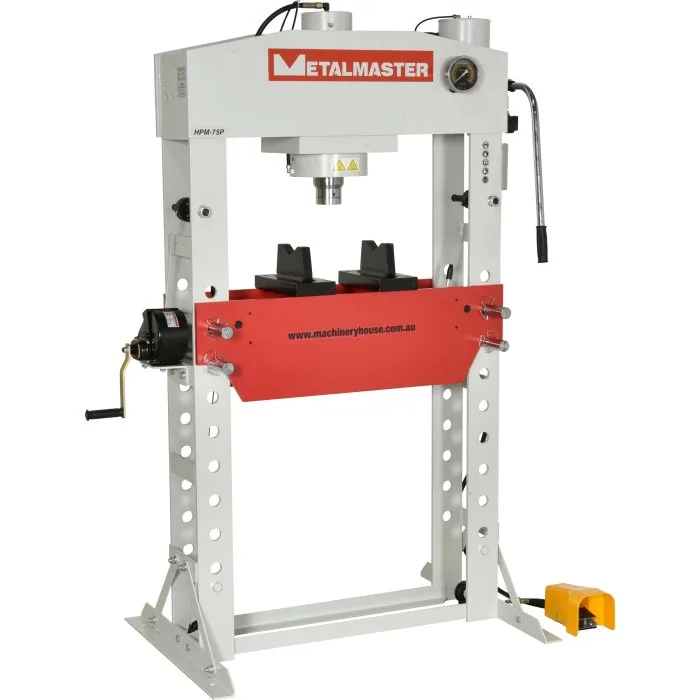

METALMASTER HPM-75P 75T Hydraulic & Pneumatic Press (Robotic Welded Steel Frame Construction Includes Adjustable Sliding Cylinder Ram, Pressure Gauge & Bending Vee Blocks). The Metalmaster HPM-75P 75 tonne press has a variety of uses, ideal for removing and installing bushes, ball joints, bearings, gears, pulleys…
Model HPM-75P
Robotic Welded Steel Frame Construction
Pressing Capacity: 75 Tonne
Ram To Table (Max.): 884 mm
Cylinder Stroke: 250 mm
Key Features & Benefits
- Ideal for removing and installing – Bushing, Ball-joints, Bearings, Gears, Pulleys, etc

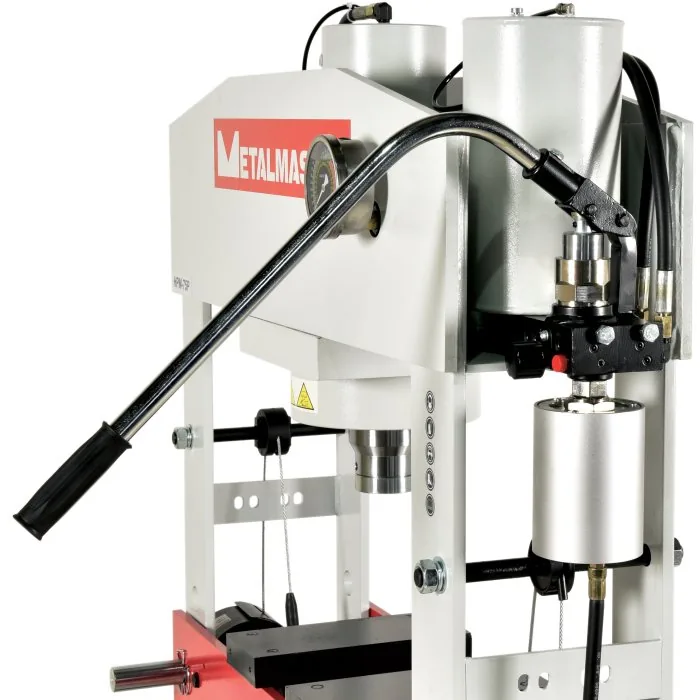

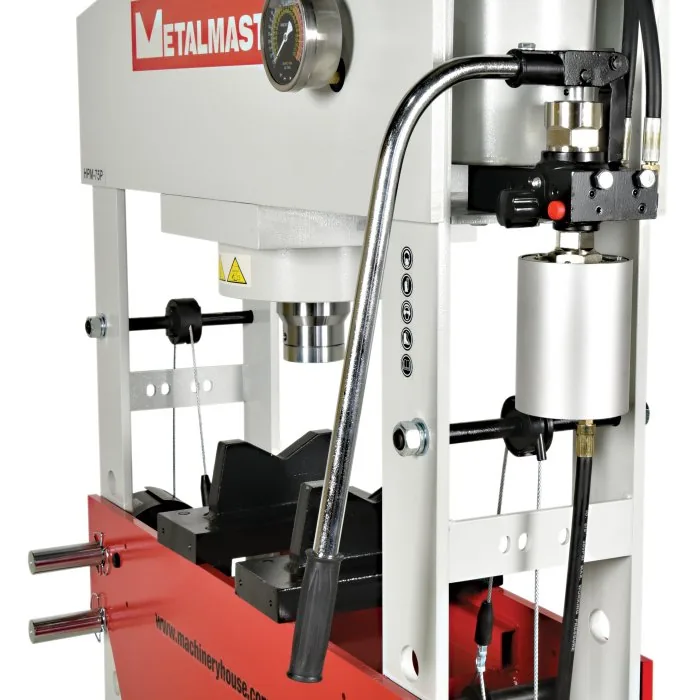

- Pneumatic or hand operation
- Heavy duty steel construction with robotic fully welded frame

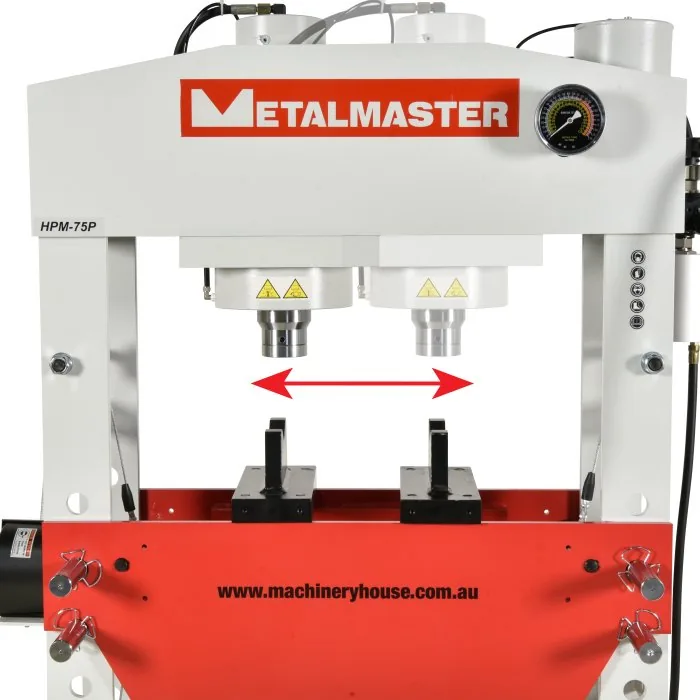

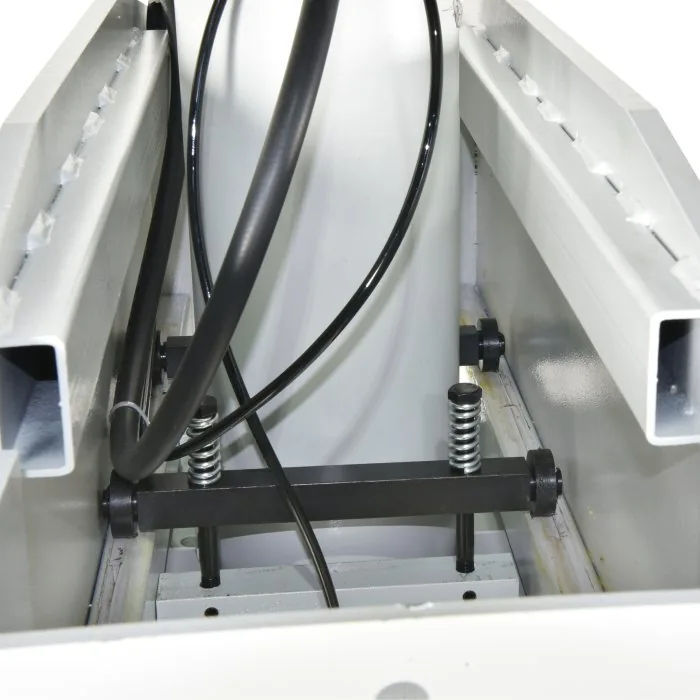

- Adjustable sliding head up to 255mm travel between the vertical post

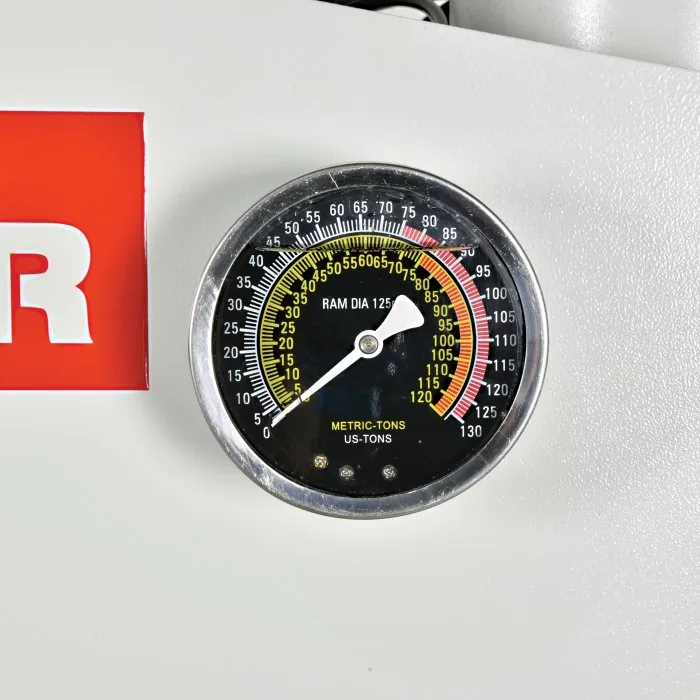

- Metric / imperial pressure gauge included

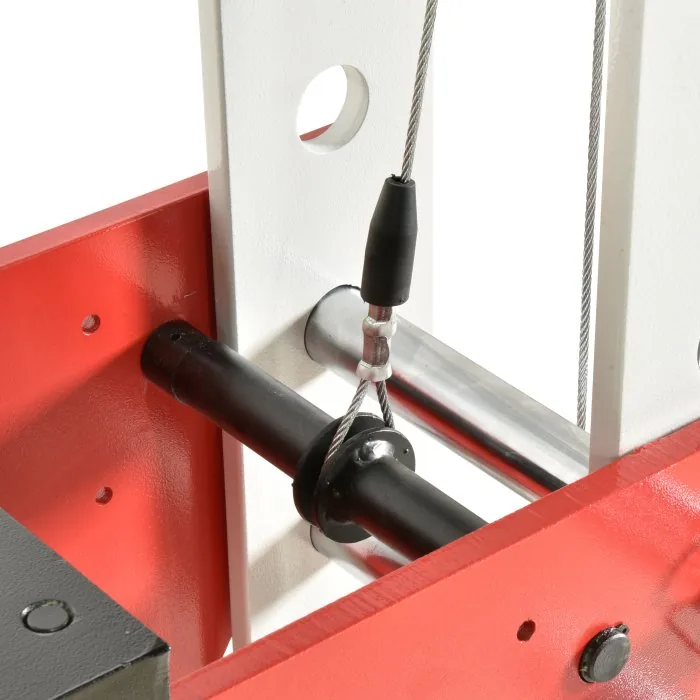

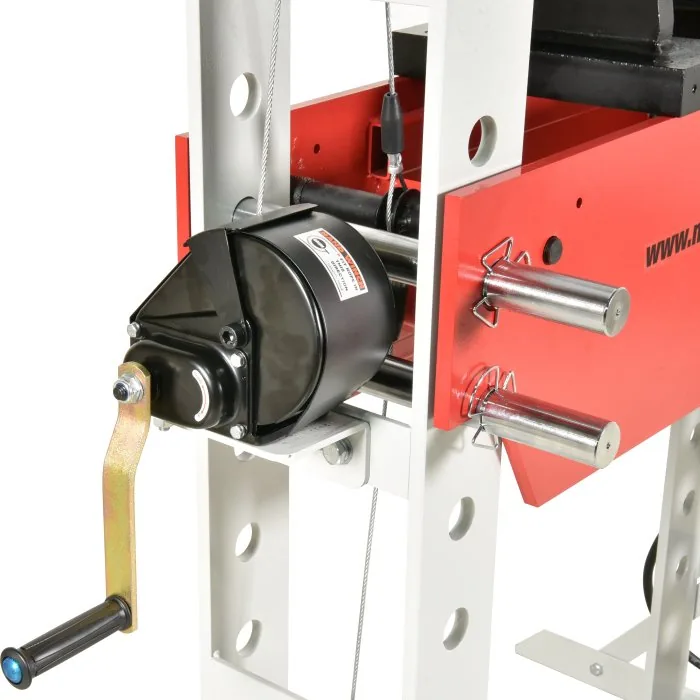

- Table height adjustment via a hand operated winch
- NOTE: Minimum Air Flow Rate required is 300 liters/minute
About This Product
The Metalmaster HPM-75P 75 tonne press has a variety of uses, ideal for removing and installing bushes, ball joints, bearings, gears, pulleys etc. The HPM-75P is pneumatically or hand operated for easy use and has the added feature of a sliding head which can be moved to the side allowing for those offset pressing jobs. This 75 tonne press has a fully robotic welded frame for the highest quality, accuracy, and extra rigidity. The hydraulics are assembled in a temperature controlled clean room along with being individually factory tested prior to shipping for maximum reliability & quality. The press is supplied with a pressure gauge, two heavy duty pressing plates, and is fitted with a pneumatic foot pedal, making it ideal for mechanics, farmers or the serious home workshop. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code P154) for collection in store.
In the Box

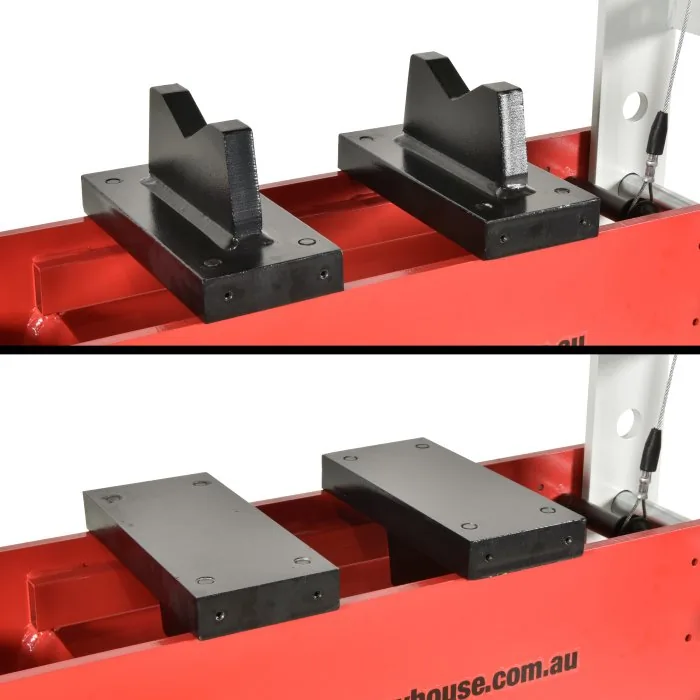

- Heavy duty vee blocks
Product Specifications
| Specification | Detail |
|---|---|
| Pressing Capacity (Tonne) | 75 |
| Hydraulic Ram Operation (Type) | Hydraulic & Pneumatic |
| Sliding Ram (left-right) (Yes / No) | Yes |
| Width Between Front Posts (mm) | 800 |
| Width Between Side Posts (mm) | 215 |
| Table Top Opening – (Front to Back) (mm) | 205 |
| Ram To Table (Max.) (mm) | 884 |
| Cylinder Stroke (mm) | 250 |

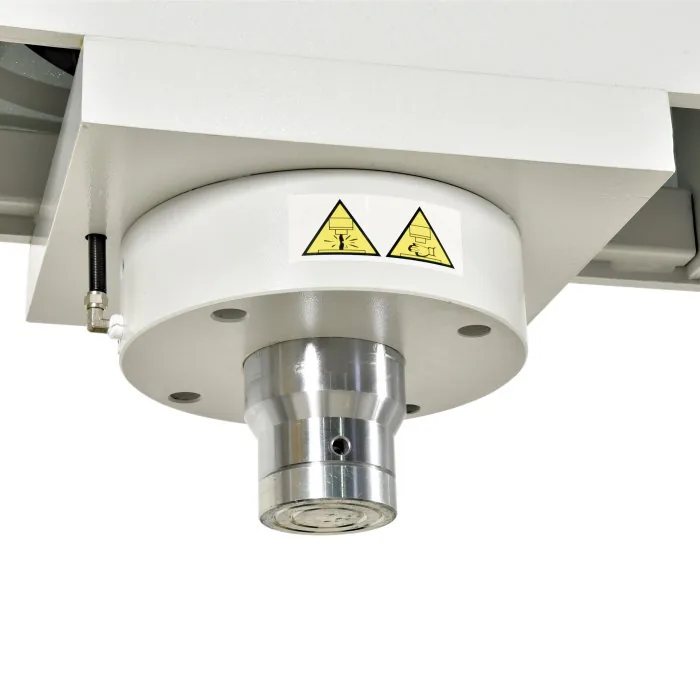

| Ram Diameter (mm) | Ø100 |
| Minimum Air Flow Rate required (L/Min) | 300 |
| Floor Space (W x D x H) (mm) | 1140 x 800 x 1896 |
| Nett Weight (kg) | 451 |
