METALMASTER

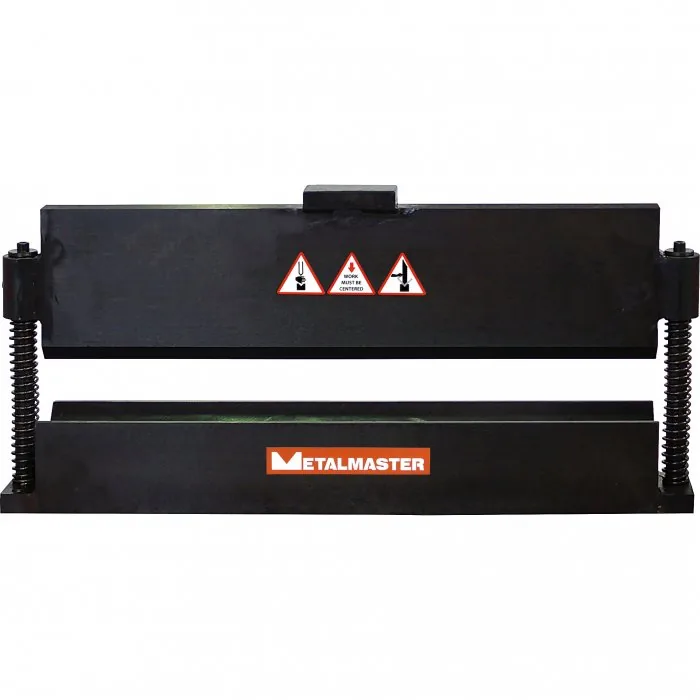

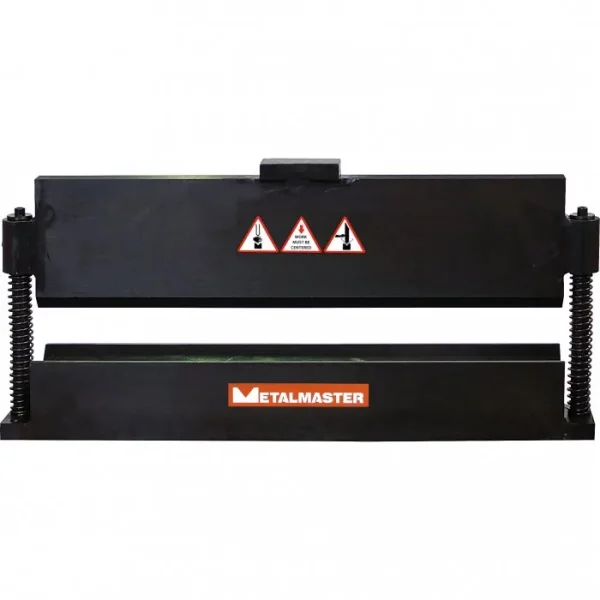

Pressbrake Attachment – Suits Hydraulic Presses — PBA-60, 600 x 10mm Capacity
Part No: P455 | Barcode: 9344195139628 | Model: PBA-60

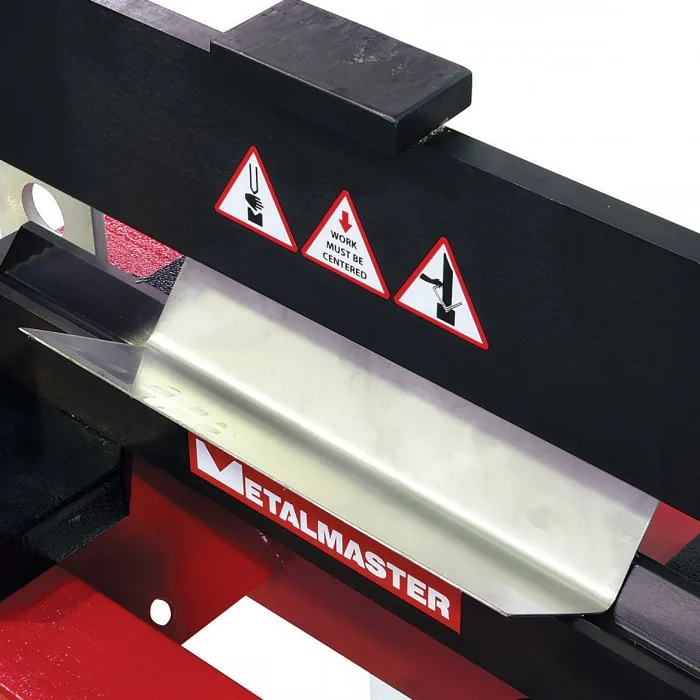

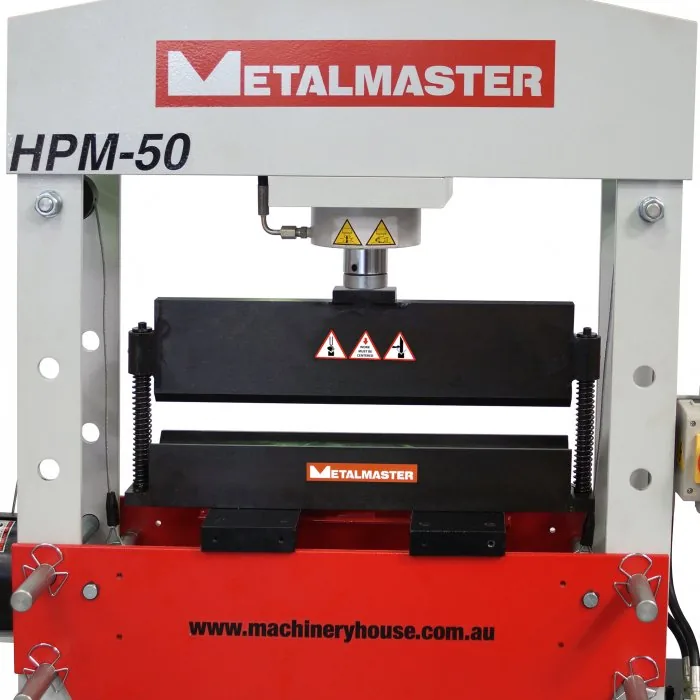

METALMASTER PBA-60 Pressbrake Attachment – Suits Hydraulic Presses (600 x 10mm Capacity). This PBA-60 attachment is designed to bend sheet metal or plate steel using a standard hydraulic press. The top die is spring loaded and supported by two guide rods, and will automatically open the tool back to home position…
Model PBA-60
600 x 10mm Capacity
Bending Capacity: 600 x 10 mm
Key Features & Benefits
- Fabricated steel construction
- 600mm bending length
- 80mm wide vee block die
- 50mm open height
- Top die with return springs & guide rods
- Overall Dimensions:
- 680 x 85 x 305mm (LxWxH)
About This Product
This PBA-60 attachment is designed to bend sheet metal or plate steel using a standard hydraulic press. The top die is spring loaded and supported by two guide rods, and will automatically open the tool back to home position once you have released the hydraulic pressure. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code P455) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Bending Capacity (mm) | 600 x 10 |
| Bending Length (mm) | 600 |
| Vee Opening (mm) | 80 |
