Description
MEASUMAX

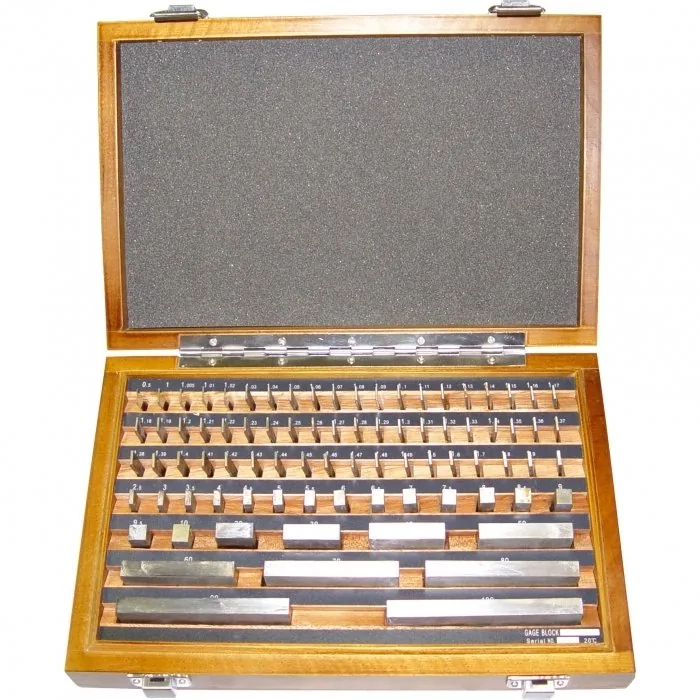

Gauge Block Set — 37-260, 83 Piece Grade 2
Part No: Q260 | Barcode: 9344195014543 | Model: 37-260
MEASUMAX 37-260 Gauge Block Set (83 Piece Grade 2). Measumax gauge blocks are to ISO3650 standard. The standards are taken at 20°C
Model 37-260
83 Piece
Grade 2
Key Features & Benefits
- High accuracy & lower surface roughness
- Better wring performance
- High tolerance stability
- All blocks meet DIN EN ISO 3650 Standard
- Round and straight chamfers on each corner of gauge blocks
- Includes inspection certificate
- *Nata Certification not included
About This Product
Measumax gauge blocks are to ISO3650 standard. The standards are taken at 20°C Gauge blocks (also known as gage blocks, Johansson gauges, slip gauges, or Jo blocks) are precision ground and lapped. Grade 2 or (A) is suitable for Inspection This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code Q260) for collection in store.
In the Box
- 1 piece 0.5mm
- 1 piece 1.0mm
- 1 piece 1.005mm
- 49 pieces 1.01, to 1.49mm by 0.01mm increments
- 5 pieces 1.5, to 1.9mm by 0.1 increments
- 16 pieces 2.0 to 9.5mm by 0.5 increments
- 10 pieces 10.0 to 100.0mm by 10mm increments
Product Specifications
| Specification | Detail |
|---|---|
| Number of Blocks (No.) | 83 |
| Grade | 2 |
| Standard | DIN EN ISO 3650 |
