Description
MEASU-MAX

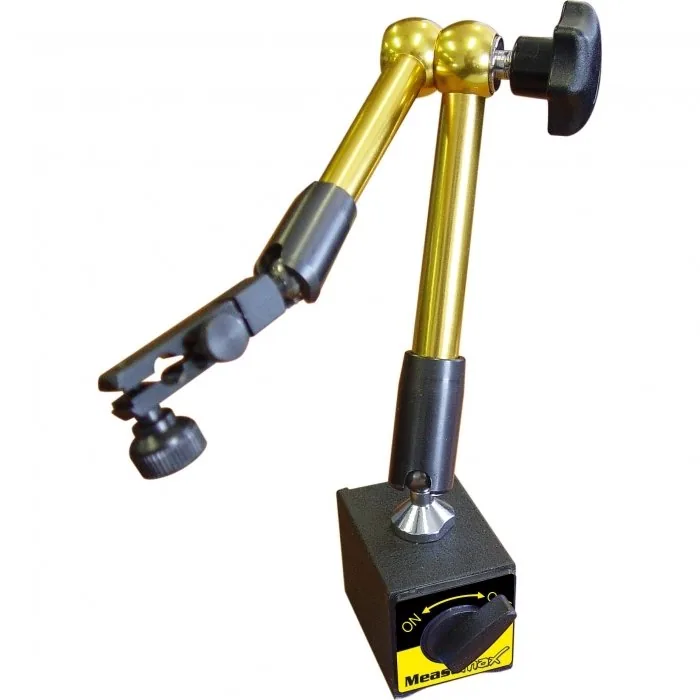

Magnetic Base – One Lock (Large) — 38-436, 80kg Holding Power
Part No: Q436 | Barcode: 9344195020568 | Model: 38-436
MEASU-MAX 38-436 Magnetic Base – One Lock (Large) (80kg Holding Power). Available to order through Alltools Geelong for collection in store.
Model 38-436
80kg Holding Power
Holding Power: 80 kg
Key Features & Benefits
- Accepts all MX Dial Indicators
- V-Base for placing on round surfaces
- On/Off lever releases magnet
- No risk of marking polished surfaces
- Mounts test indicators with 1/4″ spigot
- On/Off switch conveniently located
- Mechanical one lock clamping
About This Product
Magnetic Base – One Lock (Large) (80kg Holding Power). A Hare & Forbes special-order item, available to order through Alltools Geelong (order code Q436) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Base Size (mm) | 60 x 50 x 55 |
| Holding Power (kg) | 80 |
| Main Rod (mm) | Ø18 x 150 |
| Sub Rod (mm) | Ø14 x 140 |
| Reach (mm) | 330 |
| Nett Weight (kg) | 1.7 |
