TOOLMASTER

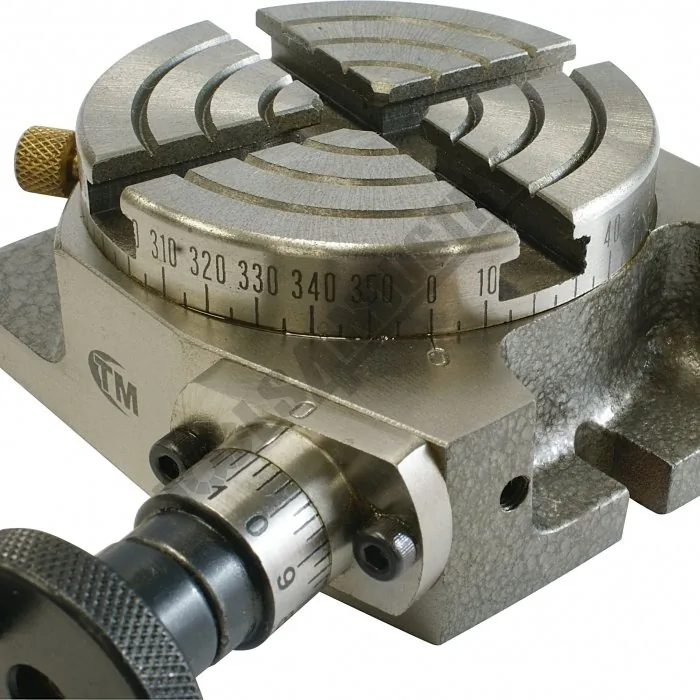

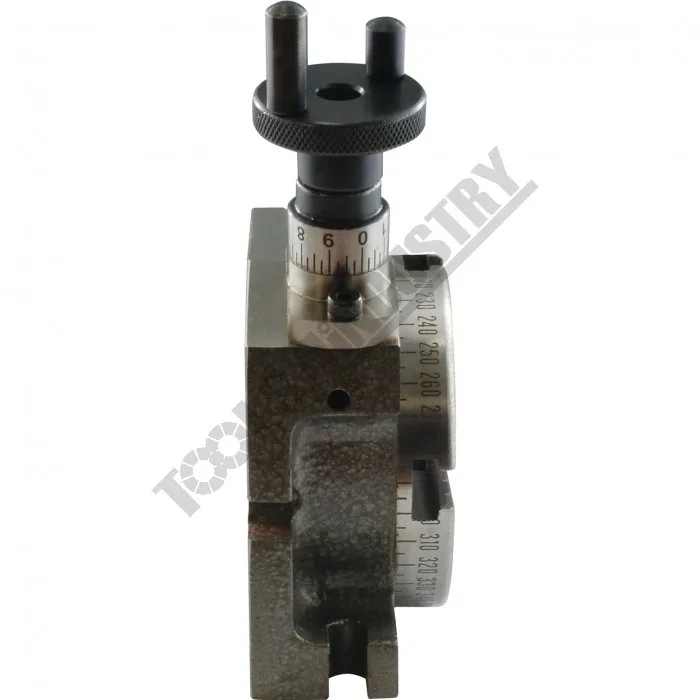

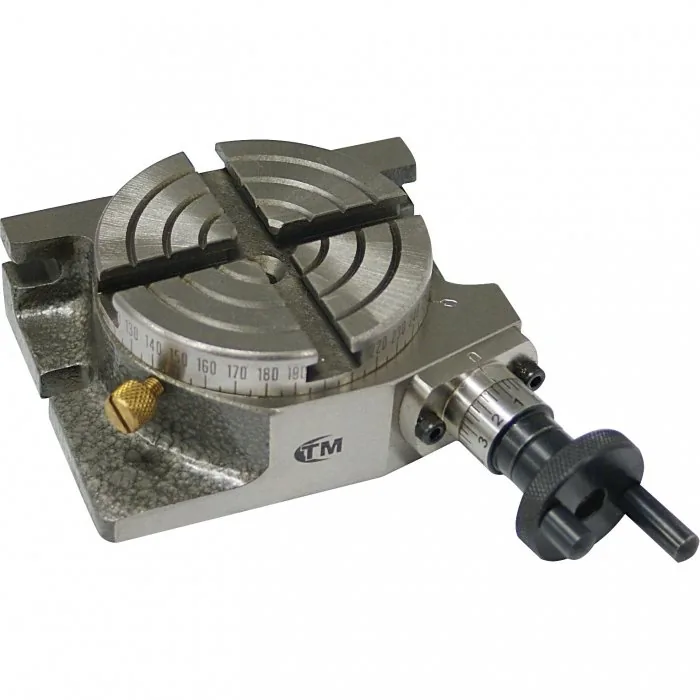

Rotary Table — RT-3, Ø75mm
Part No: R001 | Barcode: 9344195023095 | Model: RT-3
TOOLMASTER RT-3 Rotary Table (Ø75mm). Work positioning device used in metalworking. It enables the operator to drill or cut work at exact intervals around a fixed (usually horizontal or vertical) axis.
Model RT-3
Ø75mm
Key Features & Benefits
- Gear ratio 36-1
- Graduations: 0-360º
- Hand wheel can be set to zero

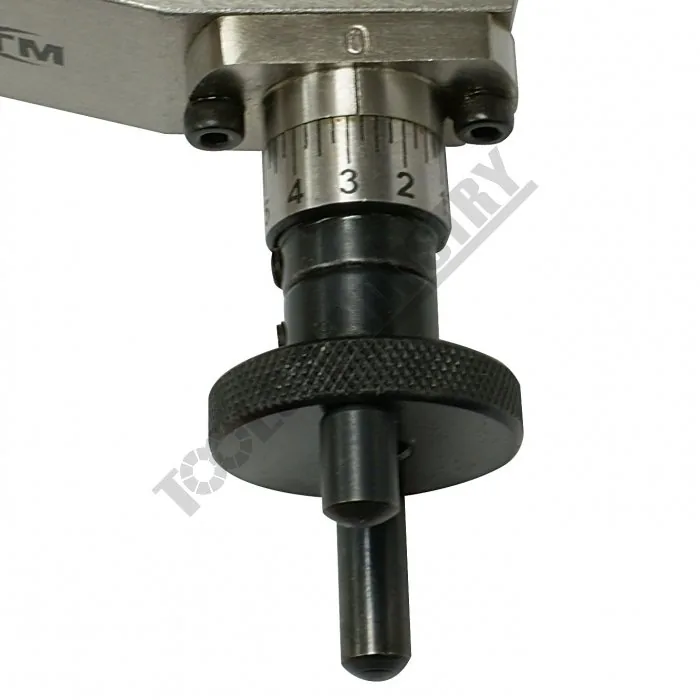

- Hand wheel graduated in 10min divisions

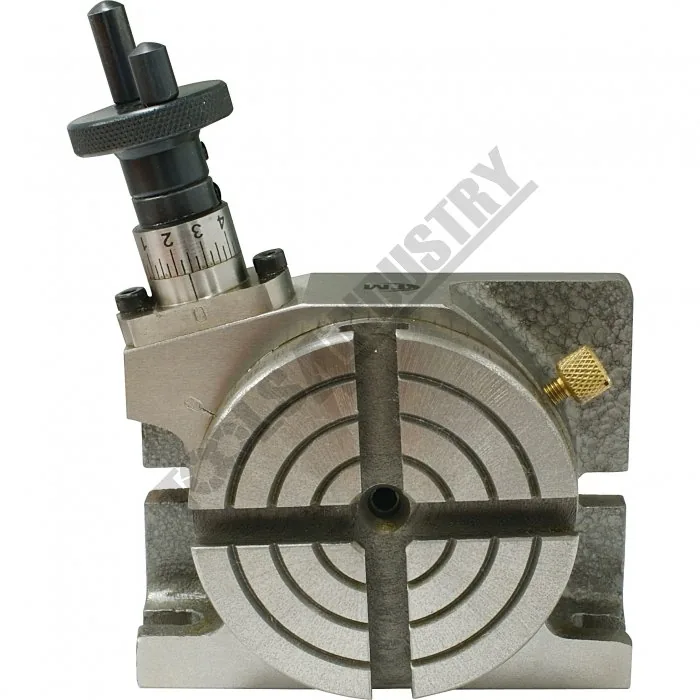

- Can be used both horizontally and vertically
- Height: 41.27mm
- Note! No through bore
About This Product
Work positioning device used in metalworking. It enables the operator to drill or cut work at exact intervals around a fixed (usually horizontal or vertical) axis. Compact design for use on small mills, lathes and a drill press fitted with a compound table. For instructions on how to fit dividing plates and instructions on how to use see “Brochures & manuals” This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code R001) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Size (mm) | 75 |
| D (mm) | 75 |
| H (mm) | 41.27 |
| Number of T-Slots (No.) | 4 |
| T-Slot Size (mm) | 8 |
| Nett Weight (kg) | 3 |
