TOOLMASTER
Rotary Table, Dividing Plates & 3 Jaw Chuck Kit — RTK-6, Ø152mm
Part No: R0065 | Barcode: 9344195036538 | Model: RTK-6

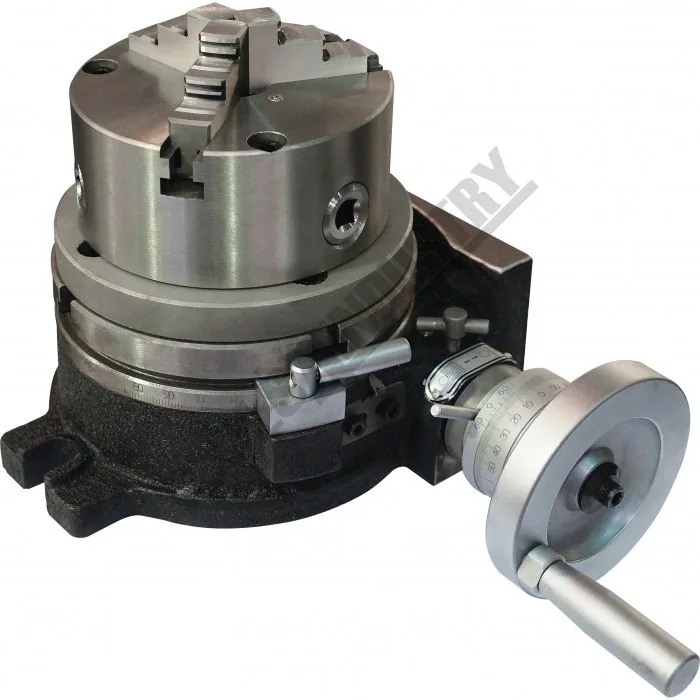

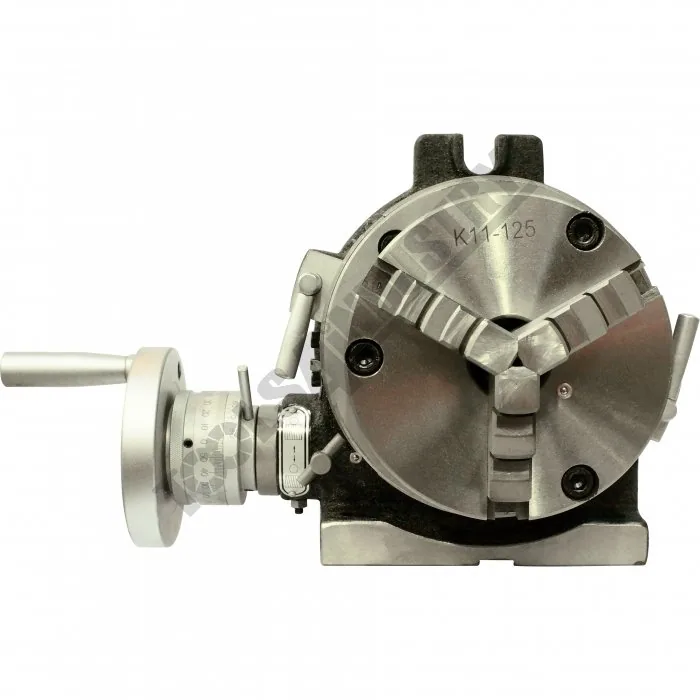

TOOLMASTER RTK-6 Rotary Table, Dividing Plates & 3 Jaw Chuck Kit (Ø152mm). The Toolmaster Rotary Table is supplied with a 125mm 3 jaw chuck, backing plate & a set of dividing plates. Designed to be used where a precision work positioning device is required.
Model RTK-6
Ø152mm
Key Features & Benefits
- The Toolmaster Rotary Table is manufactured from high-density Meehanite cast iron with ground surface areas on the table and body to ensure smooth rotation
- Critical wear parts are hand finished for ultra precision
- All tables are tested for accuracy using ‘Heidenhain’ electronic equipment to ensure continuing quality
- Worm is hardened and precision ground, with a ratio of 90:1
- Table is graduated to a full 360º so one turn of the handle moves the table 4º

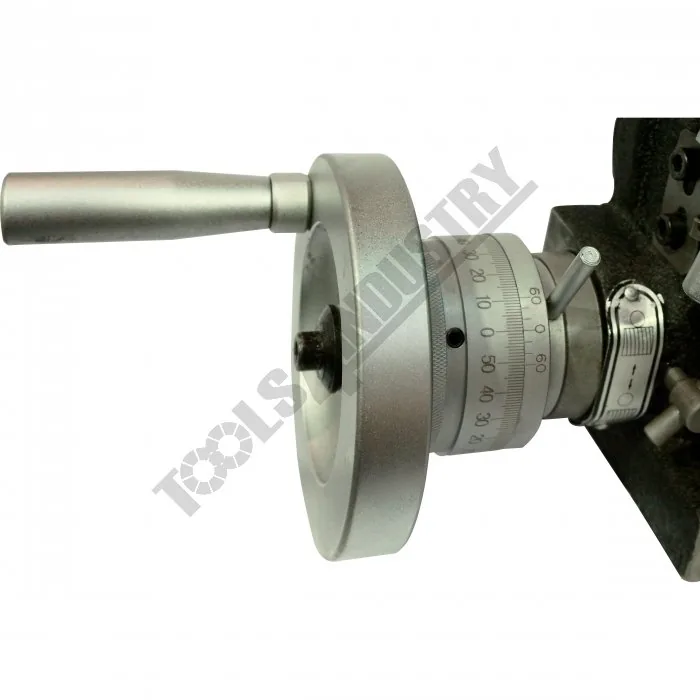

- The collar on the handle is graduated with a vernier scale, readings down to 10 seconds are possible
About This Product

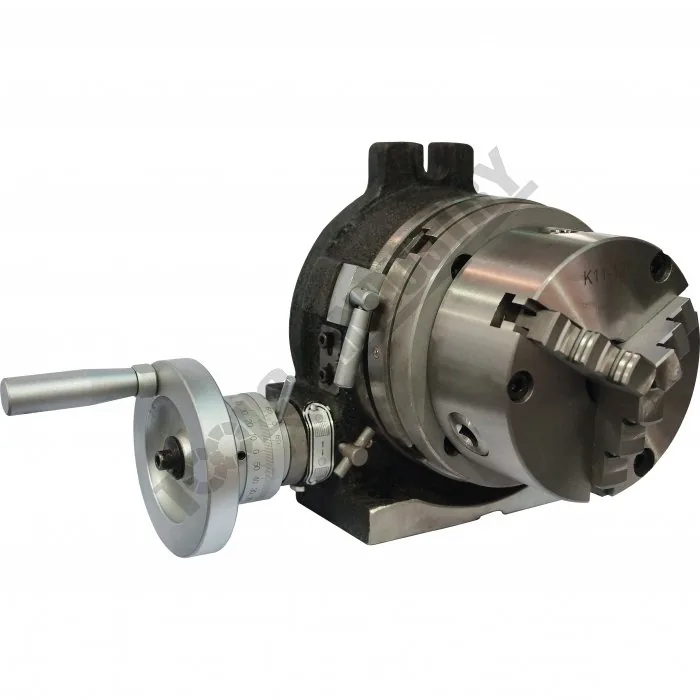

The Toolmaster Rotary Table is supplied with a 125mm 3 jaw chuck, backing plate & a set of dividing plates. Designed to be used where a precision work positioning device is required. It allows the operator to mill or drill components at exact intervals around a fixed axis. This Toolmaster Rotary Table can be used in both the horizontal or vertical plane. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code R0065) for collection in store.
In the Box

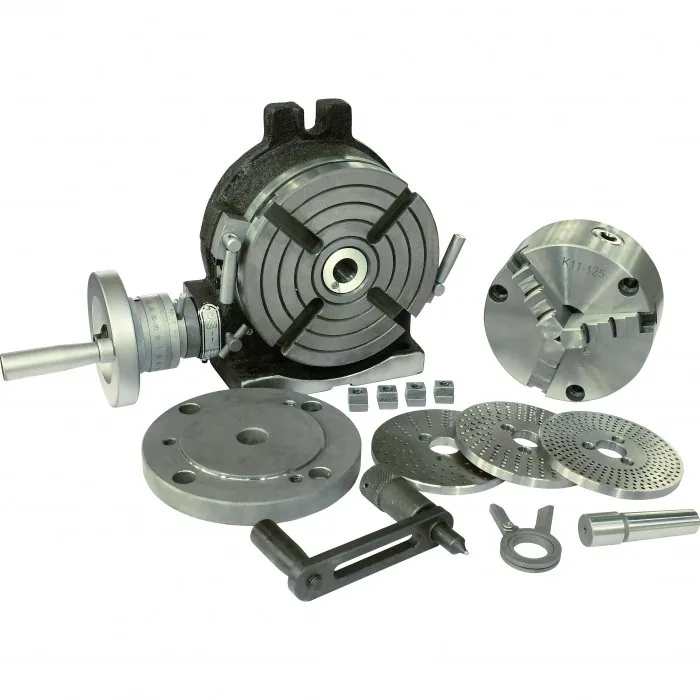

- 152mm rotary table
- 127mm 3 jaw chuck with reverse jaws
- Adaptor plate to suit chuck
- Dividing plate set
- Chuck key
Product Specifications
| Specification | Detail |
|---|---|
| Size (mm) | 152 |
| A1 (mm) | 78 |
| D (mm) | 150 |
| H (mm) | 83 |
| H1 (mm) | 100 |
| A (mm) | 200 |
| B (mm) | 160 |
| e (mm) | 14 |
| g (mm) | 16 |
| Number of T-Slots (No.) | 4 |
| T-Slot Size (mm) | 12 |
| Taper In Centre (MT) | 2MT |
| Nett Weight (kg) | 24 |
