Description
METALMASTER
English Wheel — EWHD-65, 1.6mm Mild Steel Capacity 650mm Throat Depth
Part No: S2252 | Barcode: 9344195291999 | Model: EWHD-65
METALMASTER EWHD-65 English Wheel (1.6mm Mild Steel Capacity 650mm Throat Depth). The New Metalmaster EWHD-65 has been designed as the “Little Brother” of our EWHD-80 English Wheel to give you the rigidity of a steel plate design machine at an economical price. With side frames manufactured from 8mm thick steel…
Model EWHD-65
1.6mm Mild Steel Capacity
650mm Throat Depth
Mild Steel – Capacity: 1.6
Throat Capacity: 650 mm
Key Features & Benefits
- 650mm throat depth
- 1.6mm mild steel capacity

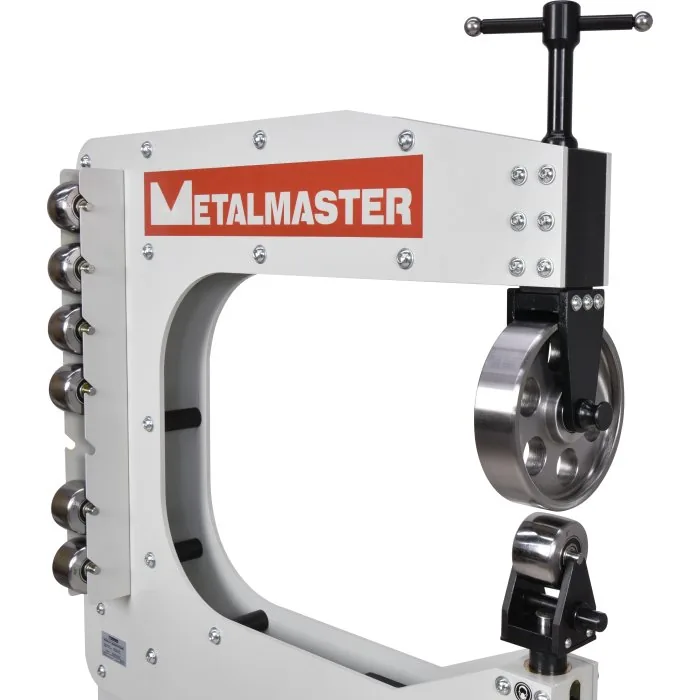

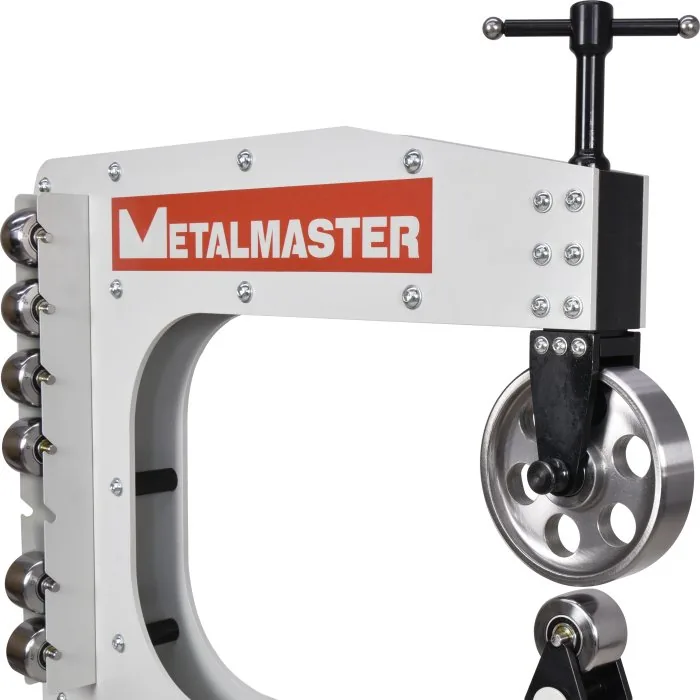

- Upper wheel Ø203 x 50.8mm wide

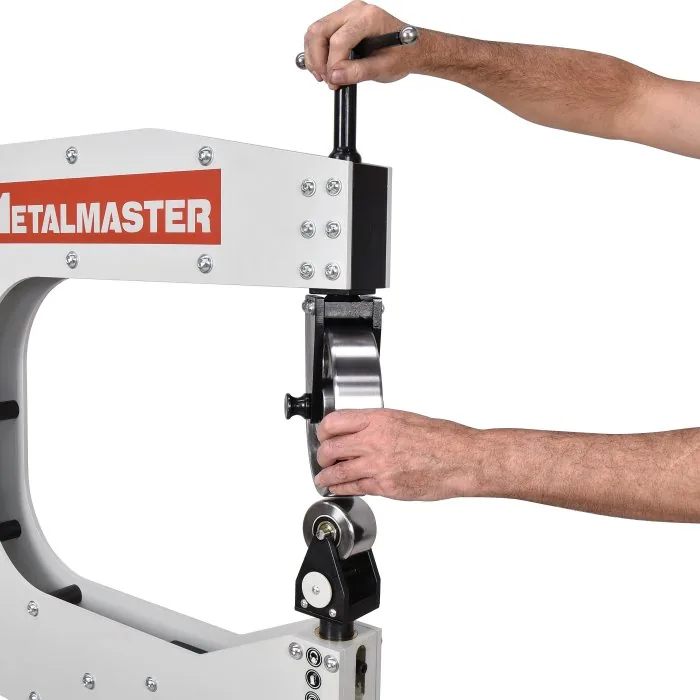

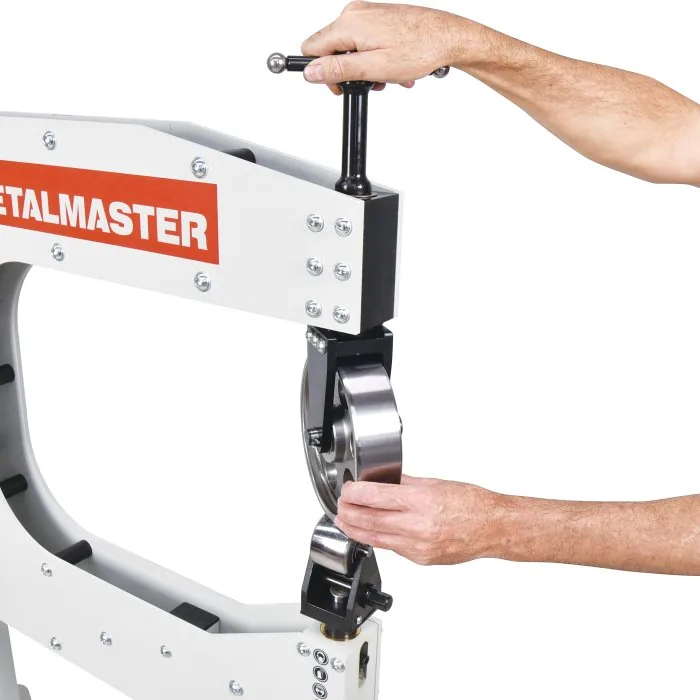

- Quick Action Wheel and Anvil rotate between 0 and 90 degrees
- Comes with 7 lower anvils (all 50.8mm wide) in the following radius: flat, 50.8, 76.2, 101.6, 152.4, 203.2, 304.8mm
- Heavy duty steel frame using twin 8mm plates for extra rigidity
- Wheel & anvils hardened to 45-50HRC

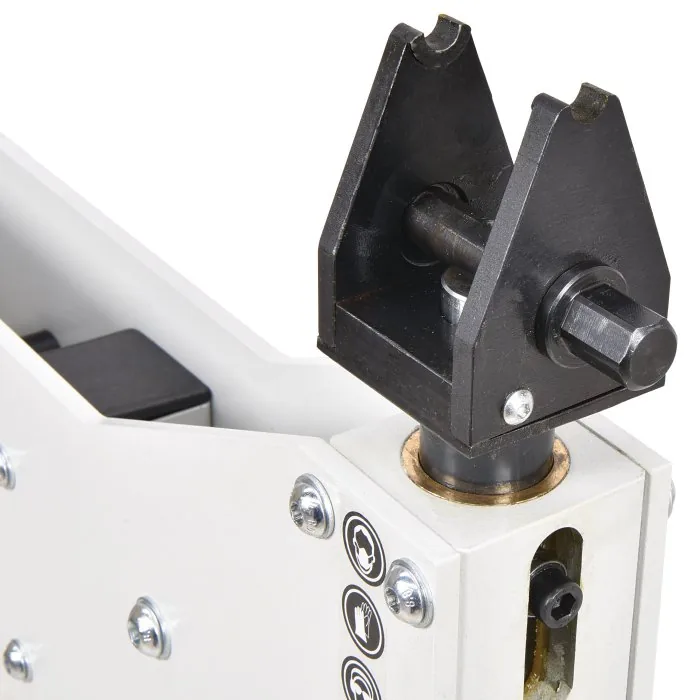

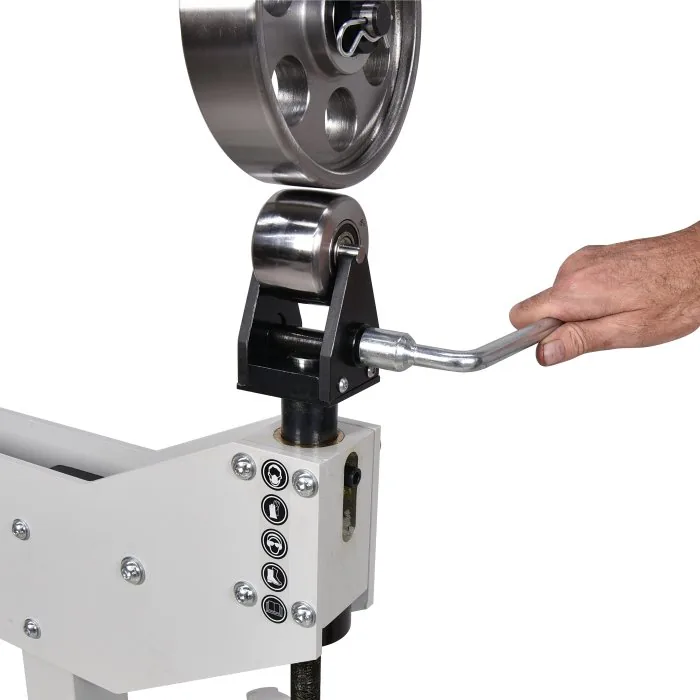

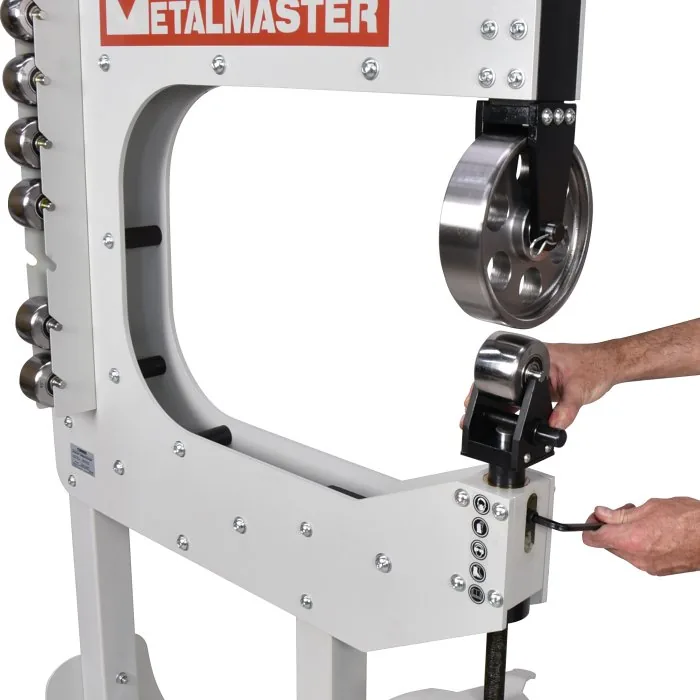

- Quick release anvil cradle for rapid and easy panel removal
About This Product

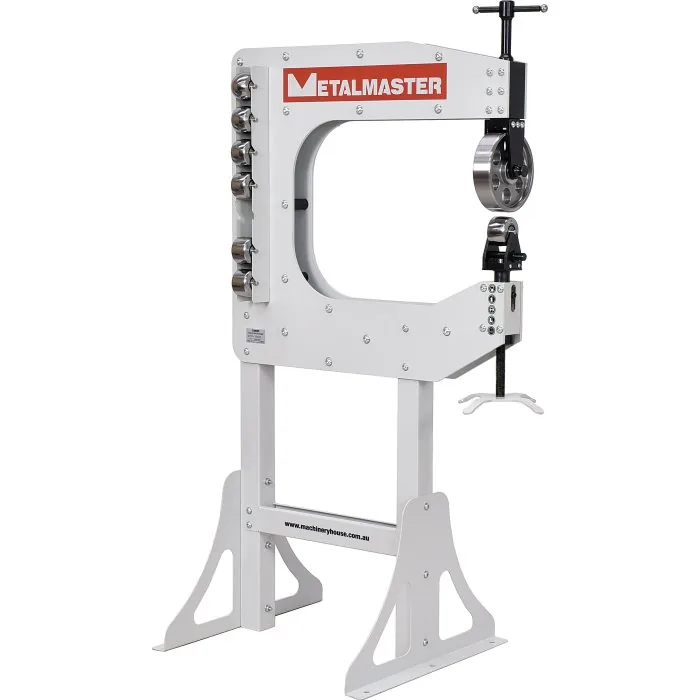

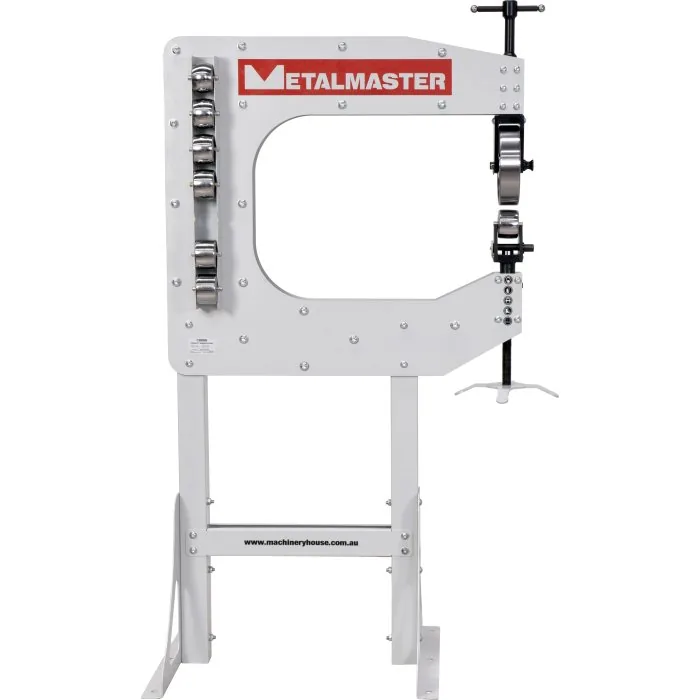

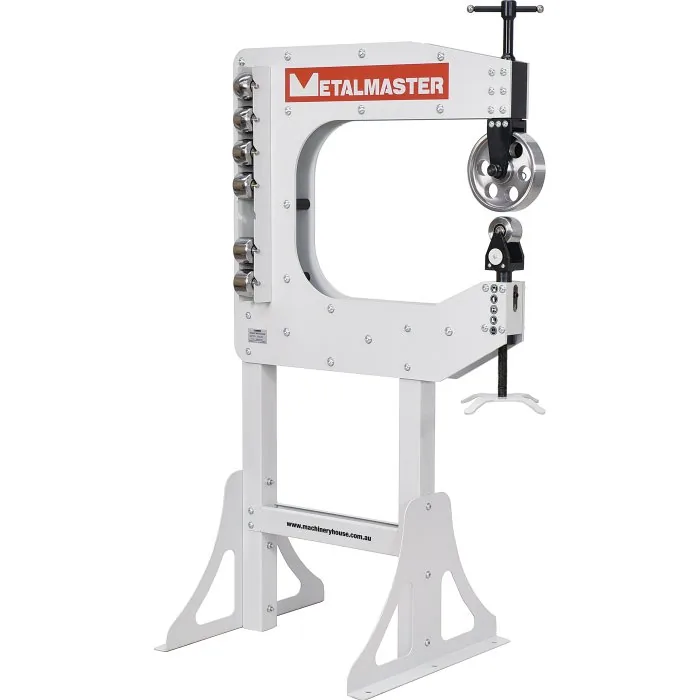

The New Metalmaster EWHD-65 has been designed as the “Little Brother” of our EWHD-80 English Wheel to give you the rigidity of a steel plate design machine at an economical price. With side frames manufactured from 8mm thick steel plate & heavy steel tube legs giving the EWHD-65 the right mix of rigidity & practicality for the craftsman wanting that higher level of finish and control while metal shaping. It is capable of shaping mild steel up to 1.6mm (16 gauge) and with a throat of 650mm giving you ample room to shape medium size panels. The upper wheel and 7 lower anvils are all hardened to 45-50HRC ensuring longer life and with a quick release anvil cradle for rapid and easy panel removal it makes this machine even more versatile. Optional accessories – Nylon Lower Anvil sets & Urethane Bands are perfect when shaping aluminium or material requiring a mirror finish eg. Stainless Steel. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code S2252) for collection in store.
Product Specifications
English Wheel — Specifications
| Specification |
Detail |
| Mild Steel – Capacity (mm / Gauge) |
1.6 |
| Throat Capacity (mm) |
650 |
| Upper Wheel (Ø x W mm) |
Ø203 x 50 |
| Lower Anvils – Radius (mm) |
flat, 50.8, 76.2, 101.6, 152.4, 203.2, 304.8 |
| Nett Weight (kg) |
150 |
Brand: METALMASTERModel: EWHD-65Order Code: S2252Barcode: 9344195291999Availability: Special order — collect in store
