Description
METALMASTER

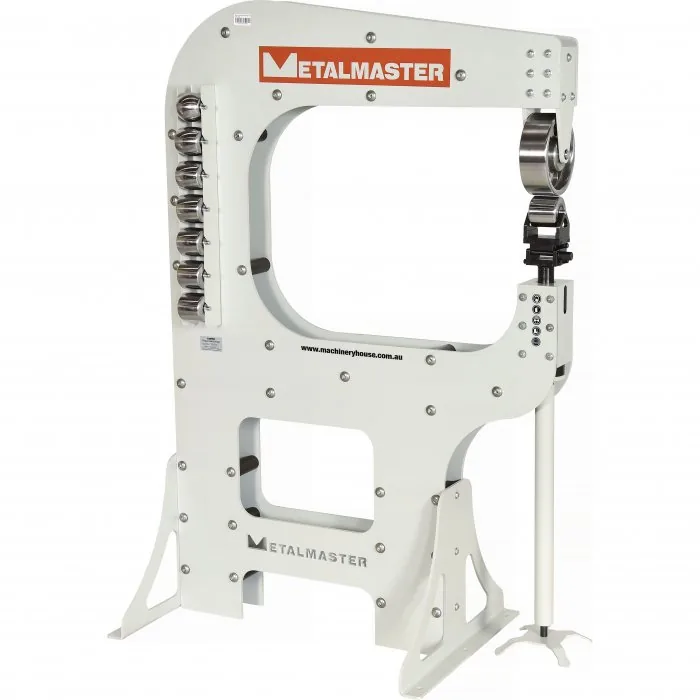

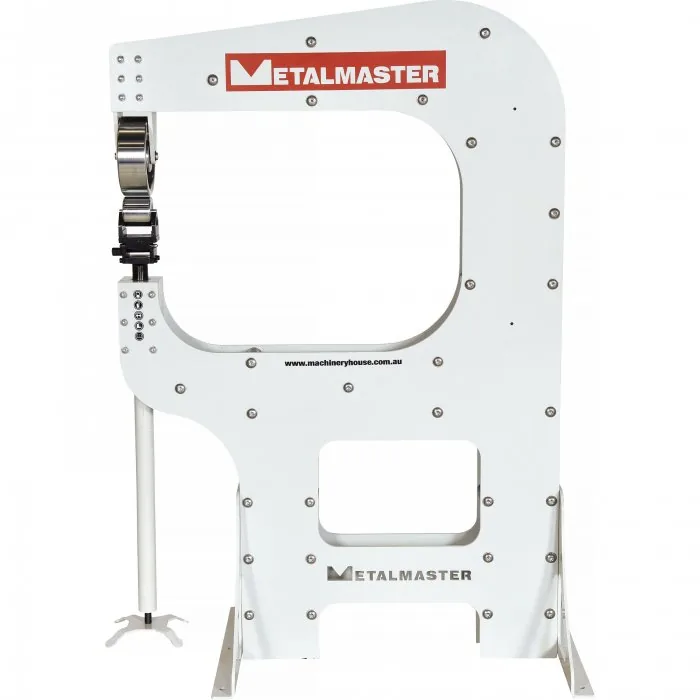

English Wheel — EWHD-80, 1.6mm Mild Steel Capacity 810mm Throat Depth
Part No: S2254 | Barcode: 9344195275005 | Model: EWHD-80
METALMASTER EWHD-80 English Wheel (1.6mm Mild Steel Capacity 810mm Throat Depth). The Metalmaster EWHD-80 has been designed for rigidity and versatility without the high price tag. This heavy duty machine has side frames manufactured from 10mm thick steel plate, ensuring maximum rigidity making it perfect for the…
Model EWHD-80
1.6mm Mild Steel Capacity
810mm Throat Depth
Mild Steel – Capacity: 1.6
Throat Capacity: 810 mm
Key Features & Benefits
- 810mm throat depth
- 1.6mm mild steel capacity

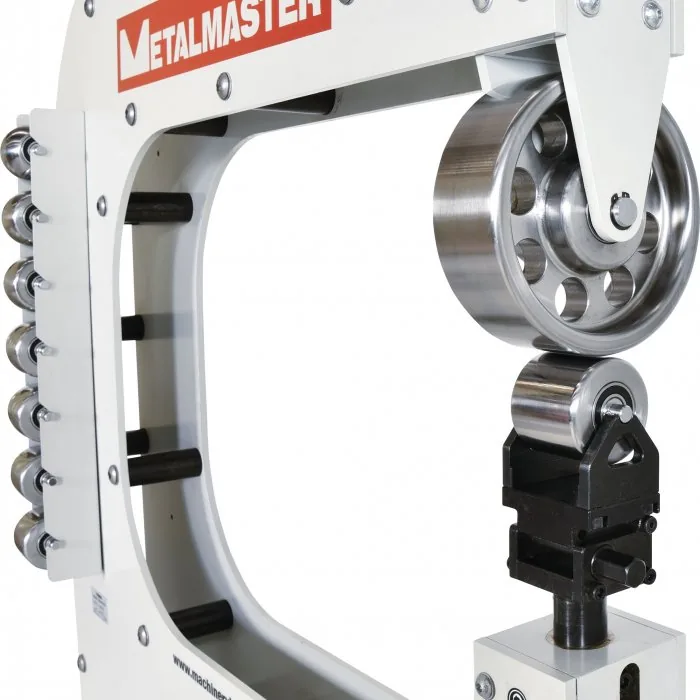

- Upper wheel Ø197 x 70mm wide

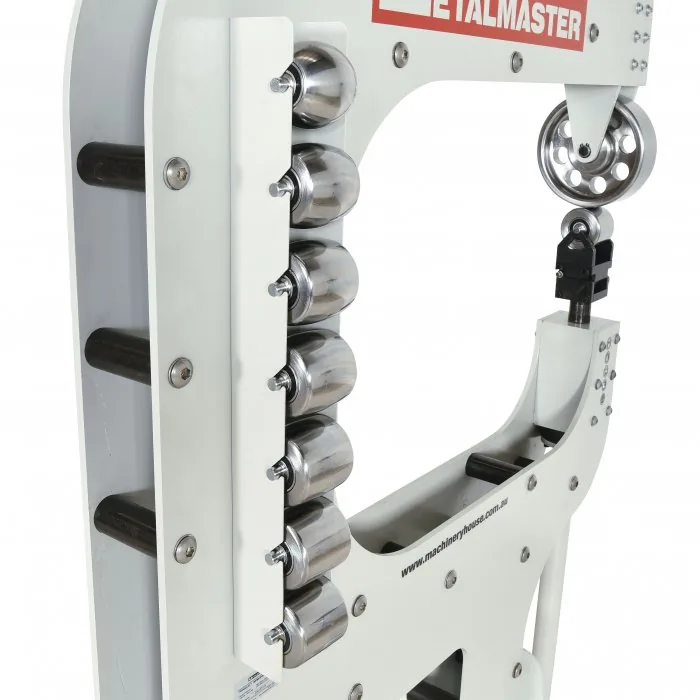

- Comes with 8 lower anvils (all 70mm wide) in the following radius: flat, 50.8, 101.6, 152.4, 203.2, 304.8, 609.6, 914.4mm

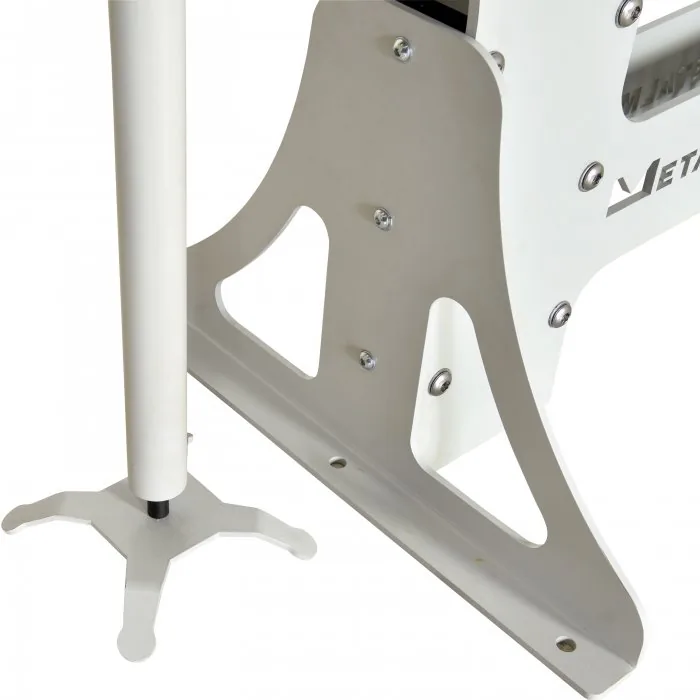

- Heavy duty steel frame using twin 10mm plates for extra rigidity
- Wheel & anvils hardened to 45-50HRC
- Independent adjustment on lower anvil cradle
About This Product
The Metalmaster EWHD-80 has been designed for rigidity and versatility without the high price tag. This heavy duty machine has side frames manufactured from 10mm thick steel plate, ensuring maximum rigidity making it perfect for the craftsman wanting that higher level of finish and control while metal shaping. This solid performer is capable of shaping mild steel up to 1.6mm (16 gauge) and with a throat depth of 810mm giving you ample room to shape large panels. The upper wheel and 8 lower anvils are all hardened to 45-50HRC ensuring longer life and with independent adjustment on the lower anvil cradle allows versatility to get the perfect clearance every time. Optional accessories – Nylon Lower Anvil sets & Urethane Bands are perfect when shaping aluminium or material requiring a mirror finish eg. Stainless Steel. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code S2254) for collection in store.
Product Specifications
English Wheel — Specifications
| Specification |
Detail |
| Mild Steel – Capacity (mm / Gauge) |
1.6 |
| Throat Capacity (mm) |
810 |
| Upper Wheel (Ø x W mm) |
Ø197 x 70 |
| Lower Anvils – Radius (mm) |
flat, 50.8, 101.6, 152.4, 203.2, 304.8, 609.6, 914.4 |
| Working Height (mm) |
1200 |
| Nett Weight (kg) |
270 |
Brand: METALMASTERModel: EWHD-80Order Code: S2254Barcode: 9344195275005Availability: Special order — collect in store
