METALMASTER

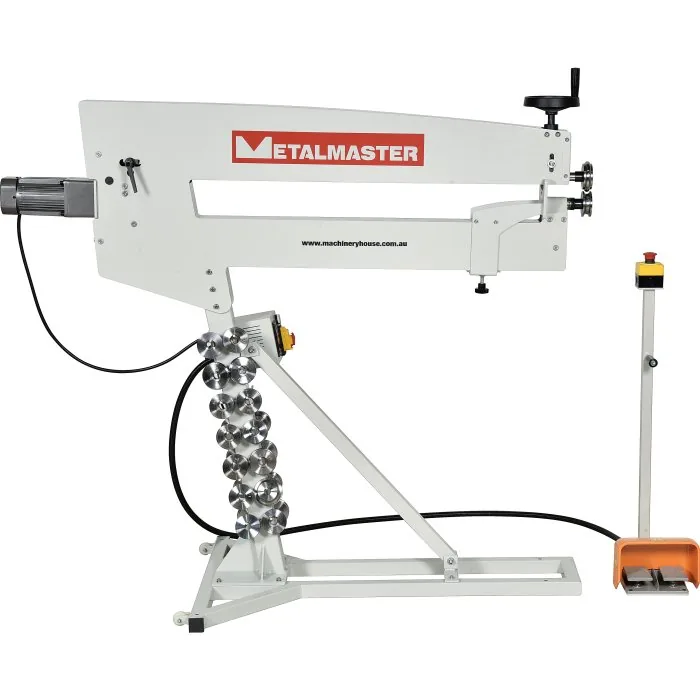

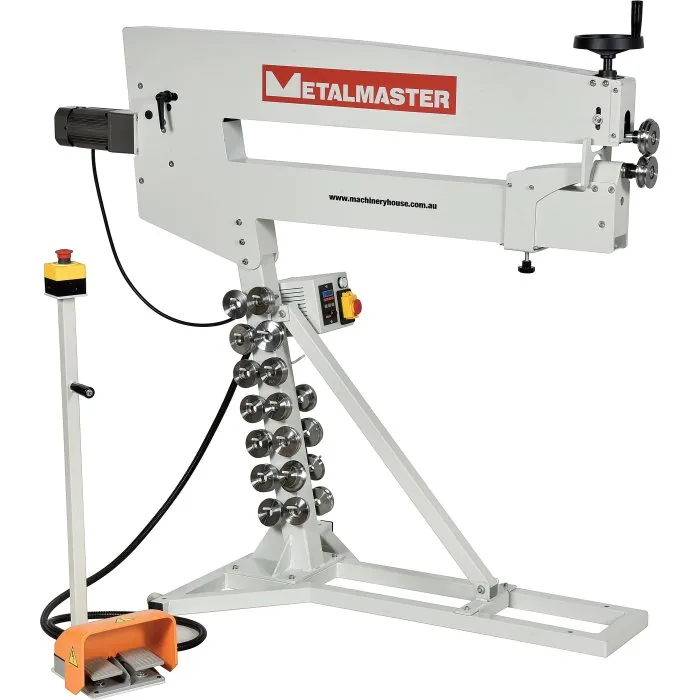

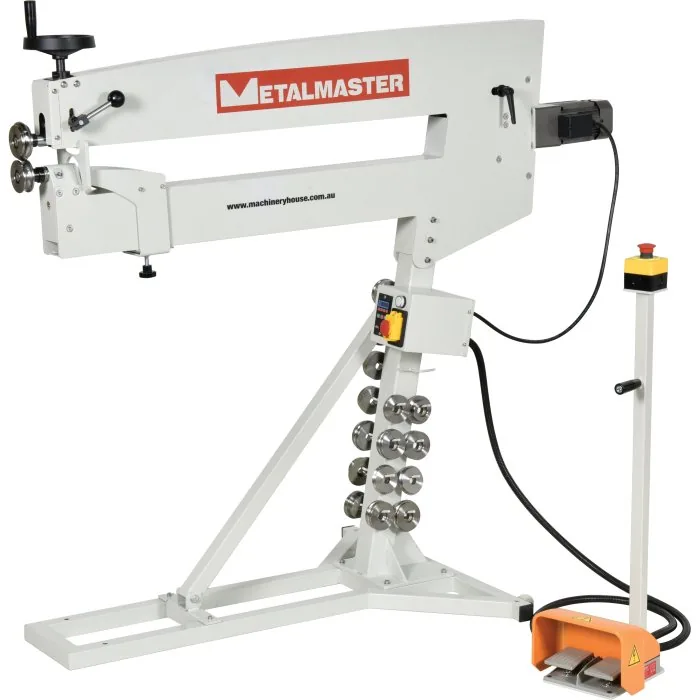

Bead Roller – Motorised Variable Speed — MBR-1070XT, 1.2mm Mild Steel Thickness Capacity & 1070mm Throat Depth Includes 12 Sets of Hardened Rolls
Part No: S634 | Barcode: 9344195227653 | Model: MBR-1070XT
METALMASTER MBR-1070XT Bead Roller – Motorised Variable Speed (1.2mm Mild Steel Thickness Capacity & 1070mm Throat Depth Includes 12 Sets of Hardened Rolls). The MBR-1070XT motorised bead roller is much easier to use compared to manual machines to having your panels beaded in your home workshop or garage. Made from…
Model MBR-1070XT
Includes 12 Sets of Hardened Rolls
Aluminium – Thickness Capacity: 1.6 / 16
Throat Depth Maximum: 1070 mm
Throat Height: 105 mm
Output Drive Speed: 0 – 18 rpm
Motor Power: 0.25 / 0.33
Key Features & Benefits

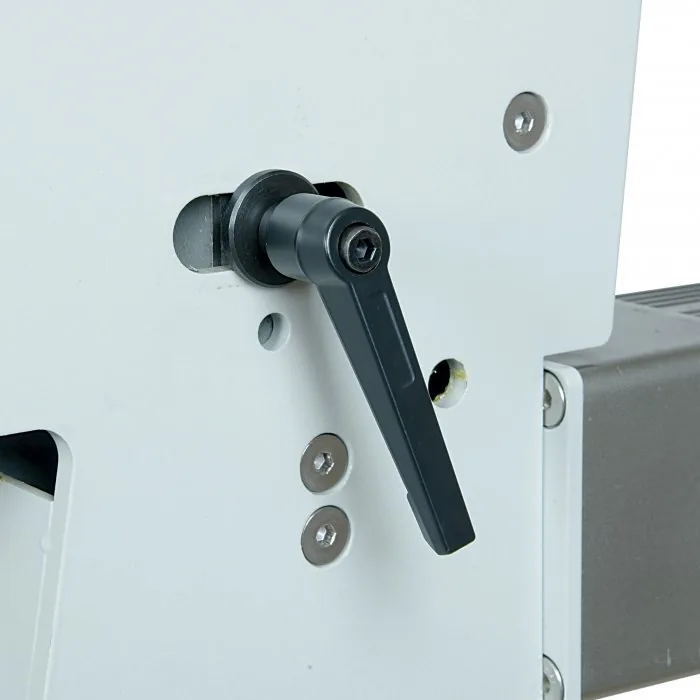

- New quick release mechanism on the top shaft
- 1.2mm mild steel capacity with 1070mm throat

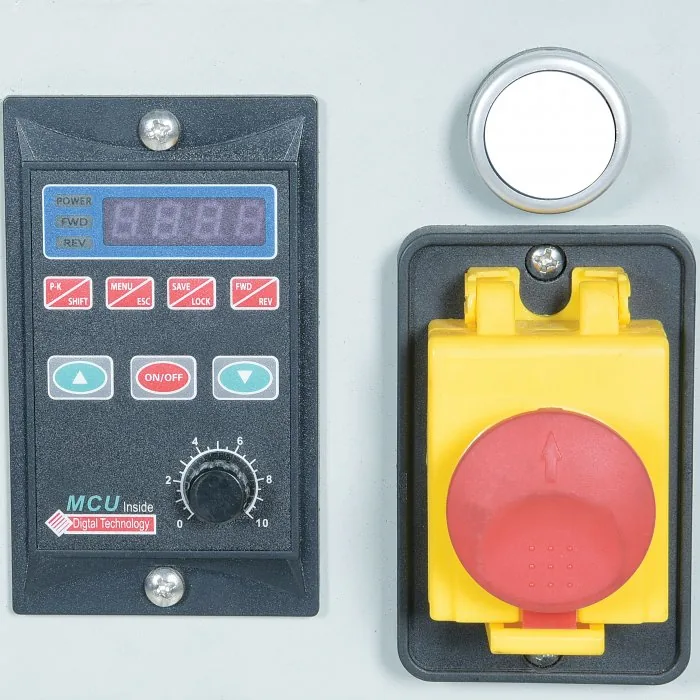

- Variable speed dial for superior control on all applications

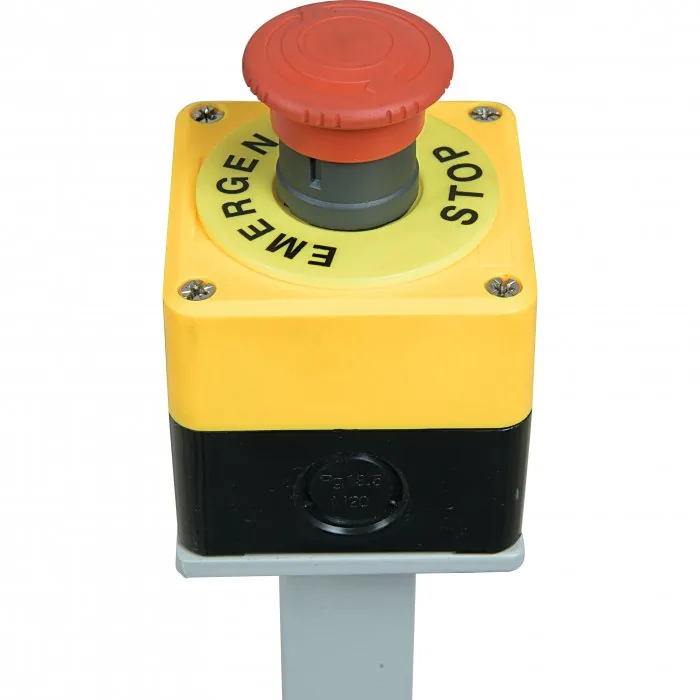

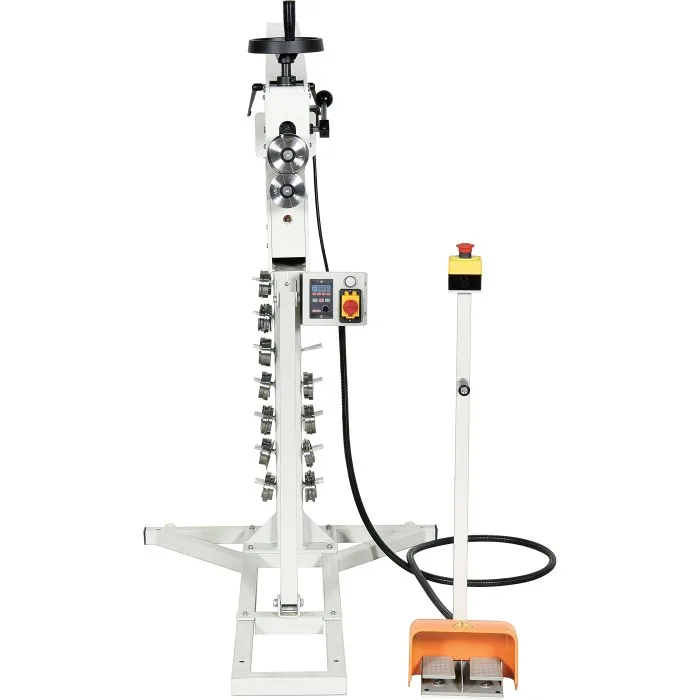

- Forward / reverse foot pedal switches with emergency stop

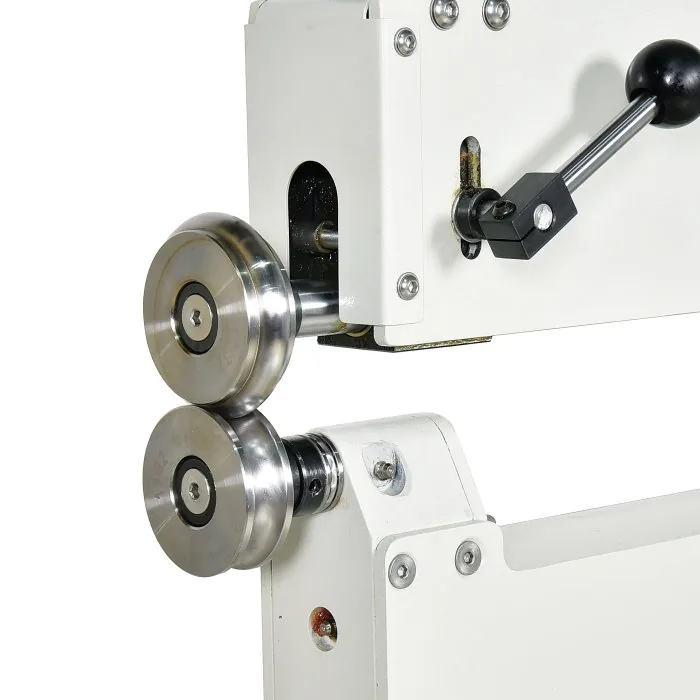

- Ø70mm hardened & keyed rollers for positive drive
- 105mm gap height between roller support arms
- Allows clearance of up to 80mm on 90º return bends
- Heavy duty steel plate construction for increased rigidity
- Top & bottom roller shafts are geared & electrically driven

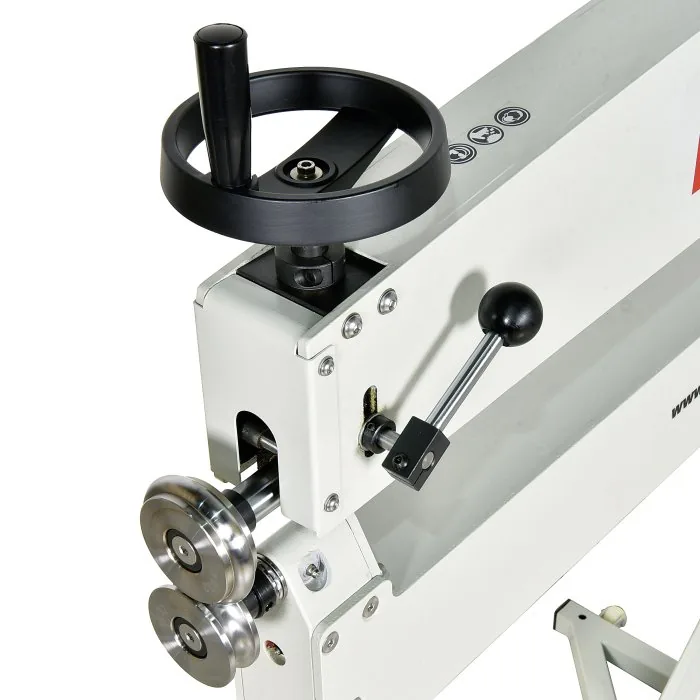

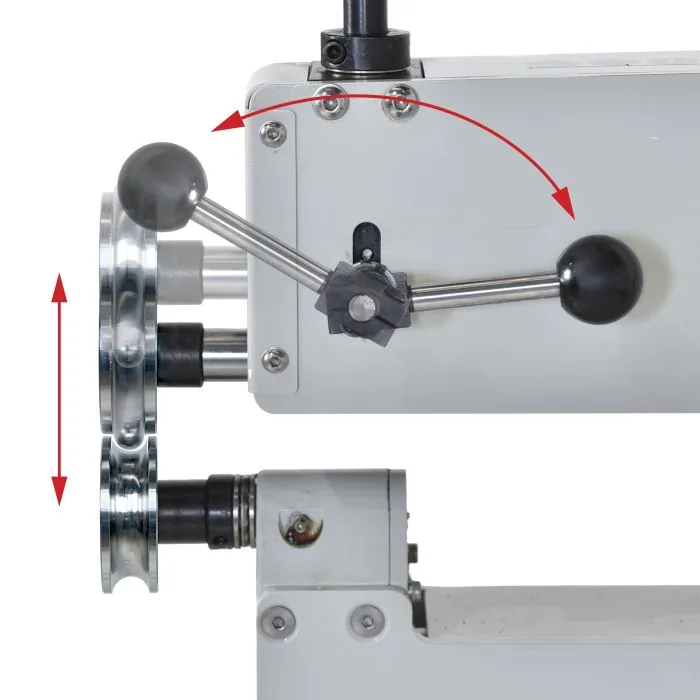

- Adjustable top roller with 38mm of vertical travel

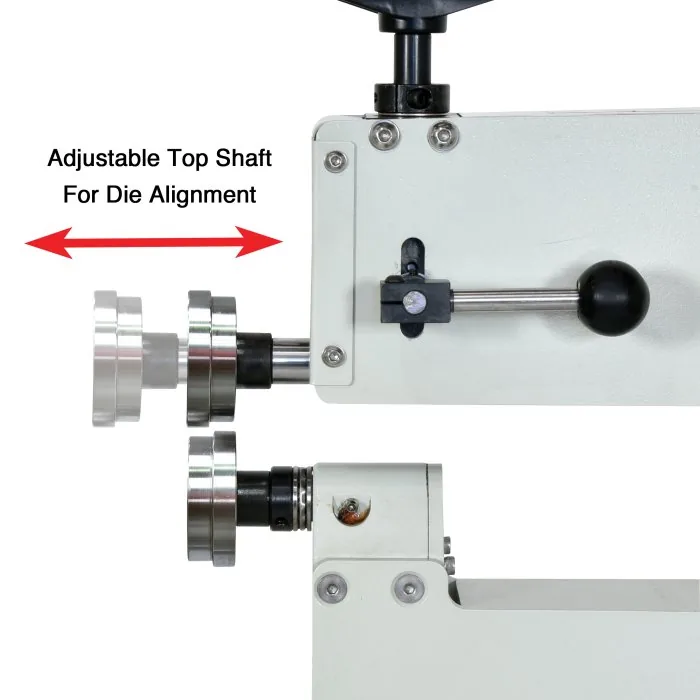

- Top shaft adjusts horizontally to easily & accurately align dies
- Ø25mm drive shafts with grease-able bronze bushes, Ø20mm spigot for mounting rollers

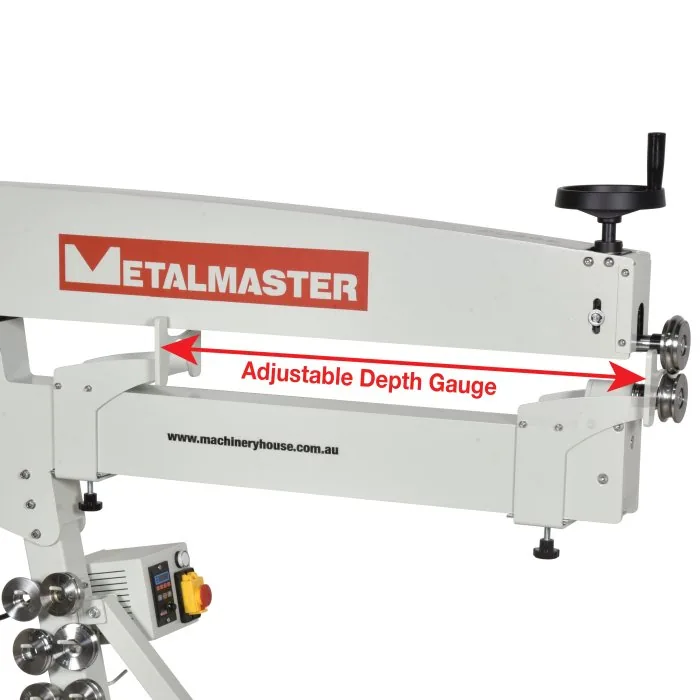

- Adjustable material depth guide
- 0.25kW / 0.33hp, 240V variable speed motor with reduction gearbox

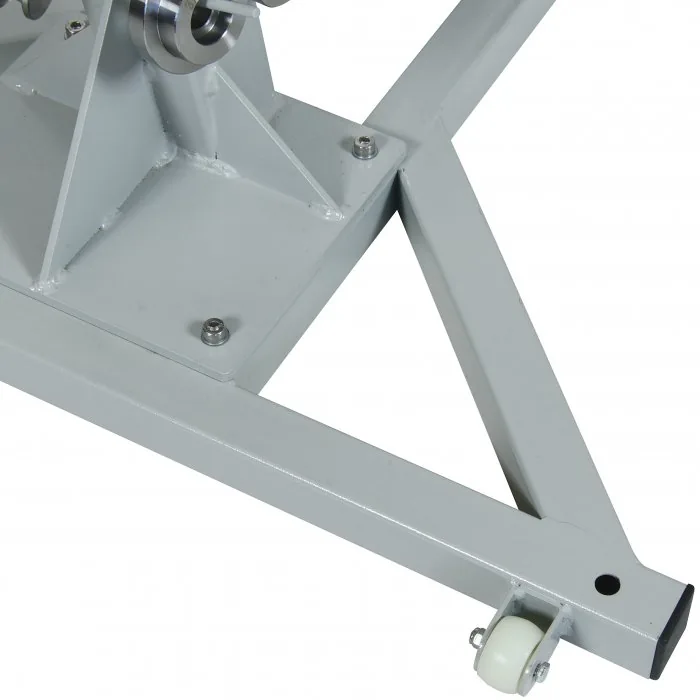

- Fitted with two rear wheels to allow easy mobility
- Includes a comprehensive range of rolls supplied as standard
About This Product

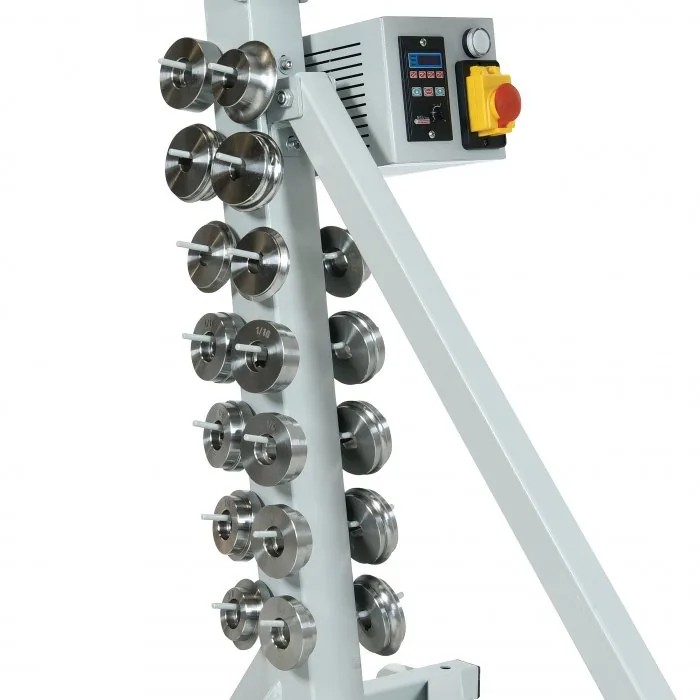

The MBR-1070XT motorised bead roller is much easier to use compared to manual machines to having your panels beaded in your home workshop or garage. Made from heavy plate steel and a now with a massive 1070mm throat depth making it perfect for strengthening any type of car roof, body panels, seals & guards etc. This bead roller is electrically gear driven via a forward & reverse foot control switch that drives both the bottom and top bead rolls. The drive shafts are supported in quality bronze bearing bushes and incorporate with thrust ball bearings for additional support & accuracy. The MBR-1070XT also includes a stand that also stores the twelve sets of the most common rolls required by any metal forming automotive enthusiasts or professional. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code S634) for collection in store.
In the Box

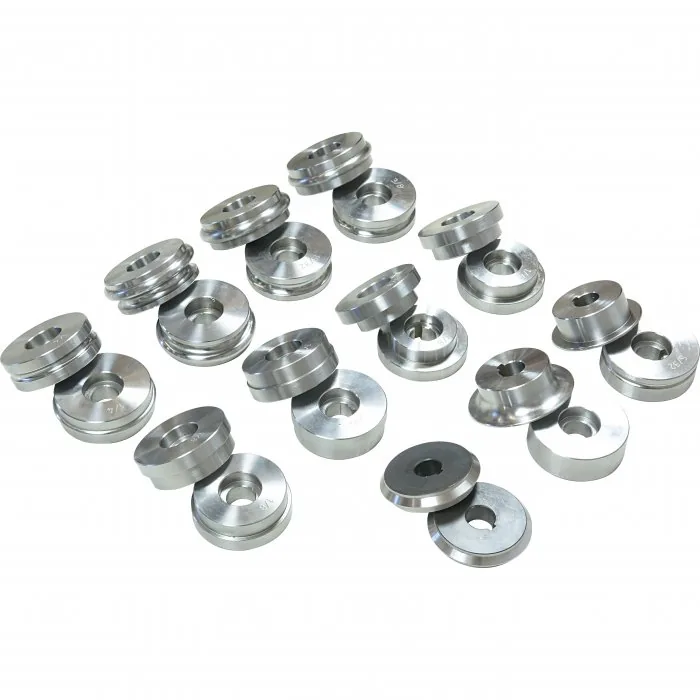

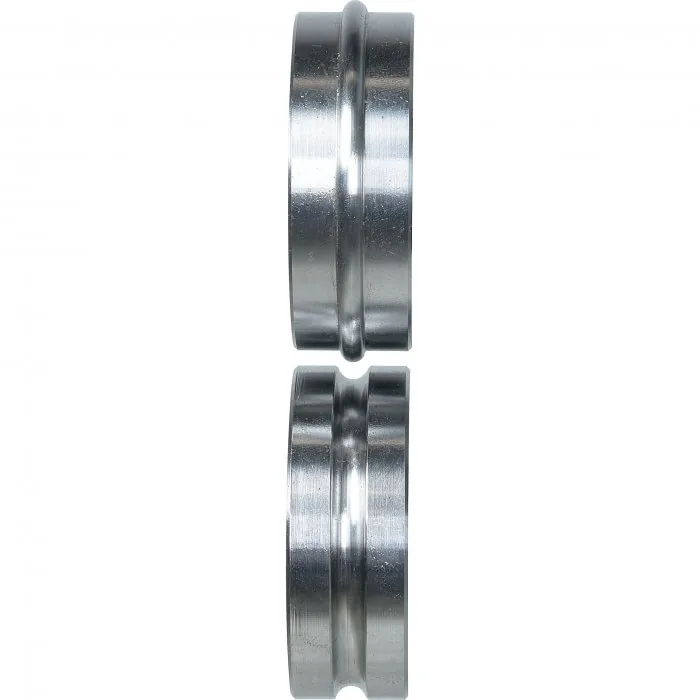

- 12 sets of hardened rolls (Ø20mm Bore):
- 5/32″ (4mm) beading dies
- 1/4″ (6.35mm) beading dies
- 3/8″ (9.5mm) beading dies
- 15/32″ (12mm) beading dies
- 19/32″ (15mm) beading dies
- 1/16″ (1.6mm) flanging dies
- 1/8″ (3mm) flanging dies
- 1/4″ (6.35mm) flanging dies
- 3/8″ (9.5mm) flanging dies
- Ogee beading dies
- Wiring dies
- Shearing dies
Product Specifications
| Specification | Detail |
|---|---|
| Machine (Type) | Bead Roller – Motrised |
| Mild Steel – Thickness Capacity (mm / Gauge) | 1.2 / 18 |
| Aluminium – Thickness Capacity (mm / Gauge) | 1.6 / 16 |
| Throat Depth Maximum (mm) | 1070 |
| Throat Height (mm) | 105 |
| Roll Diameter (mm) | 70 |
| Output Drive Speed (rpm) | 0 – 18 |
| Motor Power (kW / hp) | 0.25 / 0.33 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Nett Weight (kg) | 150 |
