Description
ISITAN

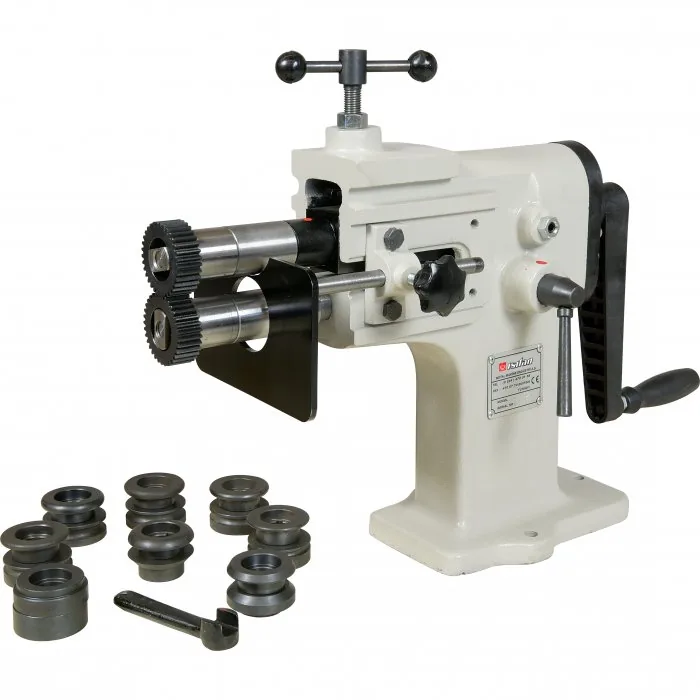

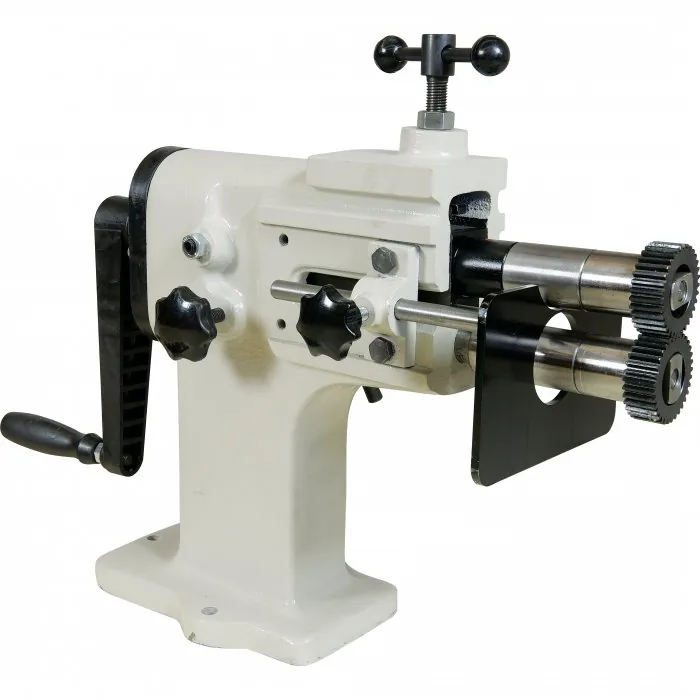

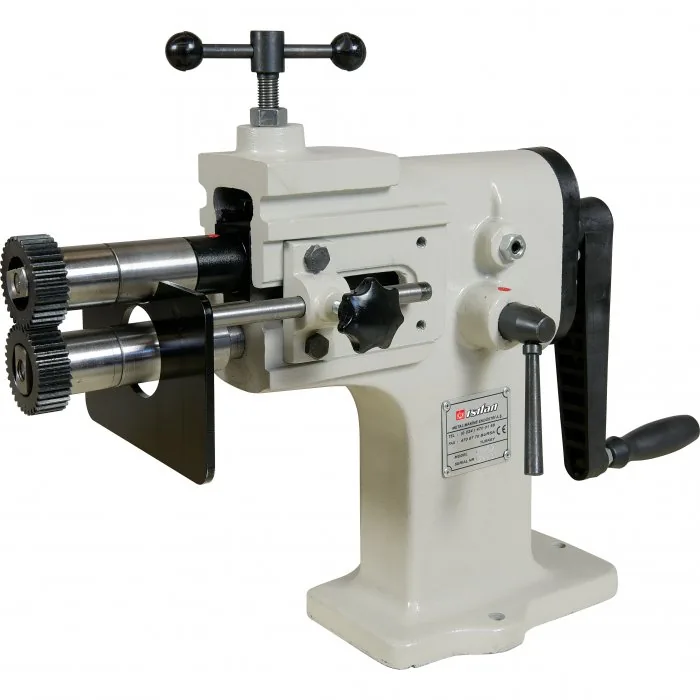

Swage and Jenny – Manual — IK-1.2, 1.2mm Mild Steel Thickness Capacity Includes 9 Sets Of Rolls
Part No: S642 | Barcode: 9344195028182 | Model: IK-1.2
ISITAN IK-1.2 Swage and Jenny – Manual (1.2mm Mild Steel Thickness Capacity Includes 9 Sets Of Rolls). Available to order through Alltools Geelong for collection in store.
Model IK-1.2
1.2mm Mild Steel Thickness Capacity
Includes 9 Sets Of Rolls
Aluminium – Thickness Capacity: 1.2 / 18
Throat Depth Maximum: 180 mm
Key Features & Benefits
- Heavy duty cast iron construction
- Adjustable material side support
- 9 sets of rolls
- Mild steel capacity is rated on hot rolled material with 250MPA
About This Product
Swage and Jenny – Manual (1.2mm Mild Steel Thickness Capacity Includes 9 Sets Of Rolls). A Hare & Forbes special-order item, available to order through Alltools Geelong (order code S642) for collection in store.

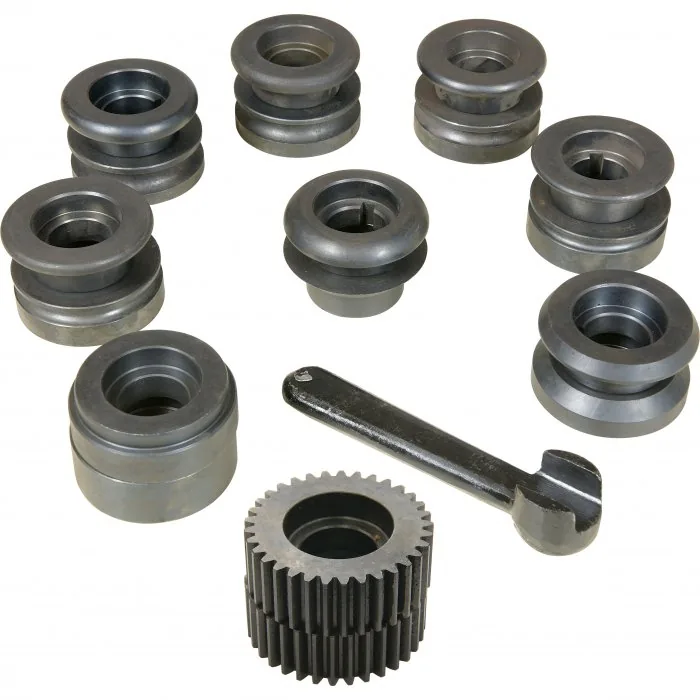

In the Box
- 1 x 4mm wiring rolls
- 1 x 6.2mm wiring rolls
- 1 x 7.2mm wiring rolls
- 1 x 9.2mm wiring rolls
- 1 x 10.2mm wiring rolls
- 1 x crimping rolls
- 3 x sets of flanging rolls
Product Specifications
| Specification | Detail |
|---|---|
| Machine (Type) | Swage & Jenny |
| Mild Steel – Thickness Capacity (mm / Gauge) | 1.2 / 18 |
| Aluminium – Thickness Capacity (mm / Gauge) | 1.2 / 18 |
| Throat Depth Maximum (mm) | 180 |
| Roll Diameter (mm) | 62 |
| Nett Weight (kg) | 50 |
