HAFCO-METALMASTER

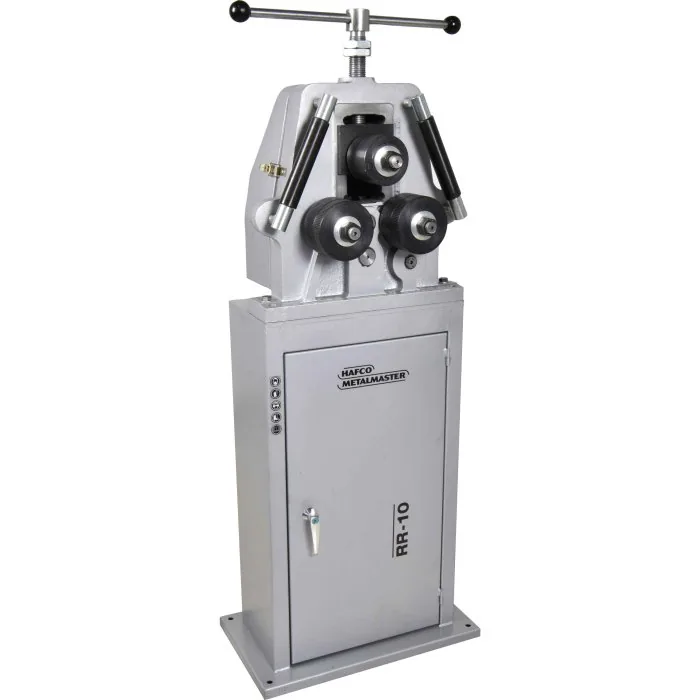

Manual Section & Pipe Rolling Machine — RR-10, 50 x 10mm Flat Bar Capacity
Part No: S681 | Barcode: 9344195028236 | Model: RR-10
HAFCO-METALMASTER RR-10 Manual Section & Pipe Rolling Machine (50 x 10mm Flat Bar Capacity). Available to order through Alltools Geelong for collection in store.
Model RR-10
50 x 10mm Flat Bar Capacity
Powered Driven Rolls: 2 x Manual Qty
Key Features & Benefits

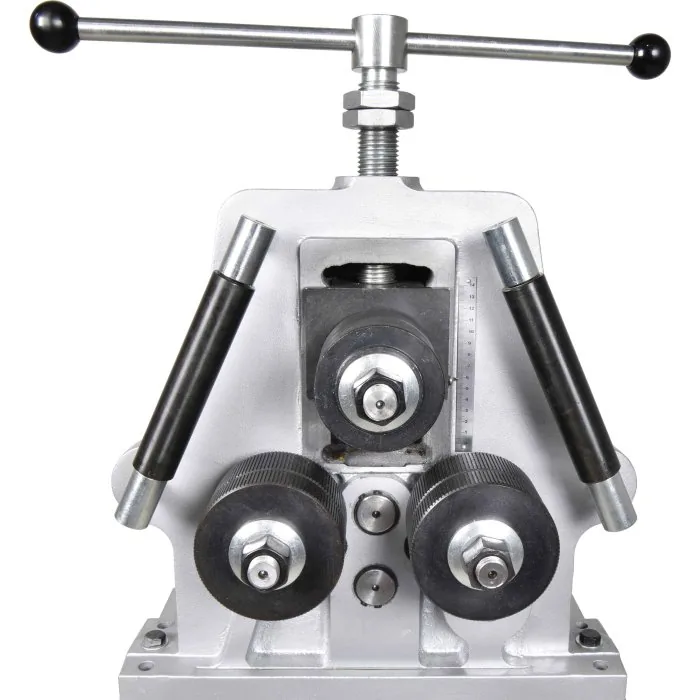

- Hardened 98mm top & 118mm bottom rolls
- 30mm heat treated drive shaft

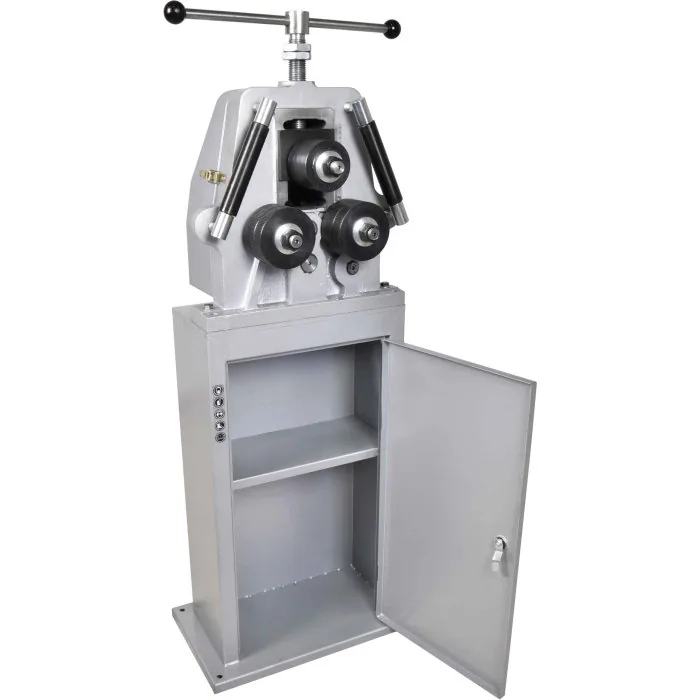

- Cast iron housing on heavy duty stand

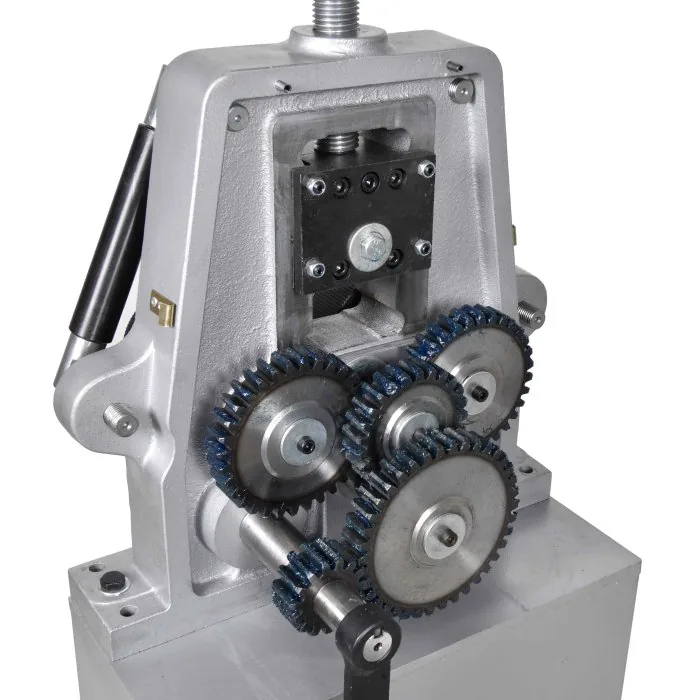

- Gear driven rolls
- Heavy duty steel fabricated frame

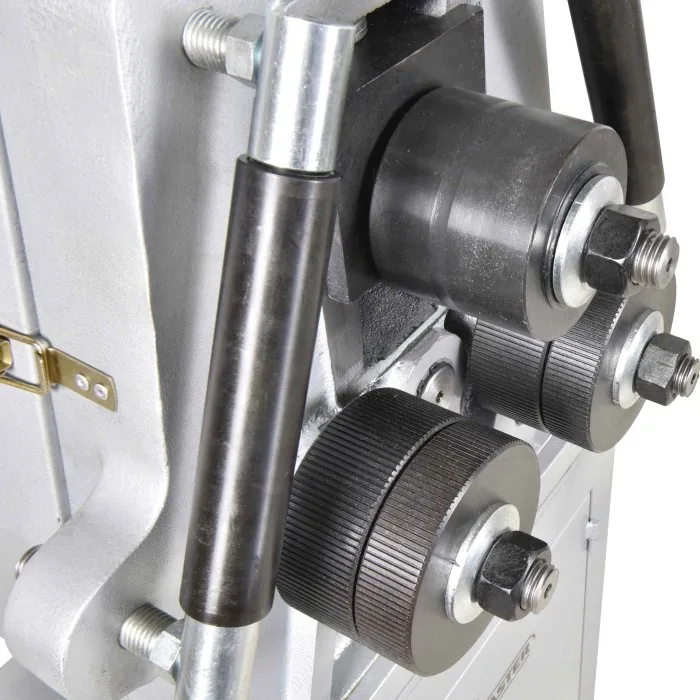

- Bottom rolls are knurled for additional grip on material

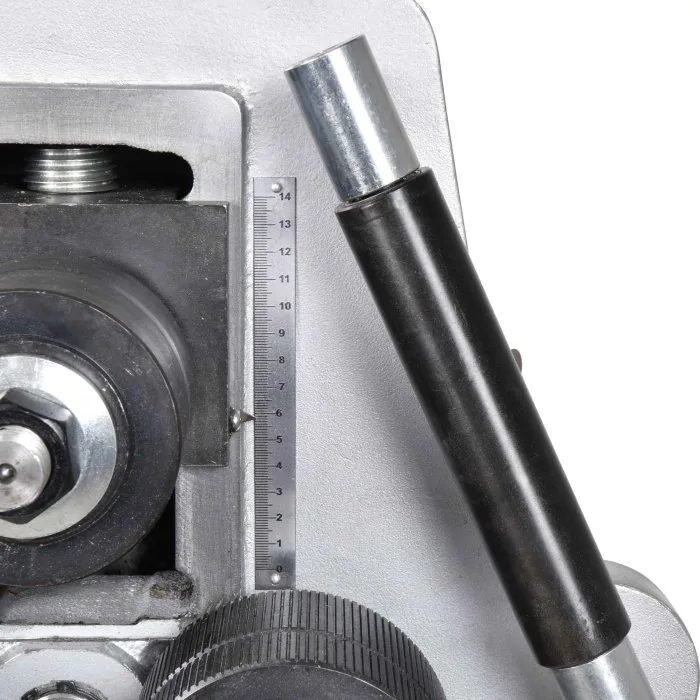

- Manual screw adjustment of top roller
- Adjustable side support guide rolls
- Standard flat & angle rolls are included
- One piece guiding mono block mounted on cross head
- *Additional dies are required to roll round bar, round pipe/tube, square tube & angles
About This Product
Manual Section & Pipe Rolling Machine (50 x 10mm Flat Bar Capacity). A Hare & Forbes special-order item, available to order through Alltools Geelong (order code S681) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Powered Driven Rolls (Qty) | 2 x Manual |
| Bending Rolls (Type) | Manual Top |
| Top Roll Diameter (Ø) (mm) | 98 |
| Flat Bar Edge Capacity – MS (size / Ø) (mm) | 30 x 10 / 500 – (20 x 5 / 190) |
| Flat Bar Capacity – MS (size / Ø) (mm) | 50 x 10 / 400 – (20 x 5 / 160) |
| Square Bar Solid Capacity – MS (size / Ø) (mm) | 20 x 20 / 500 – (10 x 10 / 160) |
| Dimensions (L x W x H) (mm) | 500 x 480 x 680 |
| Note: Requires Additional Tooling (No / Yes*) | No |
| Nett Weight (kg) | 185 |
