Carbitool T1624 1/2 — Hinge Mortise Router Bit available at Alltools Geelong. Shop our full Hinge Mortise Router Bit range in Geelong.
Carbitool
T 1624 1/2 Hinge Mortice Router Bit 3/4″ — 2-Flute, Carbide Tipped
Part No: T 1624 1/2 | Barcode: 9314350000735 | Product Group: R518
Carbide-tipped 2-flute hinge mortice router bit, 3/4″ cutting diameter, 1/2″ shank. Designed for fast, accurate cutting of hinge recesses (mortises) from the edge of timber doors, frames, and cabinet faces. Also suited to stair tread housing joints.
Carbide Tipped
2-Flute
3/4″ (19.05mm) Dia.
1/2″ Shank
3/4″ Cut Length
Suitable For
Hardwood
Softwood
MDF
Plywood
Key Features & Benefits
- Hinge mortice geometry — flat-bottom profile with edge-cutting capability, producing a clean, flat-bottomed recess for butt hinges directly from the edge or face of the workpiece.
- 3/4″ cutting diameter — matches the width of common butt hinge leaf dimensions; select the diameter that matches your hinge specification.
- Carbide-tipped construction — extended working life in hardwood door frames and jambs where softer tooling would quickly dull.
- 1/2″ shank — heavier shank reduces vibration for cleaner recess walls at production depths.
When to Use This Bit
The T 1624 1/2 is the go-to bit for router-cut hinge mortises in door hanging. Mount in a router table or use with an edge guide for consistent depth and position. The R518 series covers diameters from 1/2″ to 7/8″ — select the diameter that matches your hinge leaf width. For smaller mortises routed handheld, the T 2016 (1/4″ shank, 1/2″ dia.) is available.
Pro Tip: Set the router depth to exactly match the hinge leaf thickness before cutting. Use a simple depth stop block on your router table fence to ensure all mortises in a batch are cut to the same depth without re-measuring.

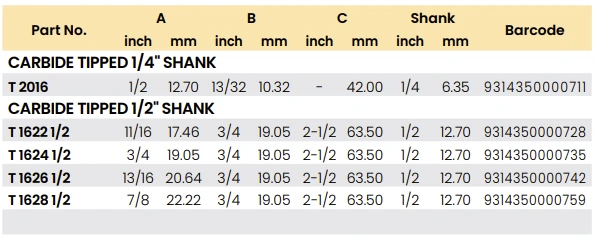

Product Specifications
| Part No. | A inch | A mm | B inch | B mm | C inch | C mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|
| T 2016 | 1/2 | 12.70 | 13/32 | 10.32 | — | 42.00 | 1/4 | 6.35 | 9314350000711 |
| T 1622 1/2 | 11/16 | 17.46 | 3/4 | 19.05 | 2-1/2 | 63.50 | 1/2 | 12.70 | 9314350000728 |
| T 1624 1/2 ★ | 3/4 | 19.05 | 3/4 | 19.05 | 2-1/2 | 63.50 | 1/2 | 12.70 | 9314350000735 |
| T 1626 1/2 | 13/16 | 20.64 | 3/4 | 19.05 | 2-1/2 | 63.50 | 1/2 | 12.70 | 9314350000742 |
| T 1628 1/2 | 7/8 | 22.22 | 3/4 | 19.05 | 2-1/2 | 63.50 | 1/2 | 12.70 | 9314350000759 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
