Description
Carbitool T208S — Single Flute Straight Router Bit Shank available at Alltools Geelong. Shop our full Single Flute Straight Router Bit Shank range in Geelong.
Carbitool

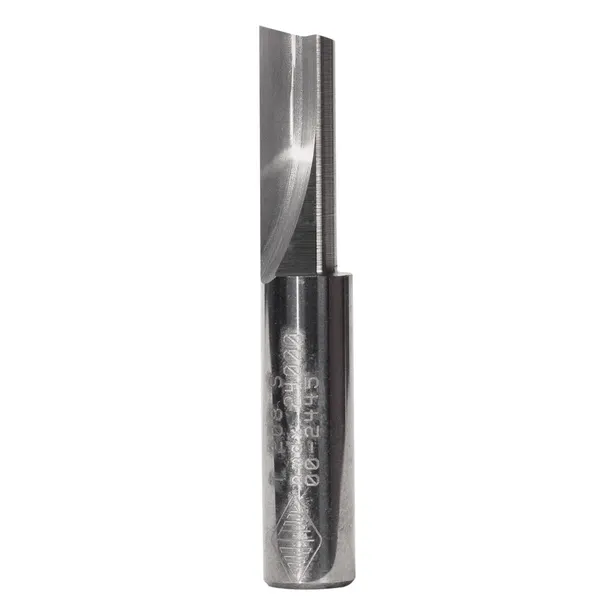

1 Flute Straight Router Bit — Solid Carbide, 1/4″ (6.35mm) Cutting Diameter
Part No: T 208 S | Barcode: 9314350003255 | Product Group: R503
A 1-flute solid carbide straight router bit for general-purpose routing, grooving and rebating in hardwood, softwood, MDF, plywood and laminates. Reliable edge quality and long service life in production routing and fine joinery applications.
Solid Carbide
1 Flute
Straight Flute
General Purpose
1/4″ (6.35mm) Cutting Dia.
1/4″ Shank
Suitable For
Hardwood
Softwood
MDF
Plywood
Laminates
Composites
Key Features & Benefits
- 1-flute straight geometry — delivers clean, consistent groove walls for routing dadoes, housing joints, rebates and grooves in a wide range of timber and sheet materials.
- Solid Carbide construction — full solid carbide provides superior edge retention and wear resistance compared to carbide-tipped alternatives, particularly in abrasive MDF and laminates.
- Excellent chip clearance — single flute design provides maximum chip clearance for clean routing across a wide range of materials including hardwood, softwood and acrylic sheet.
When to Use This Bit
The T 208 S is a workhorse routing bit for dadoes, housings, rebates, grooves and through-cuts across hardwood, softwood, MDF and sheet goods. For superior edge finish in production work, consider upgrading to the TSRW/TSLW spiral series.
Product Specifications

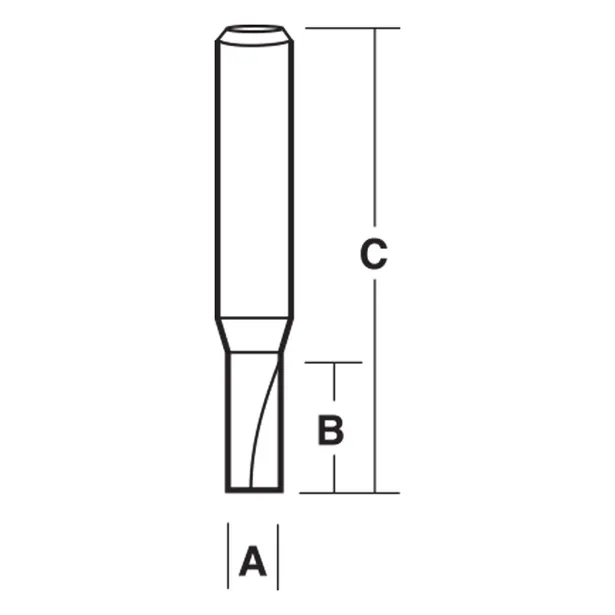

| Part No. | A inch | A mm | B inch | B mm | C inch | C mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|
| T 202 S | 1/16 | 1.59 | 3/16 | 4.76 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350003149 |
| T 202 MS | – | 2.00 | – | 4.80 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350003156 |
| T 203 S | 3/32 | 2.38 | 3/16 | 4.76 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350003163 |
| T 203 MS | – | 3.00 | 1/4 | 6.35 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350003170 |
| T 204 S | 1/8 | 3.18 | 5/16 | 7.94 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350003187 |
| T 205 S | 5/32 | 3.97 | 3/8 | 9.53 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350003194 |
| T 204 MS | – | 4.00 | 7/16 | 11.11 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350003200 |
| T 206 S | 3/16 | 4.76 | 1/2 | 12.70 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350003217 |
| T 205 MS | – | 5.00 | 1/2 | 12.70 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350003224 |
| T 207 S | 7/32 | 5.56 | 1/2 | 12.70 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350003231 |
| T 206 MS | – | 6.00 | 5/8 | 15.88 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350003248 |
| T 208 S ★ | 1/4 | 6.35 | 5/8 | 15.88 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350003255 |
★ You are viewing the highlighted variant.
