Carbitool T304 — Veining Router Bit Solid Carbide available at Alltools Geelong.
Carbitool
T304 Veining Router Bit Solid Carbide Carbitool
Part No: T304 | Barcode: 9314350004450 | Product Group: R584
The Carbitool T304 is a single-flute solid carbide veining bit. Produces fine V-shaped grooves and scored panel designs in wood surfaces. Suited to template routing, decorative panel scoring and CNC engraving work. 1/8" cutting diameter, 1/4" shank.
Single Flute
Solid Carbide
1/8" Cutting Diameter
1/4" Shank
V-Groove Profile
Panel Scoring
Compatible Materials
Hardwood
Softwood
MDF
Panel Doors
Cabinet Faces
Key Features & Benefits
- Fine V-groove veining profile — produces the narrow decorative scored grooves used on panel door faces, cabinet fronts and decorative timber surfaces.
- Single flute design — excellent chip clearance for clean, sharp groove lines in fine detail work.
- Solid carbide construction — superior rigidity and edge retention for consistent fine detail work.
- Designed for template routing — use with a guide bushing and template for repeatable panel designs and cabinet face scoring.
When to Use This Bit
Choose the T304 for decorative groove scoring on panel door faces, cabinet fronts and timber surfaces. Works best with a template or guide for accurate, repeatable patterns. For deeper decorative coves, see the Core Box series (T408–T448); for provincial panel design veining, see the T503 series (R582).

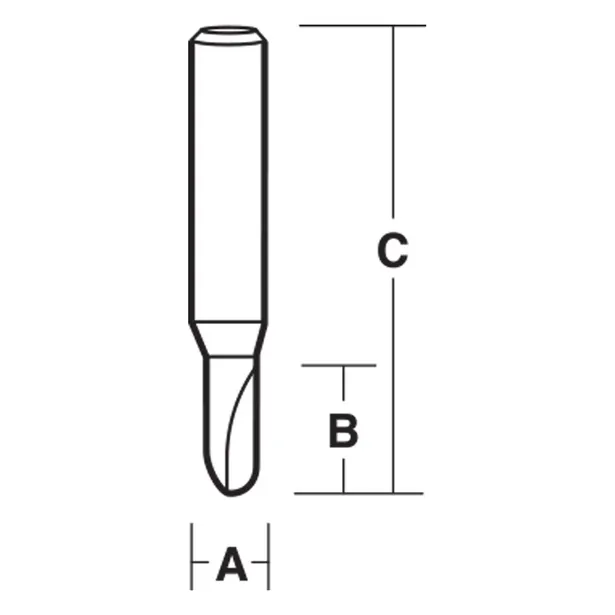

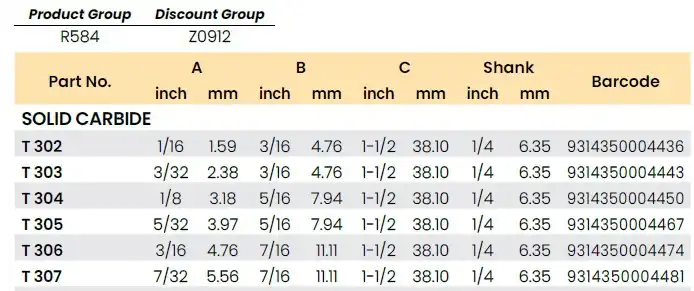

| Part No. | A (Cutting Dia.) inch | A mm | B (Cut Length) inch | B mm | C (Overall Length) inch | C mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|
| T302 | 1/16 | 1.59 | 3/16 | 4.76 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350004436 |
| T303 | 3/32 | 2.38 | 3/16 | 4.76 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350004443 |
| T304 ★ | 1/8 | 3.18 | 5/16 | 7.94 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350004450 |
| T305 | 5/32 | 3.97 | 5/16 | 7.94 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350004467 |
| T306 | 3/16 | 4.76 | 7/16 | 11.11 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350004474 |
| T307 | 7/32 | 5.56 | 7/16 | 11.11 | 1-1/2 | 38.10 | 1/4 | 6.35 | 9314350004481 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
