T5705B Roman Ogee Router Bit with Ball Bearing Guide Carbitool
Part No: T5705B | Barcode: 9314350006713 | Product Group: R659–R661

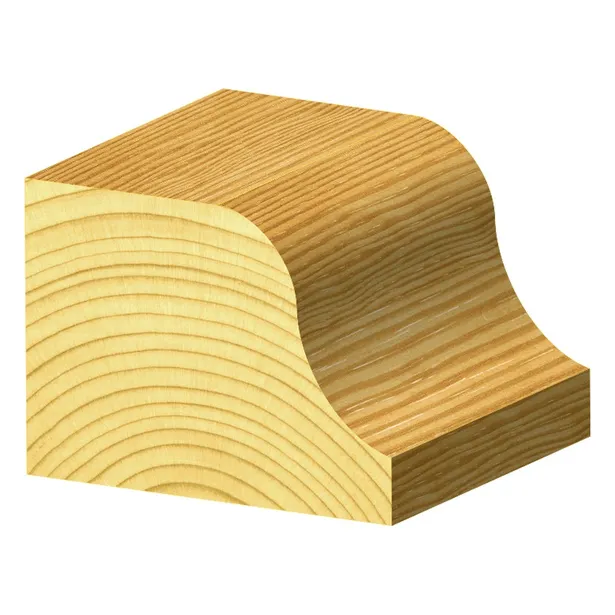

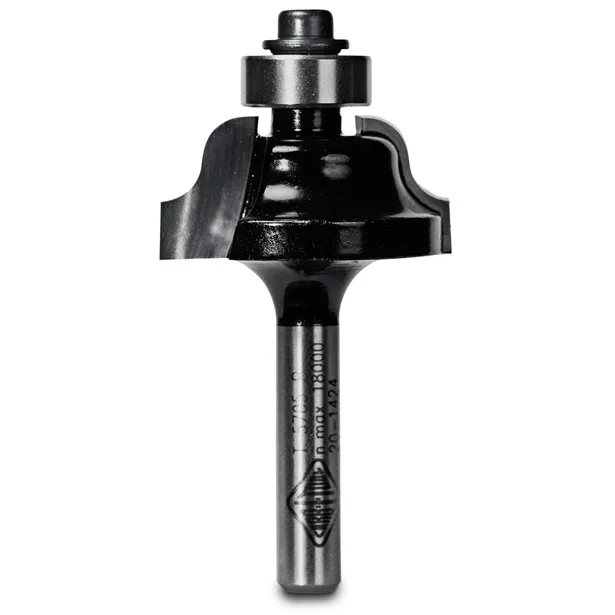

The Carbitool T5705B is a 2-flute carbide-tipped Roman Ogee bit with ball bearing guide. Produces a reversed S-curve profile — the classic early American furniture edge form. 5/32" radius. 1/4" shank.
2 Flute
Carbide Tipped
5/32" Radius
1/4" Shank
Ball Bearing Guide
Reverse Ogee Profile
Compatible Materials
Hardwood
Softwood
MDF
Laminates
Key Features & Benefits
- Reversed S-curve (Roman Ogee) profile — the mirror image of the standard ogee, producing the traditional early American furniture moulding profile.
- Ball bearing guide — consistent depth tracking without a fence; suited to curved and straight workpieces.
- Versatile height adjustment — adjust the bit height to include or exclude the top shoulder, producing a plain cove or a full Roman Ogee in one setup.
- 2-flute carbide-tipped construction — quality finish and long service life across hardwoods, softwoods and MDF.
When to Use This Bit
The T5705B is the traditional choice for early American-style furniture edges, cabinet doors and decorative moulding where the reversed S-curve of the Roman Ogee is required. Reverse profile to the standard Carbitool Ogee bit (T7506B series) — use both for matched pair applications on frame-and-panel work.

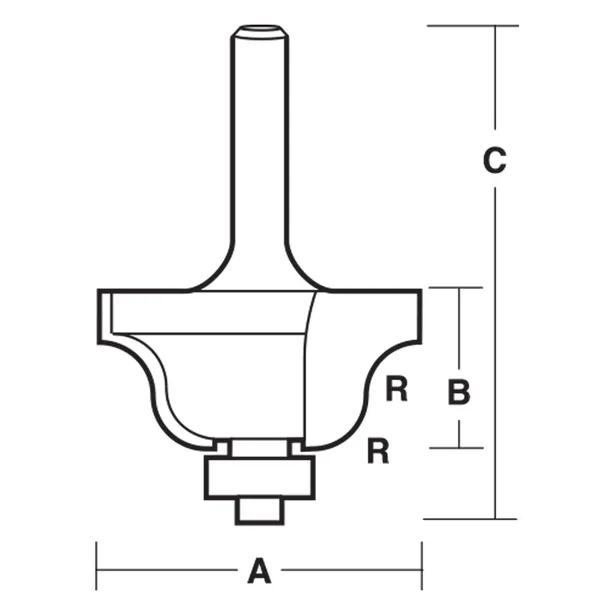

| Part No. | A (Cutting Dia.) inch | A mm | B (Cut Length) inch | B mm | C (Overall Length) inch | C mm | R Radius inch | R mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T5705B ★ | 1-1/8 | 28.58 | 1/2 | 12.70 | 2 | 50.80 | 5/32 | 3.97 | 1/4 | 6.35 | 9314350006713 |
| T5705B 1/2 | 1-1/8 | 28.58 | 1/2 | 12.70 | 2-5/8 | 66.68 | 5/32 | 3.97 | 1/2 | 12.70 | 9314350006720 |
| T5708B | 1-1/2 | 38.10 | 3/4 | 19.05 | 2-3/8 | 60.33 | 1/4 | 6.35 | 1/4 | 6.35 | 9314350006737 |
| T5708B 1/2 | 1-1/2 | 38.10 | 3/4 | 19.05 | 2-3/4 | 69.85 | 1/4 | 6.35 | 1/2 | 12.70 | 9314350006744 |
| T5712B 1/2 | 2 | 50.80 | 1 | 25.40 | 3-3/8 | 85.73 | 3/8 | 9.53 | 1/2 | 12.70 | 9314350006751 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
