Carbitool T8212B — Inverted Flush Trimming Router Bit available at Alltools Geelong. Shop our full Inverted Flush Trimming Router Bit range in Geelong.
Carbitool

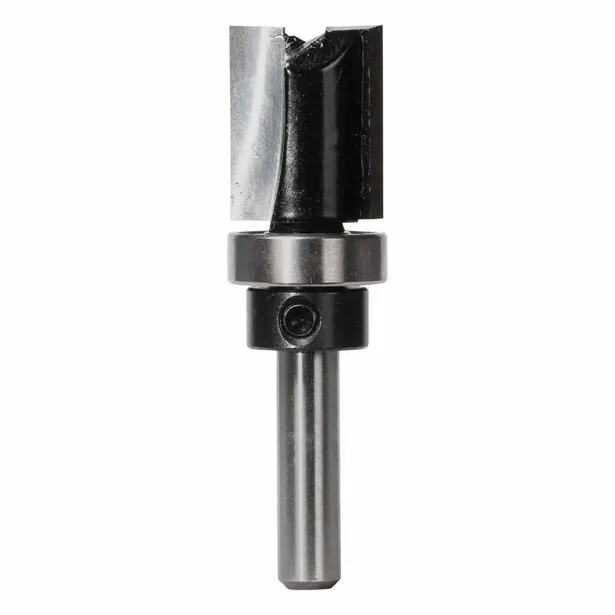

2 Flute Inverted Flush Trimming Bit with Ball Bearing — Carbide Tipped, 3/8″ (9.53mm)
Part No: T 8212 B | Barcode: 9314350017856 | Product Group: R540
A 2-flute carbide-tipped inverted flush trimming bit for copy routing where the template sits above the workpiece. The bearing is positioned above the flutes to follow the top-mounted template, enabling accurate flush trimming without flipping the workpiece.
Carbide Tipped
2 Flute
Inverted Bearing
Top Template Routing
3/8″ (9.53mm) Dia.
1/4″ Shank
Suitable For
Copy Routing
Template Work
Laminates
Solid Timber
MDF
Key Features & Benefits
- Inverted bearing position — bearing above the flutes follows a template placed on top of the workpiece, enabling accurate top-template copy routing without needing to flip the workpiece.
- 2-flute carbide-tipped — clean flush cut at practical feed rates for production laminate and timber trimming.
- Range of sizes — from 3/8″ to 1-1/8″ diameter, with TX extended lengths for thicker boards.
When to Use This Bit
Use the T 8212 B when the template is on top of the workpiece during routing. For standard copy routing with bottom template, use the R534 series. Replacement bearing TB 2 available separately.

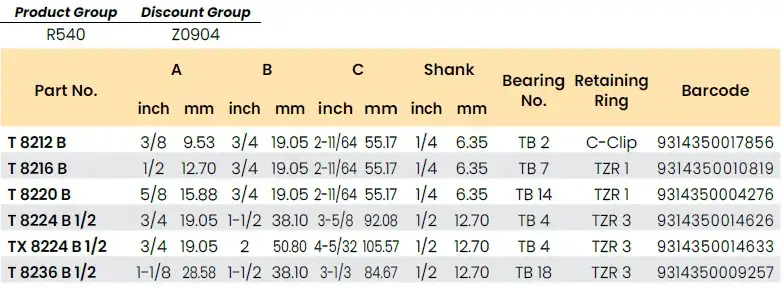

Product Specifications

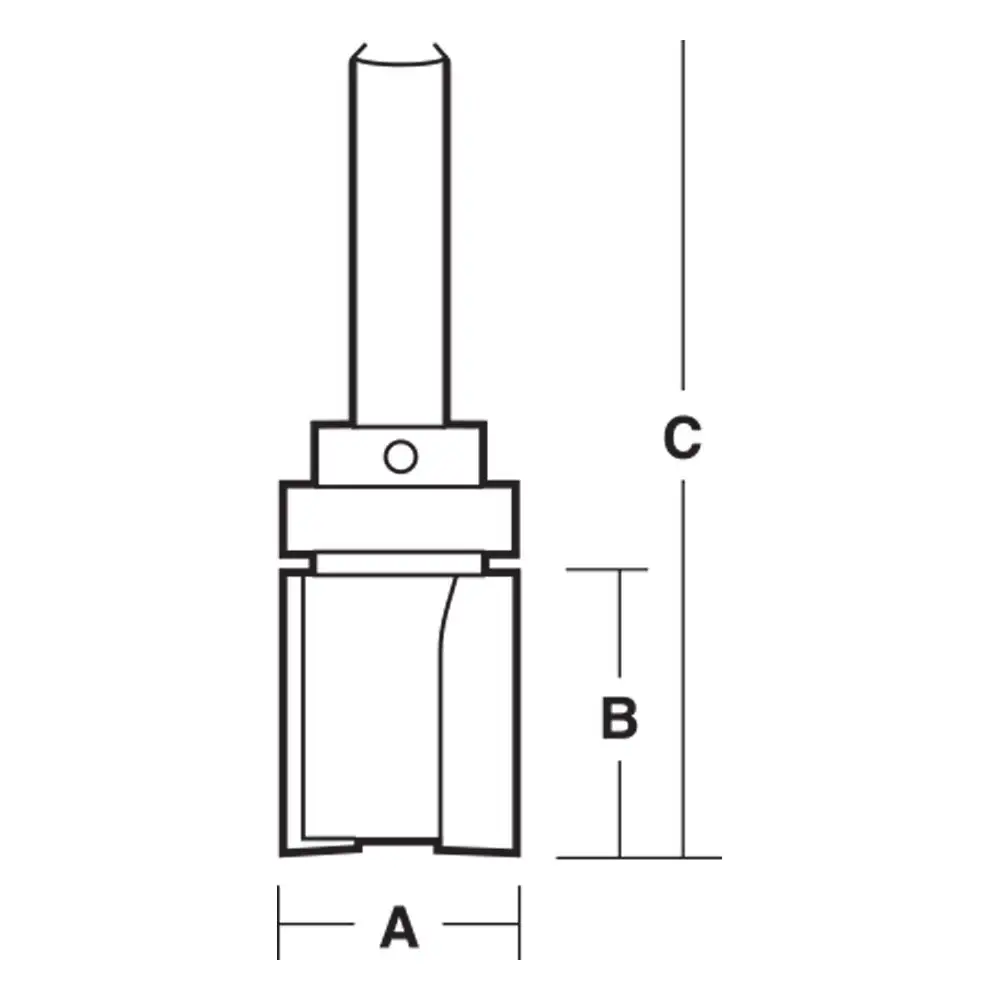

| Part No. | A inch | A mm | B inch | B mm | C inch | C mm | Shank inch | Shank mm | Bearing | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|
| T 8212 B ★ | 3/8 | 9.53 | 3/4 | 19.05 | 2-11/64 | 55.17 | 1/4 | 6.35 | TB 2 | 9314350017856 |
| T 8216 B | 1/2 | 12.70 | 3/4 | 19.05 | 2-11/64 | 55.17 | 1/4 | 6.35 | TB 7 | 9314350010819 |
| T 8220 B | 5/8 | 15.88 | 3/4 | 19.05 | 2-11/64 | 55.17 | 1/4 | 6.35 | TB 14 | 9314350004276 |
| T 8224 B 1/2 | 3/4 | 19.05 | 1-1/2 | 38.10 | 3-5/8 | 92.08 | 1/2 | 12.70 | TB 4 | 9314350014626 |
| TX 8224 B 1/2 | 3/4 | 19.05 | 2 | 50.80 | 4-5/32 | 105.57 | 1/2 | 12.70 | TB 4 | 9314350014633 |
| T 8236 B 1/2 | 1-1/8 | 28.58 | 1-1/2 | 38.10 | 3-1/3 | 84.67 | 1/2 | 12.70 | TB 18 | 9314350009257 |
★ You are viewing the highlighted variant.
