Carbitool TA193.00B — 3 Flute Flush Trimming Assembly Router Bit available at Alltools Geelong. Shop our full 3 Flute Flush Trimming Assembly Router Bit range in Geelong.
Carbitool

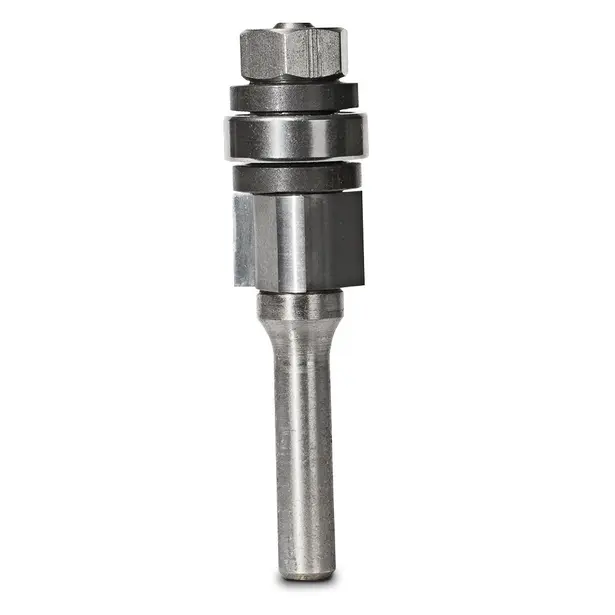

45 Degree Combination Flush & Bevel Trim Router Bit — Assembly — Carbide Tipped
Part No: TA 193.00 B | Barcode: 9314350004214 | Product Group: R545
A Carbide Tipped combination flush and bevel trim router bit that produces both a flush trim cut and a precise 45-degree bevel chamfer in a single pass. The ball bearing guide rides against the substrate edge while the dual-geometry cutter simultaneously trims the laminate flush and applies the bevel profile.
Carbide Tipped
45° Bevel
Flush + Bevel in One Pass
7.14mm Dia.

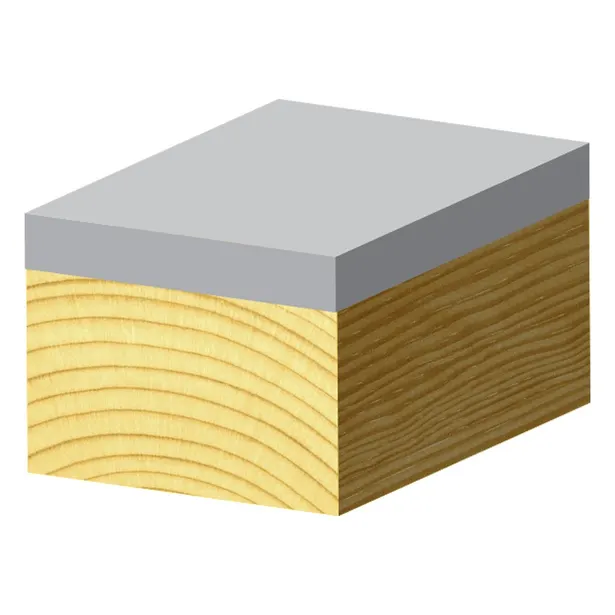

Suitable For
Plastic Laminates
Melamine
Timber Veneer
Solid Timber
Composite Panels
Key Features & Benefits
- Flush + 45° bevel in one pass — the lower cutting zone trims the laminate or timber flush to the substrate while the upper bevel zone simultaneously applies a precise 45-degree chamfer. Eliminates two separate operations and produces a consistent, professional result every time.
- Ball bearing guide — rides against the substrate edge for accurate, fence-free trimming on curved and straight edges.
- Carbide-tipped construction — wear-resistant carbide tips maintain sharpness across production laminate trimming.
When to Use This Bit
Choose the TA 193.00 B when a 45-degree chamfered edge is required on the finished panel — kitchen benchtops, cabinet edges, counter tops and furniture panels. The combination cut eliminates the need for a separate chamfering step and produces a consistent bevel angle across the full length of the edge.

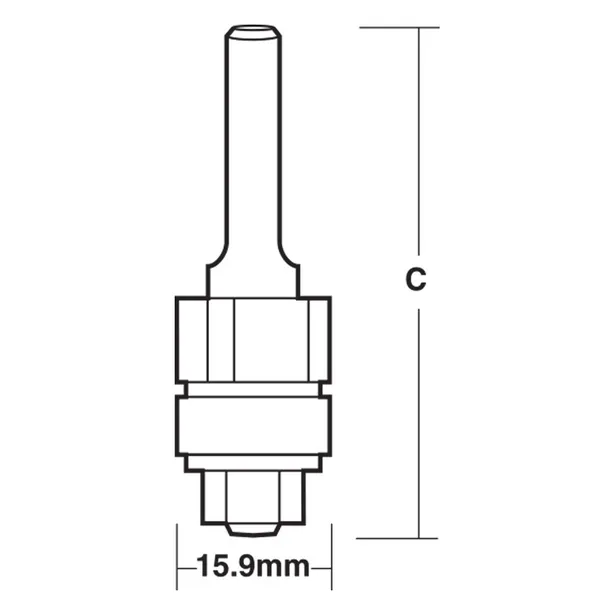

Product Specifications
| Part No. | A inch | A mm | B inch | B mm | C inch | C mm | Shank inch | Shank mm | Bearing/Note | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|
| TA 193.00 B ★ | – | 7.14 | 1-9/32 | 32.54 | 2-9/64 | 54.37 | 1/4 | 6.35 | TB 2 assembly | 9314350004214 |
