Description
Carbitool TEB03B 1/2 — Rounding Over Fillet Router Bit available at Alltools Geelong.
Carbitool
TEB03B 1/2 Rounding Over Fillet Router Bit with Ball Bearing Guide Carbitool
Part No: TEB03B 1/2 | Barcode: 9314350007383 | Product Group: R614

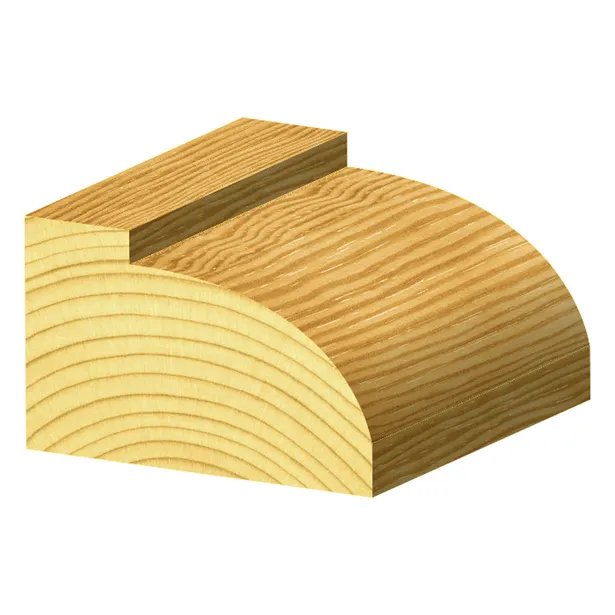

The Carbitool TEB03B 1/2 is a 2-flute carbide-tipped rounding over fillet bit with ball bearing guide. Profiles are variable by raising and lowering the bit height. Produces a profile with the TB9 bearing for a contrasting fillet at the bottom. Popular for table and bench tops. 1/2" shank.
2 Flute
Carbide Tipped
Variable Profile
1/2" Shank
Ball Bearing Guide
Partial/Elliptical Radius
Compatible Materials
Hardwood
Softwood
MDF
Laminates
Key Features & Benefits
- Variable profile via height adjustment — raise or lower the bit to produce a partial radius, a full elliptical radius, or a rounding over with fillet depending on the application.
- Ball bearing guide — consistent edge tracking without a fence; ideal for curved workpieces and template work.
- Popular for table and bench tops — the variable nature of the profile makes this versatile across furniture, benchtops and architectural moulding.
- 2-flute carbide-tipped construction — clean cut and long tool life across hardwoods and softwoods.
When to Use This Bit
The TEB03B 1/2 suits applications where you want a softened, non-standard radius on table tops, bench edges and shelving. The variable height adjustment gives you multiple profiles from a single bit — experiment with height to dial in the exact look you want. Replacement bearing: TB9.

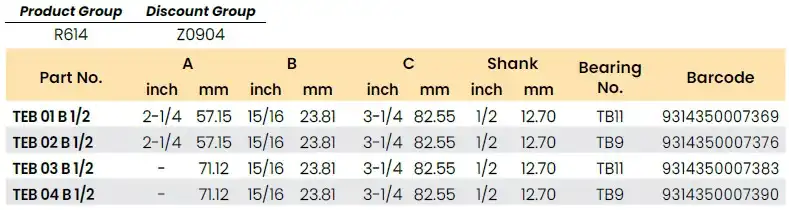

| Part No. | A (Cutting Dia.) inch | A mm | B (Cut Length) inch | B mm | C (Overall Length) inch | C mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|
| TEB01B 1/2 | 2-1/4 | 57.15 | 15/16 | 23.81 | 3-1/4 | 82.55 | 1/2 | 12.70 | 9314350007369 |
| TEB02B 1/2 | 2-1/4 | 57.15 | 15/16 | 23.81 | 3-1/4 | 82.55 | 1/2 | 12.70 | 9314350007376 |
| TEB03B 1/2 ★ | — | 71.12 | 15/16 | 23.81 | 3-1/4 | 82.55 | 1/2 | 12.70 | 9314350007383 |
| TEB04B 1/2 | — | 71.12 | 15/16 | 23.81 | 3-1/4 | 82.55 | 1/2 | 12.70 | 9314350007390 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
