Carbitool TEB14B 1/2 — Table Edge Router Bit available at Alltools Geelong.
Carbitool
Table Edge Router Bit with Ball Bearing Guide — Dual Radius Profile, 1/2″ Shank
Part No: TEB 14 B 1/2 | Barcode: 9314350007130 | Product Group: R668

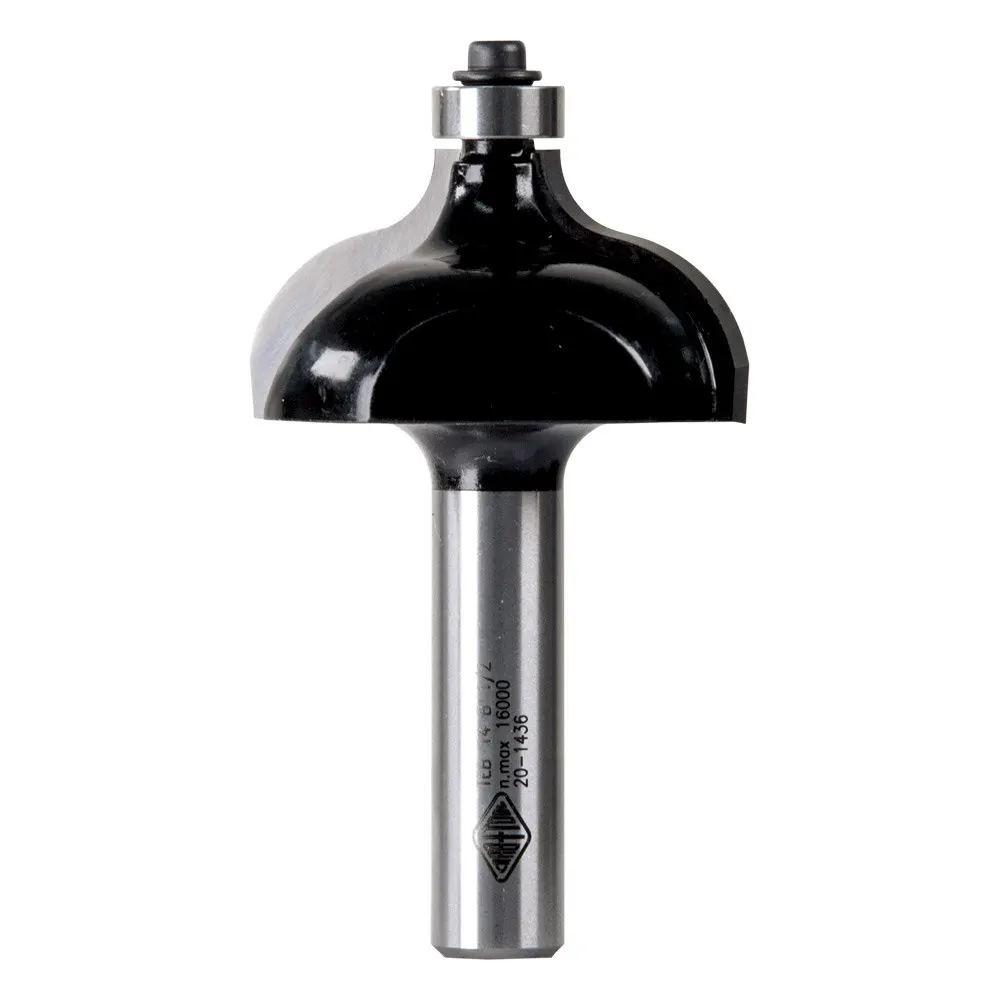

The Carbitool TEB 14 B 1/2 is a 2-flute carbide-tipped table edge bit with ball bearing guide, designed for finishing table and bench tops with a dual-radius profile. It produces a popular, smooth edge moulding in a single router-table pass.
2 Flute
Carbide Tipped
Ball Bearing Guide
Dual Radius Profile
2″ Cutting Dia.
R1 8.00mm
R2 16.00mm
1/2″ Shank
Suitable For
Hardwood
Softwood
MDF
Table Tops
Bench Tops
Kitchen Islands
Furniture Edges
Key Features & Benefits
- Dual Radius Profile (R1 8mm, R2 16mm) — combines two complementary radii into a single profile, producing a smooth, flowing table-top edge that suits both modern and traditional furniture styles.
- Ball Bearing Guide — tracks along the workpiece face for a consistent depth of cut on every pass, eliminating fence setup and making it easy to route curved edges as well as straight.
- 2-Flute Carbide-Tipped Construction — clean, smooth finish on hardwood and softwood with extended edge life between sharpenings.
- 1/2″ Shank — the large shank diameter reduces vibration on this wide-profile cutter, which is critical for achieving a glass-smooth finish on table tops.
When to Use This Bit
Choose the TEB 14 B 1/2 when finishing dining tables, kitchen bench tops, workshop benches, or any flat-panel furniture edge where a smooth dual-radius profile is required. Always run in a table-mounted router (minimum 2 HP) with a 1/2″ collet. For a complete top-and-bottom return profile in one pass, see the TEB 15 B 1/2 or TEB 16 B 1/2 in the R669 series.
Pro Tip: Use a starting pin or starting block on your router table when beginning the cut — the large cutter diameter on this bit means a careful entry into the workpiece is important to prevent grabbing.

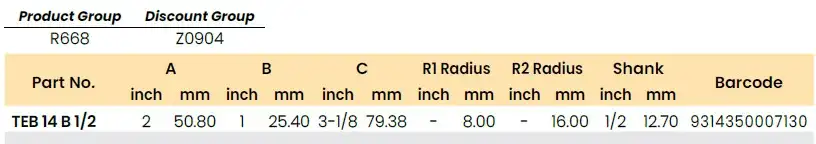

Product Specifications

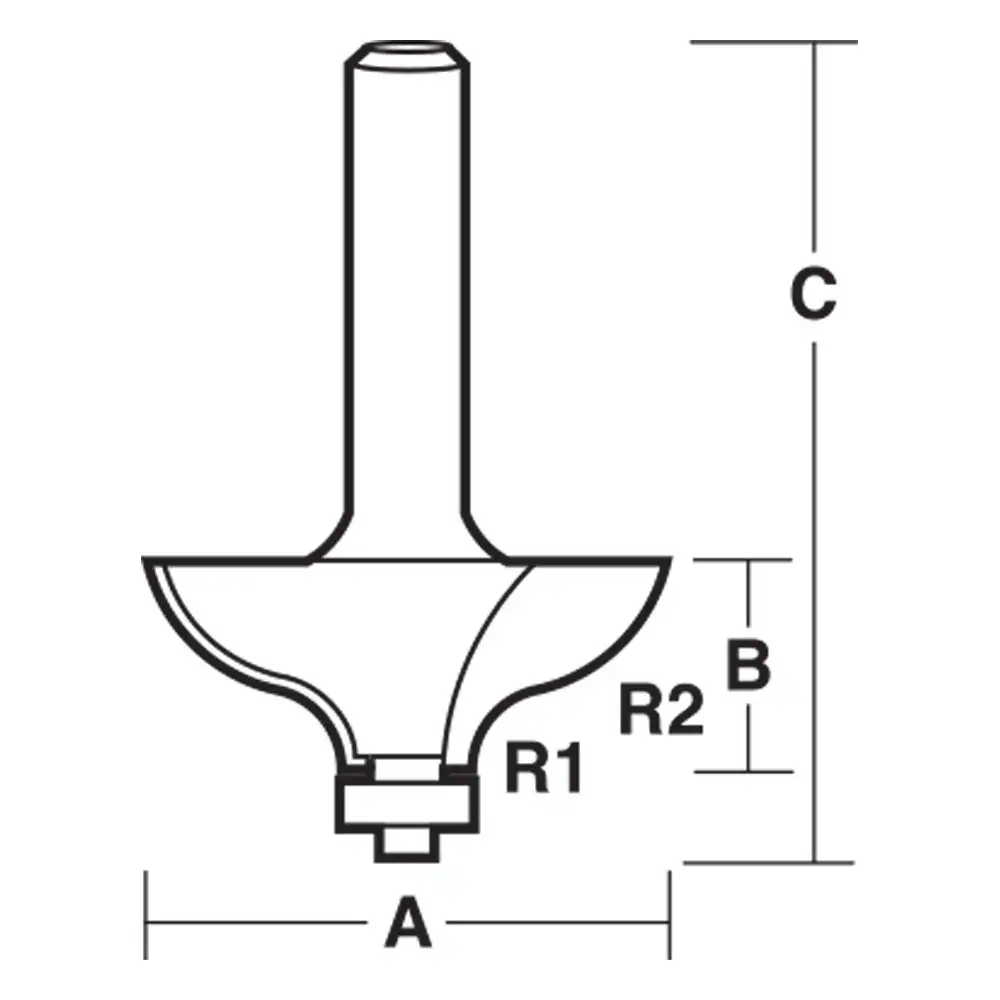

| Part No. | A (Cutting Dia.) inch | A mm | B (Cut Length) inch | B mm | C (Overall Length) inch | C mm | R1 Radius mm | R2 Radius mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TEB 14 B 1/2 ★ | 2 | 50.80 | 1 | 25.40 | 3-1/8 | 79.38 | 8.00 | 16.00 | 1/2 | 12.70 | 9314350007130 |
★ You are viewing this product. See also the R669 series for table edge bits with return profiles.
