Carbitool TPD2 1/2 — Router Bit Panel Door available at Alltools Geelong. Shop our full Router Bit Panel Door range in Geelong.
Carbitool

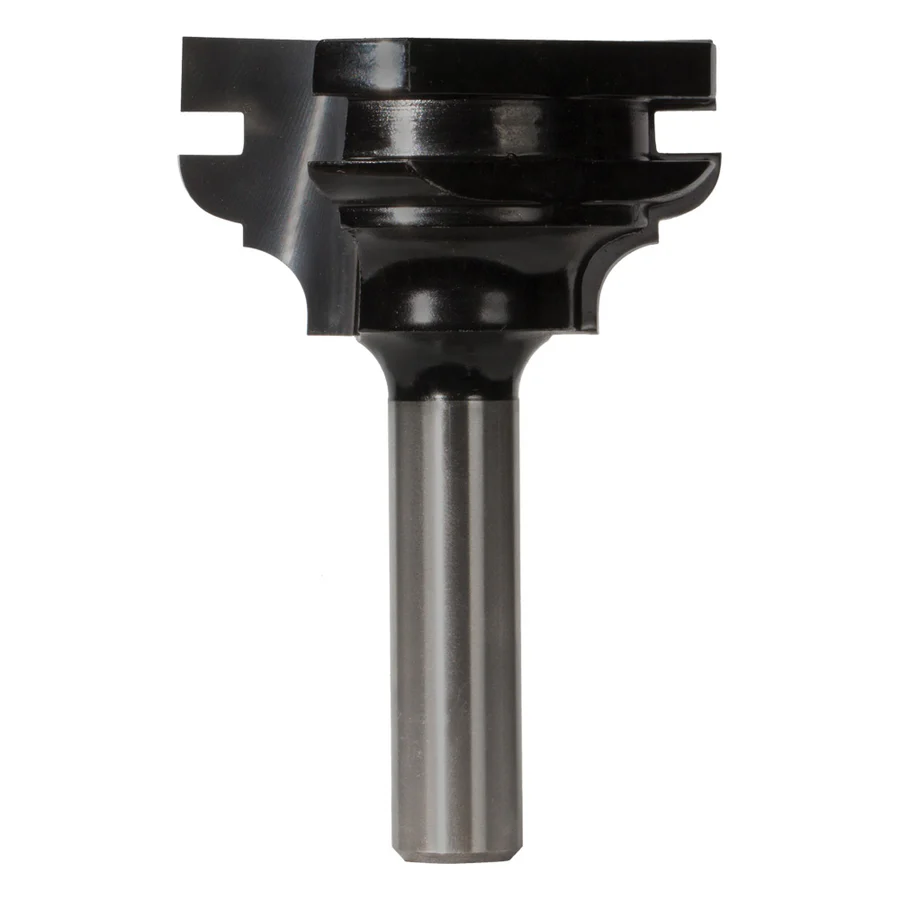

2 Flute Panel Door Rail & Cope Bit (Traditional Profile) — Carbide Tipped, 1/2″ Shank
Part No: TPD 2 1/2 | Barcode: 9314350007505 | Product Group: R720
The TPD 2 1/2 is the rail and cope cutter of the matched Carbitool traditional panel door set. Used in conjunction with TPD 1 B 1/2 (stile/profile cutter) to produce complete frame-and-panel door joints. Suits timber 20–25mm thick.
2 Flute
Carbide Tipped
Rail / Cope Cutter
1/2″ Shank
Traditional Profile
20–25mm Timber
Suitable For
Cabinet Door Rails
Panel Door Construction
Hardwood
Softwood
MDF
Key Features & Benefits
- Matched pair system — TPD 2 1/2 (rail/cope) works with TPD 1 B 1/2 (stile/profile) as a factory-matched set; rail and stile fit together as perfect joints.

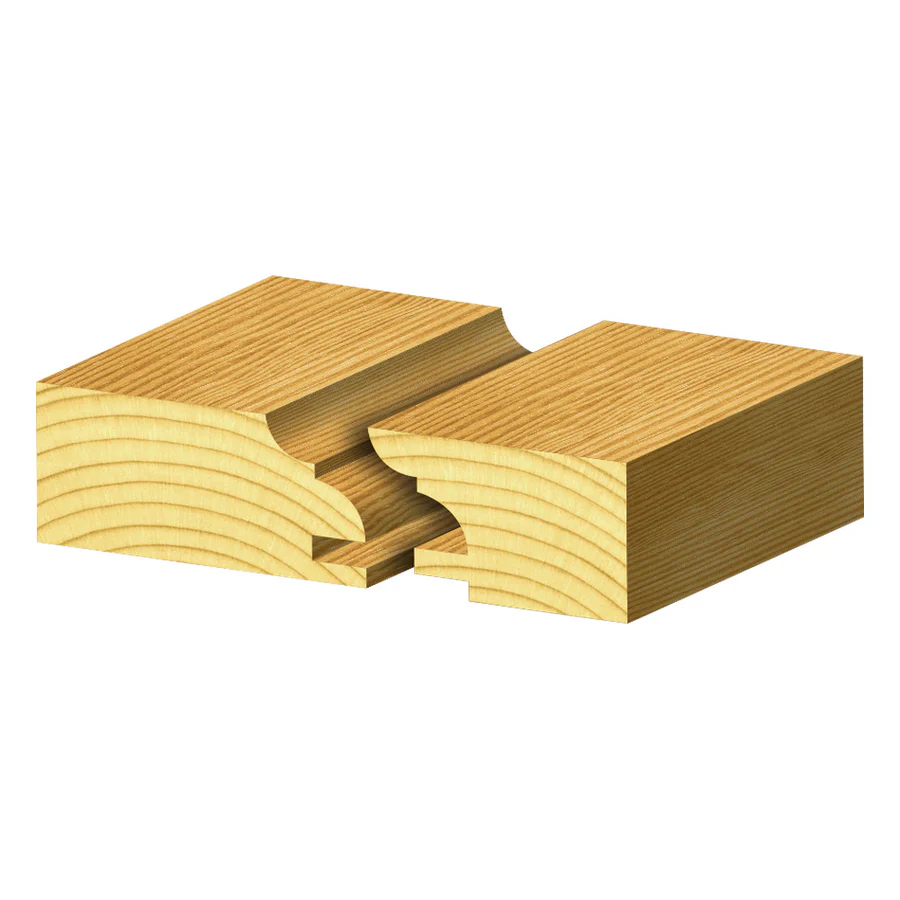

- Copes rail ends precisely — machines the negative profile on rail ends that interlocks with the stile groove for a tight, gap-free corner joint.

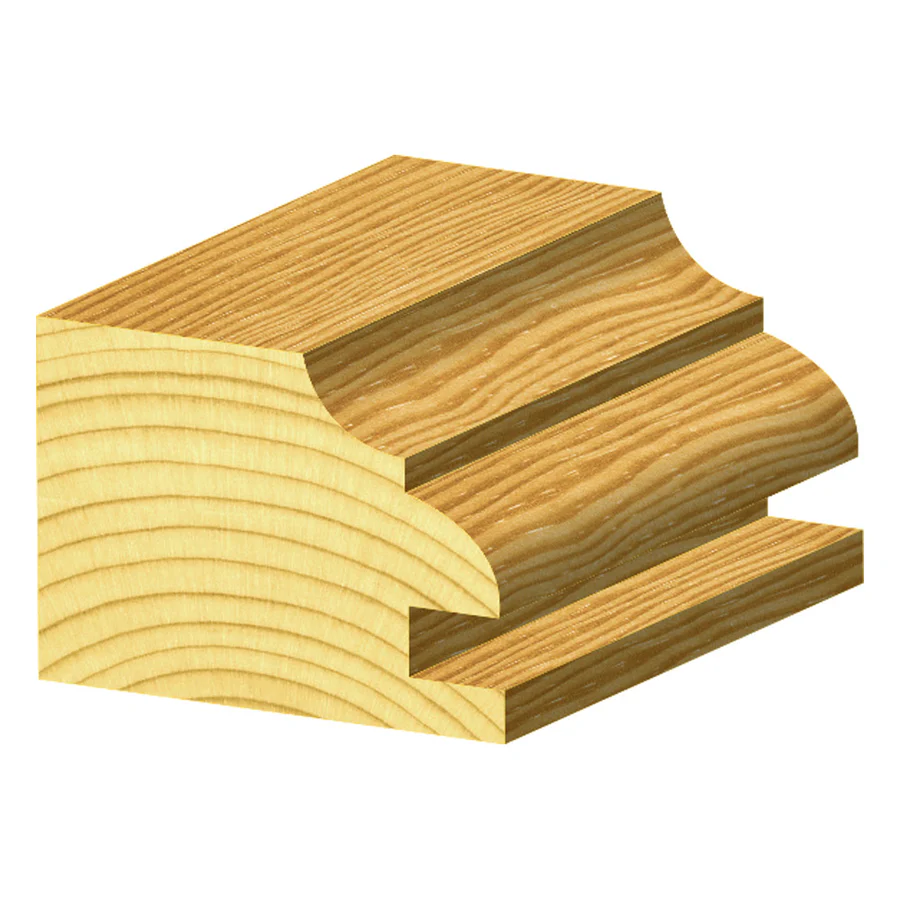

- Traditional panel door style — classic ogee fillet profile complementing the stile profile for period-style kitchen and furniture doors.
- Suits timber 20–25mm thick — standard range for frame-and-panel cabinet door stock.
When to Use This Bit

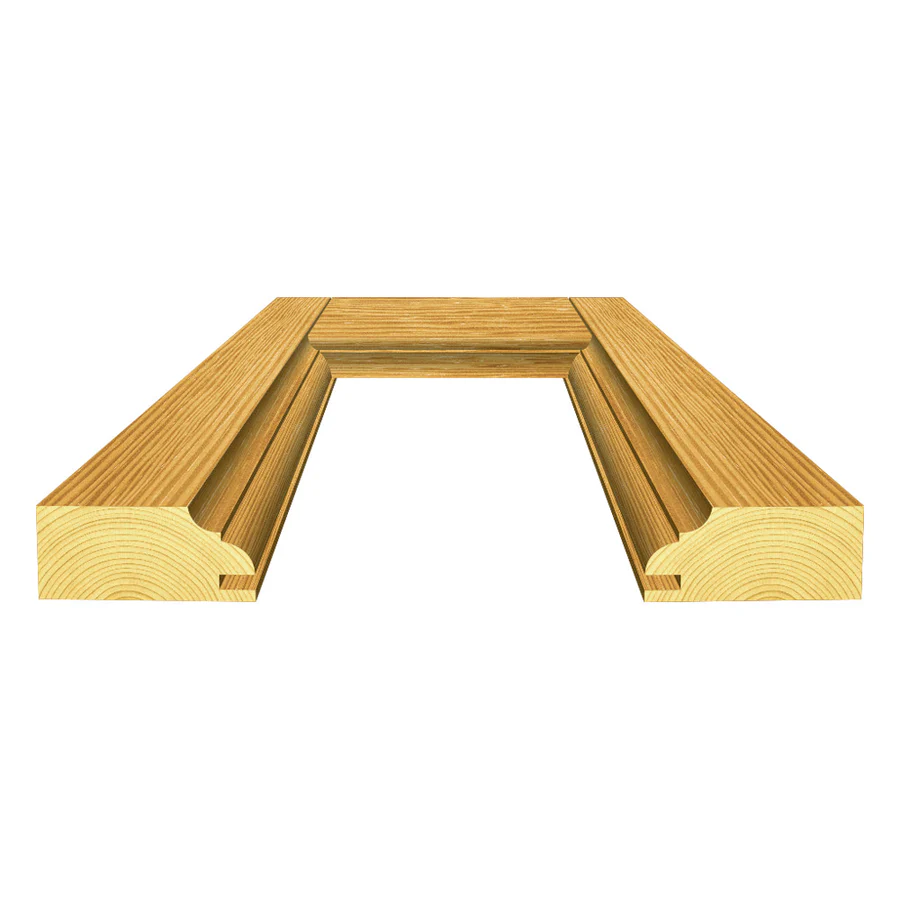

Use TPD 2 1/2 to cope (machine the matching end profile) on all rail pieces, including the top and bottom rails of each door. This creates the interlocking tongue that fits into the stile groove made by the TPD 1 B 1/2. Always use this bit with its matched companion TPD 1 B 1/2 — both bits must be used together for a complete, correctly fitting door joint. Best run in a router table with a sacrificial fence face to prevent chip-out at the end of rail cuts.

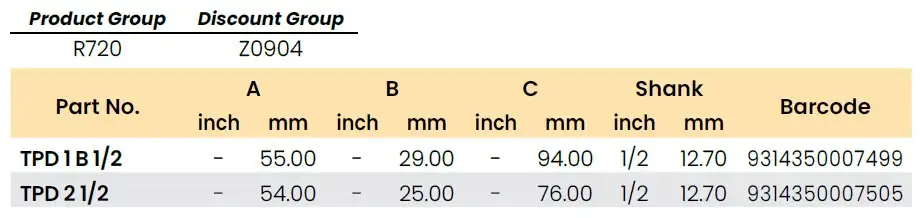

Product Specifications

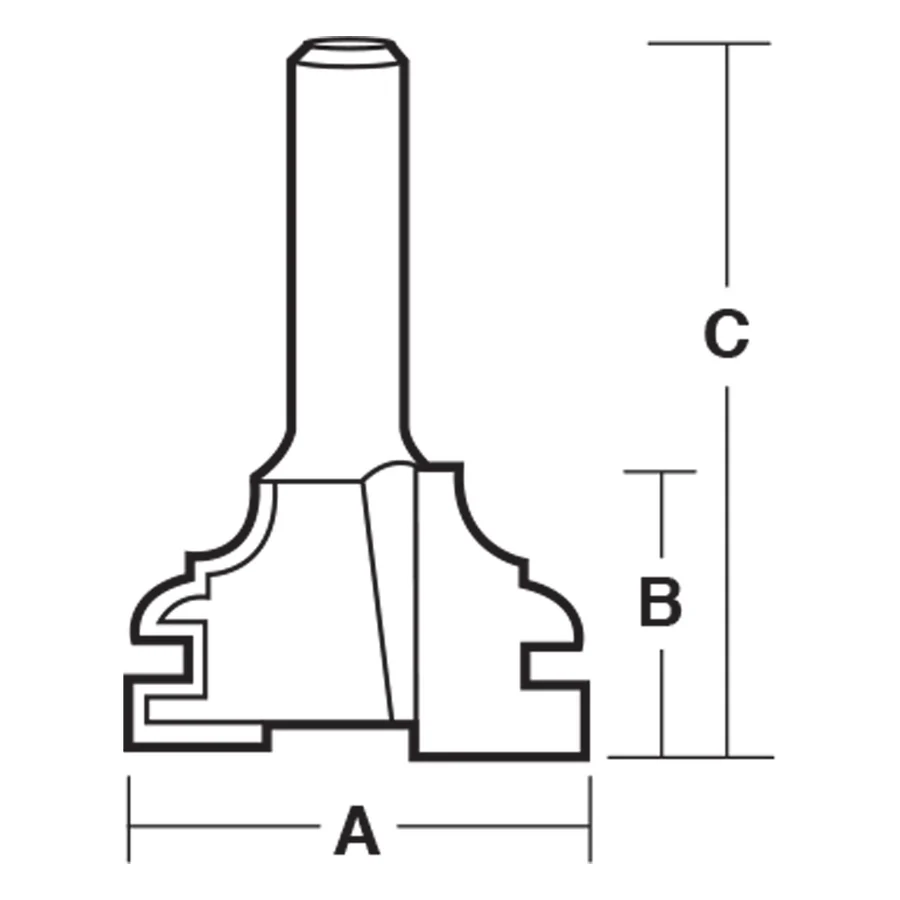

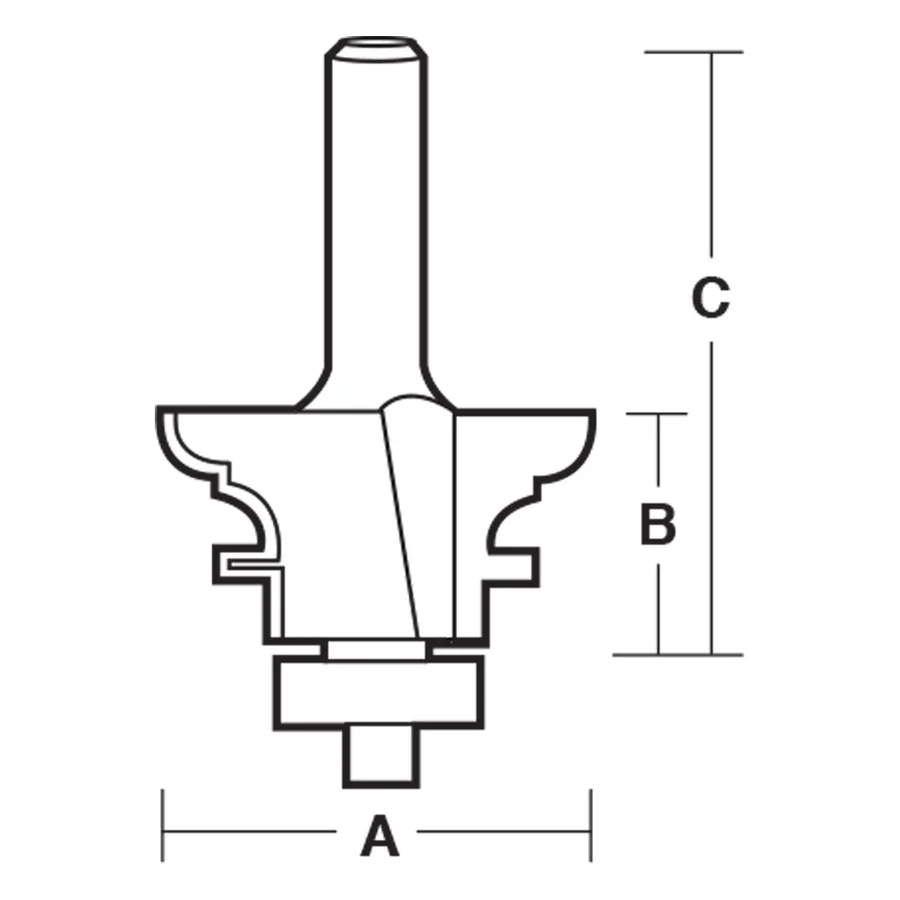

| Part No. | Role | A (Cutting Dia.) mm | B (Cut Length) mm | C (Overall Length) mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|

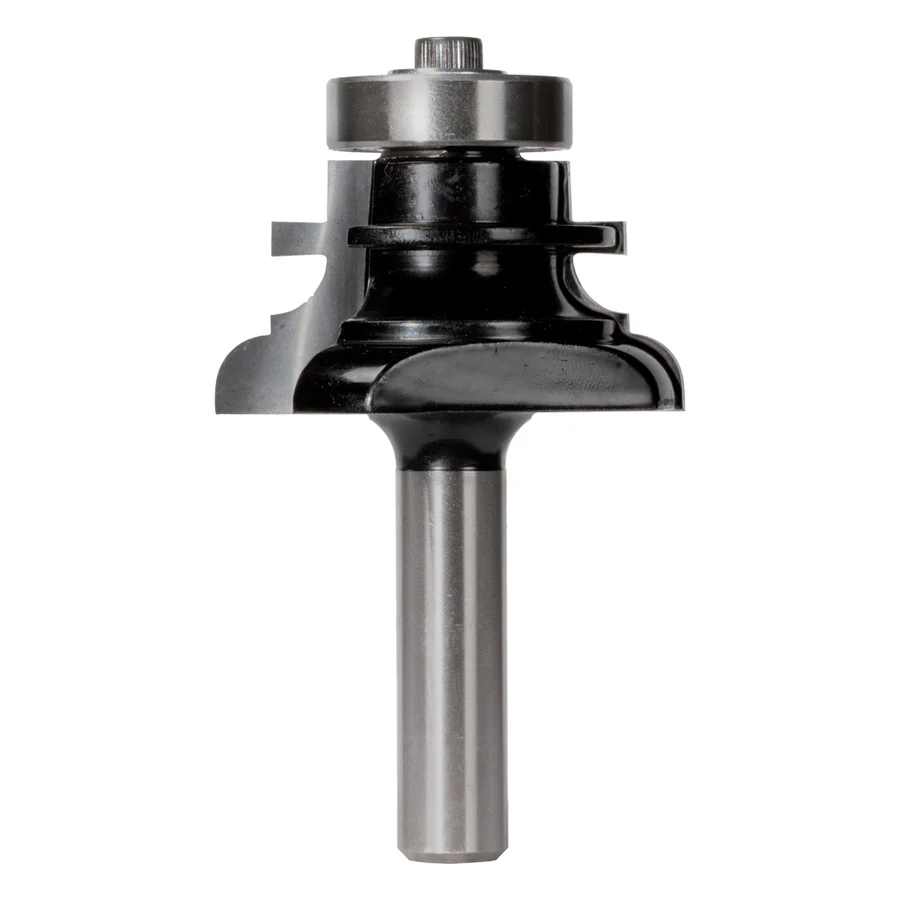

| TPD 1 B 1/2 | Stile / Profile | 55.00 | 29.00 | 94.00 | 1/2 | 12.70 | 9314350007499 |
| TPD 2 1/2 ★ | Rail / Cope | 54.00 | 25.00 | 76.00 | 1/2 | 12.70 | 9314350007505 |
★ You are viewing the rail/cope bit. Must be used with TPD 1 B 1/2 (stile/profile bit) for a complete door joint.
