2 Flute Panel Door Rail & Cope Bit — Carbide Tipped, 8mm Radius, 1/2″ Shank, 16–20mm Timber
Part No: TPS 8 1/2-2 | Barcode: 9314350007543 | Product Group: R724
The TPS 8 B 1/2-1 is the rail/cope cutter of the small-format Carbitool panel door set for 16–20mm timber. The only panel door stile-and-rail bit available in a 1/4″ shank diameter in the TPS 8 range. 1/2″ shank version for router table use.
2 Flute
Carbide Tipped
8mm Radius
1/2″ Shank
16–20mm Timber
Stile / Profile Cutter
Suitable For
Cabinet Door Stiles
Panel Doors 16–20mm
Hardwood
Softwood
MDF
Key Features & Benefits
- Small-format panel door set — designed for thinner door stock (16–20mm), ideal for bedroom furniture, bathroom vanities, and compact cabinet doors.

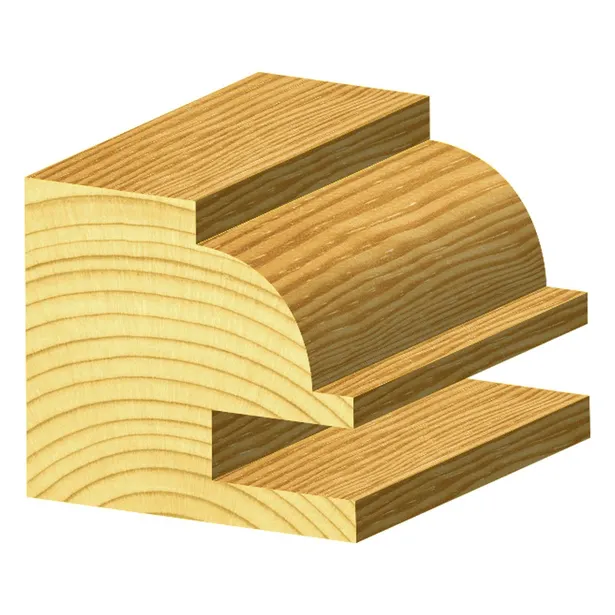

- 8mm radius profile — produces a clean, gentle curved profile on stile faces that complements the matching rail cope cut.
- Matched pair — must be used with TPS 8 1/2-2 (rail/cope) for a complete door joint; both bits are manufactured as a matched set.
- Replacement bearing TB14 — available separately for maintaining performance after heavy production runs.
When to Use This Bit
Use TPS 8 B 1/2-1 to machine the profile and groove on stile faces when building panel doors from 16–20mm timber stock. Use with the matching TPS 8 1/2-2 to cope the rail ends. Also note the 1/4″ shank version (TPS 8 B-1) is available for handheld routers. For thicker timber (20–25mm), use the TPD 1 B 1/2 / TPD 2 1/2 set instead. Replacement grooving cutter TPDG 9 available separately.

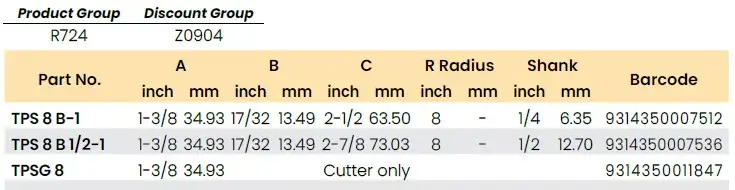

Product Specifications

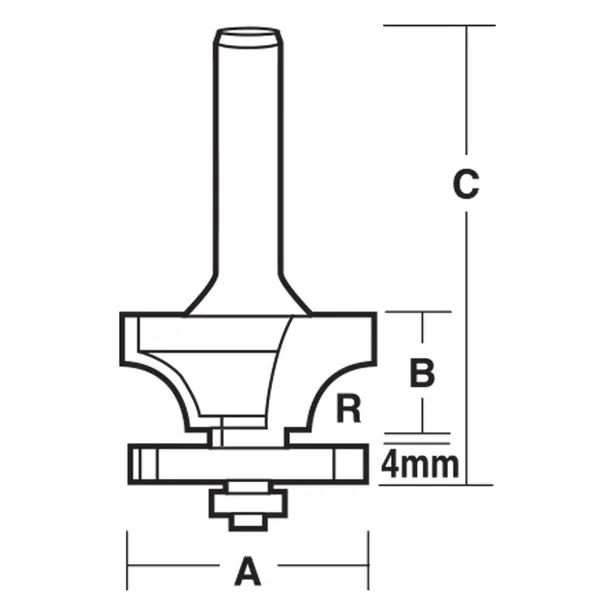

| Part No. | Role | A (Cutting Dia.) inch | A mm | B (Cut Length) inch | B mm | C (Overall Length) inch | C mm | R Radius | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TPS 8 B-1 | Rail / Cope | 1-3/8 | 34.93 | 17/32 | 13.49 | 2-1/2 | 63.50 | 8mm | 1/4 | 6.35 | 9314350007512 |
| TPS 8 B 1/2-1 | Rail / Cope | 1-3/8 | 34.93 | 17/32 | 13.49 | 2-7/8 | 73.03 | 8mm | 1/2 | 12.70 | 9314350007536 |
| TPS 8-2 | Rail / Cope | 1-3/8 | 34.93 | 7/8 | 22.23 | 2-1/4 | 57.15 | 8mm | 1/4 | 6.35 | 9314350007529 |
| TPS 8 1/2-2 | Rail / Cope | 1-3/8 | 34.93 | 7/8 | 22.23 | 2-5/8 | 66.68 | 8mm | 1/2 | 12.70 | 9314350007543 |
★ You are viewing the highlighted variant. Replacement bearing TB14 and grooving cutter TPDG 9 available separately. Timber thickness: 16–20mm.
