Carbitool TPD50 1/2 — Router Bit Panel Wide Flat Bot available at Alltools Geelong. Shop our full Router Bit Panel Wide Flat Bot range in Geelong.
Carbitool

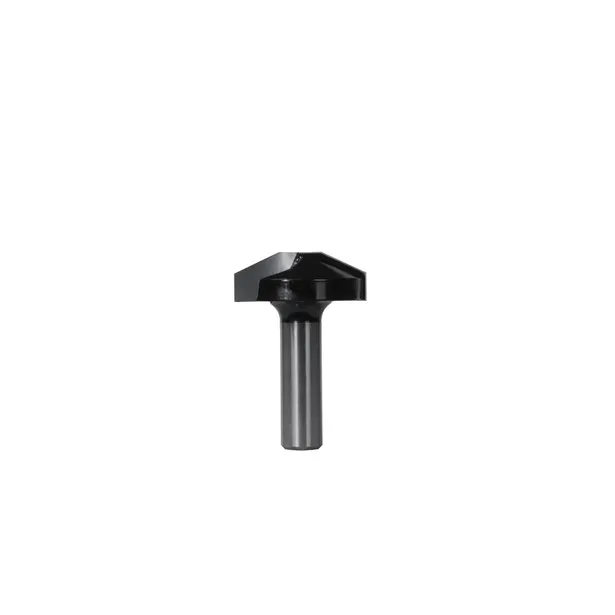

2 Flute Panel Bit Wide Flat Bottom — Carbide Tipped, 40mm, 25° Bevel, 1/2″ Shank
Part No: TPD 50 1/2 | Barcode: 9314350004979 | Product Group: R729
A 2-flute carbide-tipped panel bit with a wide flat bottom and 25° bevel, designed for grooving panel door stiles and rails. Creates a broad, shallow recess with chamfered edges that frames panel inserts cleanly in frame-and-panel cabinet construction.
2 Flute
Carbide Tipped
40mm Cutting Dia.
25° Bevel
1/2″ Shank
Wide Flat Bottom
Suitable For
Panel Door Stiles & Rails
Cabinet Face Frames
Hardwood
Softwood
MDF
Key Features & Benefits

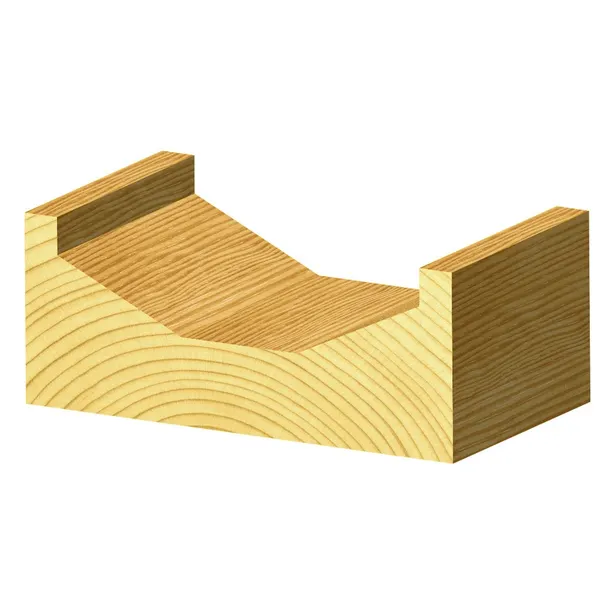

- Wide flat bottom profile — creates a broad, shallow recess with angled side walls; produces more visual impact on panel door faces compared to narrow ogee or bead profiles.
- 25° bevel angle — chamfered edges catch shadow nicely at different lighting angles, enhancing the three-dimensional appearance of panel door faces.
- Specially designed for panel door grooving — geometry suits the repeatable plunge and traverse routing required for stile and rail face detail work.
- 2-flute carbide construction — resists heat build-up in MDF and produces clean walls in solid timber without burning.
- Use with fence or template — no bearing; run against a router table fence for straight panel detail work.
When to Use This Bit
Use the TPD 50 1/2 for routing decorative wide-flat-bottom grooves across cabinet door stile and rail faces — typically run parallel to the long axis of stiles and perpendicular on rails to frame a raised or recessed panel insert. Also suited to routing face-frame decorative grooves on cabinets and furniture carcasses. Best run in a router table with a fence for consistent positioning. For a narrower version of this profile, see TPD 25 and TPD 25 1/2.

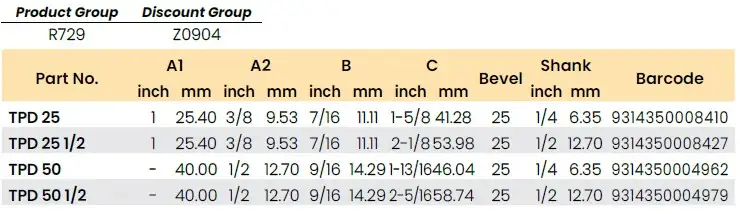

Product Specifications

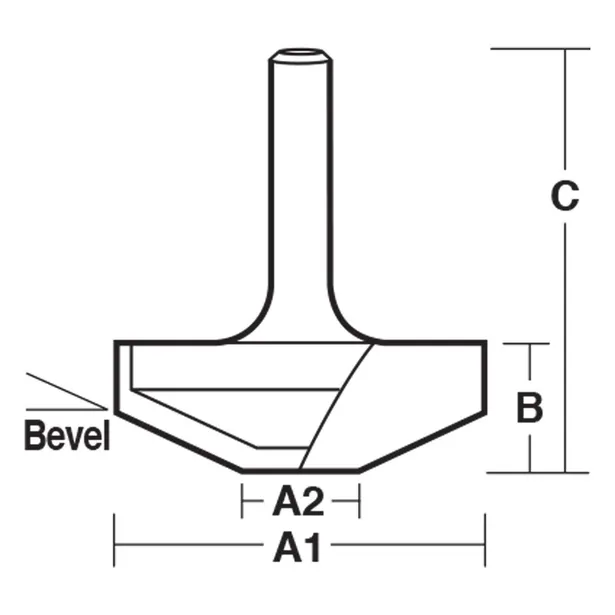

| Part No. | A1 (Cutting Dia.) inch | A1 mm | A2 mm | B (Cut Length) inch | B mm | C (Overall Length) inch | C mm | Bevel | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TPD 25 | 1 | 25.40 | 9.53 | 7/16 | 11.11 | 1-5/8 | 41.28 | 25° | 1/4 | 6.35 | 9314350008410 |
| TPD 25 1/2 | 1 | 25.40 | 9.53 | 7/16 | 11.11 | 2-1/8 | 53.98 | 25° | 1/2 | 12.70 | 9314350008427 |
| TPD 50 | — | 40.00 | 12.70 | 9/16 | 14.29 | 1-13/16 | 46.04 | 25° | 1/4 | 6.35 | 9314350004962 |
| TPD 50 1/2 ★ | — | 40.00 | 12.70 | 9/16 | 14.29 | 2-5/16 | 58.74 | 25° | 1/2 | 12.70 | 9314350004979 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
