Carbitool
Raised Panel Router Bit — Ogee Profile, 1/2" Shank
Part No: TPD 4 1/2 | Barcode: 11556 | Product Group: R939
The Carbitool TPD 4 1/2 is a 2-flute carbide-tipped raised panel bit producing a classic ogee raised panel profile for cabinet and furniture doors. Designed for router table use, it delivers the full raised panel effect on door panel edges in a single pass with a 1/2" shank.
2 Flute
Carbide Tipped
Raised Panel
Ogee Profile
1/2" Shank
Router Table Use
Suitable For
Hardwood
Softwood
MDF
Panel Doors
Cabinet Doors
Decorative Edges
Key Features & Benefits

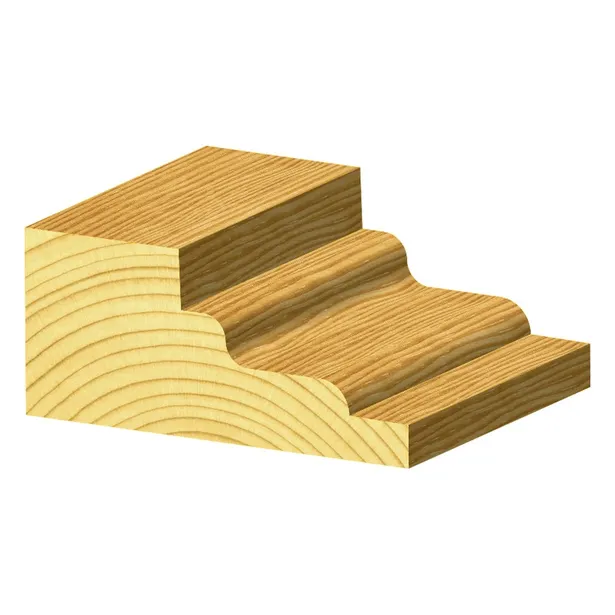

- Ogee Raised Panel Profile — produces a classic S-curve raised panel on door and drawer panel edges in a single router table pass, a defining profile in traditional and period-style cabinetry.
- Large Cutting Diameter — the full-width cutter covers the complete panel edge profile without requiring multiple passes or height adjustments, delivering consistent results across production runs.
- 2-Flute Carbide-Tipped Construction — provides long-lasting cutting edges and a smooth, finish-ready surface on hardwood, softwood, and MDF panels.
- 1/2" Shank — mandatory for a bit of this size; the larger shank diameter provides the rigidity needed to prevent vibration and maintain profile accuracy at working feed rates.
- Ball Bearing Version Available — the TPD 4 B 1/2 adds a ball bearing pilot for template-guided or freehand profiling where a fence is not used.
When to Use This Bit
Use TPD 4 1/2 when routing raised panel profiles on cabinet door panels, drawer fronts, and decorative furniture panels. This bit is intended for router table use with a fence — the fence controls the depth of cut and keeps the large-diameter bit stable throughout the pass. Always use a 1/2" router with adequate horsepower (2HP+) and take multiple shallow passes on hardwood rather than attempting the full profile depth in one pass. If you need a ball bearing guide for template or freehand routing, use the TPD 4 B 1/2 instead. For a matching stile and rail joint on the door frame, pair with TPD 1 B 1/2 (stile cutter) and TPD 2 1/2 (rail/cope cutter).
Pro Tip: For the cleanest finish, run the router table at 18,000–22,000 RPM with light passes — raise the bit in 3–4mm increments to full profile depth. Take a final skim pass at full depth with a slightly reduced feed rate to remove any mill marks. Always rout end grain first, then long grain, to prevent tearout at the corners.
Product Specifications
| Part No. | Profile | Bearing | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|
| TPD 1 B 1/2 | Stile & Profile (Traditional) | Yes | 1/2 | 12.70 | 9314350007499 |
| TPD 2 1/2 | Rail & Cope (Traditional) | No | 1/2 | 12.70 | 9314350007505 |
| TPD 3 1/2 | Raised Panel (Classic) | No | 1/2 | 12.70 | 9314350007567 |
| TPD 3 B 1/2 | Raised Panel (Classic) | Yes | 1/2 | 12.70 | 9314350007864 |
| TPD 4 1/2 ★ | Raised Panel (Ogee) | No | 1/2 | 12.70 | 11556 |
| TPD 4 B 1/2 | Raised Panel (Ogee) | Yes | 1/2 | 12.70 | — |
| TPD 5 1/2 | Raised Panel (Flat Bevel) | No | 1/2 | 12.70 | 9314350007581 |
| TPD 5 B 1/2 | Raised Panel (Flat Bevel) | Yes | 1/2 | 12.70 | 9314350007888 |
★ You are viewing the highlighted variant. Other profiles in this series are also available.
