Carbitool

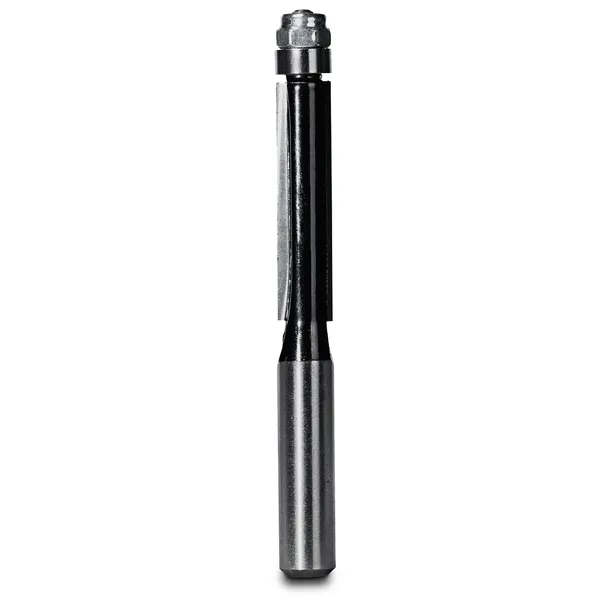

2 Flute Flush Trimming Router Bit with Ball Bearing Guide — Carbide Tipped, 1/2″ (12.70mm)
Part No: TS 8016 B | Barcode: 9314350004016 | Product Group: R534
A 2-flute carbide-tipped flush trimming router bit with ball bearing guide for fast, smooth and accurate trimming of laminates and template work. The ball bearing rides against the edge of the substrate or template, guiding the bit to produce a perfectly flush cut without the need for router fences or guides.
Carbide Tipped
2 Flute
Ball Bearing Guide
Flush Trim
1/2″ (12.70mm) Cutting Dia.
1/4″ Shank

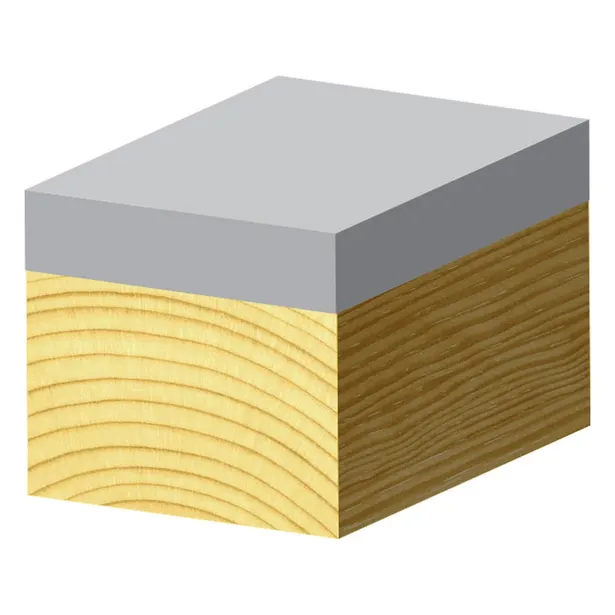

Suitable For
Plastic Laminates
Melamine
Timber Veneer
Solid Timber
Template Work
MDF
Key Features & Benefits
- Ball bearing guide — the precision ball bearing rides against the substrate edge or template surface, allowing the cutter to produce a perfectly flush trim without fences or jigs. Essential for curved and irregular edge trimming.
- 2-flute carbide-tipped geometry — twin flutes deliver a smooth, chatter-free cut at practical feed rates. Carbide tips provide the wear resistance needed to stay sharp through production laminate trimming.
- Range of sizes and cut lengths — from 6.35mm (T 8008 B) to 22mm (T 8028 B) diameter; TX/TXX variants offer extended cut lengths for thicker laminated boards. Match the cut length to the substrate thickness.
- Bearing number reference (TB 11) — replacement bearings are available. Refer to bearing number when ordering spares.
When to Use This Bit
Choose the TS 8016 B for trimming plastic laminates flush to substrate edges, template routing of irregular shapes, and copy routing where a bearing-guided flush cut is required. Select the cut length (B dimension) to match the thickness of the laminate or substrate being trimmed — the TS variants are shorter for thin laminates, TX/TXX for thicker boards. Replacement bearing TB 11 available separately.
Pro Tip: For laminate trimming, take the final pass at full speed with a light, consistent feed rate. Slowing down mid-cut causes the bearing to drag and can leave burn marks on the substrate edge.

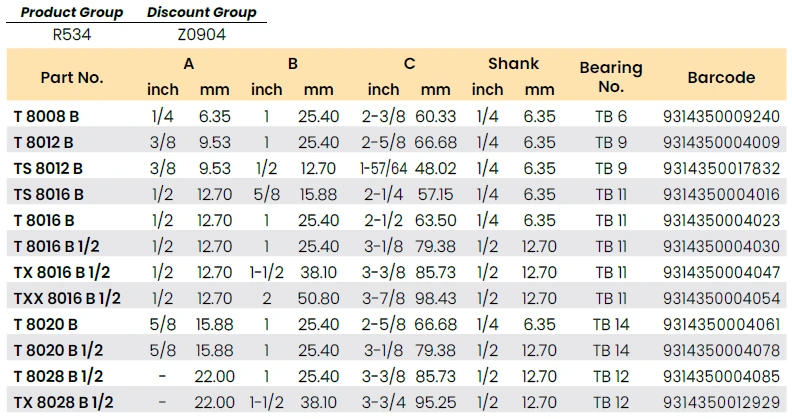

Product Specifications

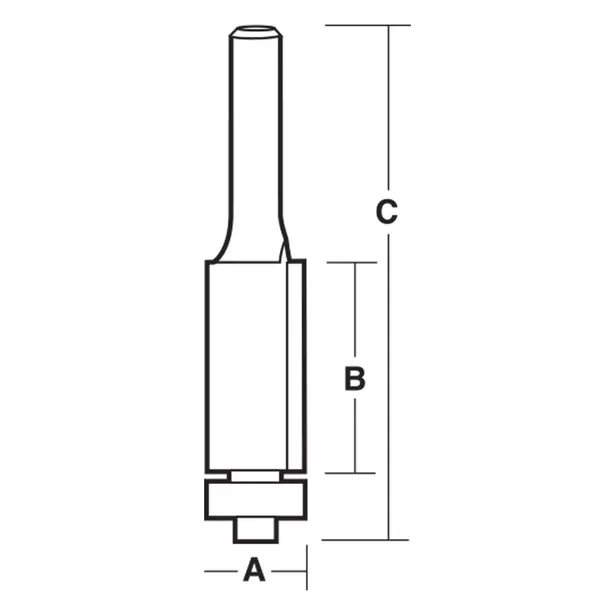

| Part No. | A inch | A mm | B inch | B mm | C inch | C mm | Shank inch | Shank mm | Bearing | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|
| T 8008 B | 1/4 | 6.35 | 1 | 25.40 | 2-3/8 | 60.33 | 1/4 | 6.35 | TB 6 | 9314350009240 |
| T 8012 B | 3/8 | 9.53 | 1 | 25.40 | 2-5/8 | 66.68 | 1/4 | 6.35 | TB 9 | 9314350004009 |
| TS 8012 B | 3/8 | 9.53 | 1/2 | 12.70 | 1-57/64 | 48.02 | 1/4 | 6.35 | TB 9 | 9314350017832 |
| TS 8016 B ★ | 1/2 | 12.70 | 5/8 | 15.88 | 2-1/4 | 57.15 | 1/4 | 6.35 | TB 11 | 9314350004016 |
| T 8016 B | 1/2 | 12.70 | 1 | 25.40 | 2-1/2 | 63.50 | 1/4 | 6.35 | TB 11 | 9314350004023 |
| T 8016 B 1/2 | 1/2 | 12.70 | 1 | 25.40 | 3-1/8 | 79.38 | 1/2 | 12.70 | TB 11 | 9314350004030 |
| TX 8016 B 1/2 | 1/2 | 12.70 | 1-1/2 | 38.10 | 3-3/8 | 85.73 | 1/2 | 12.70 | TB 11 | 9314350004047 |
| TXX 8016 B 1/2 | 1/2 | 12.70 | 2 | 50.80 | 3-7/8 | 98.43 | 1/2 | 12.70 | TB 11 | 9314350004054 |
| T 8020 B | 5/8 | 15.88 | 1 | 25.40 | 2-5/8 | 66.68 | 1/4 | 6.35 | TB 14 | 9314350004061 |
| T 8020 B 1/2 | 5/8 | 15.88 | 1 | 25.40 | 3-1/8 | 79.38 | 1/2 | 12.70 | TB 14 | 9314350004078 |
| T 8028 B 1/2 | – | 22.00 | 1 | 25.40 | 3-3/8 | 85.73 | 1/2 | 12.70 | TB 12 | 9314350004085 |
| TX 8028 B 1/2 | – | 22.00 | 1-1/2 | 38.10 | 3-3/4 | 95.25 | 1/2 | 12.70 | TB 12 | 9314350012929 |
★ You are viewing the highlighted variant. TS = short cut length. TX/TXX = extended cut length.
