Description
SAFEWAY

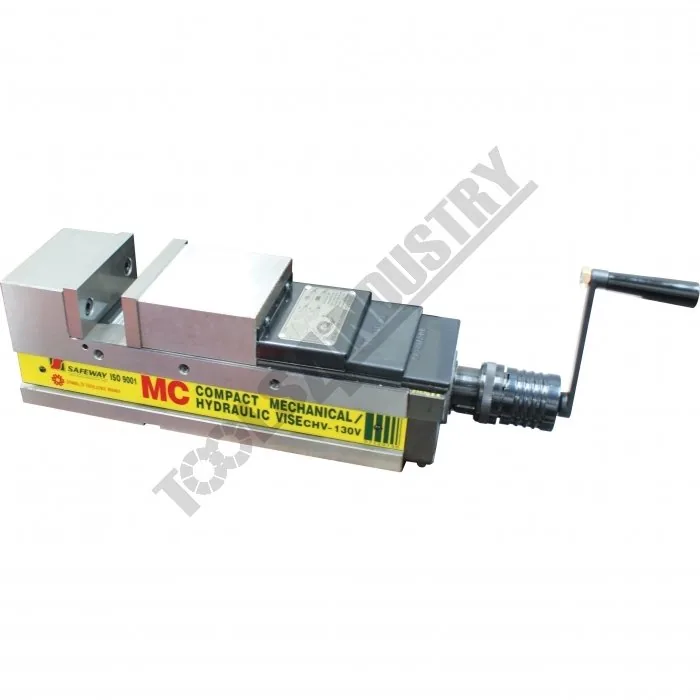

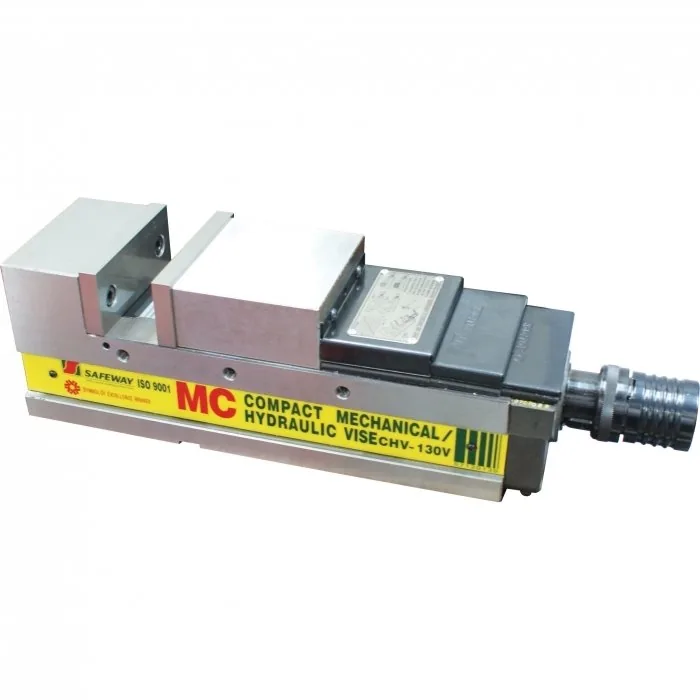

Safeway Compact Hydraulic Vice — CHV-130V, 130mm Jaw Width 180mm Jaw Opening
Part No: V321 | Barcode: 9344195013805 | Model: CHV-130V
SAFEWAY CHV-130V Safeway Compact Hydraulic Vice (130mm Jaw Width 180mm Jaw Opening). Safeway Precision 130mm Compact Hydraulic Vice for use where precise work holding is required is a restricted space.
Model CHV-130V
130mm Jaw Width
180mm Jaw Opening
Key Features & Benefits
- Precision ground on all surfaces
- Flame-hardened bed to HRC 45

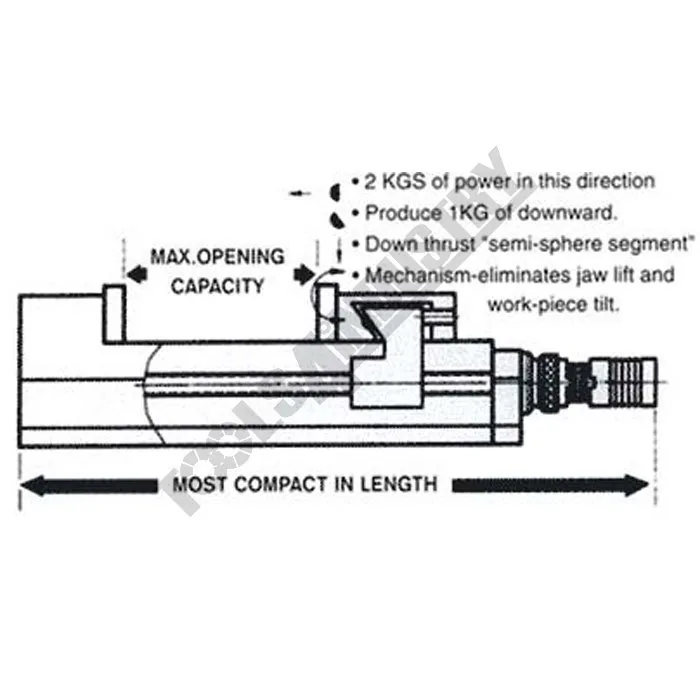

- Semi-sphere to eliminate jaw lift
- swarf covers over leadscrew
- Toleranced for use as matched pairs
About This Product
Safeway Precision 130mm Compact Hydraulic Vice for use where precise work holding is required is a restricted space. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code V321) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Jaw Width (mm) | 130 |
| D – Jaw Width (mm) | 131 |
| J – Jaw Opening (mm) | 180 |
| J1 – Jaw Opening with Optional Jaws (mm) | 180 – 240 |
| J2 – Jaw Opening with Optional Jaws (mm) | 180 – 290 |
| J3 – Jaw Opening with Optional Jaws (mm) | 180 – 380 |
| K – Jaw Height (mm) | 52 |
| Pressure (kgf) | 4500 |
| A (mm) | 540 |
| B (mm) | 405 |
| C (mm) | 135 |
| E (mm) | 147 |
| F (mm) | 150 |
| G (mm) | 70 |
| H (mm) | 15 |
| I (mm) | 115 |
| L (mm) | 22 |
| M (mm) | 125 |
| N (mm) | 18 |
| P (mm) | 14 |
| X (mm) | 65 |
| Y (mm) | 95 |
| Nett Weight (kg) | 37 |
