SAFEWAY

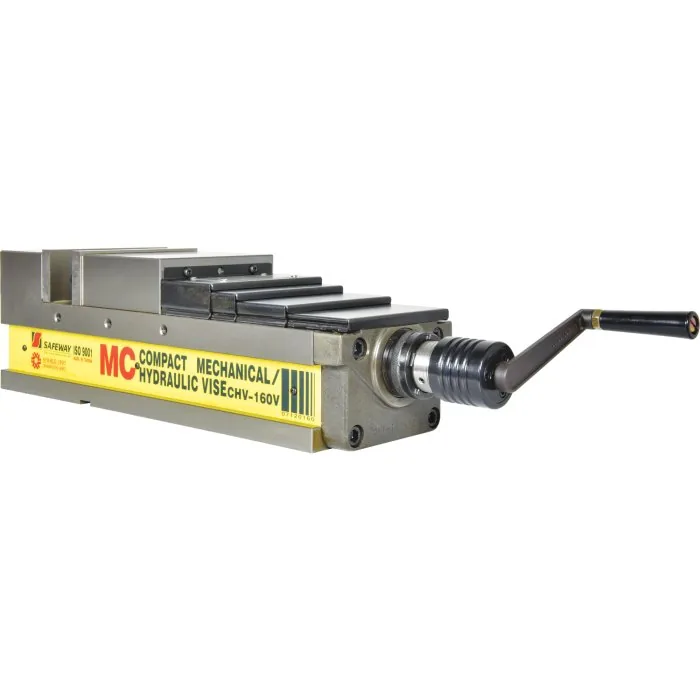

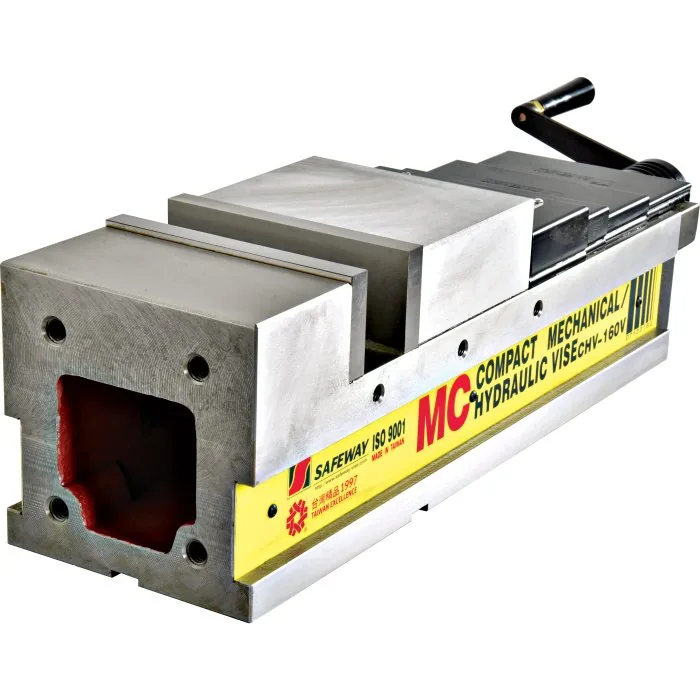

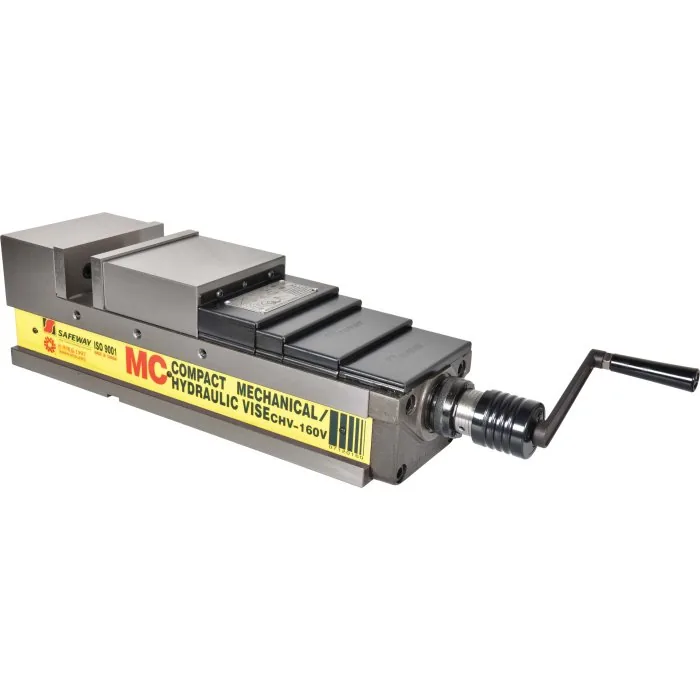

Safeway Compact Hydraulic Vice — CHV-160V, 160mm Jaw Width 240mm Jaw Opening
Part No: V322 | Barcode: 9344195013850 | Model: CHV-160V
SAFEWAY CHV-160V Safeway Compact Hydraulic Vice (160mm Jaw Width 240mm Jaw Opening). Safeway Precision 160mm Compact Hydraulic Vice for use where precise work holding is required is a restricted space.
Model CHV-160V
160mm Jaw Width
240mm Jaw Opening
Key Features & Benefits
- Precision ground on all surfaces
- Flame-hardened bed to HRC 45

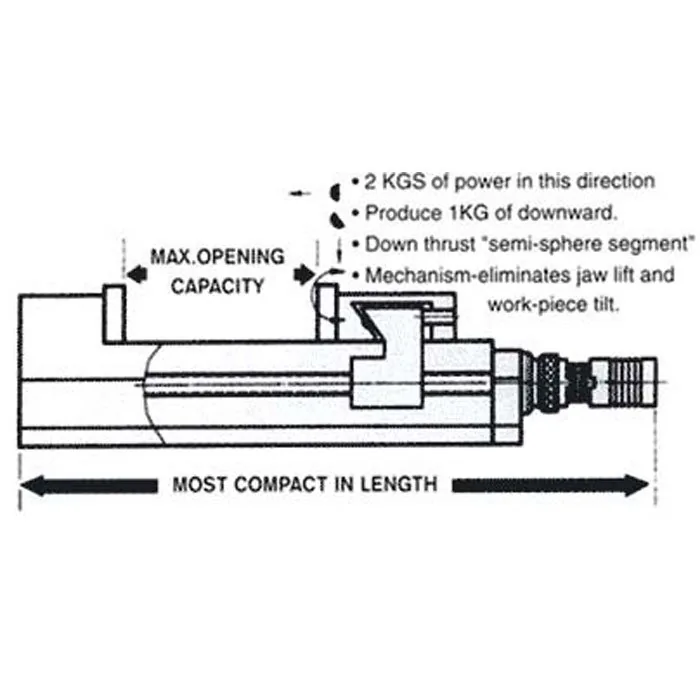

- Semi-sphere to eliminate jaw lift
- Swarf covers over leadscrew
- Toleranced for use as matched pairs
About This Product
Safeway Precision 160mm Compact Hydraulic Vice for use where precise work holding is required is a restricted space. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code V322) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Jaw Width (mm) | 160 |
| D – Jaw Width (mm) | 161 |
| J – Jaw Opening (mm) | 240 |
| J1 – Jaw Opening with Optional Jaws (mm) | 240 – 320 |
| J2 – Jaw Opening with Optional Jaws (mm) | 240 – 360 |
| J3 – Jaw Opening with Optional Jaws (mm) | 240 – 470 |
| K – Jaw Height (mm) | 58 |
| Pressure (kgf) | 5500 |
| A (mm) | 630 |
| B (mm) | 495 |
| C (mm) | 135 |
| E (mm) | 160 |
| F (mm) | 163 |
| G (mm) | 85 |
| H (mm) | 15 |
| I (mm) | 130 |
| L (mm) | 22 |
| M (mm) | 125 |
| N (mm) | 18 |
| P (mm) | 14 |
| X (mm) | 65 |
| Y (mm) | 105 |
| Nett Weight (kg) | 58 |
