METALMASTER
800 X 1200mm M16 Pro Series Welding Table Top with Pull-out Tray — WT16-1208T, 1200 x 800 x 65mm (LxWxH) Ø16mm Holes, Suits the TWS-622 – Mobile Work Station BenchTop
Part No: W07806 | Barcode: 9344195339349 | Model: WT16-1208T
METALMASTER WT16-1208T 800 X 1200mm M16 Pro Series Welding Table Top with Pull-out Tray (1200 x 800 x 65mm (LxWxH) Ø16mm Holes, Suits the TWS-622 – Mobile Work Station BenchTop). The WT16-1208T Metalmaster M16 Pro Series Welding Table Top with Pull-out Tray, has been designed to be paired with the TWS-622 Mobile…
Model WT16-1208T
1200 x 800 x 65mm (LxWxH)
Key Features & Benefits

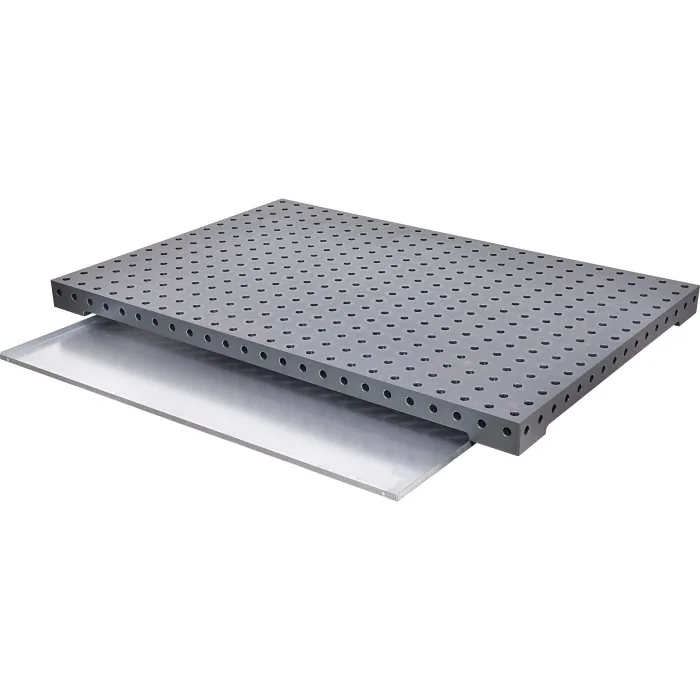

- 800 x 1200mm Tabletop with Pull-out Tray

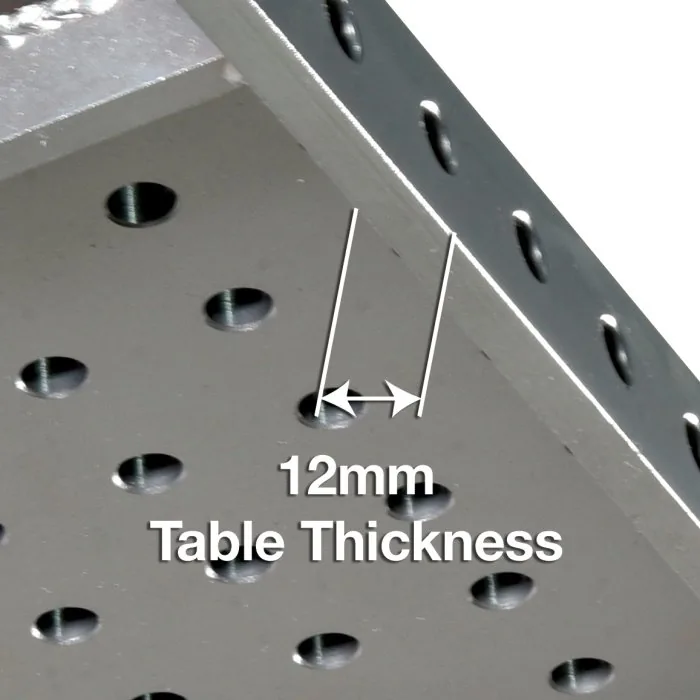

- Tabletop is manufactured from heavy S355 plate steel finished nominal thickness of 12mm
- CNC machined to ensure flatness
- Plasma nitriding surface finish for increased hardness, rust & spatter resistance

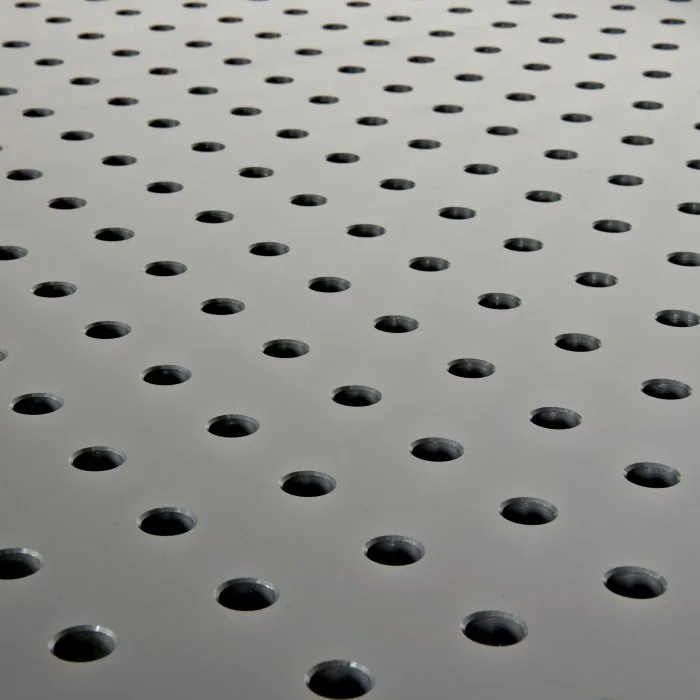

- Ø16mm Precision bored fixing holes

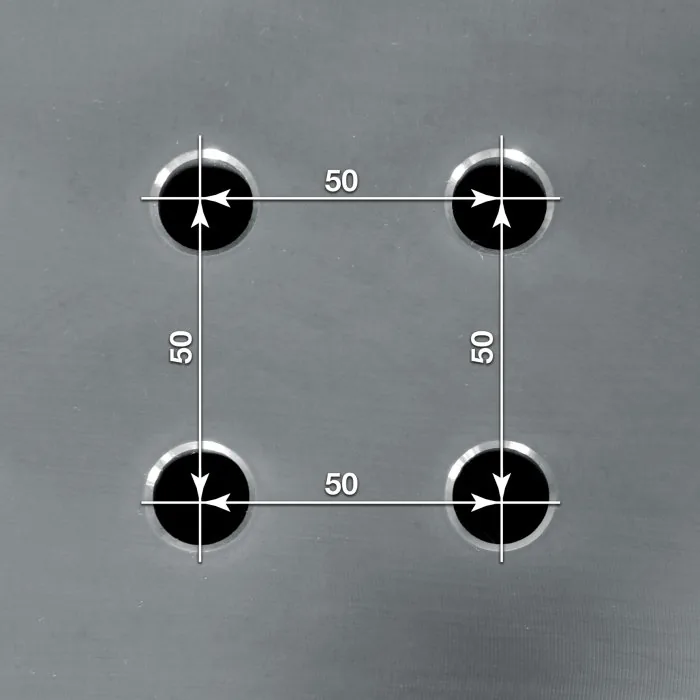

- 50 x 50mm hole grid pattern offering a multitude of clamping options
- The kit includes a sheet steel cover for the benchtop, pull-out swarf tray, and hardware pack for mounting to benchtop
About This Product

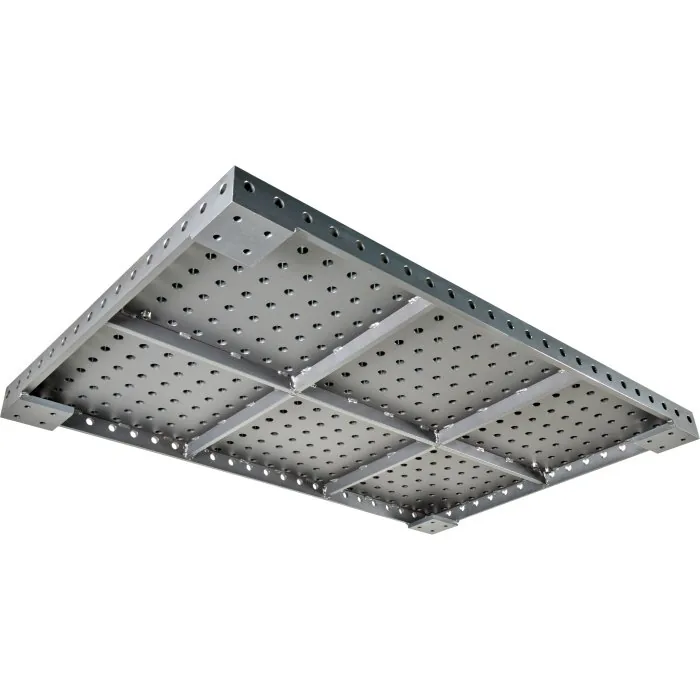

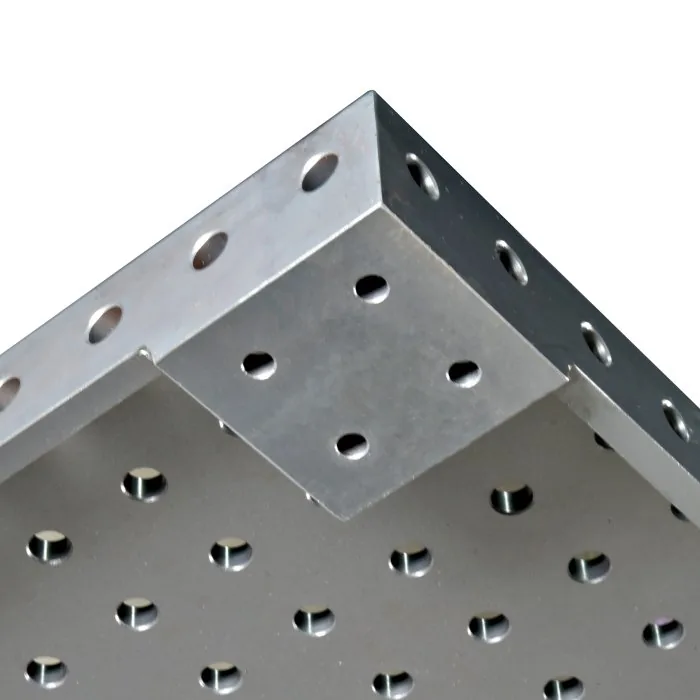

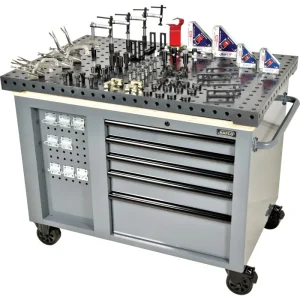

The WT16-1208T Metalmaster M16 Pro Series Welding Table Top with Pull-out Tray, has been designed to be paired with the TWS-622 Mobile Work Station to make the ultimate mobile welding solution. The 800 x 1200mm Welding Table features a welded S355 steel frame, 12mm thickness, CNC-machined for precise flatness. Featuring Ø16mm holes with a 50 x 50mm hole pattern, it offers versatile clamping options for fixtures. Solid steel ribs and 50mm high sides ensure rigidity, while the plasma nitriding coating resists spatter, wear, and rust. It also includes a pull-out swarf tray for added convenience. Suits the TWS-622 – Professional Series Mobile Work Station – sold separately This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W07806) for collection in store.

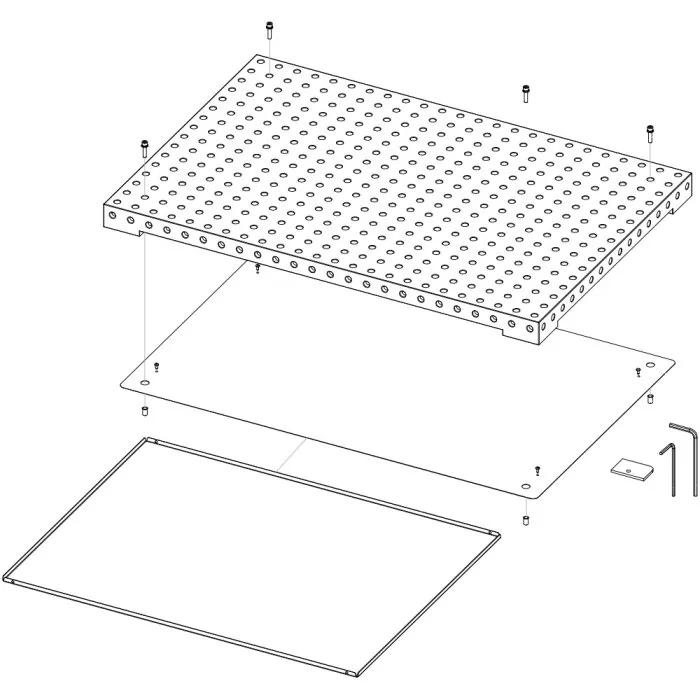

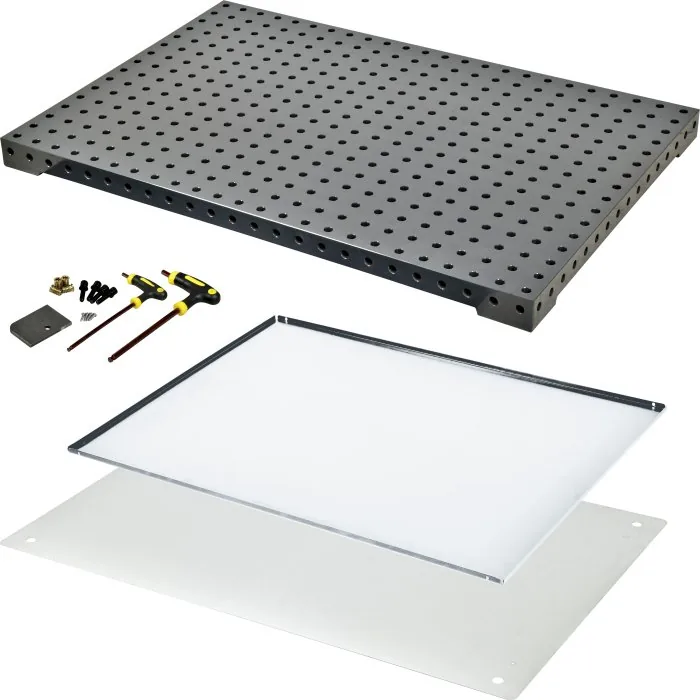

In the Box
- 1 x WT16-1208T 800 x 1200mm Nitride Steel Welding Table Top
- 1 x 1150 x 740mm protective sheetmetal cover to suit the TWS-622 wood benchtop
- 1 x Pull-out Welding Splatter Tray

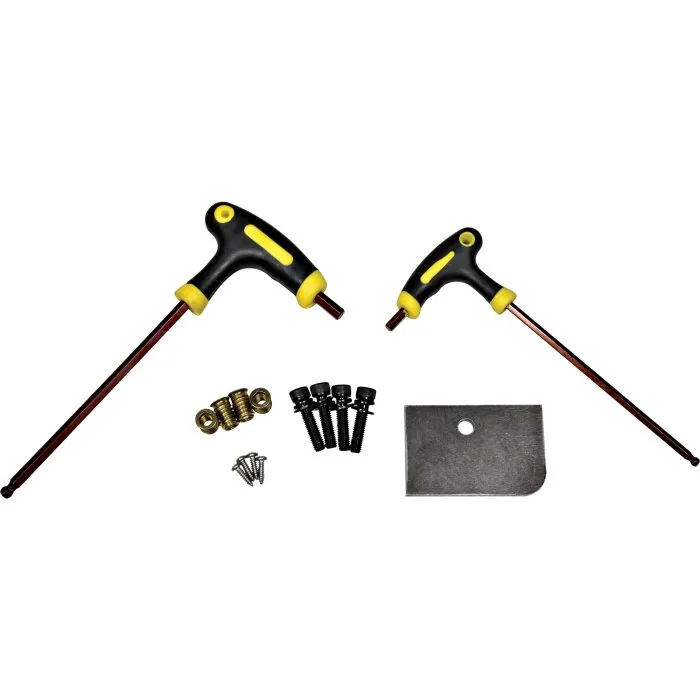

- 1 x Hardware Pack for mounting to benchtop.
Product Specifications
| Specification | Detail |
|---|---|
| Table Top Finish (Type) | Plasma Nitriding Coating |
| Table Top Size (mm) | 800 x 1200 |
| Table Height (mm) | 65 |

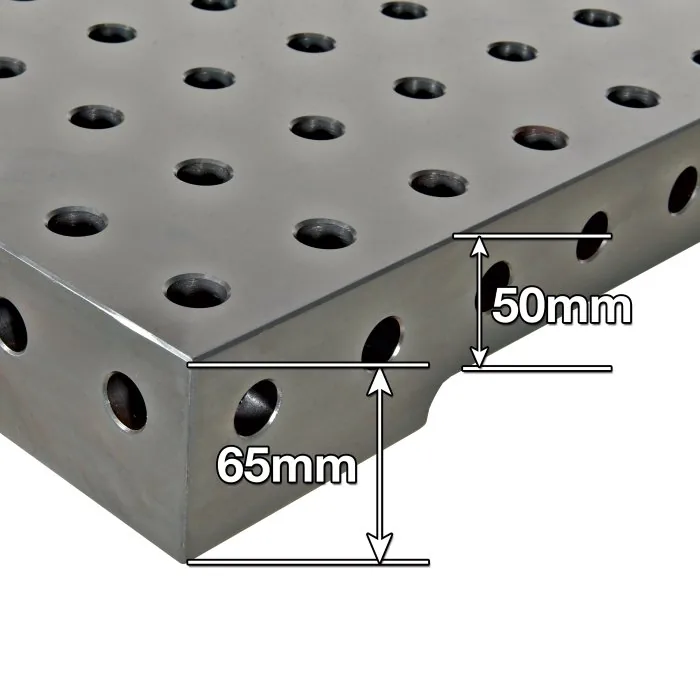

| Table Side Height (mm) | 50 / 65 |
| Top Plate Thickness (mm) | 12 |
| Grid Pattern (mm) | 50 x 50 |
| Table Hole Diameter (Ø) | 16 |
| Nett Weight (kg) | 115 |
