HAFCO

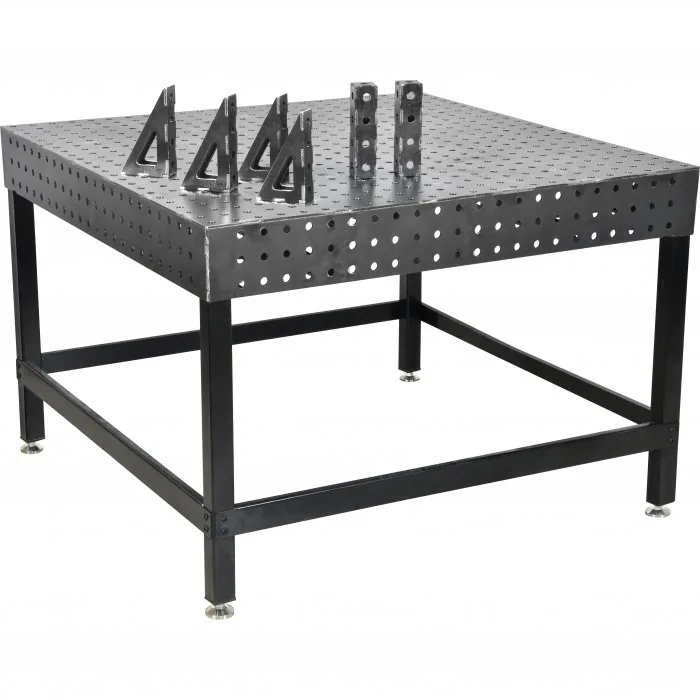

1200 X 1200mm 3D Welding Table — WT3D-1212, 6mm Steel Plate Construction
Part No: W08465 | Barcode: 9344195294242 | Model: WT3D-1212
HAFCO WT3D-1212 1200 X 1200mm 3D Welding Table (6mm Steel Plate Construction). Our deluxe range of self-weld welding tables feature components that are precision laser cut from 6mm steel, it has been designed with 150mm high sides along with 150mm inter-locking solid steel ribs to ensure the table surface remains…
Model WT3D-1212
6mm Steel Plate Construction
Key Features & Benefits
- 1200 x 1200mm tabletop size
- 6mm steel plate construction

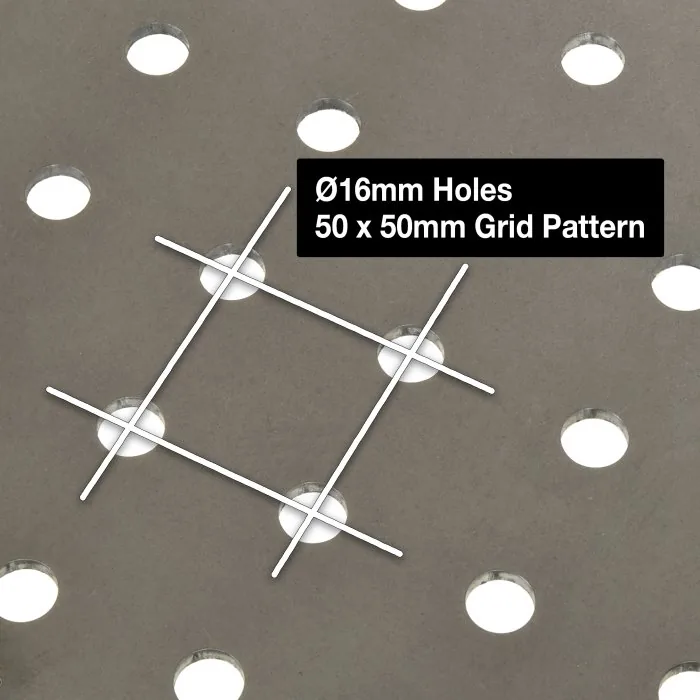

- 16mm laser cut fixing holes at 50mm centres
- 50 x 50mm hole grid pattern
- Heavy 50mm square steel tube legs with adjustable feet
About This Product
Our deluxe range of self-weld welding tables feature components that are precision laser cut from 6mm steel, it has been designed with 150mm high sides along with 150mm inter-locking solid steel ribs to ensure the table surface remains flat during & after assembly. Complete with 16mm laser cut holes with an industry standard 50 x 50mm grid pattern making it the perfect solution for both welding and clamping applications. Our deluxe range is supplied standard with 4 of 150 x 150 x 50mm welding squares, 2 of 200 x 50 x 50mm riser blocks to assist in fixturing of your welding projects. It comes complete with powder coated 50mm square tube steel legs complete with adjustable leveling feet ensuring a stable working surface, along with this we also supply caster wheel mounting plates for your convenience, simply cut the legs to match your desired working height, weld on the caster mounting plates & bolt on optional caster wheels to make your welding table a mobile welding station. NOTE – THIS ITEM COMES FLAT PACKED & REQUIRES ASSEMBLY & WELDING. Additional equipment including a welder is required for assembly, please review our construction guide via our downloads for a list of the required items This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W08465) for collection in store.
In the Box
- 4 x 150 x 150 x 50mm welding squares
- 2 x 200 x 50 x 50mm riser block

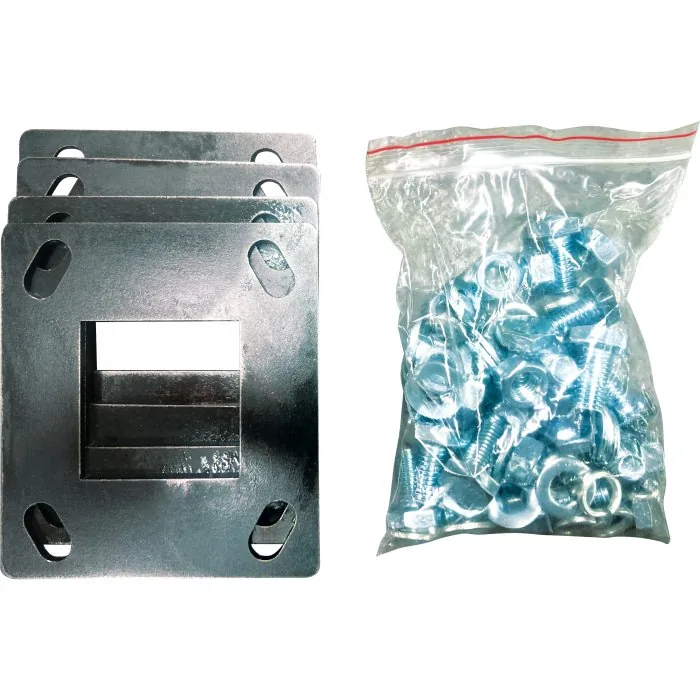

- Weld-on Base Plate Kit for Optional Castor Wheels
Product Specifications
1200 X 1200mm 3D Welding Table — Specifications
| Specification |
Detail |
| Type |
3D |
| Table Hole Diameter (Ø) |
16mm |
| Table Top Size (mm) |
1200 x 1200 |
| Table Side Height (mm) |
150 |
| Top Plate Thickness (mm) |
6 |
| Grid Pattern (mm) |
50 x 50 |
| Nett Weight (kg) |
170 |
Brand: HAFCOModel: WT3D-1212Order Code: W08465Barcode: 9344195294242Availability: Special order — collect in store
