W414 Thicknesser – HSS Blades

$2,585.00

HAFCO-WOODMASTER T-380A Thicknesser – Hss Blades (380 x 150mm (W x H) Material Capacity Includes 3 x High Speed Steel Blades). The Hafco T-380 thicknesser manufactured in Taiwan with three knife cutter head is a heavy duty machine with very substantial cast iron body and heavy gauge sheet steel base. The cast iron…

Available to Order — Collect in Geelong (typically 2–7 business days)

Special Order

Extended Range — Special Order. Sourced from Hare & Forbes and delivered to our Geelong store free of freight.
Collect in store, typically 2–7 business days (subject to Hare & Forbes stock and dispatch warehouse).

Big machine? We unload it with our forklift and load it straight onto your ute or trailer at our Geelong store — no residential-delivery problems.

Shipping & returns info
Barcode: 9344195011078Brand: HAFCOGTIN: 9344195011078 Categories: ,

Description

HAFCO-WOODMASTER

Thicknesser – Hss Blades — T-380A, 380 x 150mm (W x H) Material Capacity Includes 3 x High Speed Steel Blades

Part No: W414  |  Barcode: 9344195011078  |  Model: T-380A

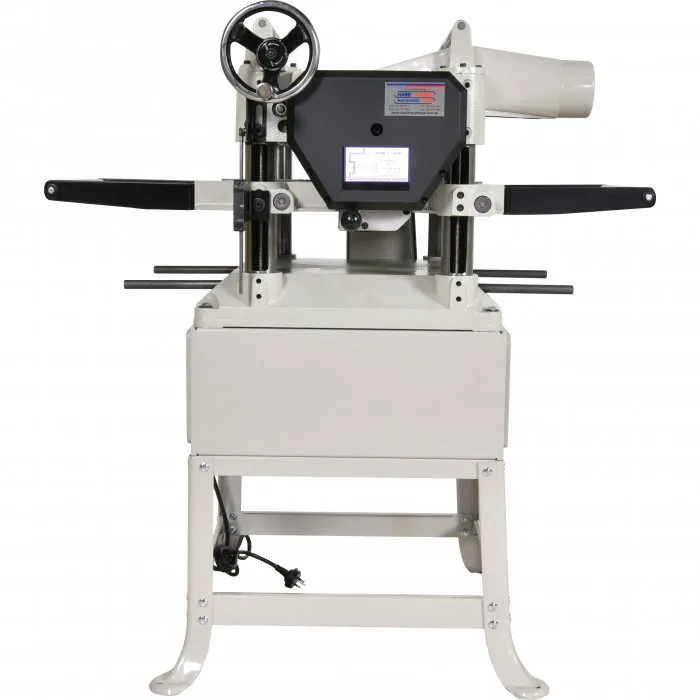

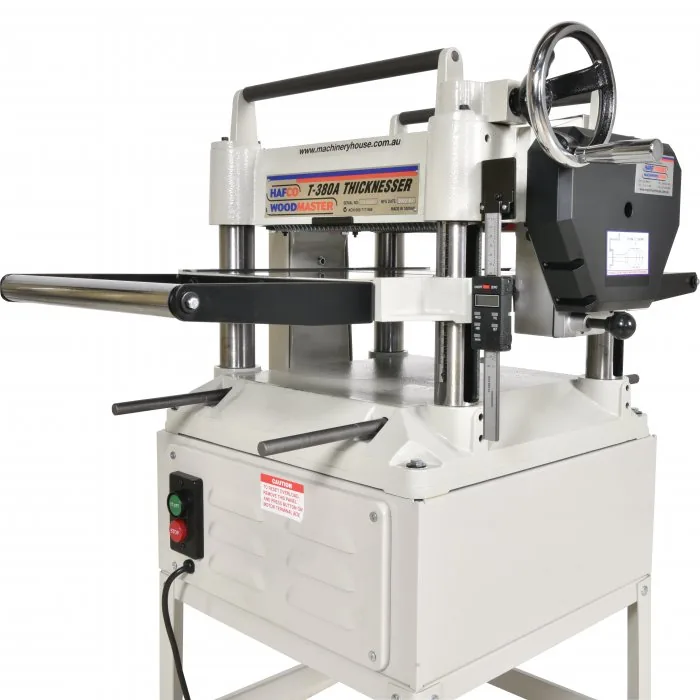

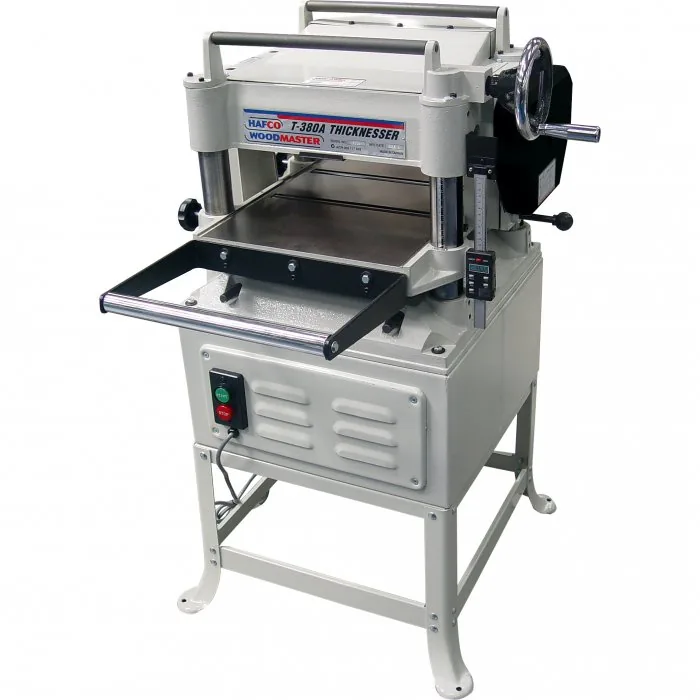

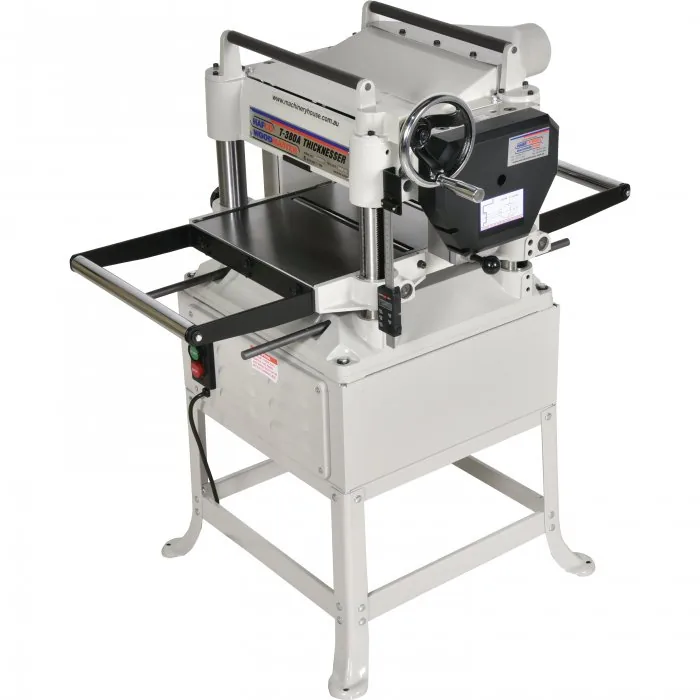

HAFCO-WOODMASTER T-380A Thicknesser – Hss Blades (380 x 150mm (W x H) Material Capacity Includes 3 x High Speed Steel Blades). The Hafco T-380 thicknesser manufactured in Taiwan with three knife cutter head is a heavy duty machine with very substantial cast iron body and heavy gauge sheet steel base. The cast iron…

Model T-380A
380 x 150mm (W x H) Material Capacity
Includes 3 x High Speed Steel Blades
Material Width Capacity: 380 mm
Material Height Capacity: 150 mm
Cutter Block Speed: 5000 rpm
Feed Speed: 4.8 / 6

Key Features & Benefits

  • 380mm wide x 150mm high timber capacity

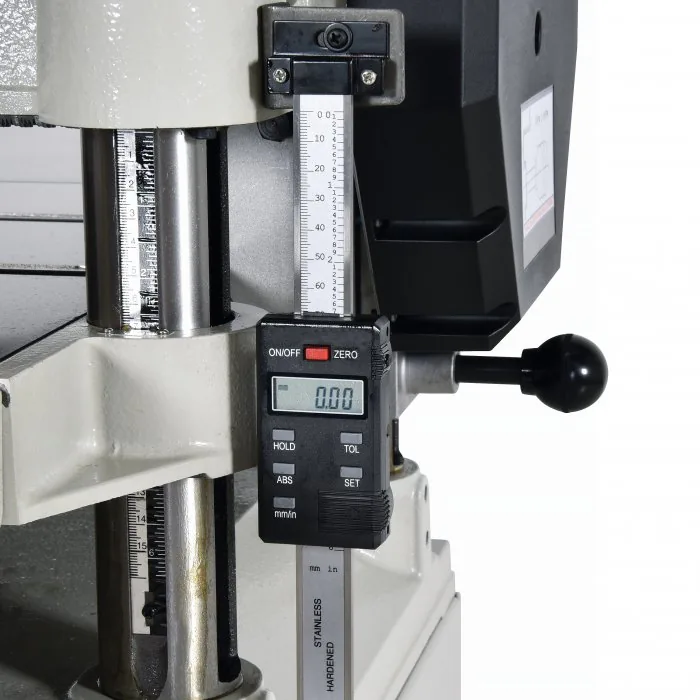

  • Digital Height Gauge (Includes LR44 battery)
  • Motor located in enclosed stand ensuring effortless rise/fall & less wear to mechanical components
  • Solid cast iron construction
  • 3 x HSS blades pre-set in cutter head with quick action blade change
  • Left side table locking dials

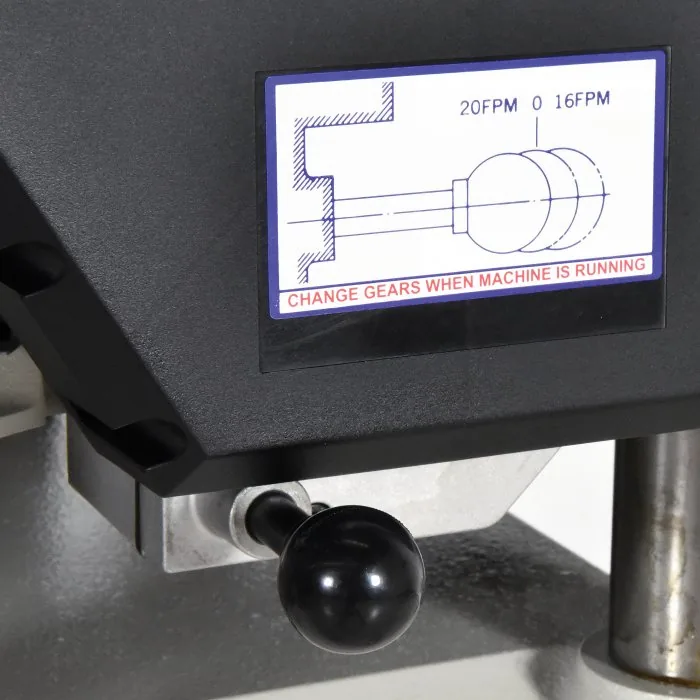

  • 2 speed gearbox
  • 100mm dust chute
  • Same model sold for over 20 years
  • Quality Taiwanese Manufacturer

About This Product

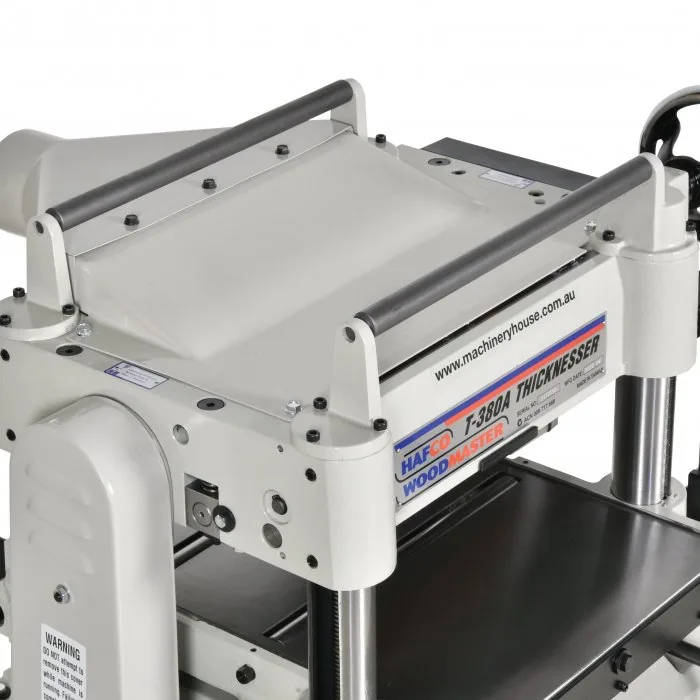

The Hafco T-380 thicknesser manufactured in Taiwan with three knife cutter head is a heavy duty machine with very substantial cast iron body and heavy gauge sheet steel base. The cast iron thicknessing table which has a polished surface to help timber slide freely as well as to help reduced vibration to improved quality of cut. The cutter head is supported by 4 x solid pillars at each corner and the steel drive rollers have ribbing to ensure positive grip on the timber through the machine via two speed gearbox at a rate of 16 or 20fpm. The feed roller pressure can be adjusted with the four adjusters on the top of the machine. The depth of cut is set by means of the cranked handle on the side using the setting scale positioned on the in-feed side or digital readout. Power is provided by a 1500W / 2hp 240V induction motor, housed within the base and transmitting power to the cutter block via a twin pulley vee belt drive system. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W414) for collection in store.

Product Specifications

Thicknesser – Hss Blades — Specifications
Specification Detail
Material Width Capacity (mm) 380
Material Height Capacity (mm) 150
Minimum Material Length (mm) 175
Maximum Depth of Cut (mm) 2mm @ 380mm wide
Cutter Type HSS Blades – Straight
Quantity of Cutters (No. x Type) 3 x Blades
Cutter Block Diameter (mm) 73
Cutter Block Speed (rpm) 5000
Length of Table (mm) 520
Length of Table with Extensions/Rollers (mm) 1015
Feed Speed (m/min) 4.8 / 6
Dust Outlet Diameter (mm) 100
Motor Power (kW / hp) 1.5 / 2
Voltage / Amperage (V / amp) 240 / 15
Floor Space (W x D x H) (mm) 770 x 1015 x 1100
Nett Weight (kg) 230
Brand: HAFCO-WOODMASTERModel: T-380AOrder Code: W414Barcode: 9344195011078Country of Origin: Taiwan With Three Knife Cutter Head Is A Heavy Duty Machine With Very Substantial Cast Iron Body And Heavy Gauge Sheet Steel BaseAvailability: Special order — collect in store
