HAFCO-WOODMASTER

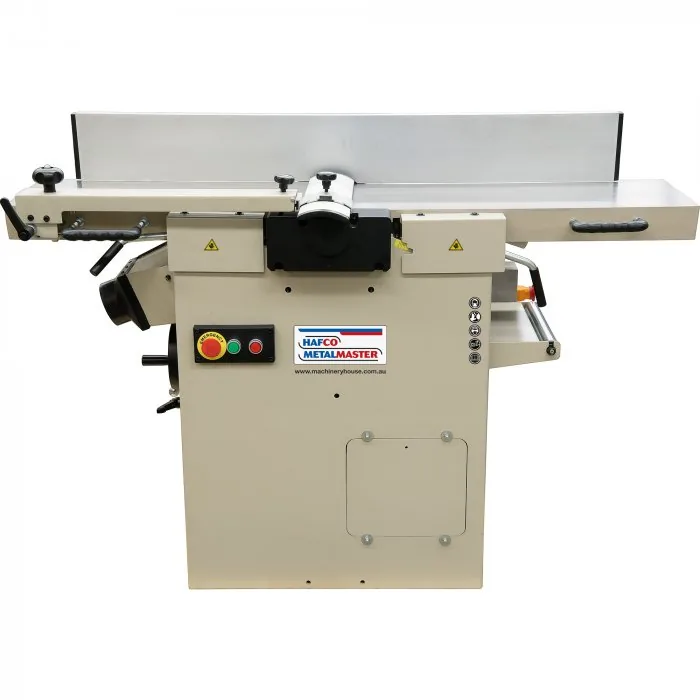

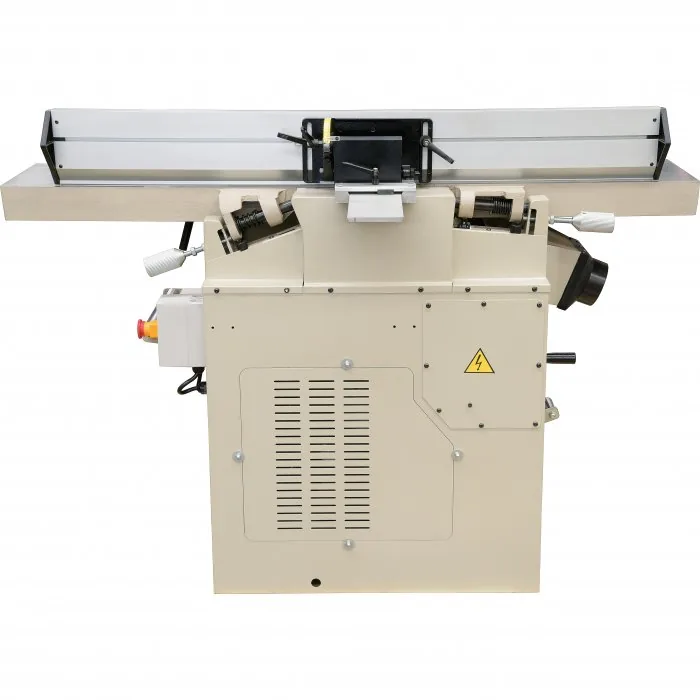

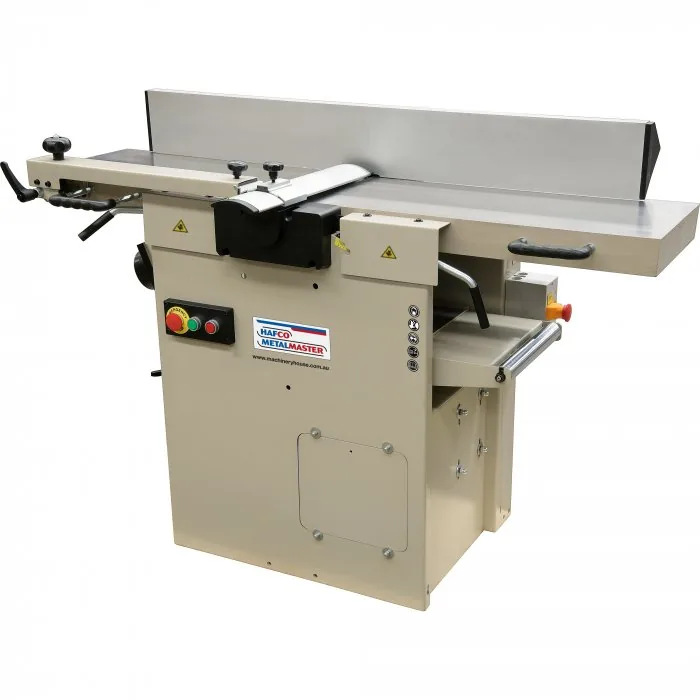

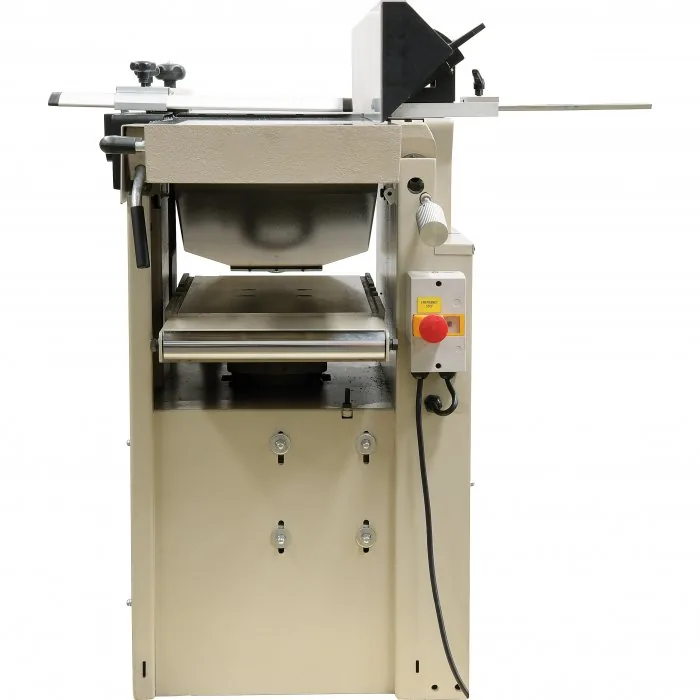

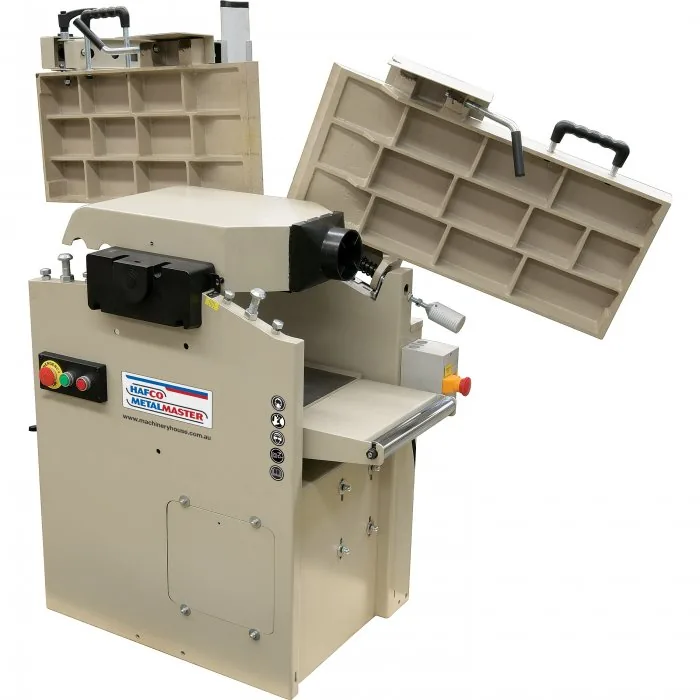

Planer & Thicknesser Combination – Spiral Cutter Head — PT-305S, 305mm Wide Planer Capacity 305 x 225mm (W x H) Thicknesser Capacity
Part No: W612 | Barcode: 9344195207457 | Model: PT-305S
HAFCO-WOODMASTER PT-305S Planer & Thicknesser Combination – Spiral Cutter Head (305mm Wide Planer Capacity 305 x 225mm (W x H) Thicknesser Capacity). You now don’t have to choose between buying a seperate planer or a thicknesser – with the PT-305S you can have the best of both worlds in one machine. Hafco…
Model PT-305S
305mm Wide Planer Capacity
305 x 225mm (W x H) Thicknesser Capacity
Planer Capacity: 305 mm
Thicknesser Capacity: 310 x 225 mm
Feed Speed: 5
Cutter Block Speed: 4800 rpm
Key Features & Benefits

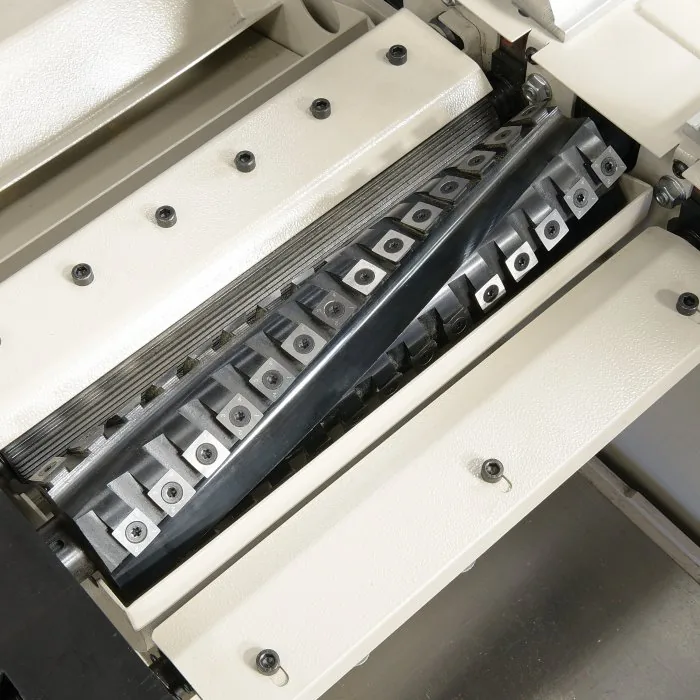

- Spiral cutter head with 56 carbide inserts
- Heavy-duty 3kW / 4hp 240V motor
- 305mm wide x 225mm high thicknesser capacity
- Auto-feed thicknesser rollers 5m/min
- 4800rpm cutter head speed

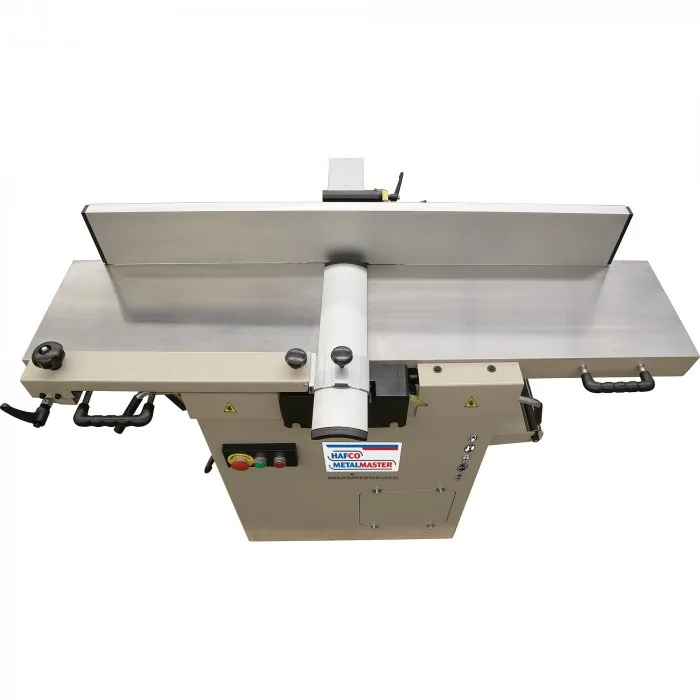

- 1380 x 310mm jointer table size

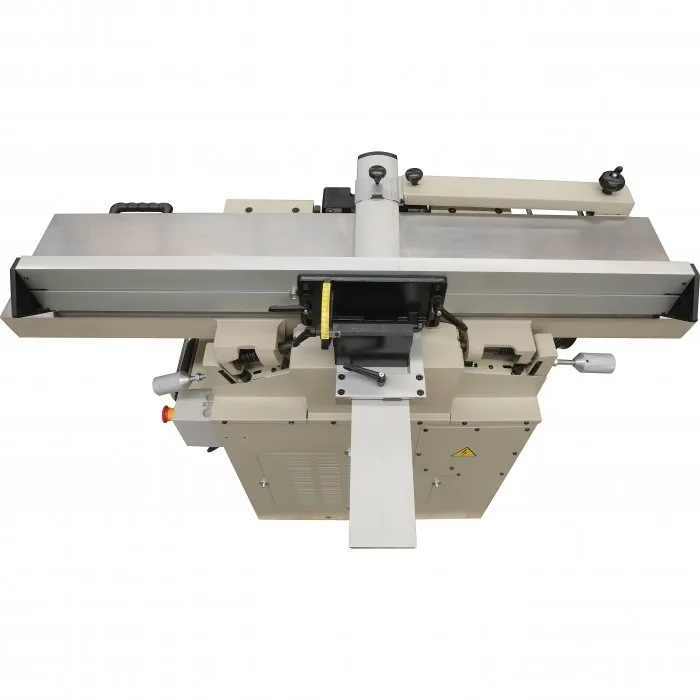

- Large aluminium fence tilts 45-90º with lever locking system and unique sliding design
- Heavy duty cast iron tables with ground finish to ensure accuracy and flatness

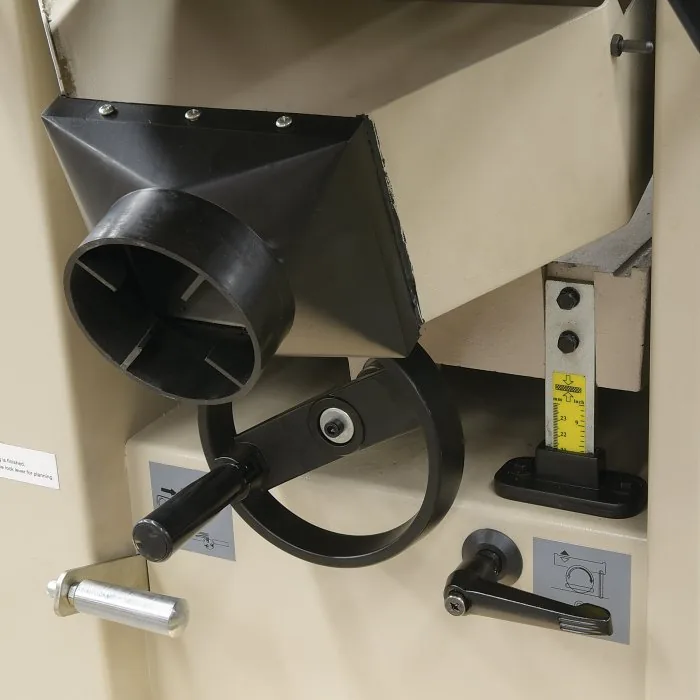

- Large hand-wheel for quick and precise adjustments of thickness height

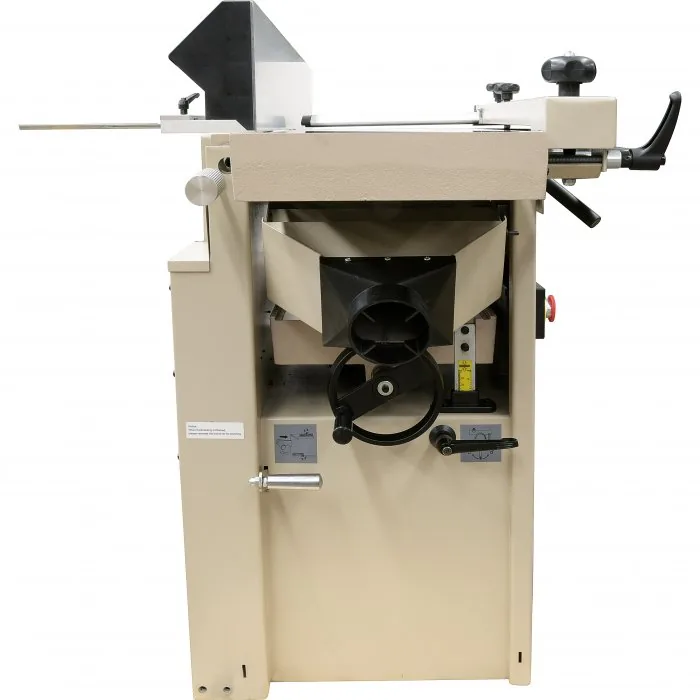

- 100mm dust chute
About This Product
You now don’t have to choose between buying a seperate planer or a thicknesser – with the PT-305S you can have the best of both worlds in one machine. Hafco Woodmaster has designed a machine now that includes a “Spiral Cutter Head” that cuts your timber effortlessly smoother and quieter than the conventional HSS blades. The surfacing tables are 1380mm long, made from cast iron and precision ground finish to ensure material to slide smoothly to produce accurate results. The spiral cutter head is fitted with German quality carbide inserts and powered by a powerful 3kW / 4hp, 240V motor that can handle the toughest timbers to achieve superior finish every time. This versatile machine features an extra heavy duty cast aluminium extruded fence with centered controls for quick adjustments, and a built-in dust chute capable of handling both operations. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W612) for collection in store.

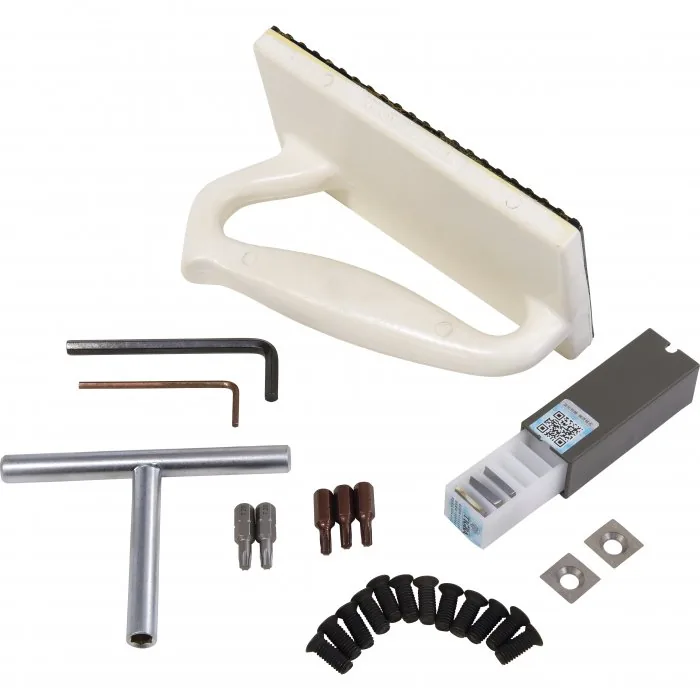

In the Box
- 5 x spare carbide inserts
- 10 x spare insert screws
Product Specifications
| Specification | Detail |
|---|---|
| Planer Capacity (mm) | 305 |
| Cutter Head Type (HSS / Carb) | Carbide Inserts |
| Table Length – Planer (mm) | 1380 |
| Table Height – Planer (mm) | 850 |
| Length of Infeed Planer Table (mm) | 715 |
| Length of Outfeed Planer Table (mm) | 635 |
| Fence Length x Height (mm) | 1200 x 150 |
| Thicknesser Capacity (mm) | 310 x 225 |
| Table Length – Thicknesser (mm) | 740 (with roller extension support) |
| Feed Speed (m/min) | 5 |
| Cutter Block Diameter (mm) | 70 |
| Cutter Block Speed (rpm) | 4800 |
| Motor Power (kW / hp) | 3 / 4 |
| Voltage / Amperage (V / amp) | 240 / 15A |
| Floor Space (W x D x H) (mm) | 1385 x 705 x 1000 |
| Nett Weight (kg) | 303 |
