HAFCO-WOODMASTER

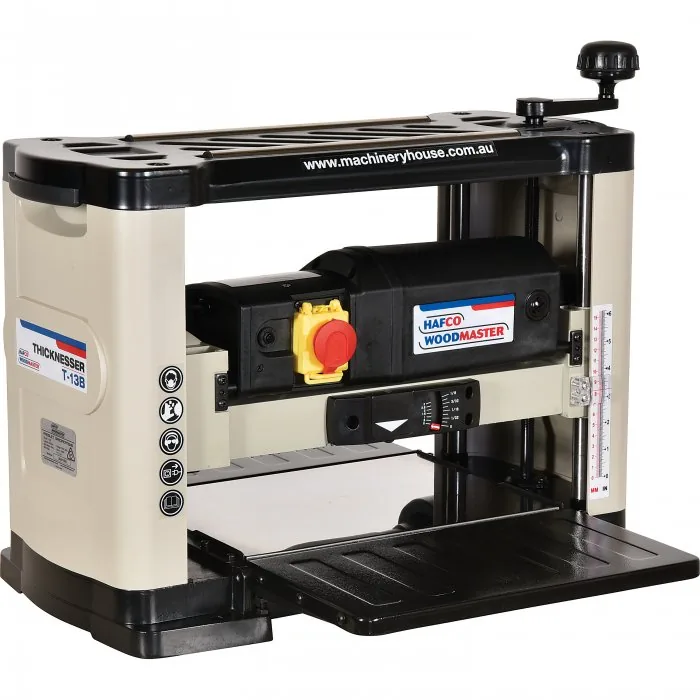

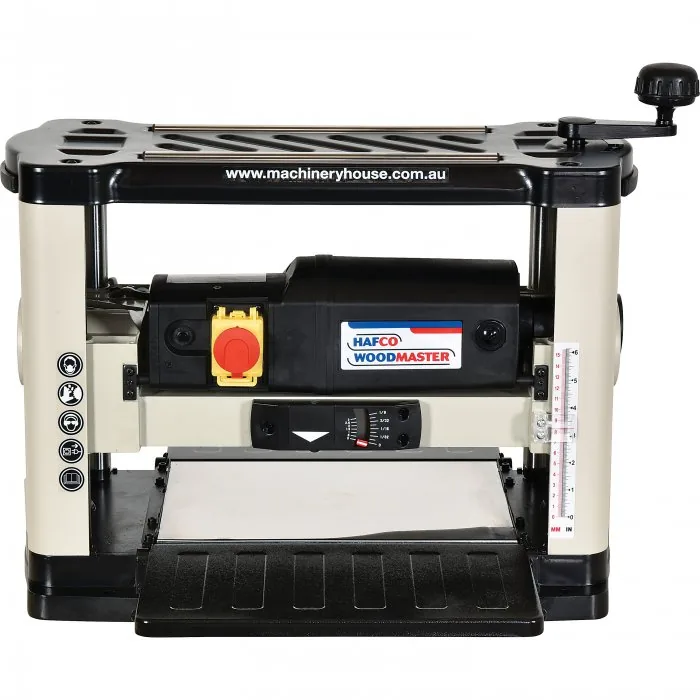

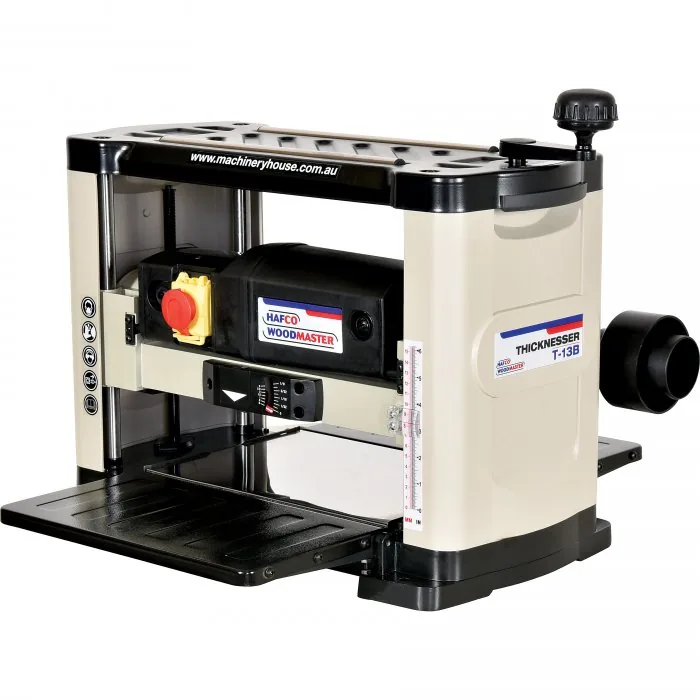

Bench Mount Thicknesser – Hss Blades — T-13B, 330 x 152mm (W x H) Material Capacity Includes 2 x High Speed Steel Blades
Part No: W812 | Barcode: 9344195267444 | Model: T-13B
HAFCO-WOODMASTER T-13B Bench Mount Thicknesser – Hss Blades (330 x 152mm (W x H) Material Capacity Includes 2 x High Speed Steel Blades). The T-13B boasts a powerful 1500W / 2hp 240V, 10 AMP motor that quickly removes material up to 2.5mm thick with each pass. The cutter head is fitted with two HSS blades that’s…
Model T-13B
330 x 152mm (W x H) Material Capacity
Includes 2 x High Speed Steel Blades
Material Width Capacity: 330 mm
Material Height Capacity: 152 mm
Cutter Block Speed: 8500 rpm
Feed Speed: 6
Key Features & Benefits

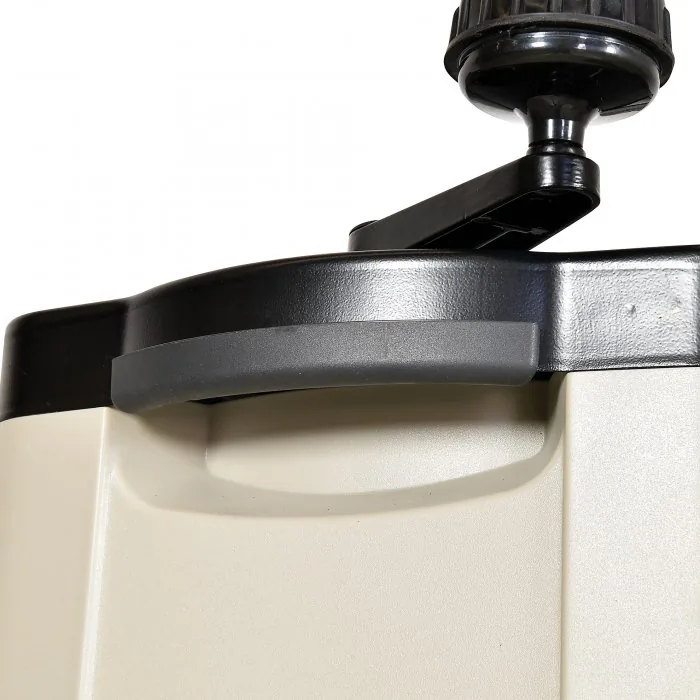

- Easily portable machine
- 1.5kW / 2hp 240V motor
- 330mm x 152mm timber capacity
- Powered feed rollers

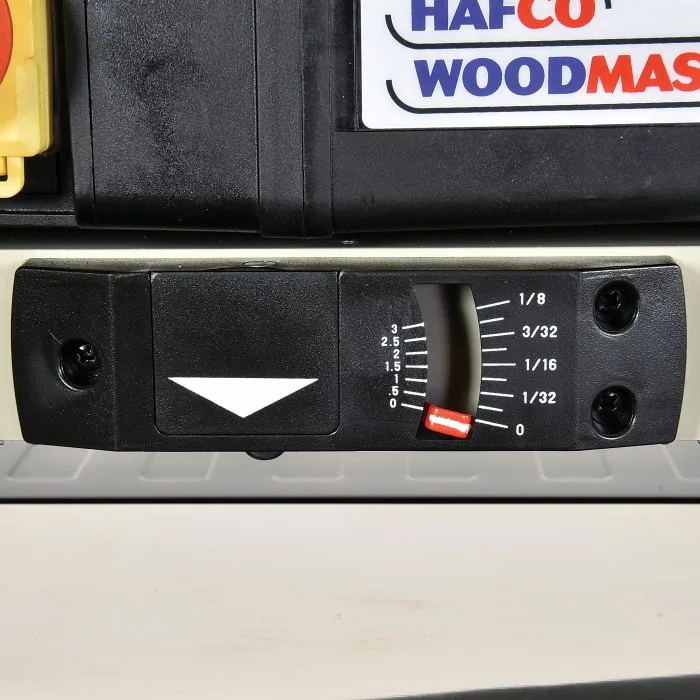

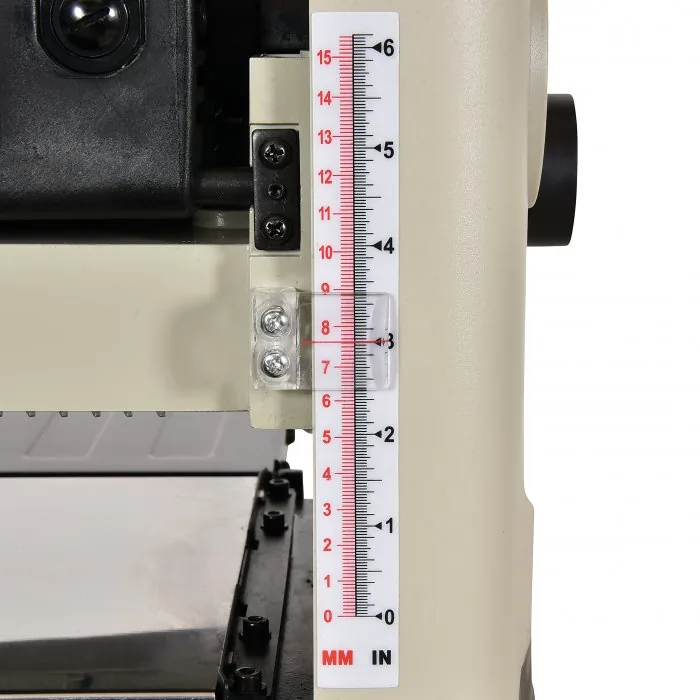

- Cut depth indicator

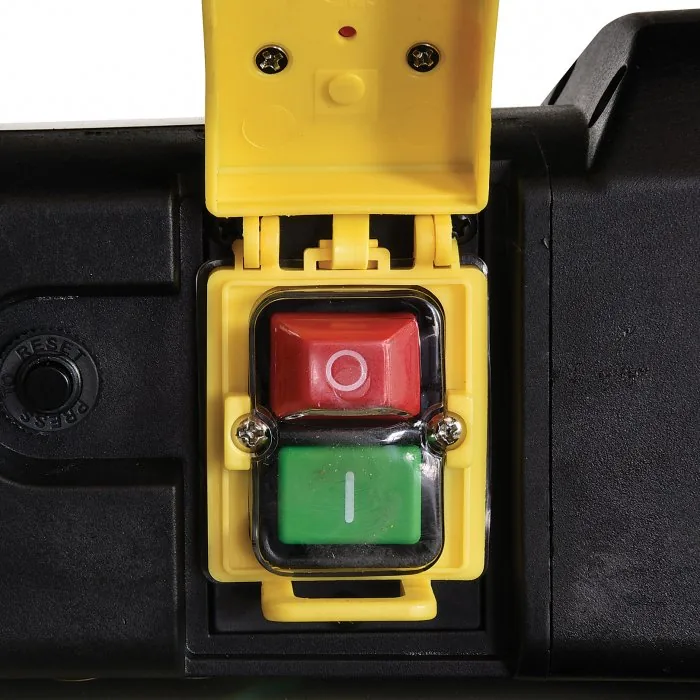

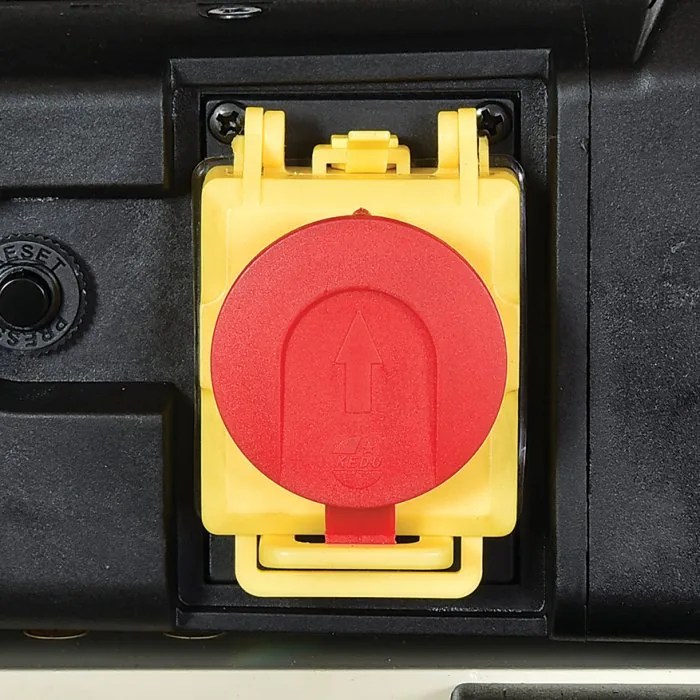

- Safety NVR switch
- 4 post design
- Anti-Kick back fingers

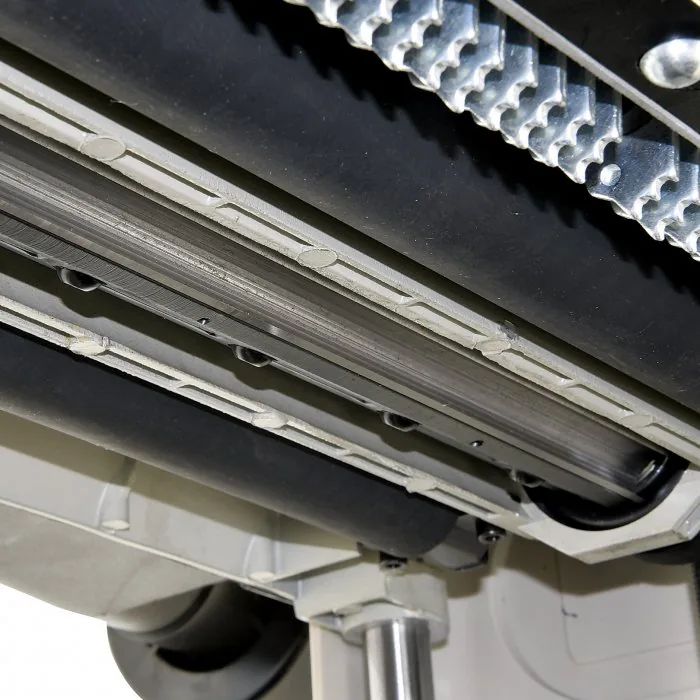

- Two double sided HSS blades with quick action change and blade setting jig
- Extension tables

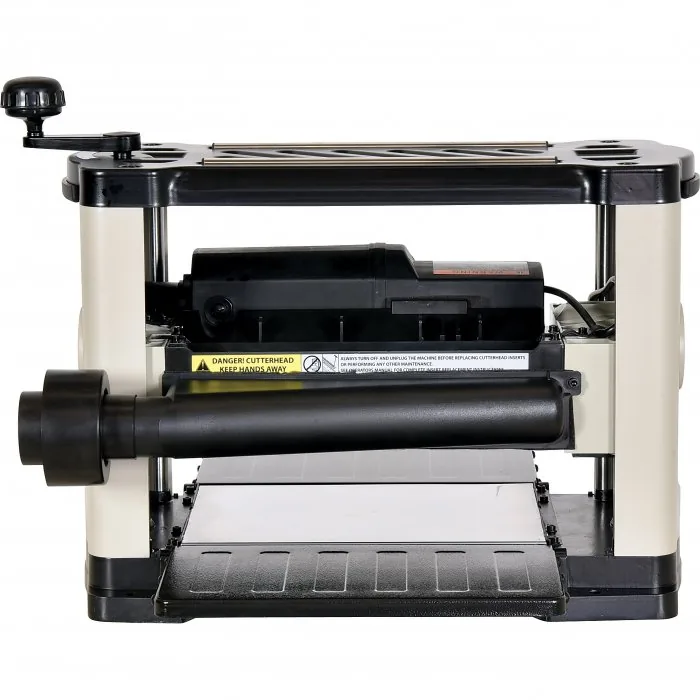

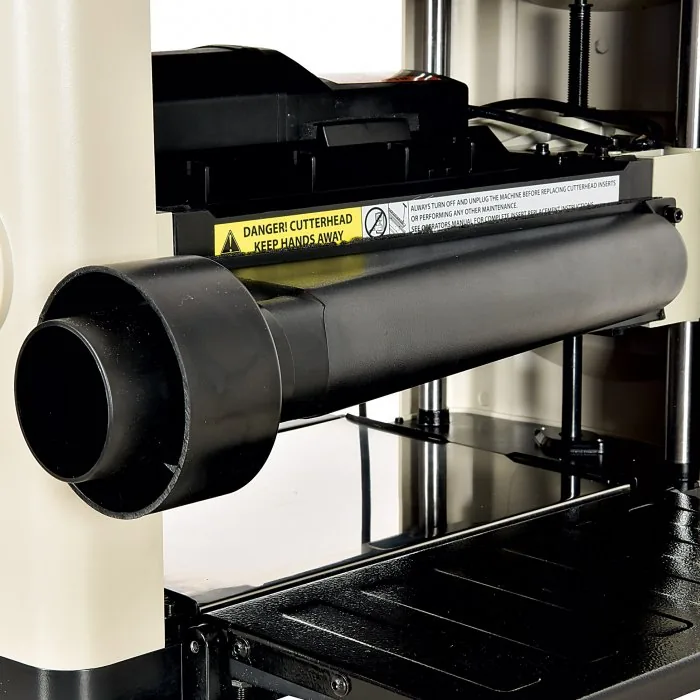

- Includes 102/65mm dust chute
- A dust collector is required with this thicknesser
About This Product

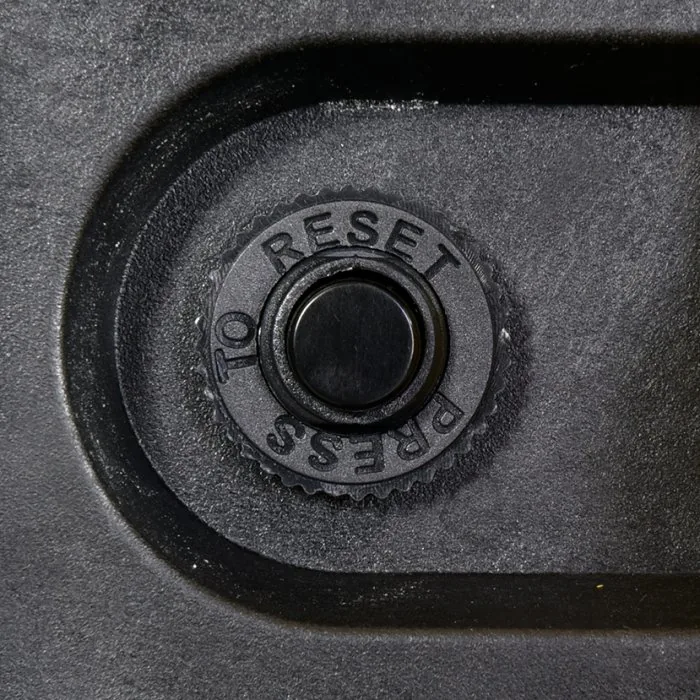

The T-13B boasts a powerful 1500W / 2hp 240V, 10 AMP motor that quickly removes material up to 2.5mm thick with each pass. The cutter head is fitted with two HSS blades that’s coupled with the feed speed of 6m/min that ensures an excellent ripple free finish. This thicknesser is also fitted with overload protection with a reset circuit breaker. Includes fold down table extensions provides support for long work pieces and dust hood for connection to a vacuum or dust extractor. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W812) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Material Width Capacity (mm) | 330 |
| Material Height Capacity (mm) | 152 |
| Minimum Material Length (mm) | 178 |
| Maximum Depth of Cut (mm) | 1.5mm @ 330mm Wide 3.3mm @ 152mm Wide |
| Cutter Type | HSS Blades – Straight |
| Quantity of Cutters (No. x Type) | 2 x Blades |
| Cutter Block Diameter (mm) | 50 |
| Cutter Block Speed (rpm) | 8500 |
| Length of Table (mm) | 190 |
| Length of Table with Extensions/Rollers (mm) | 630 |
| Feed Speed (m/min) | 6 |
| Dust Outlet Diameter (mm) | 102/65 |
| Motor Power (kW / hp) | 1.5 / 2 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Floor Space (W x D x H) (mm) | 600 x 630 x 480 |
| Floor Space With Option Stand (W x D x H) (mm) | 515 x 605 x 1260 |
| Nett Weight (kg) | 35 |
