HAFCO-WOODMASTER

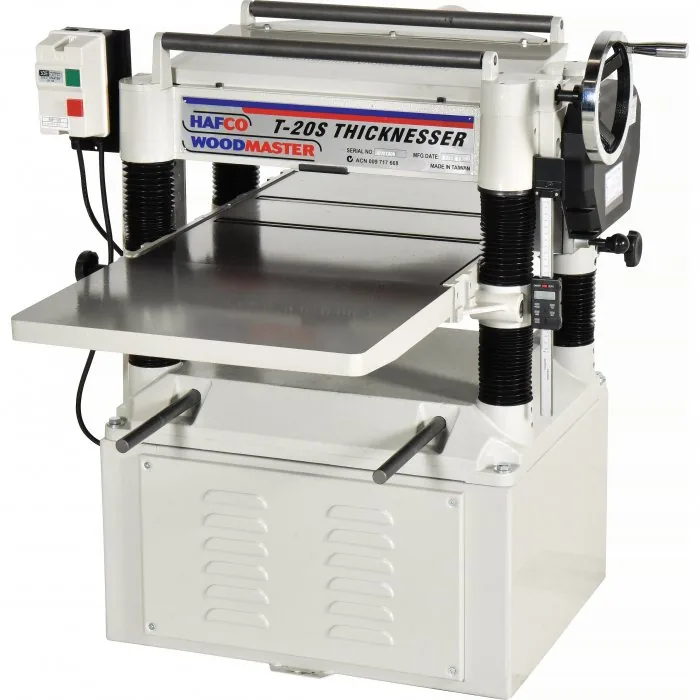

Thicknesser – Spiral Head Cutter — T-20S, 508 x 200mm (W x H) Material Capacity Includes Spiral Cutter Head with Carbide Inserts
Part No: W415S | Barcode: 9344195037559 | Model: T-20S
HAFCO-WOODMASTER T-20S Thicknesser – Spiral Head Cutter (508 x 200mm (W x H) Material Capacity Includes Spiral Cutter Head with Carbide Inserts). The Taiwanese-manufactured T-20S Spiral Cutter Head Thicknesser is designed and proven to meet the demands of even the toughest woodworking workshops!
Model T-20S
508 x 200mm (W x H) Material Capacity
Material Width Capacity: 508 mm
Material Height Capacity: 200 mm
Cutter Block Speed: 5000 rpm
Feed Speed: 4.8 / 6
Motor Power: 3.75 / 5
Key Features & Benefits
- Quality Taiwanese manufacture, sold for over 30 years
- 508mm wide x 200mm high timber capacity

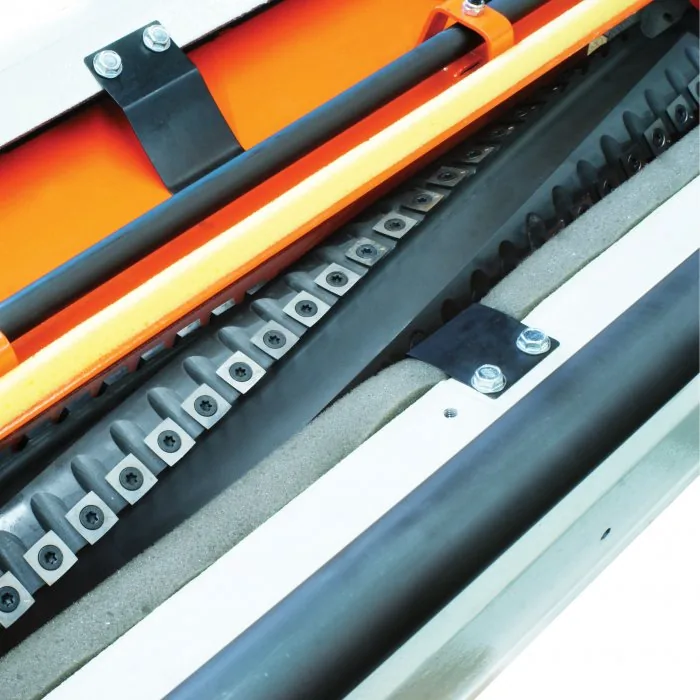

- Dynamically balanced 4 row spiral cutter head with 92 TCT indexing cutters
- Carbide inserts incorporate 4 cutting edges for reduced vibration
- Powerful 3.75kW, 5hp 415V induction motor
- Cutting speed 5000 rpm

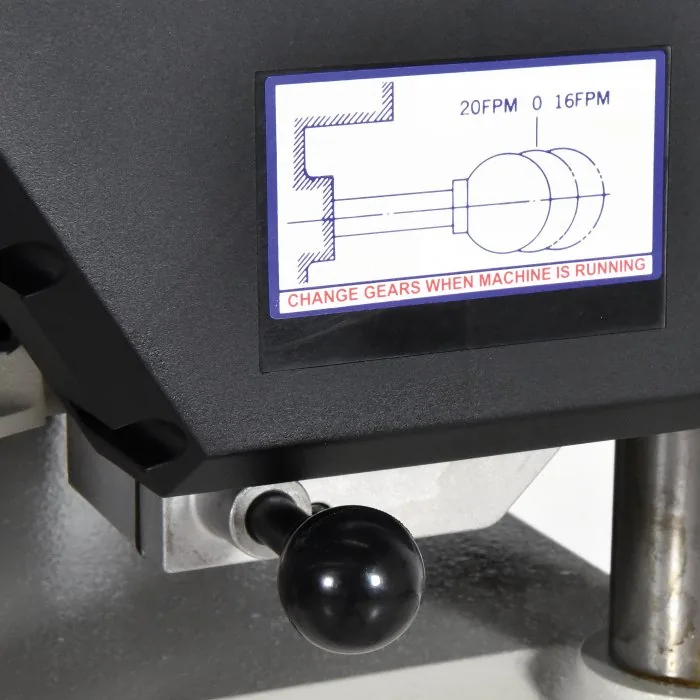

- 2 speed feed rollers with pressure adjustment
- Ø125mm (5″) dust port for efficient dust extraction

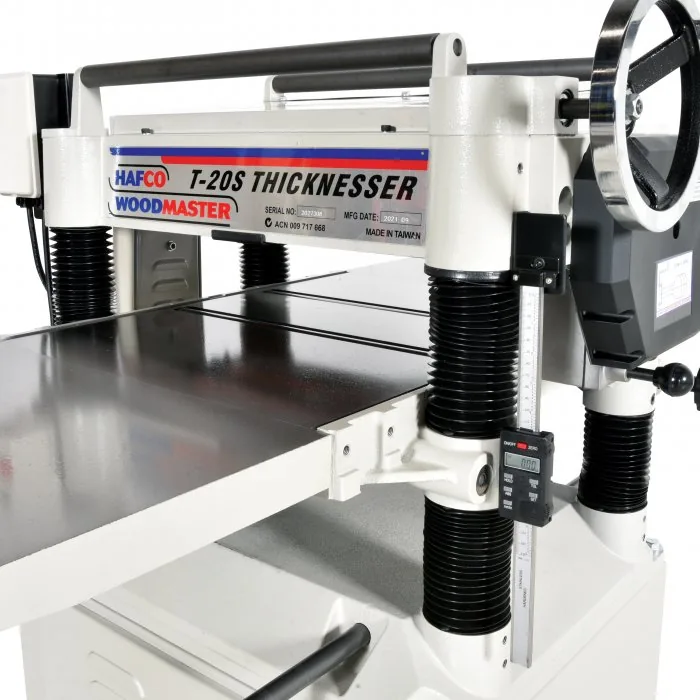

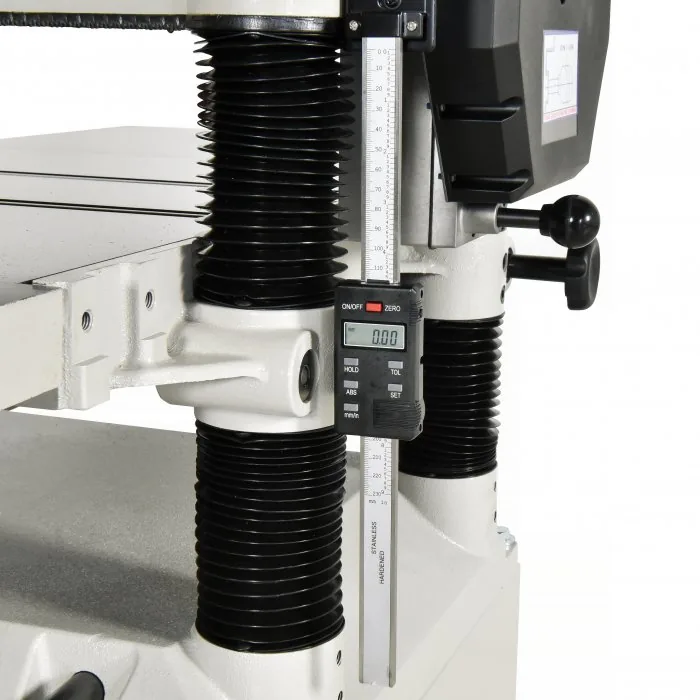

- Easy to read digital height gauge (LR44 Battery)
- Table height locking mechanism secures all four pillars against unwanted movement.
- Heavy duty four post design with protective concertina covers
- Anti kick back fingers
- Cutter head cover with integrated tool-locking mechanism

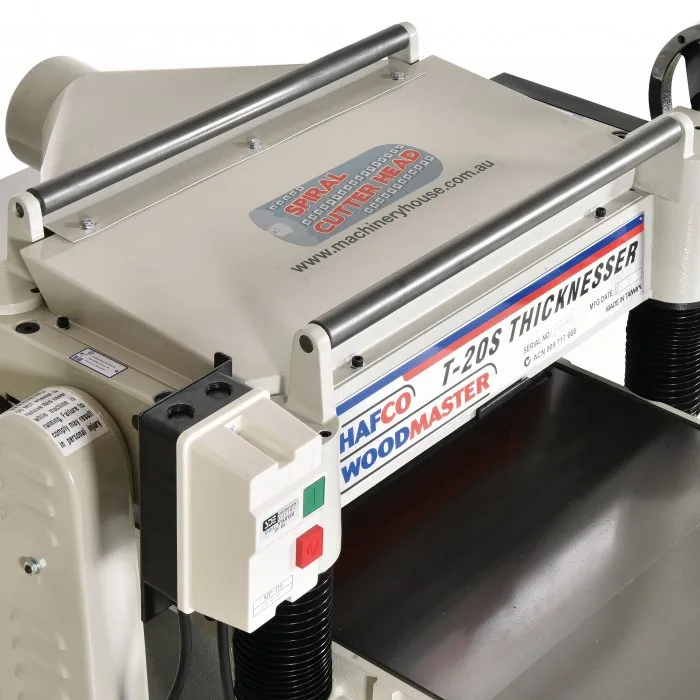

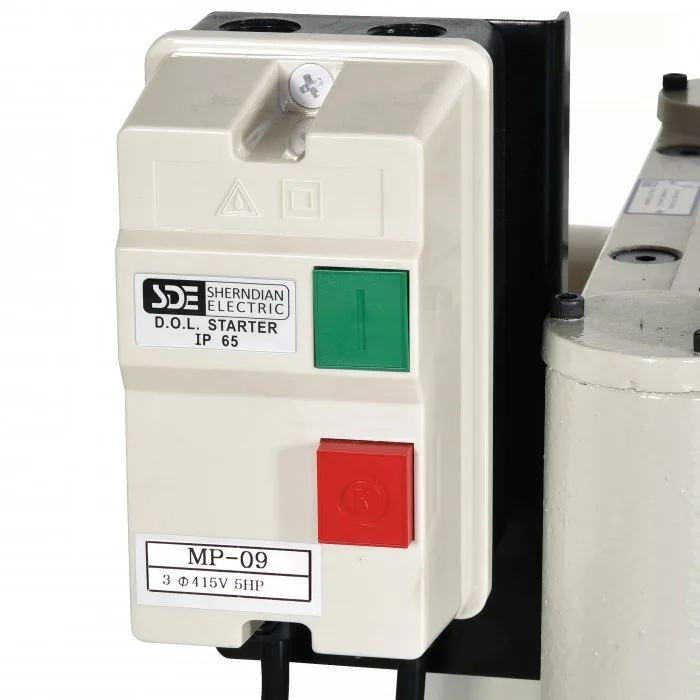

- DOL starter switch with overload protection and raised red stop button
About This Product

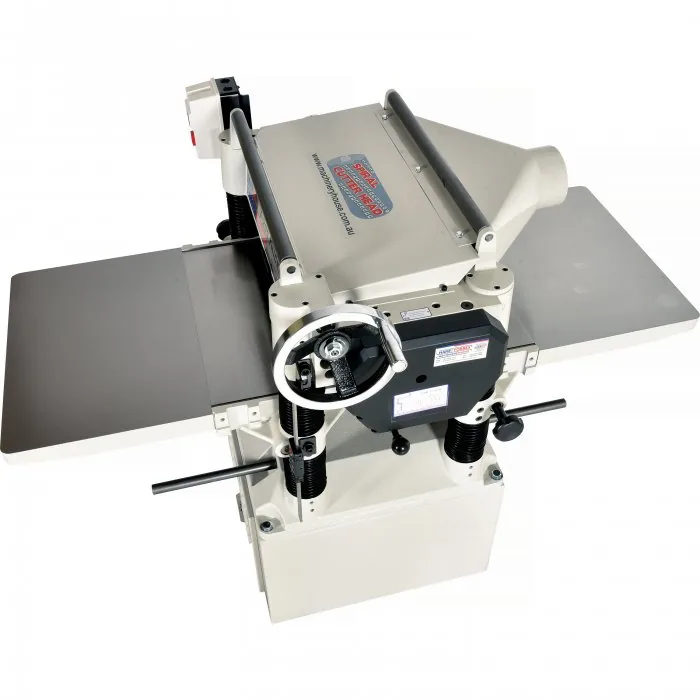

The Taiwanese-manufactured T-20S Spiral Cutter Head Thicknesser is designed and proven to meet the demands of even the toughest woodworking workshops! Constructed from robust cast iron, its solid base, feed tables, and cutter head ensure stability and excellent vibration absorption. Exceptional power is provided by a 3.75kW / 5hp 415V induction motor, housed in the base, which drives the cutter block via a twin-pulley V-belt system. Solid cast iron extension tables are fitted at both the front and rear, enhancing timber support, while a digital height gauge ensures precise and accurate adjustments. The standout feature of this machine is its spiral cutter head. Featuring four rows of tungsten carbide cutters, it delivers an almost flawless finish. The cutters are arranged to produce a super-clean shear cut, with each cutter having four edges, allowing you to rotate to a fresh edge when needed. Damaged cutters can be replaced individually, minimizing waste and reducing costs. Each edge lasts up to 10 times longer than traditional HSS blades, significantly reducing downtime. Furthermore, the cutter head requires no blade setting, saving time and guaranteeing consistent accuracy. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W415S) for collection in store.
In the Box
- Digital Height Gauge
- 92 Carbide Inserts – Dimension Shown Below.
Product Specifications
| Specification | Detail |
|---|---|
| Material Width Capacity (mm) | 508 |
| Material Height Capacity (mm) | 200 |
| Minimum Material Length (mm) | 190 |
| Maximum Depth of Cut (mm) | 6mm @ 508mm wide |
| Cutter Type | Carbide Inserts – Spiral |
| Quantity of Cutters (No. x Type) | 92 x Inserts |
| Cutter Block Diameter (mm) | 80 |
| Cutter Block Speed (rpm) | 5000 |
| Quantity of Spirals (No.) | 4 |
| Length of Table (mm) | 650 |
| Length of Table with Extensions/Rollers (mm) | 1470 |
| Feed Speed (m/min) | 4.8 / 6 |
| Dust Outlet Diameter (mm) | 125 |
| Motor Power (kW / hp) | 3.75 / 5 |
| Voltage / Amperage (V / amp) | 415 |
| Floor Space (W x D x H) (mm) | 1000 x 1470 x 1030 |
| Nett Weight (kg) | 420 |
