W425 Wood Band Saw

$3,685.00

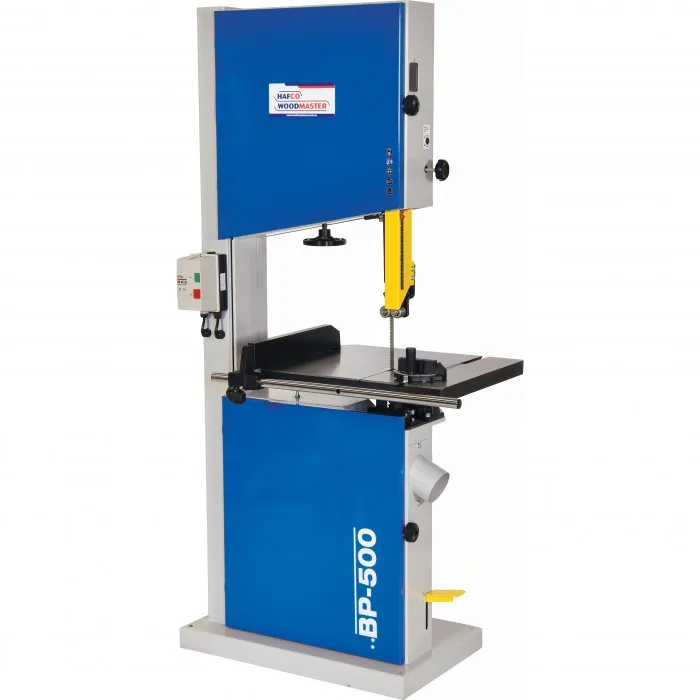

HAFCO-WOODMASTER BP-500 Wood Band Saw (2 Blade Speeds – 565 & 670m/min 510mm Throat Depth x 335mm Height Capacity). The Hafco Woodmaster Taiwanese made trade series BP-500 bandsaw is among the very best of our premium 510mm deep cutting bandsaws on the market.

Out of stock

Barcode: 9344195030123Brand: HAFCO Categories: ,

Description

HAFCO-WOODMASTER

Wood Band Saw — BP-500, 2 Blade Speeds – 565 & 670m/min 510mm Throat Depth x 335mm Height Capacity

Part No: W425  |  Barcode: 9344195030123  |  Model: BP-500

HAFCO-WOODMASTER BP-500 Wood Band Saw (2 Blade Speeds – 565 & 670m/min 510mm Throat Depth x 335mm Height Capacity). The Hafco Woodmaster Taiwanese made trade series BP-500 bandsaw is among the very best of our premium 510mm deep cutting bandsaws on the market.

Model BP-500
2 Blade Speeds – 565 & 670m/min
Throat Capacity: 510 mm
Height Capacity: 335 mm
Table Size: 508 x 612 mm
Motor Power: 2.2 / 3
Voltage / Amperage: 240 / 15

Key Features & Benefits

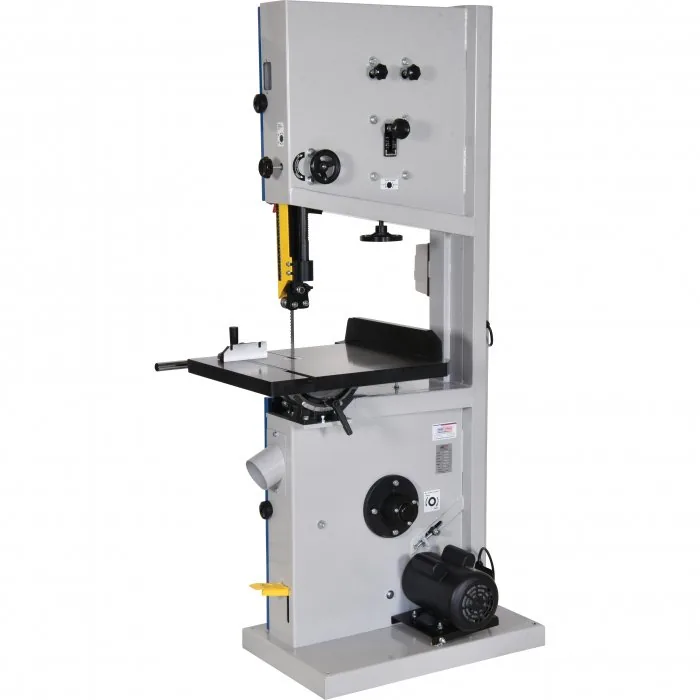

  • 2.2kW / 3hp 240V motor
  • 2 blade speeds (565 & 670m/min

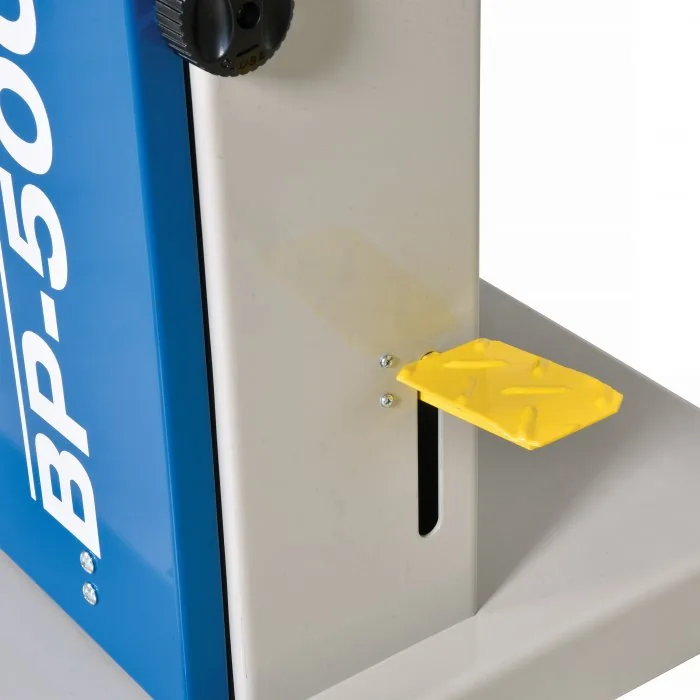

  • Foot brake with micro-switch

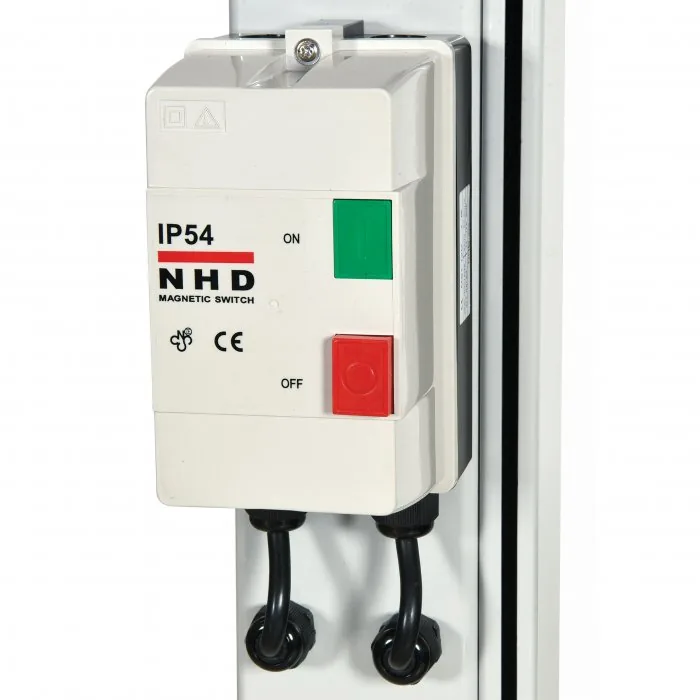

  • Magnetic switch with overload protection

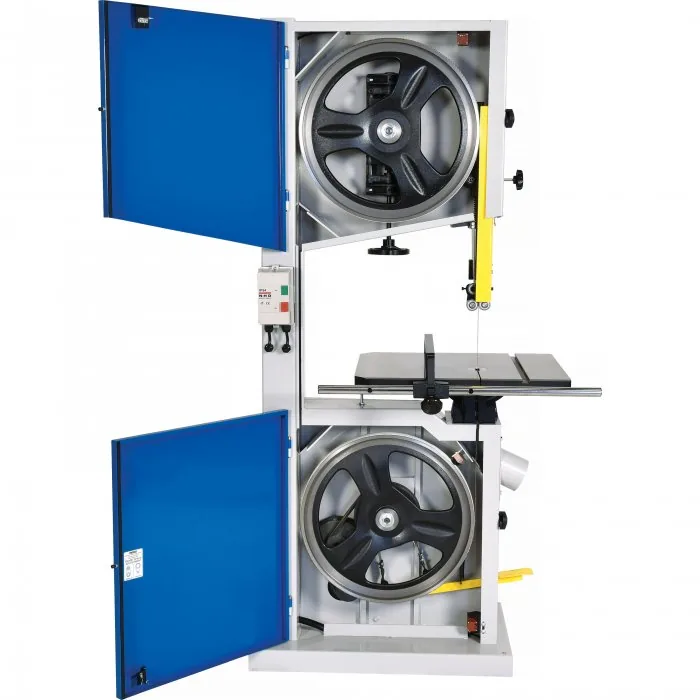

  • Heavy duty cast iron wheels and Ripping fence
  • Tamper proof micro switches on top & bottom doors

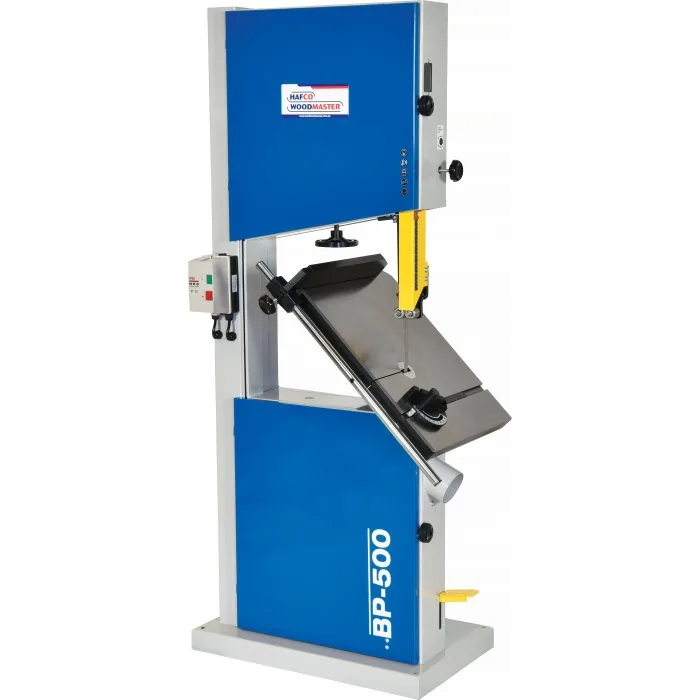

  • Cast iron table tilts to 45°

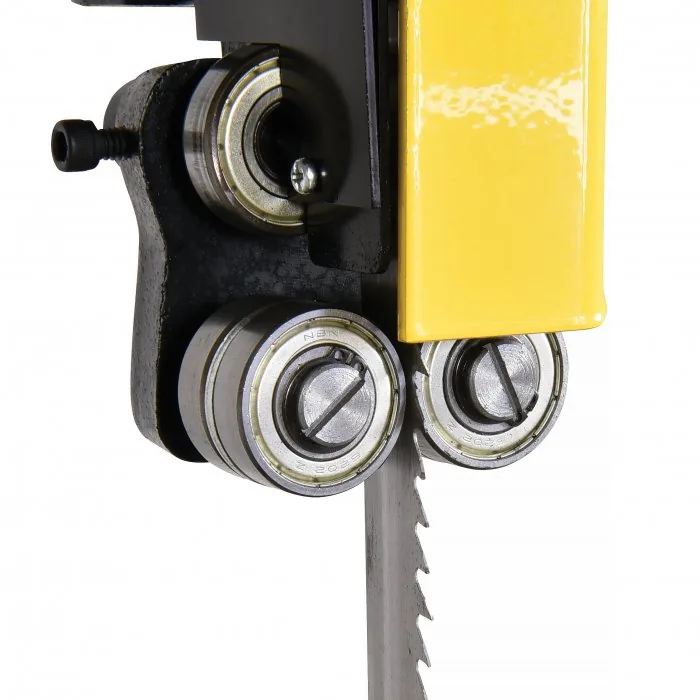

  • Ball bearing blade guides

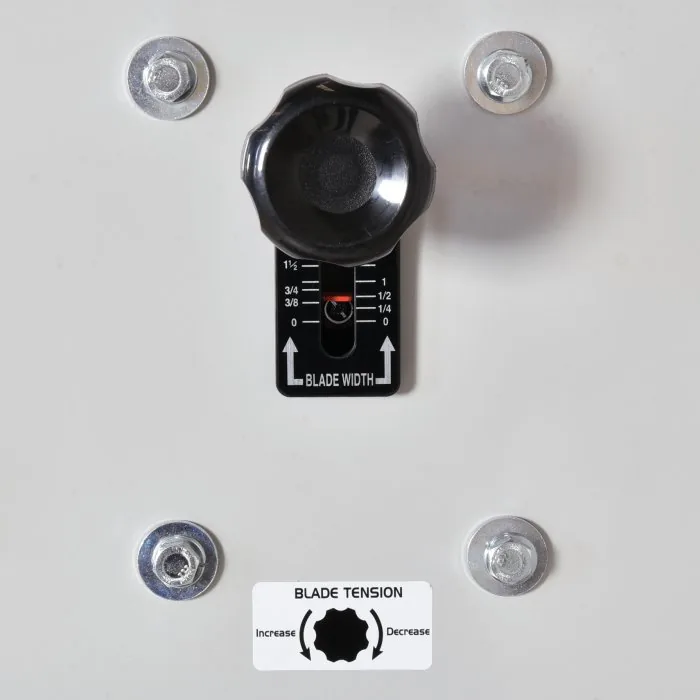

  • Blade width tension indicator

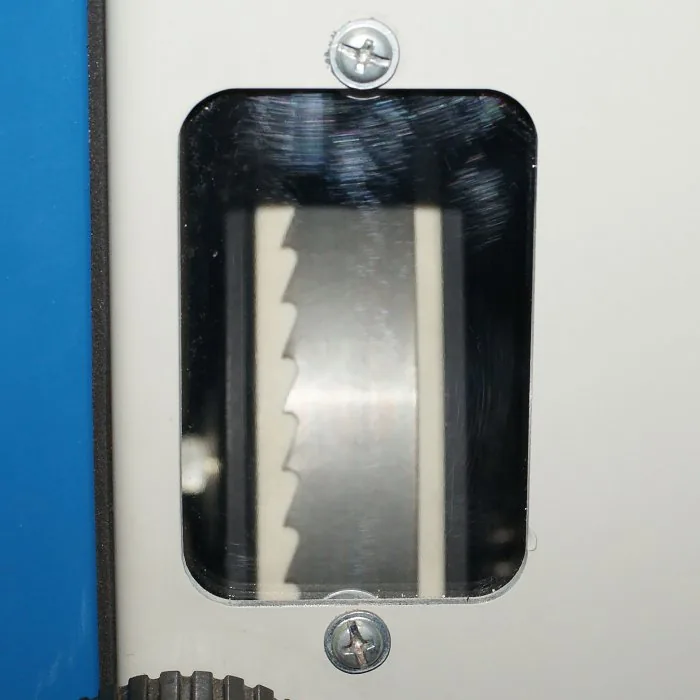

  • Viewing window for blade alignment

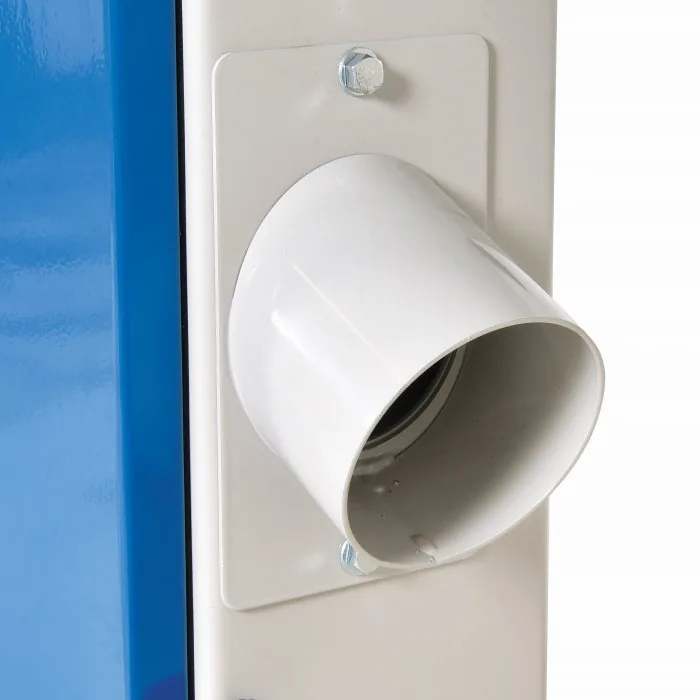

  • 100mm dust chute

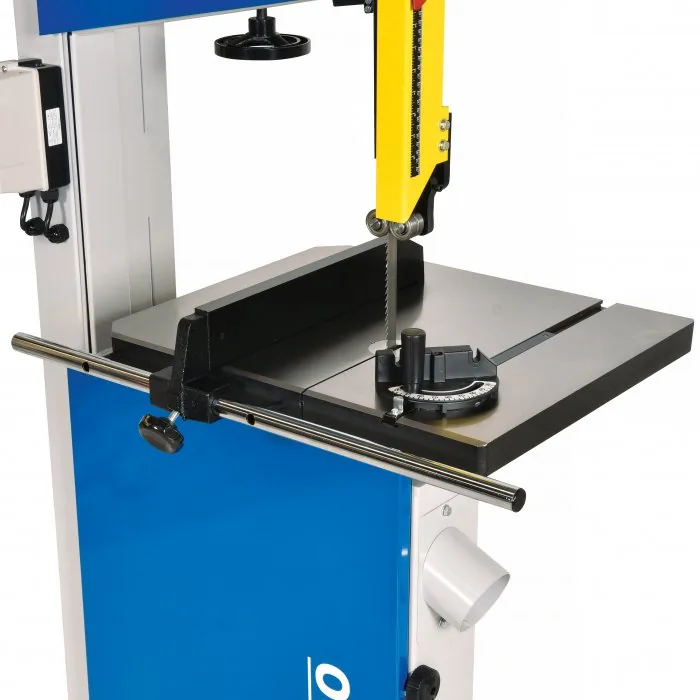

  • Includes rip fence and mitre guide
  • Quality Taiwanese Manufacture

About This Product

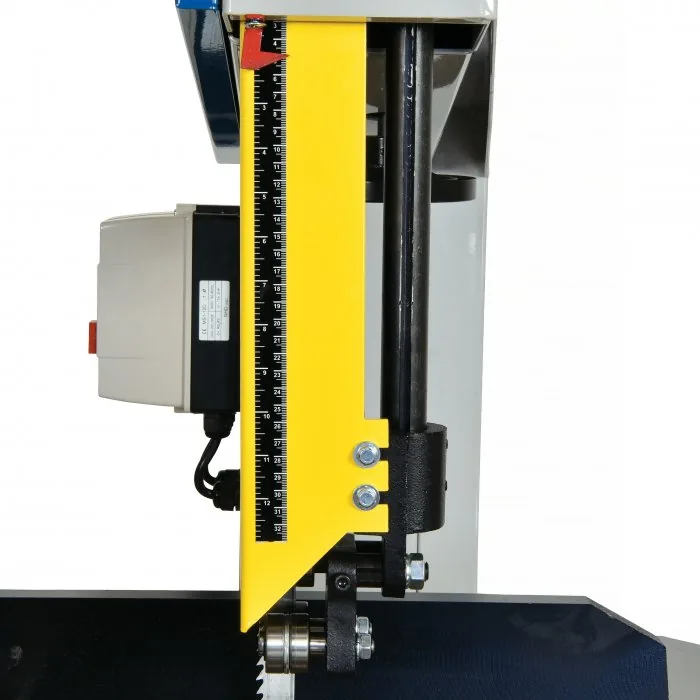

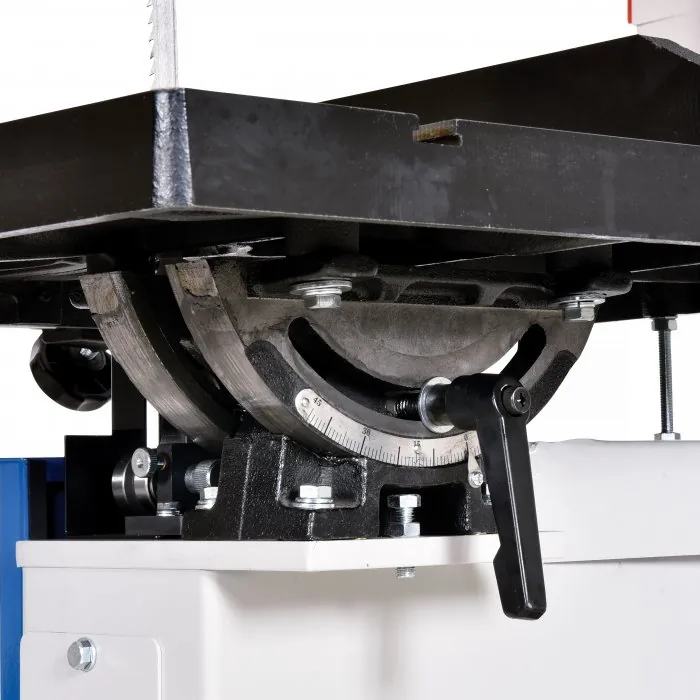

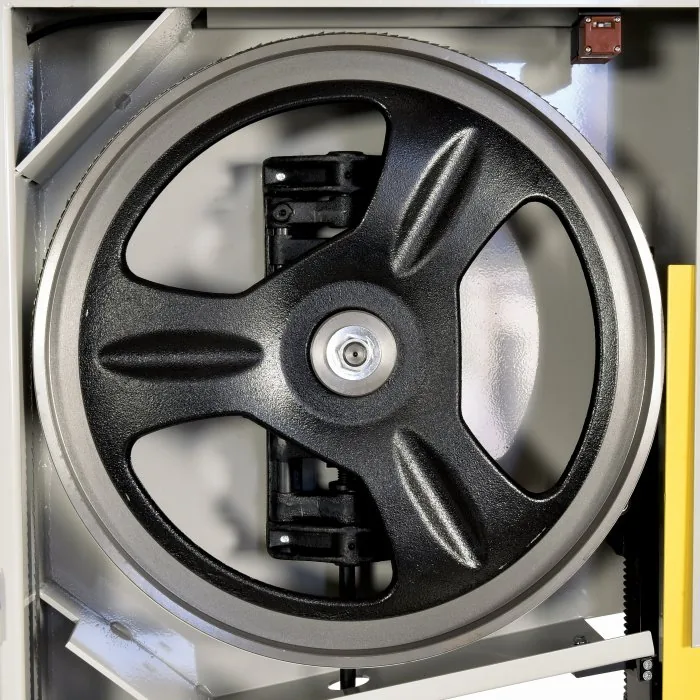

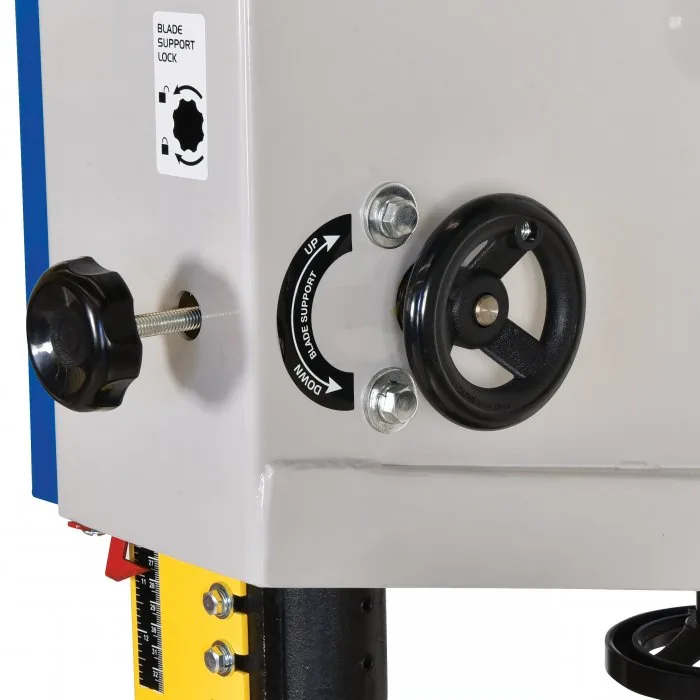

The Hafco Woodmaster Taiwanese made trade series BP-500 bandsaw is among the very best of our premium 510mm deep cutting bandsaws on the market. The welded steel frame is extraordinary rigidity, allowing superiorly high blade tensions and can handle up to a 38mm wide blade. The machine is powered 2.2kW/3hp 240V smooth and powerful motor & incorporates a mechanically foot brake lever allowing operator to stop the motor & blade fro rotating very quickly. The large cast iron blade wheels provide extra inertia to help cut through the toughest timbers and are balanced for smooth operation when running. Uniquely, the precision ground cast iron heavy duty table and cast iron rip fence ensures great stability & accuracy when using on any variety of timbers. The 6 ball bearing blade guide system, 3 located on the adjustable height guide & 3 below the table offer outstanding blade accuracy that is required in a heavy duty machine. Also fitted are cast iron trunnions that offer a solid table mounting base and allows the table to tilt and be securely locked into place for those jobs that require angle cuts. The worm gear system for the blade guide post movement is used for quick and easy height adjustment settings. Safety features like magnetic power switch & tamper proof door interlock micro switches are fitted to this machine providing peace of mind for the operator. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W425) for collection in store.

In the Box

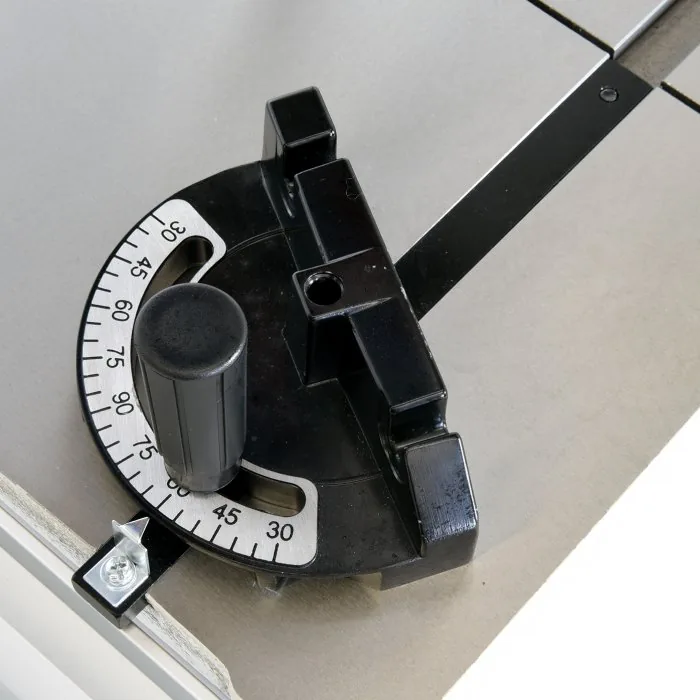

  • Mitre guide
  • Cast iron Rip fence

Product Specifications

Wood Band Saw — Specifications
Specification Detail
Wheel Diameter (Ø) (mm) 525
Throat Capacity (mm) 510
Height Capacity (mm) 335
Table Size (mm) 508 x 612
Frame Type Steel
Motor Power (kW / hp) 2.2 / 3
Voltage / Amperage (V / amp) 240 / 15
Blade Code (Suits) W425A, W425B, W425C
Blade Size (L x W x T) (mm) 3937 x 25.4 x 0.70
Floor Space (W x D x H) (mm) 1050 x 800 x 1910
Nett Weight (kg) 290
Brand: HAFCO-WOODMASTERModel: BP-500Order Code: W425Barcode: 9344195030123Availability: Special order — collect in store
