W618 Bench Planer Jointer

$550.00

HAFCO-WOODMASTER PJ-6B Bench Planer Jointer (153mm Width Capacity). The PJ-6B Planer/Joiner is perfectly designed for all those light to medium duty applications. This unique jointer comes with a 730mm long cast iron table and a 580 x 110mm adjustable tilting fence that allows the operator many options to pane…

Available to Order — Collect in Geelong (typically 2–7 business days)

Special Order

Extended Range — Special Order. Sourced from Hare & Forbes and delivered to our Geelong store free of freight.
Collect in store, typically 2–7 business days (subject to Hare & Forbes stock and dispatch warehouse).

Big machine? We unload it with our forklift and load it straight onto your ute or trailer at our Geelong store — no residential-delivery problems.

Shipping & returns info
Barcode: 9344195089404Brand: HAFCOGTIN: 9344195089404 Categories: ,

Description

HAFCO-WOODMASTER

Bench Planer Jointer — PJ-6B, 153mm Width Capacity

Part No: W618  |  Barcode: 9344195089404  |  Model: PJ-6B

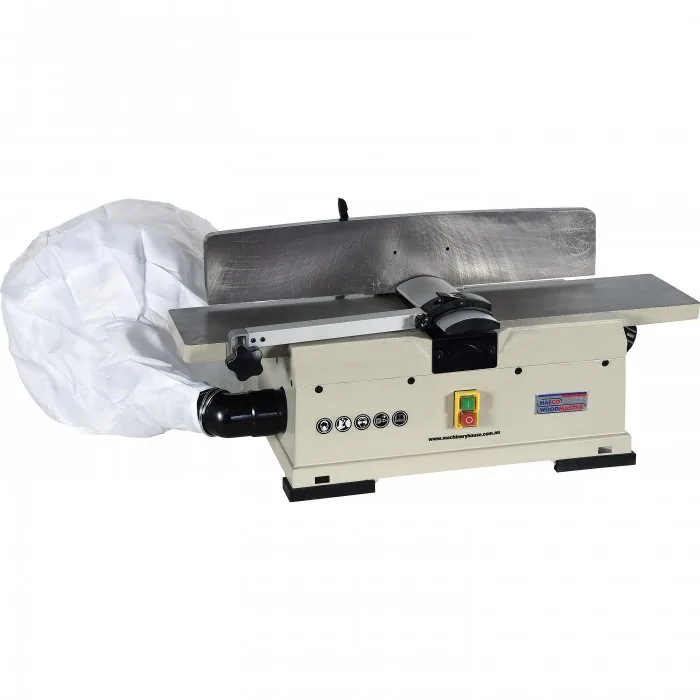

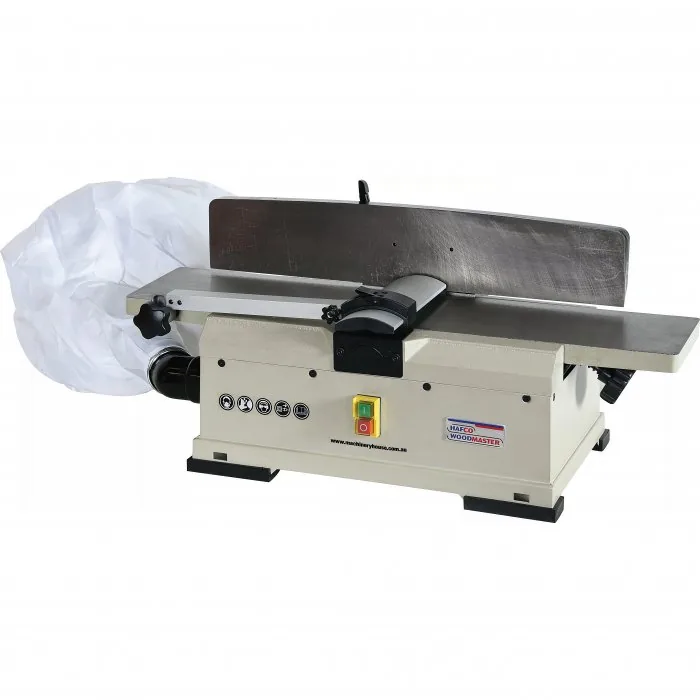

HAFCO-WOODMASTER PJ-6B Bench Planer Jointer (153mm Width Capacity). The PJ-6B Planer/Joiner is perfectly designed for all those light to medium duty applications. This unique jointer comes with a 730mm long cast iron table and a 580 x 110mm adjustable tilting fence that allows the operator many options to pane…

Model PJ-6B
153mm Width Capacity
Width Capacity: 153 / 6
Maximum Depth of Cut: 3 mm
Cutter Block Speed: 10000 rpm
Motor Power: 1.1 / 1.5
Voltage / Amperage: 240 / 10

Key Features & Benefits

  • 153mm width capacity

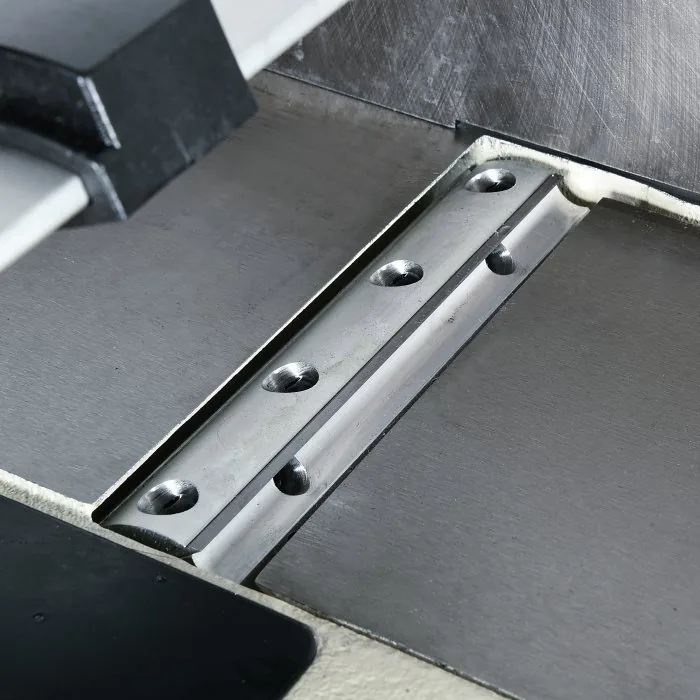

  • 2 x HSS blade cutter head
  • Cast iron table & fence
  • Cast aluminium body

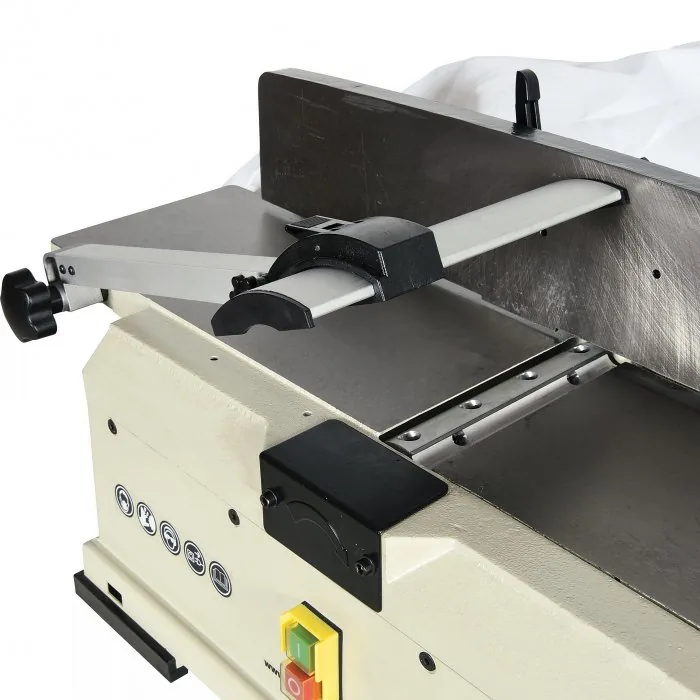

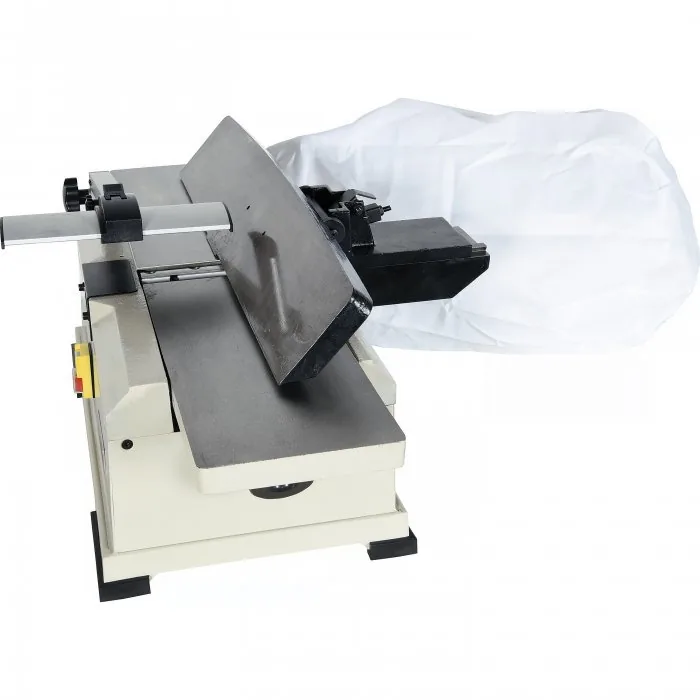

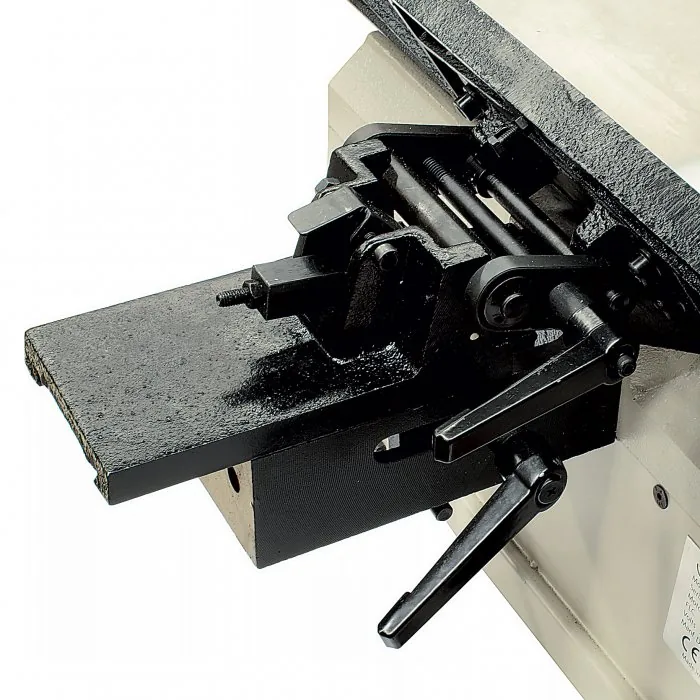

  • Adjustable tilting fence to 45˚

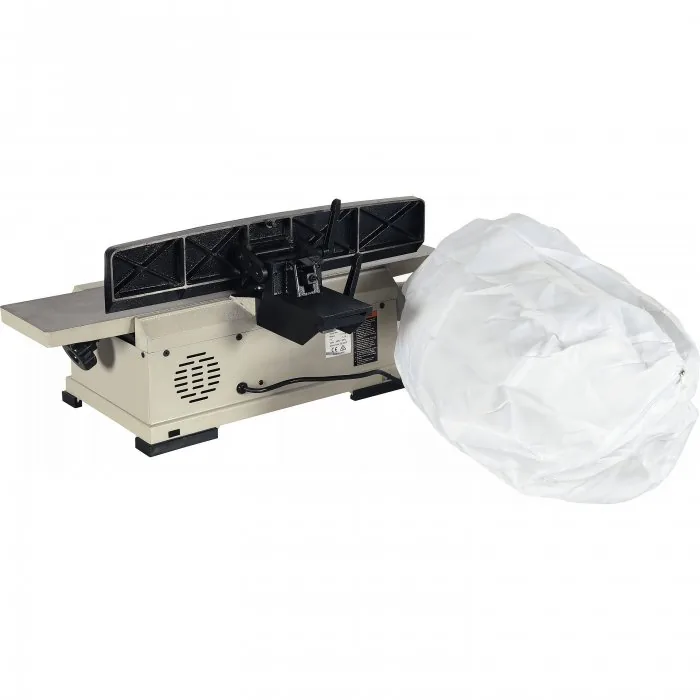

  • Built in fan with dust chute & collection bag
  • 10000rpm blade speed with 20000 cuts per minute

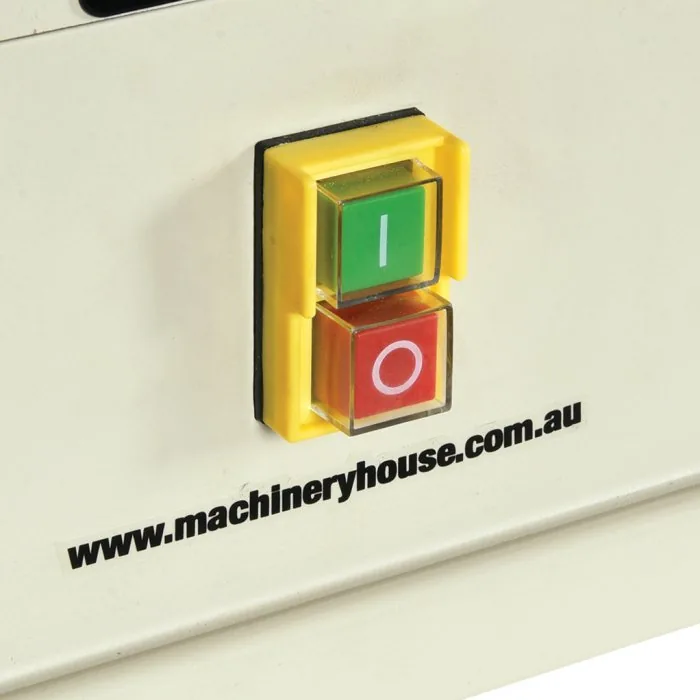

  • Magnetic safety power switch with stop button
  • Aluminium blade cover with quick action lock
  • 3mm maximum depth of cut

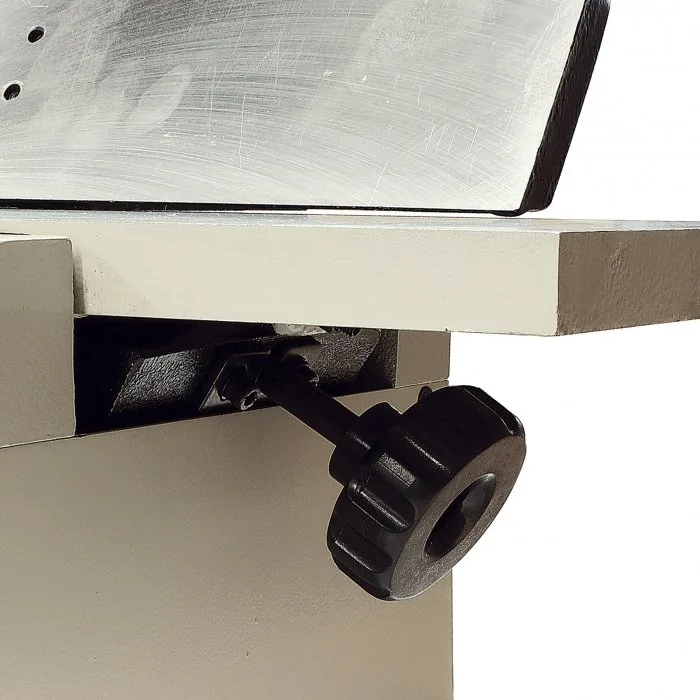

  • Adjustable in-feed table
  • Anti vibration rubber feet
  • 1.1kW / 1.5hp 240V motor

About This Product

The PJ-6B Planer/Joiner is perfectly designed for all those light to medium duty applications. This unique jointer comes with a 730mm long cast iron table and a 580 x 110mm adjustable tilting fence that allows the operator many options to pane timber effortlessly at the desired angle. This little planer has a very generous 153mm maximum cut width, and it is mainly constructed from cast iron material to provide ample rigidity, and helps dramatically reduce vibration when under load. The two HSS cutting blades are powered by a 1.5hp 240V motor, and spins the blades at a very impressive 10000rpm. Another great feature that’s supplied standard with this machine is the unique built-in fan with dust chute and bag system to collect its own timber waste. The PJ-6B Planer is perfect for when a portable compact machine is needed for all those one-off jobs, and also to save on valuable storage space. This is ideal for any small woodwork shop or for the home hobbyist who needs to occasionally plane timber. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code W618) for collection in store.

Product Specifications

Bench Planer Jointer — Specifications
Specification Detail
Width Capacity (mm / inch) 153 / 6
Maximum Depth of Cut (mm) 3
Table Length (mm) 730
Length of Infeed Table (mm) 340
Length of Outfeed Table (mm) 347
Fence Length x Height (mm) 580 x 110
Blade Cutter (Type) HSS
Blade Quantity (No.) 2
Cutter Block Speed (rpm) 10000
Dust Port Diameter (mm) 60
Motor Power (kW / hp) 1.1 / 1.5
Voltage / Amperage (V / amp) 240 / 10
Floor Space (W x D x H) (mm) 1150 x 650 x 320
Nett Weight (kg) 40
Brand: HAFCO-WOODMASTERModel: PJ-6BOrder Code: W618Barcode: 9344195089404Availability: Special order — collect in store
