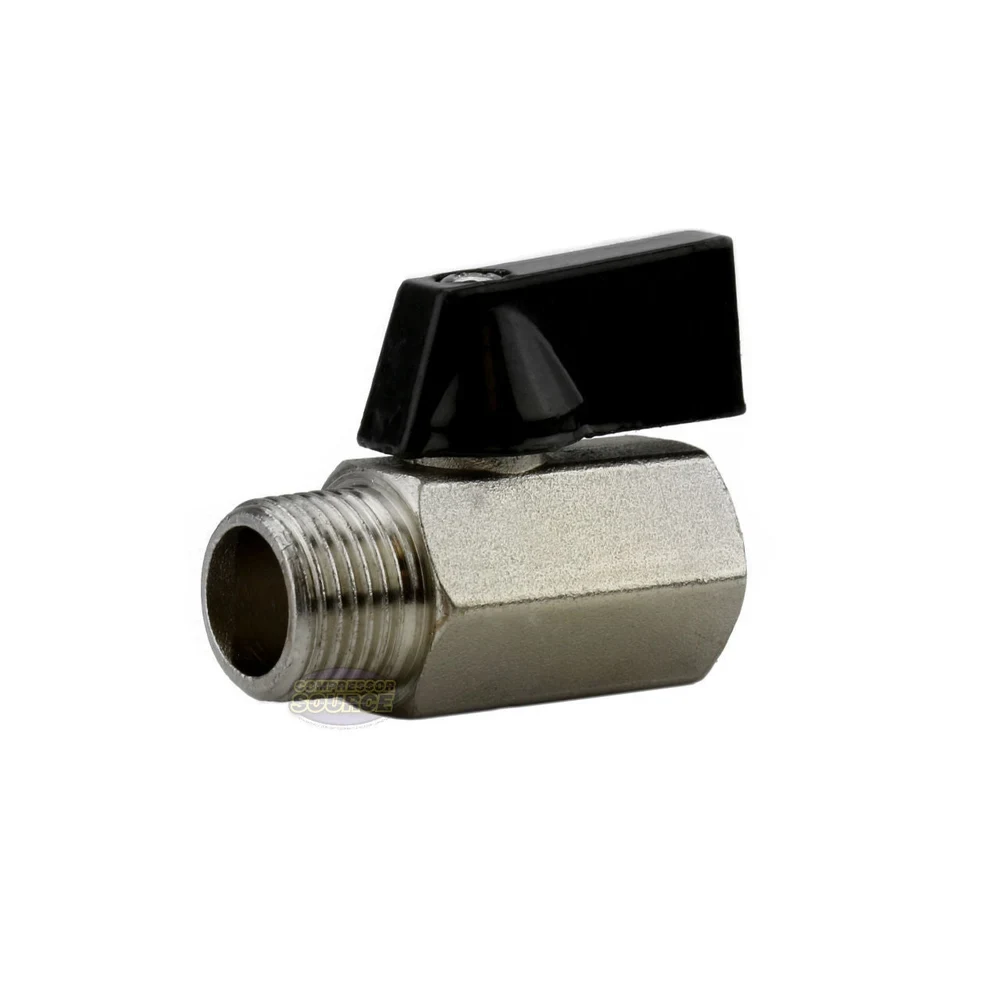

Brass Ball Valve — 1/4″ BSP Male × 1/4″ BSP Female (37-B3831-04)
Part No: 37-B3831-04 | Barcode: 16915 | Range: Air Fittings & Piping
The 37-B3831-04 is a brass quarter-turn ball valve with a 1/4″ BSP male thread one end and a 1/4″ BSP female port the other, so it screws straight into an outlet and accepts a fitting on the far side. The lever gives fast full-bore on/off shut-off of a compressed-air line.
1/4″ BSP Male
1/4″ BSP Female
Male × Female
Brass
Lever Handle
Quarter-Turn
Suitable For
Compressor Outlets
Air-Tool Drops
Receiver Tappings
Manifold Branches
Key Features & Benefits
- Male one end, female the other — screws directly into a tapped outlet and still accepts a coupler or hose tail on the female side.
- Quarter-turn lever — 90° flick for instant on/off, with the handle showing open or closed at a glance.
- Full-bore brass ball — low flow restriction when open so the line keeps its pressure and volume.
- Brass construction — corrosion resistant and durable for everyday compressed-air duty.
When to Use This Valve
Reach for part 37-B3831-04 when you want to add a shut-off right at an outlet — thread the male end into a compressor, receiver or manifold tapping and run your coupler or hose off the female side. Ideal as an isolation valve at a tool drop.
Air Valve Range — Types Available
| Part No. | Type | Connection |
|---|---|---|
| 37-1510-04 | Inline Ball Valve | 1/4″ Female × Female |
| 37-B3831-04 ★ | Ball Valve | 1/4″ Male × 1/4″ Female |
| 37-5980-08 | Ball Valve | 1/2″ |
| 04-DC3004 | Drain Cock | 1/4″ BSPT |
| NRV314S | Non-Return (Check) Valve | In-Line |
| C175-41 | Non-Return Valve (Twin Tank) | Compressor Head |
| COSSV1/210BAR | Safety / Pop-Off Valve | 1/2″ — 150 PSI |
★ You are viewing the highlighted valve. Other valve types in this range are also available.
Browse our wide range of air fittings & piping at Alltools Geelong.
