BAR Group

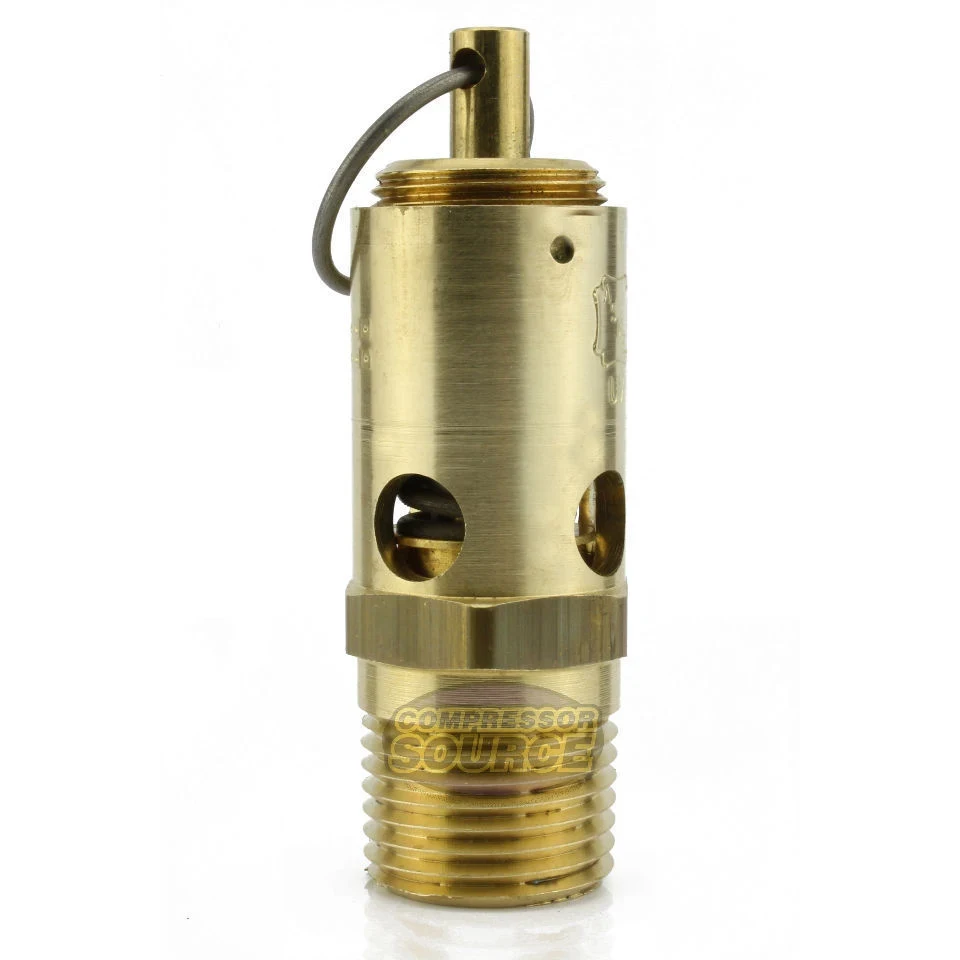

Compressor Safety / Pop-Off Valve — 1/2″ 150 PSI (COSSV1/210BAR)
Part No: COSSV1/210BAR | Barcode: 38969 | Range: Air Fittings & Piping
The COSSV1/210BAR is a 1/2″ compressor safety valve (pop-off valve) preset to relieve at 150 PSI. Fitted to an air receiver, it stays shut in normal running and vents automatically if tank pressure climbs past the set point, protecting the tank and system from over-pressure.
1/2″
150 PSI Set
Safety / Pop-Off Valve
Pressure Relief
Air Receiver
Auto-Venting
Suitable For
Air Receiver Tanks
Compressor Pressure Relief
Over-Pressure Protection
Pressure-System Safety
Key Features & Benefits
- Preset 150 PSI relief — lifts automatically once tank pressure exceeds the set point — no adjustment needed.
- Pop-off action — snaps open to dump excess pressure fast, then reseats as pressure falls back to safe levels.
- 1/2″ connection — threads into the safety-valve boss on common air-receiver tanks.
- Essential tank protection — the last line of defence if a pressure switch or unloader fails — required safety fitment on a pressure vessel.
When to Use This Valve
Reach for part COSSV1/210BAR to fit or replace the safety valve on a compressor receiver rated to 150 PSI. It is a mandatory protective device — never plug, blank off or override it. Test it occasionally by lifting the ring to confirm it lifts and reseats freely.
Pro Tip: Match the valve’s set pressure to your tank’s rating, not just your working pressure — the safety valve must lift below the receiver’s maximum rated pressure to actually protect it.
Authorised Australian Dealer — This is a genuine B.A.R. Group safety valve, backed by Australian manufacturer support from B.A.R. Group Australia.
Air Valve Range — Types Available
| Part No. | Type | Connection |
|---|---|---|
| 37-1510-04 | Inline Ball Valve | 1/4″ Female × Female |
| 37-B3831-04 | Ball Valve | 1/4″ Male × 1/4″ Female |
| 37-5980-08 | Ball Valve | 1/2″ |
| 04-DC3004 | Drain Cock | 1/4″ BSPT |
| NRV314S | Non-Return (Check) Valve | In-Line |
| C175-41 | Non-Return Valve (Twin Tank) | Compressor Head |
| COSSV1/210BAR ★ | Safety / Pop-Off Valve | 1/2″ — 150 PSI |
★ You are viewing the highlighted valve. Other valve types in this range are also available.
