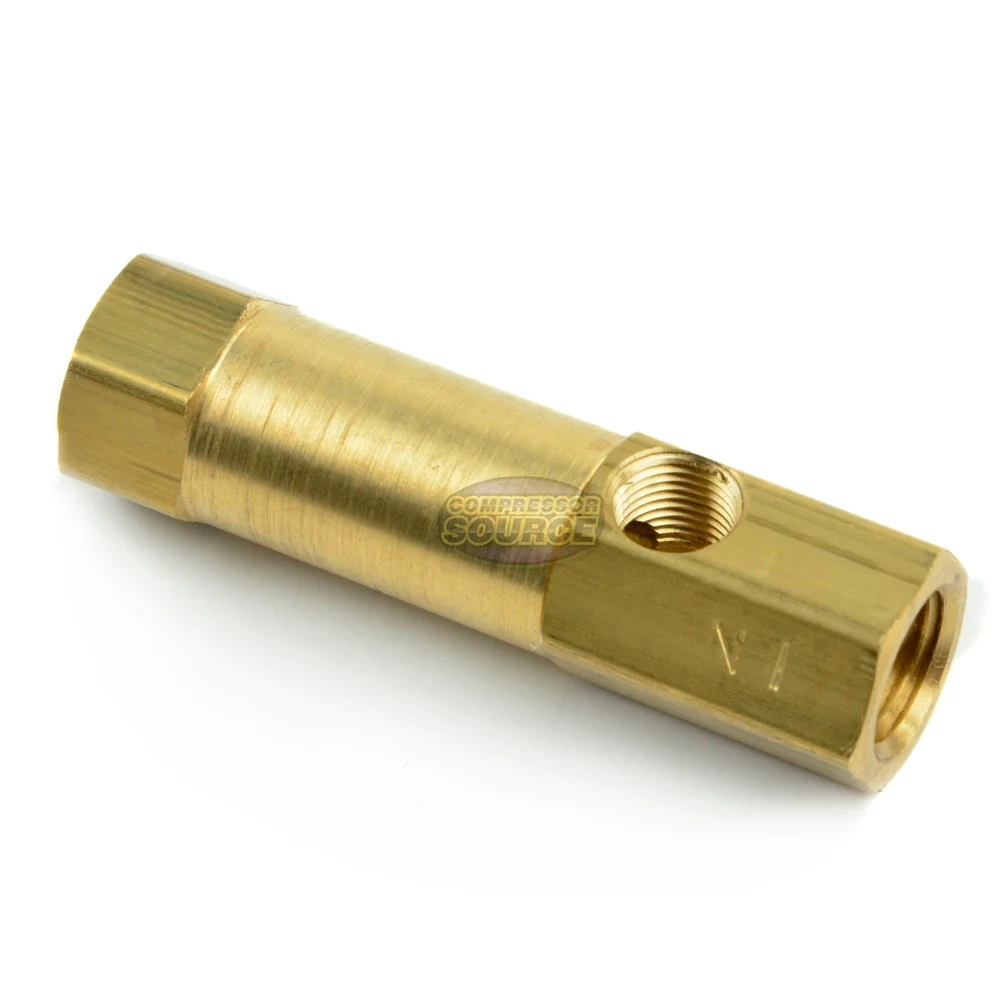

Peerless Non-Return Valve — Twin-Tank Compressor (C175-41)
Part No: C175-41 | Barcode: C175-41-TT | Range: Air Fittings & Piping
The C175-41 is a Peerless non-return (check) valve for twin-tank piston air compressors. Fitted between the pump head and the receiver, it lets the pump charge the tank on the up-stroke and blocks compressed air from flowing back into the pump when it stops, so the tank holds pressure and the compressor restarts unloaded.
Peerless
Non-Return Valve
Twin-Tank Compressor
One-Way Flow
Compressor Head
Pressure Holding
Suitable For
Twin-Tank Piston Compressors
Compressor Pump-to-Tank Line
Unloader Circuits
Pressure-Holding Heads
Key Features & Benefits
- Holds tank pressure — seals the receiver so stored air does not bleed back through the pump when the motor stops.
- Unloads the pump for restart — by blocking back-flow it lets the head de-pressurise, so the motor restarts against no load.
- Twin-tank compressor fitment — sized and ported for Peerless-style twin-tank piston compressor heads.
- Replaceable wear part — a serviceable non-return valve is a routine compressor maintenance item.
When to Use This Valve
Reach for part C175-41 when servicing a twin-tank piston compressor that won’t hold tank pressure or struggles to restart — a worn non-return valve is a common cause of both. Install it in the pump-to-tank line in the marked flow direction.
Pro Tip: A matching spring-and-seal service kit (Peerless C175-41-1) is available if only the internals are worn — often a cheaper fix than replacing the whole valve.
Authorised Australian Dealer — This is a genuine Peerless compressor part, backed by Australian manufacturer support from Peerless Products Australia.
Air Valve Range — Types Available
| Part No. | Type | Connection |
|---|---|---|
| 37-1510-04 | Inline Ball Valve | 1/4″ Female × Female |
| 37-B3831-04 | Ball Valve | 1/4″ Male × 1/4″ Female |
| 37-5980-08 | Ball Valve | 1/2″ |
| 04-DC3004 | Drain Cock | 1/4″ BSPT |
| NRV314S | Non-Return (Check) Valve | In-Line |
| C175-41 ★ | Non-Return Valve (Twin Tank) | Compressor Head |
| COSSV1/210BAR | Safety / Pop-Off Valve | 1/2″ — 150 PSI |
★ You are viewing the highlighted valve. Other valve types in this range are also available.
