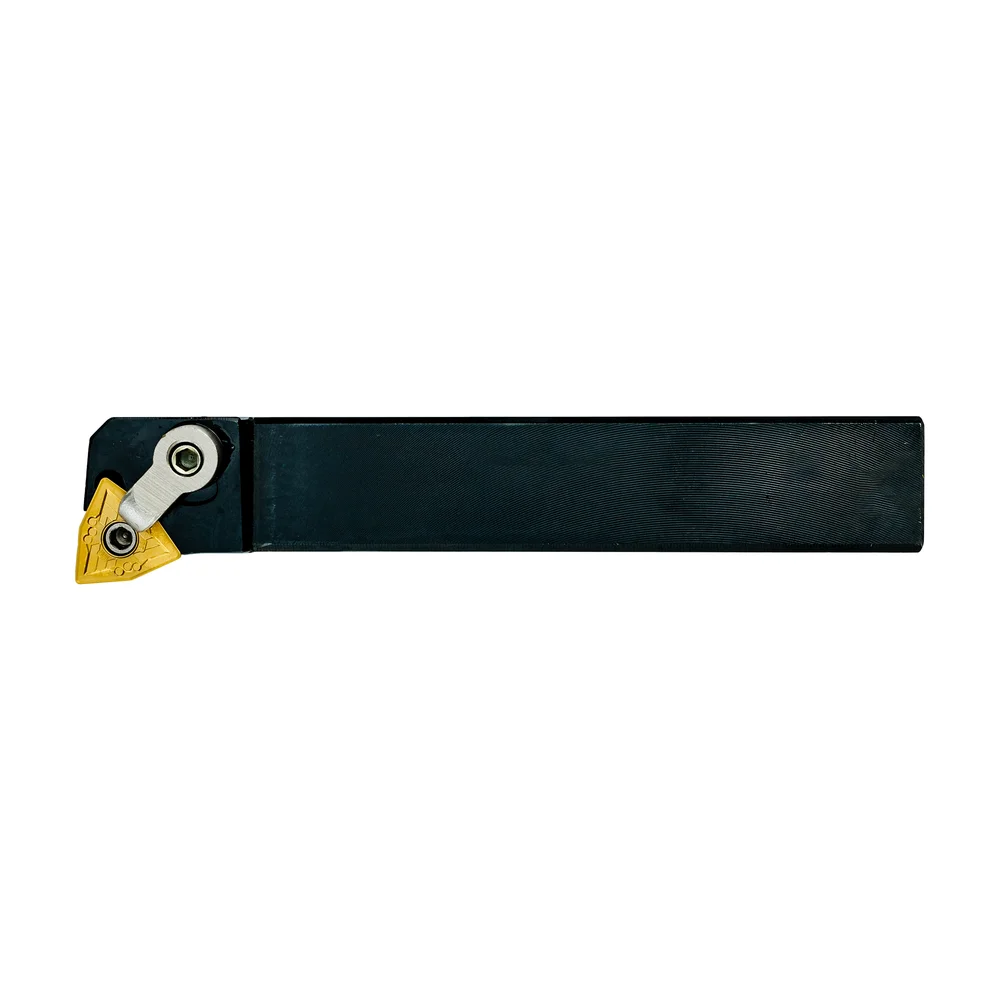

Excision MWLN Left Hand Turning Tool Holder — 20mm Shank (MWLNL-2020K08)
Part No: 781322008L | Barcode: 9341363315129 | ISO: MWLNL-2020K08
Excision MWLNL-2020K08 left-hand turning tool holder for the workshop lathe — a 20mm square-shank ISO-standard holder accepting WNMG080404 / WNMG080408 indexable carbide inserts. Solid steel body with precision insert seat for repeatable tip location.
20mm Shank
Left Hand
ISO MWLN
Accepts WNMG080404
Steel Body
Key Features & Benefits
- ISO MWLN pattern — Standard insert pocket — accepts any compliant WNMG080404 / WNMG080408 insert from Excision or other ISO suppliers.
- Left hand cutting — Built for facing operations and turning away from the chuck (left hand).
- 20mm square shank — Sized to drop straight into common 4-way and quick-change tool posts on hobby and light-industrial lathes.
- Suitable for low-power lathes — Geometry and rake suit smaller workshop machines without bogging the spindle.
- Australian supplier support — Backed by Excision Australia (Melbourne) — stocked locally with replacement parts available.
When to Use This MWLN Holder
Use Excision part 781322008L (MWLNL-2020K08) when you need a left-hand 20mm ISO-MWLN turning tool holder for indexable WNMG080404 / WNMG080408 carbide inserts. Suits hobby and light-industrial lathes. Inserts sold separately.
Authorised Australian Dealer — This product is sourced directly from Excision Australia, an Australian engineering tools supplier based in Melbourne, and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Specification | Value |
|---|---|
| H | 20mm |
| B | 20mm |
| LF | 125mm |
| LH | 26mm |
| WF | 25mm |
| Brand | Excision |
| Series | MWLN |
| Holder ISO designation | MWLNL-2020K08 |
| Hand | Left hand |
| Shank size | 20mm square |
| Compatible inserts | WNMG080404 / WNMG080408 |
| Insert pocket | ISO standard |
| Country | Australian-supplied (Excision, Melbourne) |
| Part number | 781322008L |
| Barcode | 9341363315129 |
