Accud

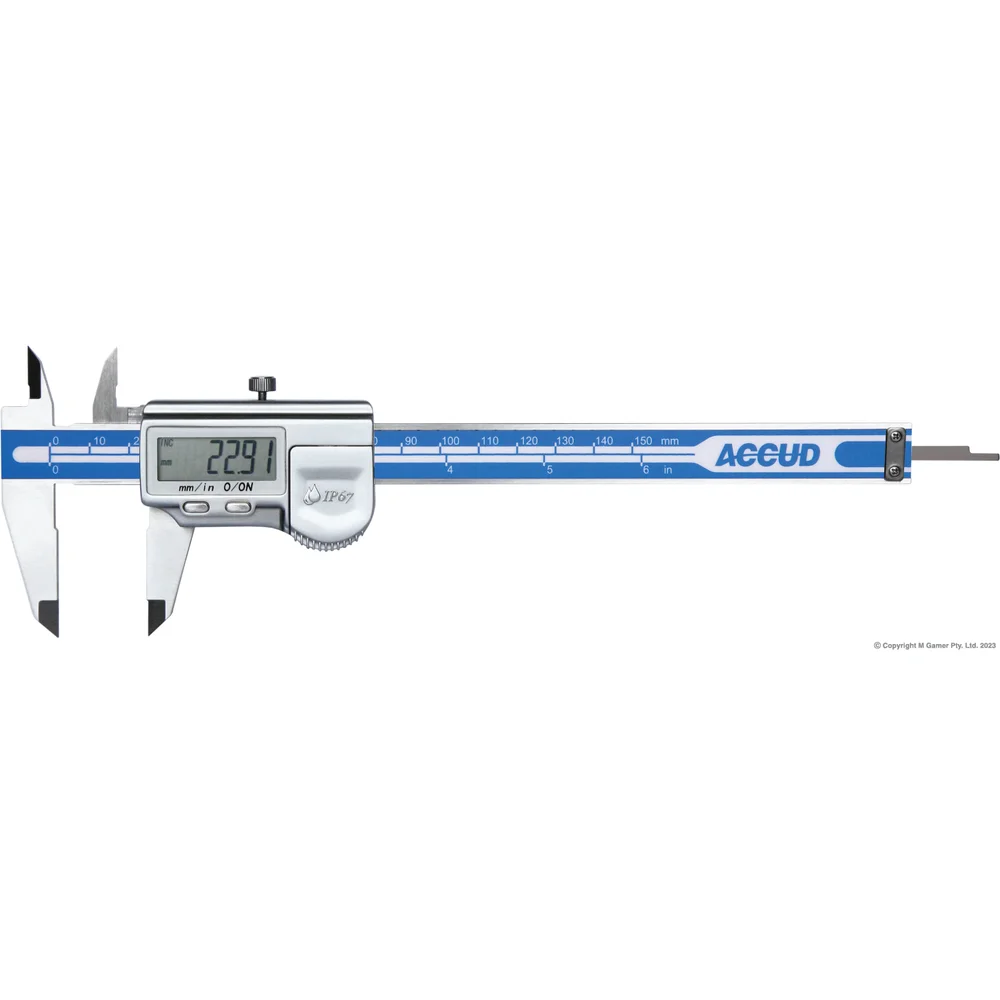

Accud IP67 Digital Caliper — 0–150mm (0–6″)
Part No: AC-112-006-12 | Barcode: 9346967024668 | Series: Accud 112 IP67 Digital Calipers
The Accud AC-112-006-12 is a fully-waterproof IP67 digital caliper with dual metric/imperial display across 0–150mm. Submersible stainless-steel construction — the caliper for coolant spray, oily parts and wet workshop environments where IP54 isn’t enough.
0–150mm / 0–6″
0.01mm Resolution
IP67 Submersible
Stainless Steel
Dual Metric / Imperial
±0.03mm Accuracy
Compatible Work
Wet Machining
Coolant Environments
Food-Grade Applications
Outdoor Work
Oily Parts
Key Features & Benefits
- IP67 waterproof rating — fully submersible to 1m depth; safe to rinse under the tap or use directly in coolant flow.
- Stainless-steel construction — both the beam and jaws are corrosion-resistant; handles daily exposure to cutting fluid and cleaning agents.
- Dual metric/imperial display — button-press conversion at the thumb; no conversion errors when working off mixed drawings.
- Four-way measurement — outside, inside, depth and step dimensions from one tool with sealed construction.
- Sealed data output — SPC-compatible port for statistical logging without compromising IP67 integrity.
- 0.01mm resolution, ±0.03mm accuracy — same precision as the standard AC-111 IP54 with a significant step up in environmental protection.
When to Use the AC-112-006-12
Reach for the AC-112 IP67 when you need to measure in a wet environment — coolant-flow machining, food-processing equipment maintenance, outdoor fabrication, or any workshop where the part comes off the machine still wet. For dry-bench use the cheaper AC-111 IP54 is sufficient; the IP67 upgrade pays off only when water exposure is routine.
Pro Tip: Even IP67 calipers benefit from a warm-water rinse after coolant exposure — synthetic coolant deposits on the slider rack can affect smooth movement over time. A quick rinse and shake-dry after the shift extends the tool’s service life significantly.
Product Specifications
| Part No. | Type | Range | Resolution | Accuracy | Barcode |
|---|---|---|---|---|---|
| AC-111-006-11 | IP54 Metric | 0-150mm | 0.01mm | ±0.03mm | 9346967024606 |
| AC-111-006-12 | IP54 Dual-Scale | 0-150mm | 0.01mm/0.0005″ | ±0.03mm | 9346967024613 |
| AC-111-008-11 | IP54 Metric | 0-200mm | 0.01mm | ±0.03mm | 9346967024620 |
| AC-111-008-12 | IP54 Dual-Scale | 0-200mm | 0.01mm/0.0005″ | ±0.04mm | 9346967024637 |
| AC-111-012-11 | IP54 Metric | 0-300mm | 0.01mm | ±0.04mm | 9346967024644 |
| AC-111-012-12 | IP54 Dual-Scale | 0-300mm | 0.01mm/0.0005″ | ±0.04mm | 9346967024651 |
| AC-112-006-12 ★ | IP67 Dual-Scale | 0-150mm | 0.01mm/0.0005″ | ±0.03mm | 9346967024668 |
| AC-112-008-12 | IP67 Dual-Scale | 0-200mm | 0.01mm/0.0005″ | ±0.03mm | 9346967024675 |
| AC-117-006-11 | Plastic Non-Marking | 0-150mm | 0.01mm | ±0.1mm | 9346967024699 |
| AC-120-006-12 | Vernier DIN862 | 0-150mm | 0.02mm/0.001″ | ±0.03mm | 9346967024729 |
| AC-120-008-12 | Vernier DIN862 | 0-200mm | 0.02mm/0.001″ | ±0.04mm | 9346967024736 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
