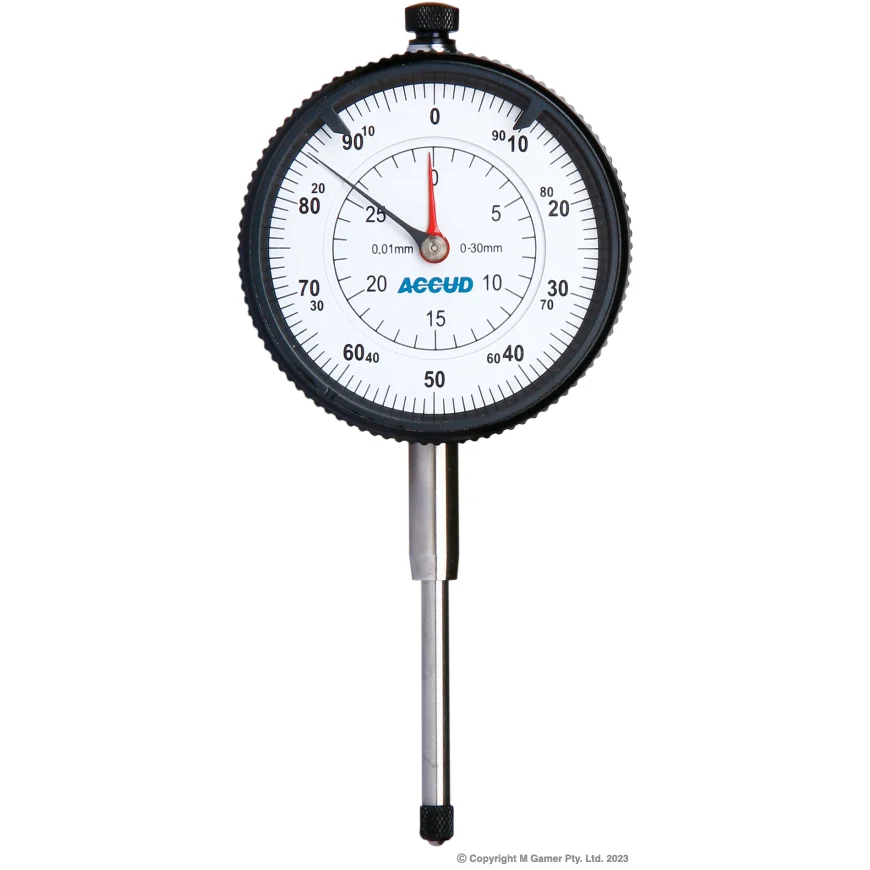

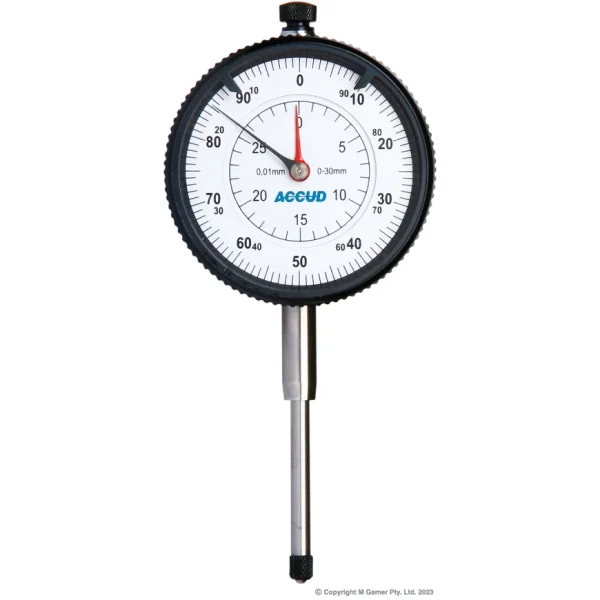

Accud Dial Indicator — 0-30mm
Part No: AC-229-030-11 | Barcode: 9346967026730 | Series: Accud Dial Indicators
The Accud AC-229-030-11 is a precision plunger-type dial indicator with a 0-30mm measuring range and 0.01mm graduation. Shock-resistant movement, continuous dial and lifting lever — the workshop plunger indicator for bench inspection, machine setup and QC gauging. Extended 30mm range for deeper measurement where 10mm runs short.
0-30mm Range
0.01mm Graduation
Plunger Type
Shock Resistant
Lifting Lever
Compatible Work
Machine Tramming
Runout Inspection
Surface Flatness
Height Comparison
QC Gauging
Key Features & Benefits
- Plunger-type probe — straight-line movement reads axial displacement directly, ideal for flatness, height and runout checks on horizontal surfaces.
- 0.01mm dial graduation — clear, evenly-spaced dial lines for fast visual reading; no electronics to fail.
- Shock-resistant movement — hardened internal gearing withstands bumps and drops better than legacy jewelled movements.
- Continuous dial — rotates the full 0-30mm range without reversal; easier to read on long measurements than reversing-dial alternatives.
- Lifting lever — retract the probe cleanly over a step or edge without damaging the tip or deflecting the spring mechanism.
- Rotating bezel — zero the dial at any probe position for comparative measurement against a reference.
When to Use the AC-229-030-11
Reach for the AC-229-030-11 dial indicator when you need straight-line plunger measurement — clocking a chuck, checking flatness against a granite plate, comparing heights on a surface plate, or QC gauging against a standard. The 0-30mm range fits most general machining and fabrication inspection work. For tight-access clocking use the AC-261 lever indicator; for 0.001mm precision go digital with the AC-212.
Pro Tip: Mount the indicator so the plunger travels perpendicular to the measured surface — a 5° angle introduces cosine error that compounds over the range. If you can’t get perpendicular, use a lever indicator which is designed for angled contact. Straight-plunger indicators are for straight-line measurement.
Product Specifications
| Part No. | Type | Range | Resolution | Accuracy | Barcode |
|---|---|---|---|---|---|
| AC-212-025-13 | Digital | 0-25.4mm | 0.001mm | ±0.003mm | 934696702965 |
| AC-222-010-11 | Dial | 0-10mm | 0.01mm | ±0.015mm | 9346967024835 |
| AC-225-025-11 | Dial | 0-1″ / 25.4mm | 0.001″/0.01mm | ±0.015mm | 9346967026587 |
| AC-229-030-11 ★ | Dial | 0-30mm | 0.01mm | ±0.020mm | 9346967026730 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
