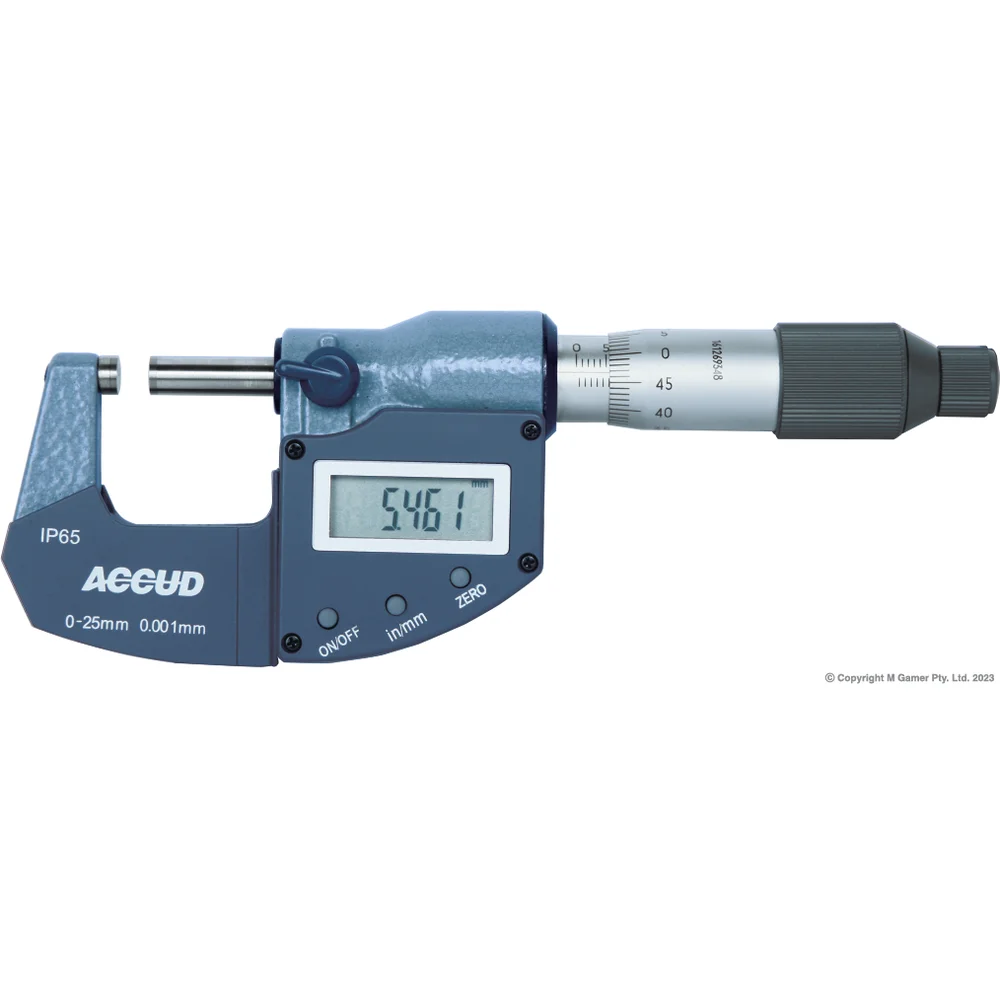

Accud Digital Outside Micrometer — 0–25mm IP65
Part No: AC-313-001-02 | Barcode: 9346967028970 | Series: Accud 313 Digital Micrometers IP65
The Accud AC-313-001-02 is a coolant-proof IP65 digital outside micrometer covering 0–25mm at 0.001mm resolution with ±2µm accuracy. Carbide measuring faces and a sealed housing let you work through coolant mist and swarf without losing the display or corroding the gauge.
0–25mm / 0–1″
0.001mm Resolution
±2µm Accuracy
IP65 Rated
Carbide Faces
Data Output
Compatible Work
Coolant Environments
Precision Machining
Critical Inspection
Hardened Steel
Interrupted Surfaces
Key Features & Benefits
- IP65 sealed housing — protected against coolant spray, swarf and workshop contaminants; safe to use directly at the machine without removing the part.
- 0.001mm digital resolution — ten times finer than a mechanical micrometer; ideal for close-tolerance work and critical inspection.
- Tungsten-carbide measuring faces — harder than steel anvil faces; holds calibration across thousands of measurement cycles.
- Data output & functions — zero, origin, ABS, hold, mm/inch and data-export connection; integrate with SPC logging or statistical records.
- Dual scale display — switch between metric and imperial without conversion at the press of a button.
- ±2µm accuracy — tighter than mechanical AC-321 series; use when a 10µm read isn’t good enough.
When to Use the AC-313-001-02
Reach for the AC-313 when you need sub-micron repeatability or you’re working around coolant and swarf where a mechanical mic would need constant wiping. For general-purpose outside measurement where 0.01mm is enough, the AC-321-001-01 mechanical mic is lighter, battery-free and lower cost. The AC-313 steps up the accuracy, resolution and sealing when the job demands it.
Pro Tip: Always zero an IP65 digital mic against a known gauge block at the start of a session and again after any handling that might have stressed the frame — digital electronics don’t drift, but a bumped frame does. The zero reference against a block catches mechanical shifts the display can’t show.
Product Specifications
| Part No. | Type | Range | Resolution | Accuracy | Barcode |
|---|---|---|---|---|---|
| AC-313-001-02 ★ | Digital IP65 | 0-25mm | 0.001mm | ±2µm | 9346967028970 |
| AC-321-001-01 | Mechanical Outside | 0-25mm | 0.01mm | ±4µm | 9346967024965 |
| AC-321-002-01 | Mechanical Outside | 25-50mm | 0.01mm | ±4µm | 9346967024972 |
| AC-321-003-01 | Mechanical Outside | 50-75mm | 0.01mm | ±4µm | 9346967024989 |
| AC-321-003-03 | Mechanical Outside Set | 0-75mm (3pc) | 0.01mm | ±4µm | 9346967024996 |
| AC-352-024-01 | Tubular Inside Set | 50-600mm | 0.01mm | (3+n+L/50)µm | 9346967024934 |
| AC-391-006-01 | Depth | 0-150mm | 0.01mm | ±3µm | 9346967024958 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
