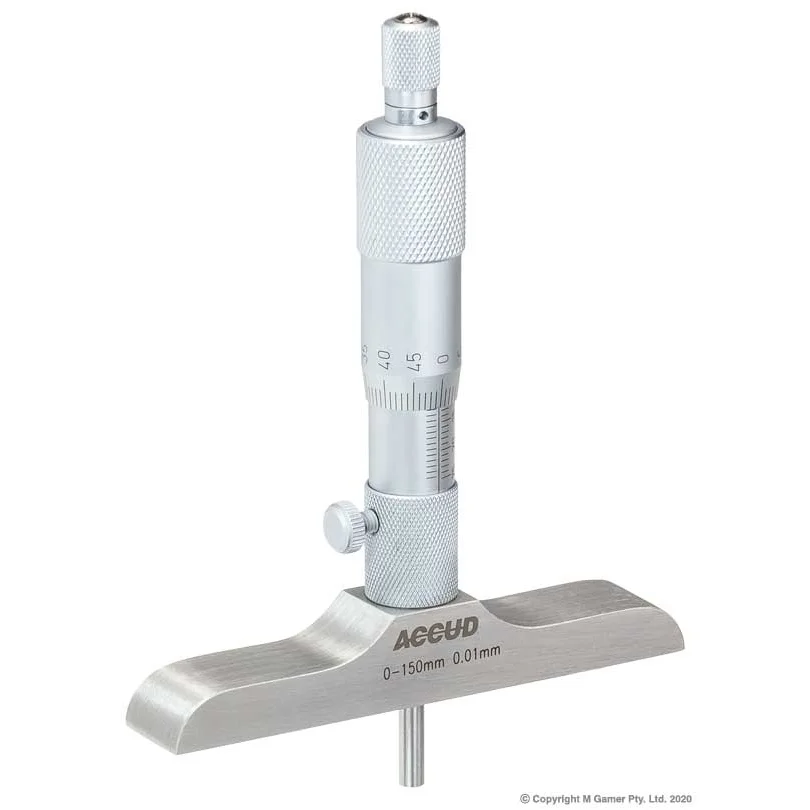

Accud Depth Micrometer — 0–150mm
Part No: AC-391-006-01 | Barcode: 9346967024958 | Series: Accud 391 Depth Micrometers
The Accud AC-391-006-01 is a precision depth micrometer covering 0–150mm at ±3µm accuracy. Ground-flat base, interchangeable measuring rods and ratchet stop — built for measuring the depth of bored holes, slots, shoulders and recesses to tight tolerances.
0–150mm Range
0.01mm Graduation
±3µm Head Accuracy
101.5mm Base Span
Interchangeable Rods
Ratchet Stop
Compatible Work
Drilled Holes
Milled Slots
Machined Shoulders
Countersink Depth
Precision Inspection
Key Features & Benefits
- 101.5mm x 17mm flat base — ground true to give a stable reference surface spanning both sides of the hole or slot; won’t rock like a ruler end.
- Interchangeable measuring rods — swap rods to cover the 0–150mm range in nominal steps; each rod takes up where the previous stops.
- ±3µm head accuracy — the mic head itself reads to ±3µm; rod accuracy adds (2+L/75)µm depending on length.
- Ratchet stop — consistent measuring pressure at the rod tip, which matters for depth measurement where hand force varies readings.
- 0.01mm graduation — vernier thimble reading to 10µm; sufficient for most fabrication and machining depth work.
- Hardened/ground rods — precise diameter-matched rods that don’t skew the reading by interacting with the hole sidewall.
When to Use the AC-391-006-01
Reach for the AC-391 depth mic when measuring the depth of a hole, slot or shoulder to precision tolerances — tapped-hole depth, countersink depth, milled pocket depth, or step-shoulder heights on turned or machined parts. A depth-gauge rule is quicker for rough checks; the depth mic is for the critical dimension.
Pro Tip: When measuring a blind-hole depth, clean the bottom of the hole first — a single chip trapped at the bottom reads the chip, not the hole depth. Blow or pick out the chip before measuring; a depth mic is as accurate as the cleanliness of the surface it contacts.
Product Specifications
| Part No. | Type | Range | Resolution | Accuracy | Barcode |
|---|---|---|---|---|---|
| AC-313-001-02 | Digital IP65 | 0-25mm | 0.001mm | ±2µm | 9346967028970 |
| AC-321-001-01 | Mechanical Outside | 0-25mm | 0.01mm | ±4µm | 9346967024965 |
| AC-321-002-01 | Mechanical Outside | 25-50mm | 0.01mm | ±4µm | 9346967024972 |
| AC-321-003-01 | Mechanical Outside | 50-75mm | 0.01mm | ±4µm | 9346967024989 |
| AC-321-003-03 | Mechanical Outside Set | 0-75mm (3pc) | 0.01mm | ±4µm | 9346967024996 |
| AC-352-024-01 | Tubular Inside Set | 50-600mm | 0.01mm | (3+n+L/50)µm | 9346967024934 |
| AC-391-006-01 ★ | Depth | 0-150mm | 0.01mm | ±3µm | 9346967024958 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
