Accud Tubular Inside Micrometer Set — 50–600mm
Part No: AC-352-024-01 | Barcode: 9346967024934 | Series: Accud 352 Tubular Inside Micrometer
The Accud AC-352-024-01 is a tubular inside micrometer set covering 50–600mm in 13mm head increments via six extension rods. Carbide measuring faces, setting standards included — the precision instrument for large-bore inside measurement where calipers run out of reach.
50–600mm Range
13mm Head Travel
0.01mm Graduation
6 Extension Rods
Carbide Faces
Setting Standards Inc.
Compatible Work
Large Bores
Engine Blocks
Hydraulic Cylinders
Fabricated Housings
Machined Castings
Key Features & Benefits

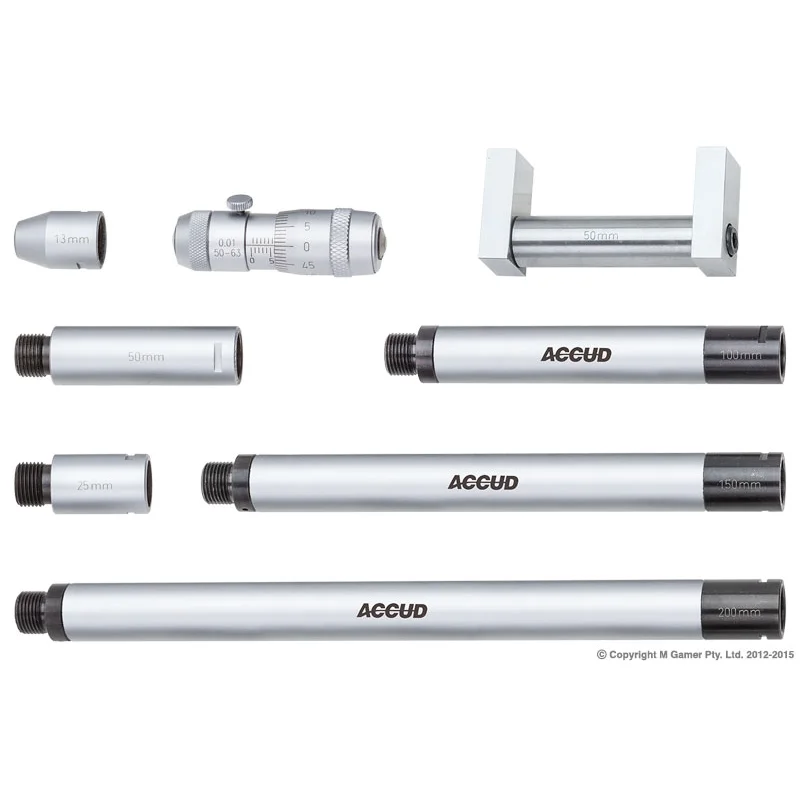

- Tubular extension rods — 13, 25, 50, 100, 150 & 200mm rods thread onto the micrometer head to build up to any bore size in the 50–600mm range.
- 13mm head travel — fine vernier adjustment at each rod combination; the total measurement is rod + head reading.
- Carbide measuring faces — withstand scraping and wear from repeated contact with cast-iron and hardened bore walls.
- Setting standards included — verify each rod combination against the supplied reference before measuring the bore; catches rod thread inconsistency.
- Accuracy formula: (3+n+L/50)µm — where n is rod count and L is measuring length; approximately ±5–15µm across the range depending on configuration.
- Rigid fabricated construction — won’t flex in deep bores where stiffness matters for the true diameter reading.
When to Use the AC-352-024-01
Reach for the AC-352 set when measuring inside diameters larger than an inside caliper can reach or an inside micrometer head alone can span — engine blocks, hydraulic cylinders, pump housings, large bearing bores. For smaller bores up to 25mm see the AC-313 IP65 digital mic; for bores 25–50mm the AC-321 series mechanical mics.
Pro Tip: When building up a rod combination, tighten each rod-to-rod joint firmly by hand but don’t use pliers — over-torquing warps the thread and throws the reading out. If the accuracy drifts over time, it’s usually the rod joints accumulating small amounts of grit; disassemble, wipe each thread clean, and reassemble for a reset.
Product Specifications
| Part No. | Type | Range | Resolution | Accuracy | Barcode |
|---|---|---|---|---|---|
| AC-313-001-02 | Digital IP65 | 0-25mm | 0.001mm | ±2µm | 9346967028970 |
| AC-321-001-01 | Mechanical Outside | 0-25mm | 0.01mm | ±4µm | 9346967024965 |
| AC-321-002-01 | Mechanical Outside | 25-50mm | 0.01mm | ±4µm | 9346967024972 |
| AC-321-003-01 | Mechanical Outside | 50-75mm | 0.01mm | ±4µm | 9346967024989 |
| AC-321-003-03 | Mechanical Outside Set | 0-75mm (3pc) | 0.01mm | ±4µm | 9346967024996 |
| AC-352-024-01 ★ | Tubular Inside Set | 50-600mm | 0.01mm | (3+n+L/50)µm | 9346967024934 |
| AC-391-006-01 | Depth | 0-150mm | 0.01mm | ±3µm | 9346967024958 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
