Makita

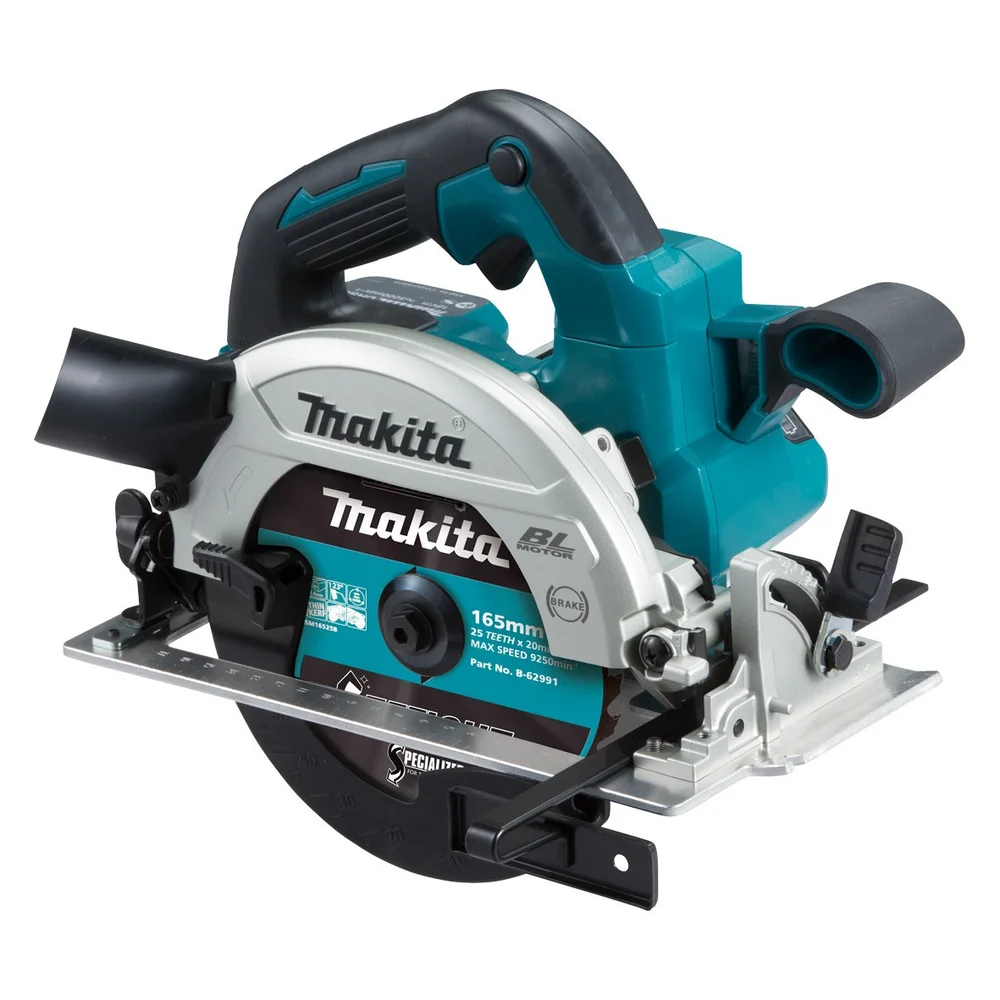

18V LXT Brushless 165 mm Circular Saw — 57 mm Cut, ADT Technology
Part No: DHS660Z | Barcode: 88381862912
Makita’s DHS660Z is an 18V LXT brushless circular saw with Automatic Torque Drive Technology (ADT) that electronically adjusts cutting speed and torque based on material load. The 165 mm blade delivers 57 mm cut depth at 5,000 RPM with electric brake and 50° bevel capacity.
165 mm Blade
57 mm Cut Depth
5,000 RPM
50° Bevel
ADT Technology
Brushless Motor
18V LXT Platform
Suitable For
Timber Framing
Plywood
MDF
Hardwood
Decking
Sheet Goods
Key Features & Benefits
- Automatic Torque Drive (ADT) — electronically manages power output in real time, adjusting speed and torque to match the material load for consistent cuts without bogging down.
- 5,000 RPM Brushless Motor — delivers fast, clean cuts with longer runtime per charge and consistent power compared to brushed equivalents.
- 57 mm Cut Depth at 90° — handles standard framing timber and sheet goods in a single pass.
- Electric Brake — stops the blade within seconds of releasing the trigger for improved safety and workflow.

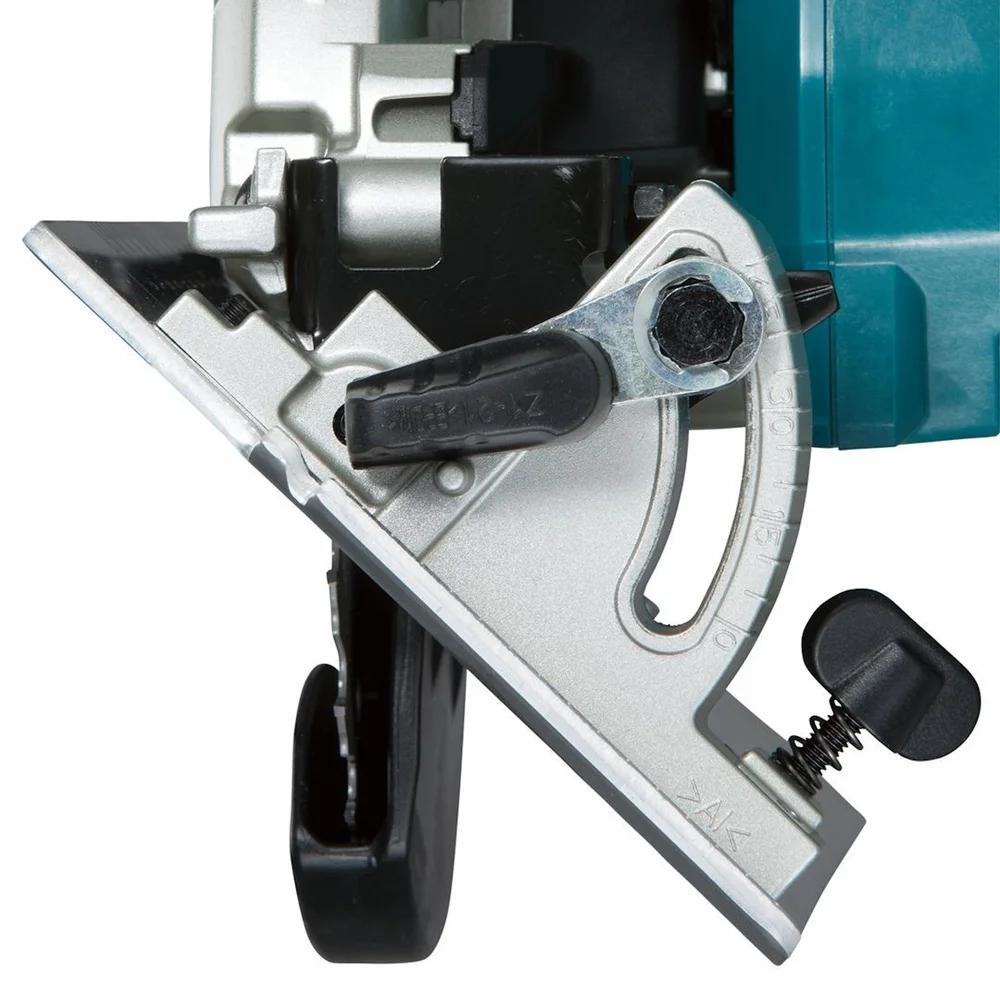

- 50° Bevel Capacity — adjustable beyond 45° for compound angle cuts on rafters and hip beams.
- LED Job Light — illuminates the cut line in low-light conditions for accurate freehand cutting.
When to Use This Circular Saw
The DHS660Z sits between the budget DSS611Z and premium DHS680Z in Makita’s circular saw range. The ADT technology is its standout feature — it automatically adjusts motor output based on material resistance, which means the blade maintains speed through dense knots and hardwood without the operator needing to adjust feed rate. This makes it more forgiving than the DHS680Z for less experienced users while still delivering brushless performance. For guide rail cutting, consider the DHS661ZU instead.
Authorised Australian Dealer — This product is sourced directly from Makita Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Specification | Value |
|---|---|
| Voltage | 18V LXT |
| Blade Diameter | 165 mm |
| Arbor Size | 20 mm |
| Max Cut Depth at 90° | 57 mm |
| Max Cut Depth at 50° | 37 mm |
| Bevel Range | 0–50° |
| No-Load Speed | 5,000 RPM |
| Motor | Brushless (ADT) |
