Description
Milwaukee M18FCSRH66-0 — m18 fuel rear handle circular available at Alltools Geelong. Shop our full m18 fuel rear handle circular range in Geelong.
Milwaukee

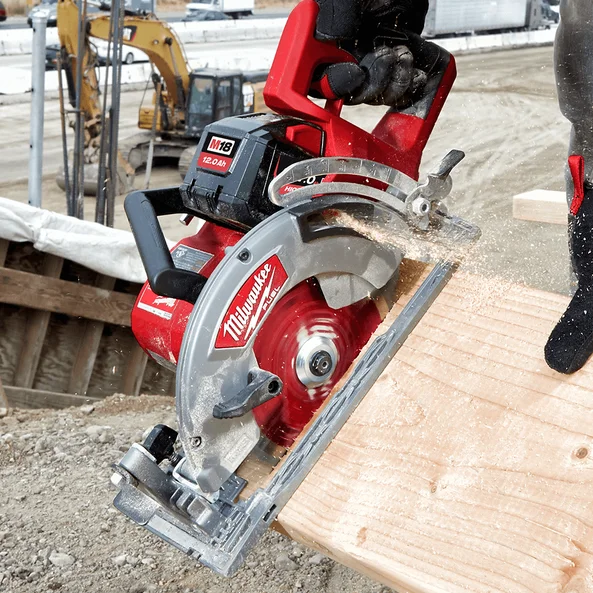

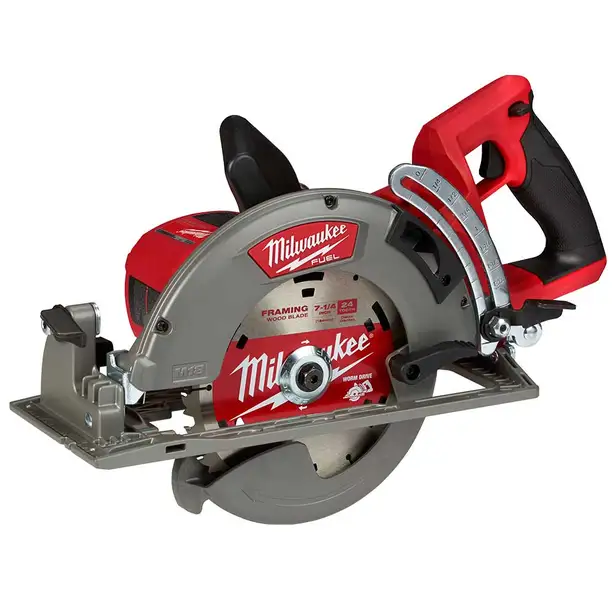

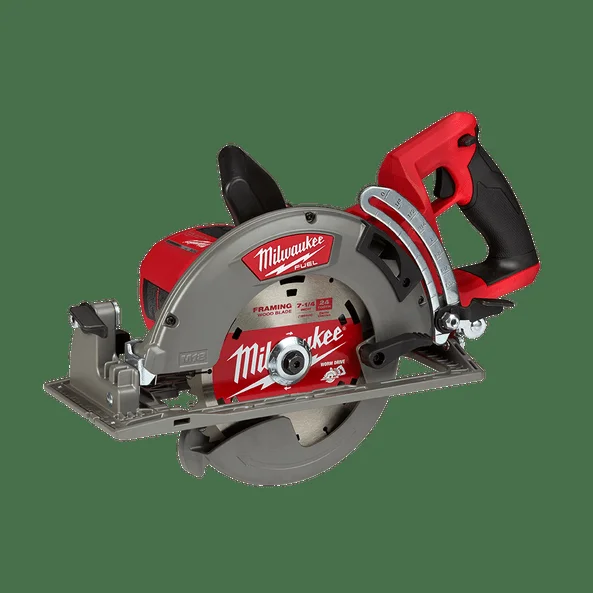

M18 FUEL 184 mm Rear Handle Circular Saw — 66 mm Cut, 5,800 RPM, Blade Left
Part No: M18FCSRH66-0 | Barcode: 4892210199270
Milwaukee’s M18FCSRH66-0 is an 18V FUEL rear handle circular saw with a 190 mm blade, 66 mm cut depth, and 5,800 RPM. The blade-left configuration and rear handle design give excellent cut-line visibility, and the 53° bevel capacity handles the most demanding compound angle cuts in roof framing.
190 mm Blade
66 mm Cut Depth
5,800 RPM
53° Bevel
Rear Handle
Blade Left
18V M18 Platform
Suitable For
Timber Framing
Hardwood
LVL Beams
Plywood
Decking
Roof Framing
Key Features & Benefits
- Rear Handle + Blade Left Design — the traditional rear handle grip and blade-left layout give right-handed operators clear sight of the cut line without leaning over the tool.
- 5,800 RPM POWERSTATE Motor — rips through hardwood and LVL beams at corded-class speed, with up to 570 stud cuts on a 12.0 Ah HIGH OUTPUT battery.
- 66 mm Cut Depth at 90° — handles 90 × 45 mm framing timber, 70 mm rafters, and LVL beams in a single pass.
- 53° Bevel Capacity — goes beyond 50° for the compound angle cuts needed in complex roof framing and hip rafter work.
- Electric Brake — stops the blade quickly for safety and faster workflow between cuts.
- LED Work Light — illuminates the cut line in low-light conditions.
When to Use This Circular Saw
The M18FCSRH66-0 is for framers and carpenters who prefer the traditional rear handle grip style. The blade-left configuration gives right-handed operators the best possible view of the cut line, which matters when precision ripping on a chalk line or following a pencil mark. The rear handle feels more like a corded worm-drive saw, which many experienced framers prefer. For trades who are comfortable with the inline grip, the M18FCS66G30 offers the same cutting specs in a different form factor.
Authorised Australian Dealer — This product is sourced directly from Milwaukee Tool Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Specification | Value |
|---|---|
| Voltage | 18V |
| Blade Diameter | 190 mm |
| Arbor Size | 30 mm |
| Max Cut Depth at 90° | 66 mm |
| Max Cut Depth at 45° | 48 mm |
| Max Cut Depth at 50° | 46 mm |
| Bevel Range | 0–53° |
| No-Load Speed | 5,800 RPM |
| Handle Style | Rear Handle, Blade Left |
| Motor | POWERSTATE Brushless |
| Battery Platform | M18 REDLITHIUM HIGH OUTPUT |
| Warranty | 5 Years |
