Makita

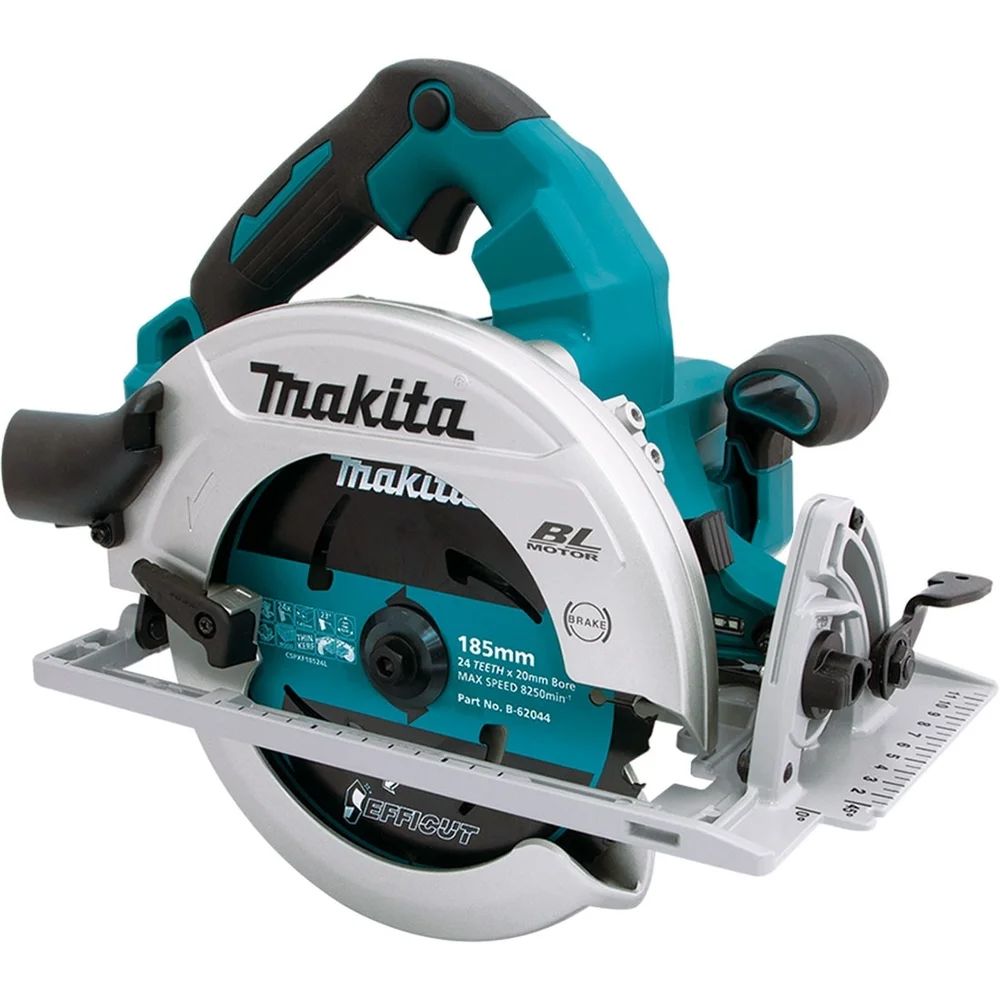

36V (18V×2) Brushless 185 mm Circular Saw — 66 mm Cut, 6,000 RPM
Part No: DHS780Z | Barcode: 88381869126
Makita’s DHS780Z is a 36V (18V×2) brushless circular saw with a 185 mm blade, 66 mm cut depth at 90°, and 6,000 RPM motor. Running on two standard 18V LXT batteries, it delivers corded-class framing saw performance with soft start, electric brake, and 56° bevel capacity.
185 mm Blade
66 mm Cut Depth
6,000 RPM
56° Bevel
Soft Start
Brushless Motor
36V (18V×2)
Suitable For
Timber Framing
Hardwood
Plywood
LVL Beams
Decking
Sheet Goods
Key Features & Benefits
- 66 mm Cut Depth at 90° — handles 90 × 45 mm framing timber in a single pass, with capacity for thicker stock and LVL beams.
- 36V (18V×2) Brushless Motor at 6,000 RPM — two 18V batteries deliver corded-class cutting speed without a separate battery platform or generator.
- 56° Bevel Capacity — goes beyond standard 45° for compound mitre cuts on rafters, hip beams, and complex roof framing.
- Soft Start — gradual blade acceleration for controlled, safe startup without sudden kickback.
- Electric Brake — stops the blade quickly after releasing the trigger, improving safety and workflow.
- Dual 18V Battery System — uses the same LXT batteries as your other Makita tools — no separate charger or platform needed.
When to Use This Circular Saw
The DHS780Z is Makita’s answer for framers and site carpenters who need a full-size circular saw without the cord. The 185 mm blade and 66 mm cut depth handle the same timber sections as a corded 185 mm saw, and the 6,000 RPM brushless motor cuts at comparable speed. The dual-battery 36V system means you do not need to invest in a separate battery platform — use your existing LXT 18V packs. For lighter cutting tasks where 57 mm depth is sufficient, the single-battery DHS680Z is more compact and lighter.
Authorised Australian Dealer — This product is sourced directly from Makita Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Specification | Value |
|---|---|
| Voltage | 36V (18V×2) |
| Blade Diameter | 185 mm |
| Arbor Size | 30 mm |
| Max Cut Depth at 90° | 66 mm |
| Bevel Range | 0–56° |
| No-Load Speed | 6,000 RPM |
| Weight (bare) | 4.2 kg |
| Motor | Brushless |
